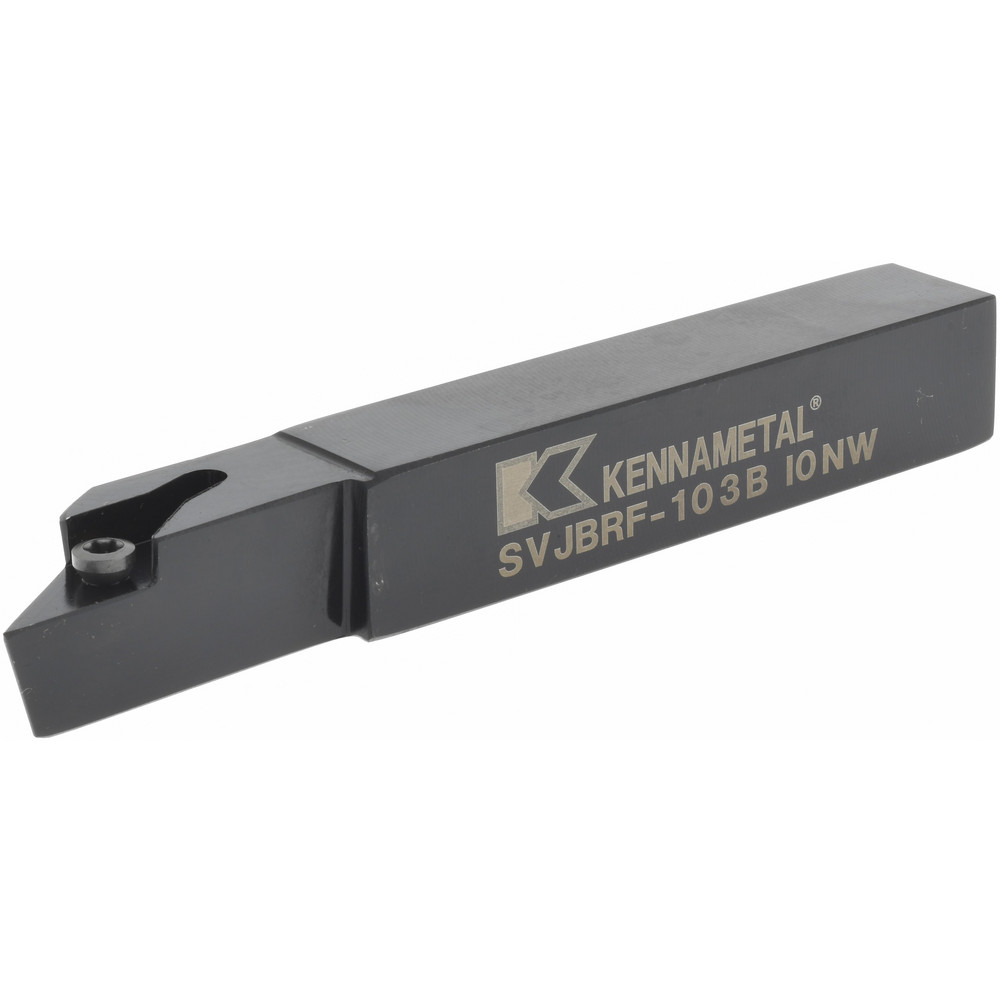

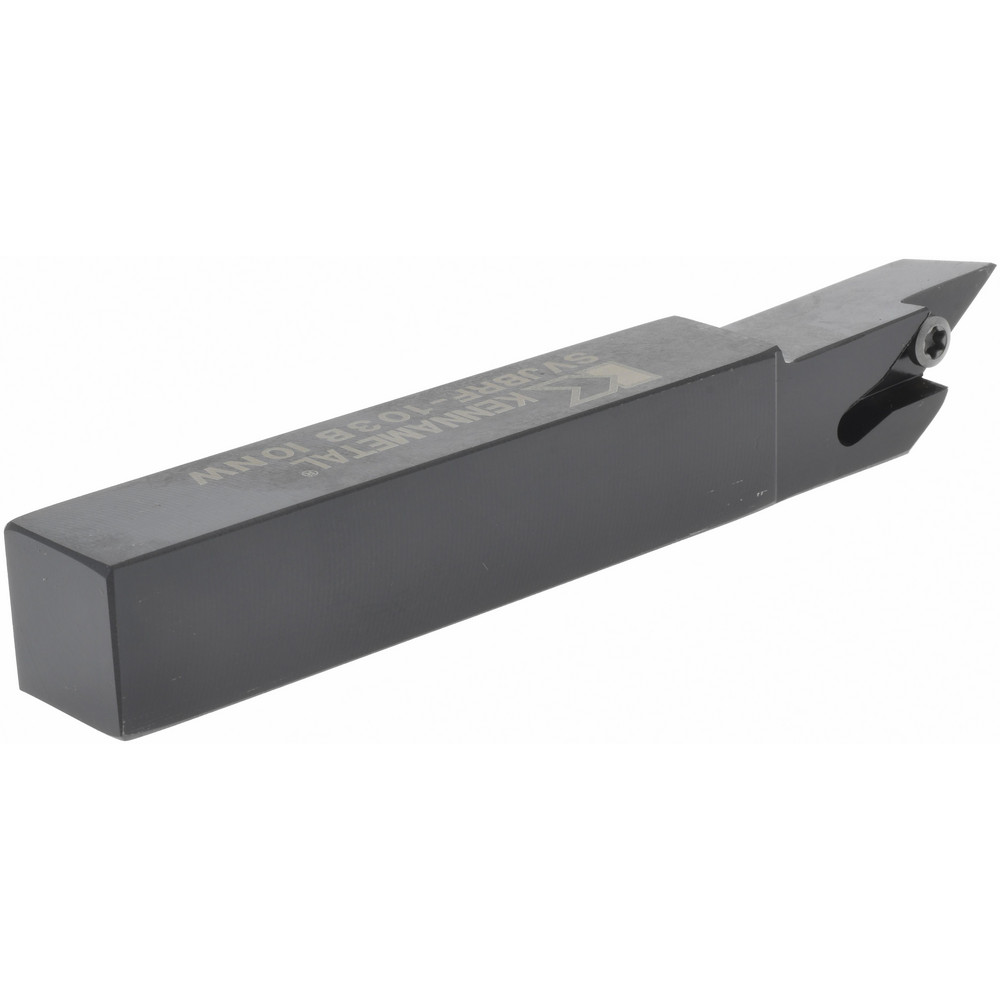

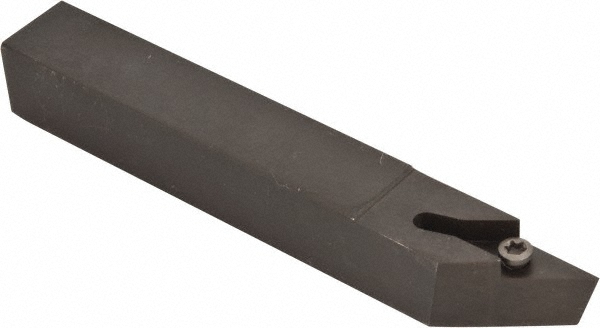

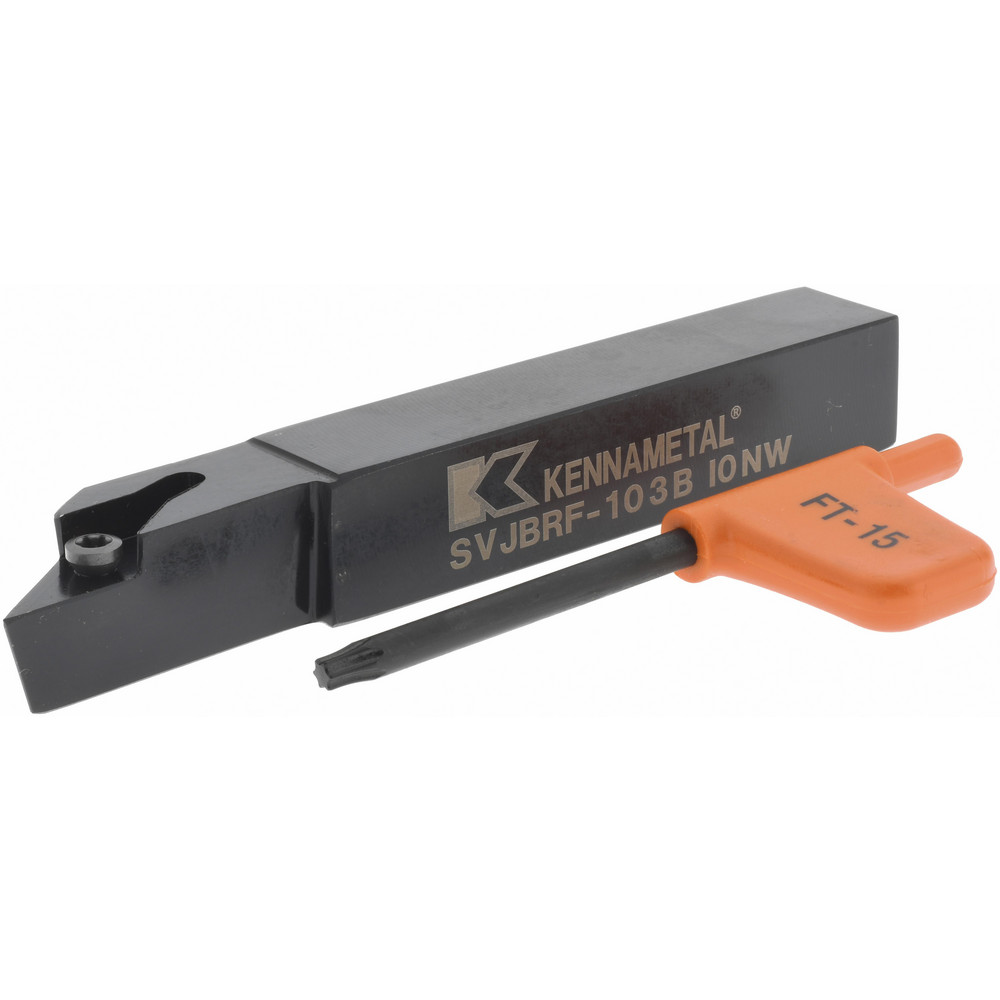

5/8 x 5/8" Shank, 4-1/2" OAL
| Toolholder Style | SVJB |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | VB..33. |
| Insert Holding Method | Screw |
| Shank Width (Inch) | 5/8 |
| Shank Height (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 4.5000 |
| Shank Height (mm) | 15.88 |
| Coolant Through | No |
| Rake | Neutral |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Decimal Inch) | 0.6300 |
| Series | Screw-On |
| Overall Length (Inch) | 4-1/2 |
| Head Length (Decimal Inch) | 1.4400 |
| Back of Bar to Cutting Edge (Inch) | 5/8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6250 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | VB.. 332 |
| UNSPSC Code | 23153308 |
| Coating Classification | Kennametal |
| Manufacturers Catalog Number | LF103B; SVJBR |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 09829193 |
