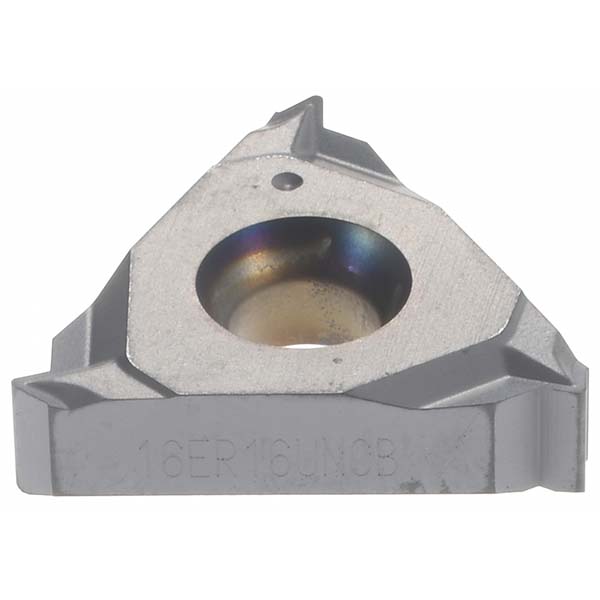

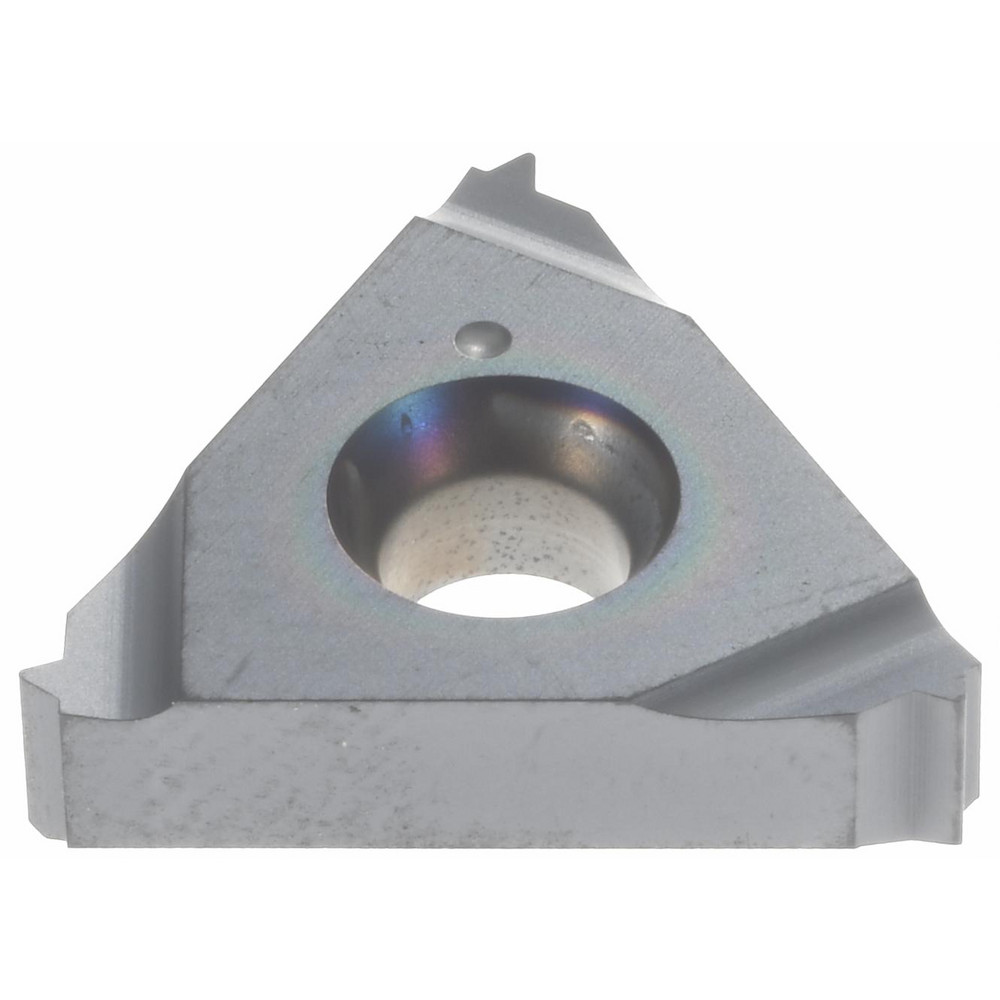

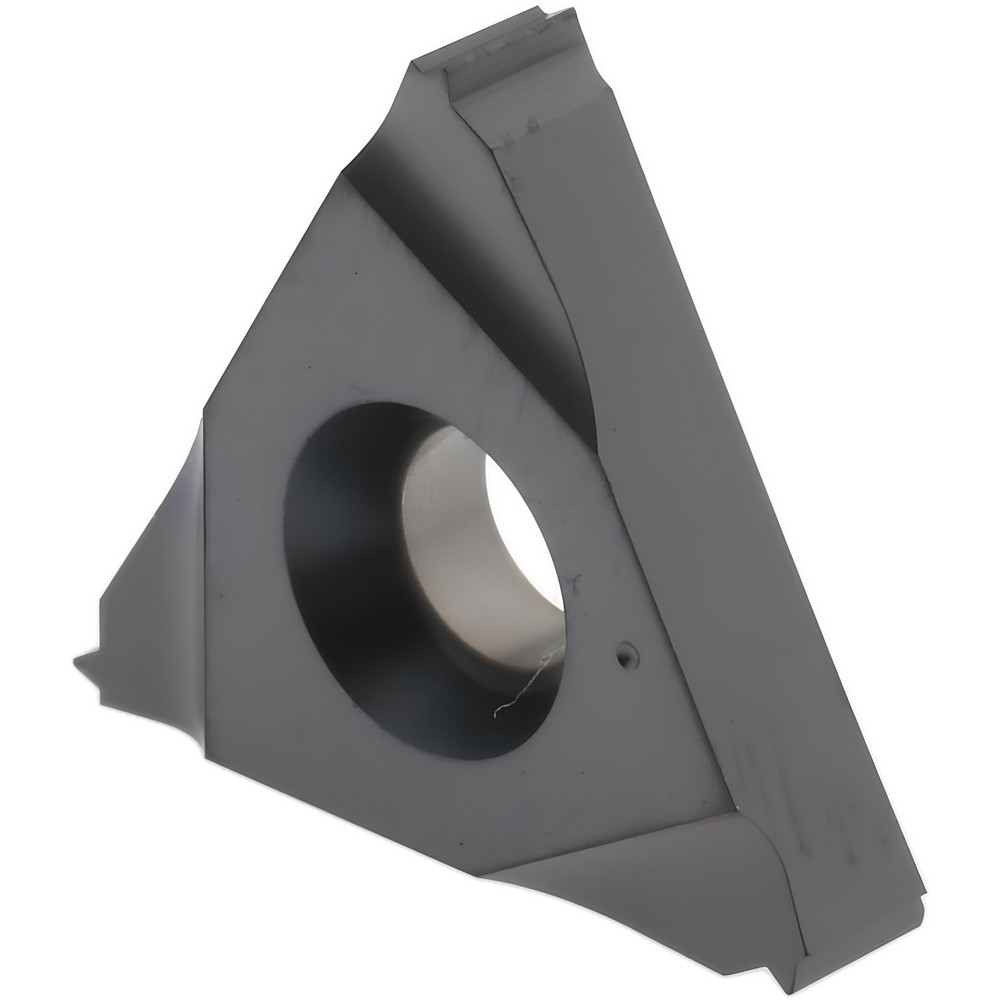

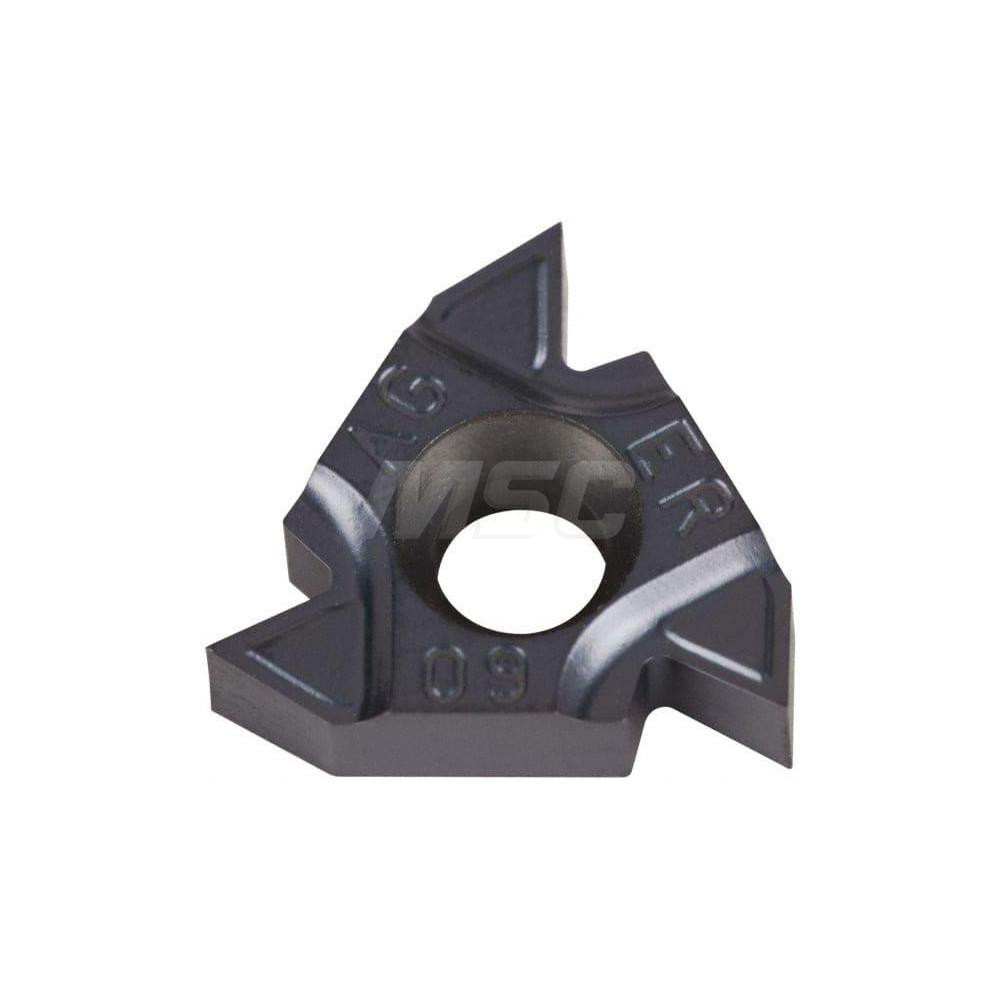

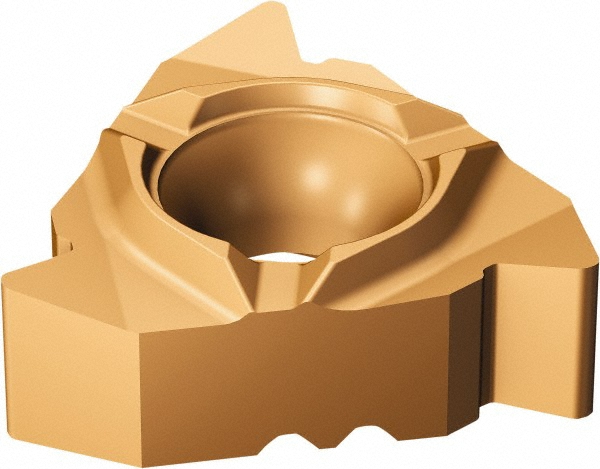

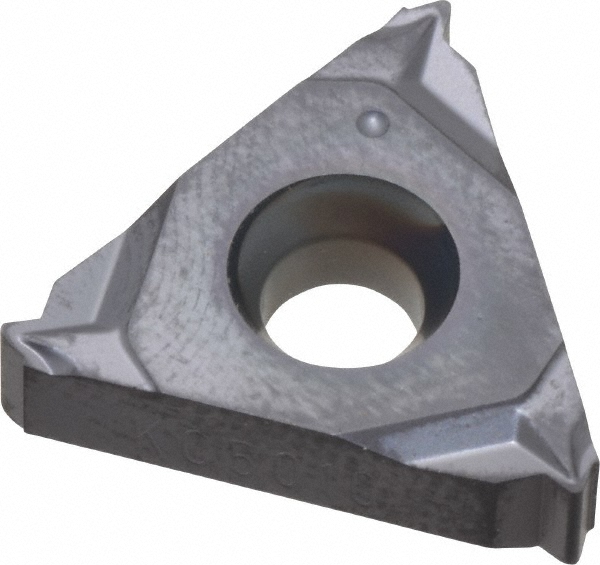

TiAlN Finish, Right Hand, External UN Thread, 16 TPI, 3/8" Inscribed Circle
| Insert Style | ER |
|---|---|
| Insert Size Code | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | KC5010 |
| Threads Per Inch | 16 |
| Thread Type | External |
| Thread Standard | UN |
| Insert Hand | Right Hand |
| Thickness (mm) | 3.44 |
| Chipbreaker | CB |
| Coating Process | PVD |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.94 |
| Hole Diameter (Decimal Inch) | 0.1551 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Iso Code | LT16ER16UNCB |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.0320 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.0310 |
| Manufacturers Catalog Number | LT16ER16UNCB |
| Thickness (Decimal Inch - 4 Decimals) | 0.1430 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291804 |
| Country of Origin | Israel |
| MSC Number | MSC# 00971812 |
