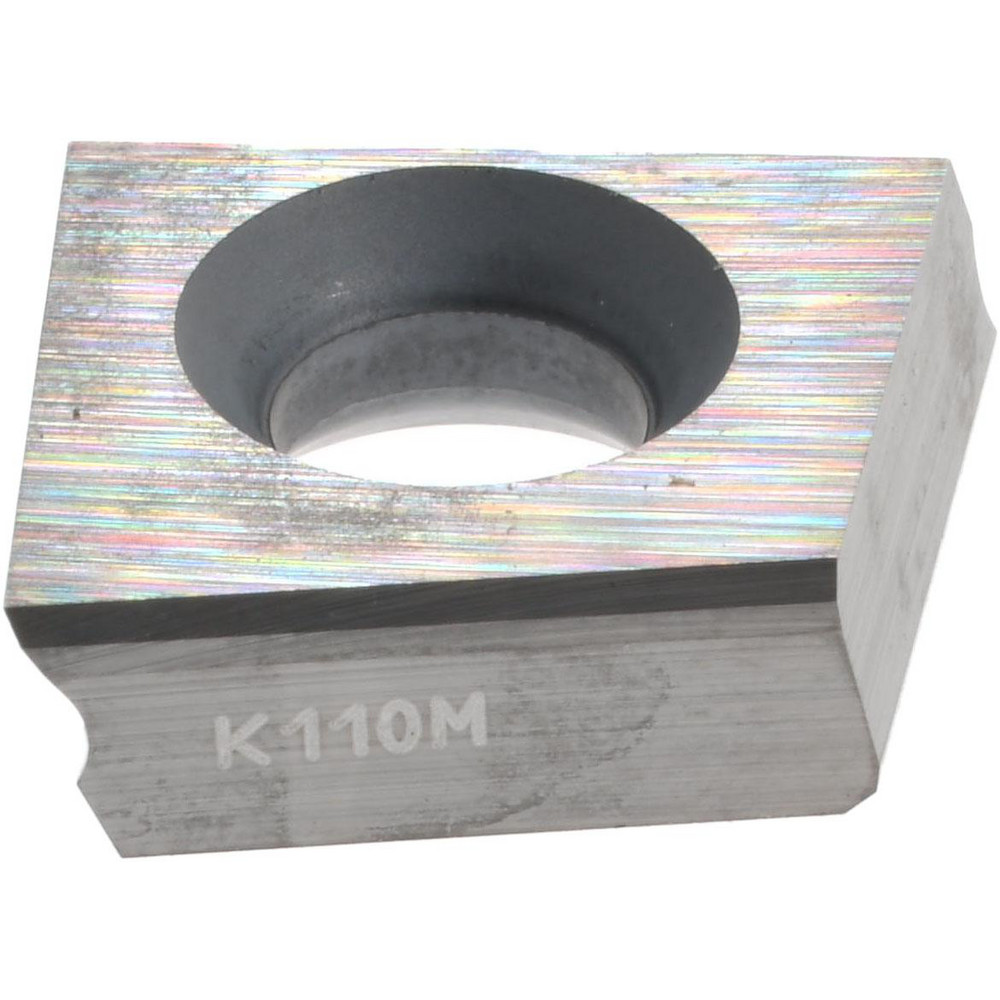

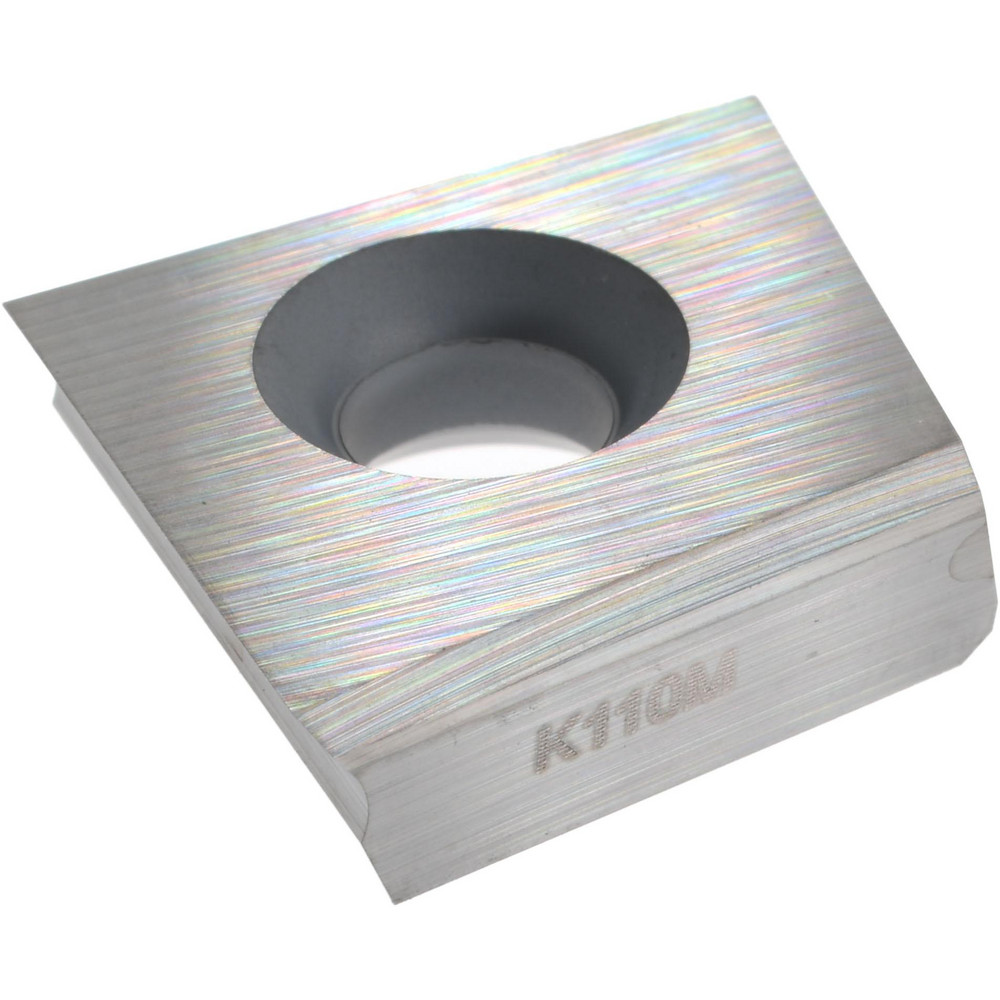

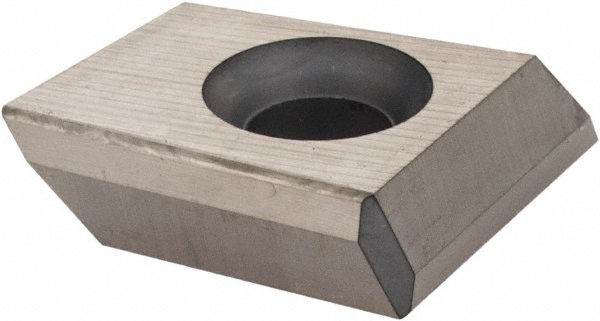

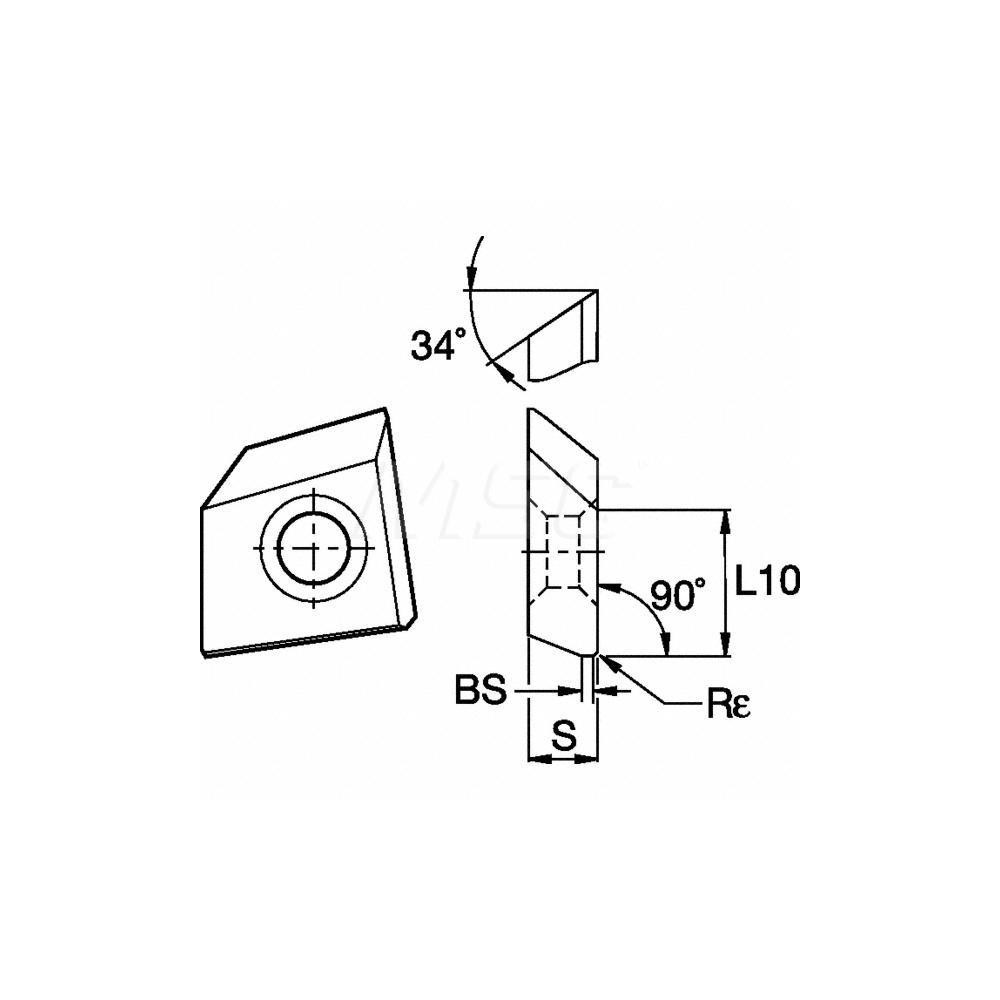

Bright/Uncoated Finish, 0.1969" Thick
| Insert Style | BGHX |
|---|---|
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Irregular |
| Manufacturer Grade | K110M |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1969 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 30.00 |
| Insert Size Code | 15L504 |
| Material Grade | C3; C2 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4134 |
| Series | BGHX |
| Coating Process | Uncoated |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.20 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Ansi Code | BGHX15L504PCFRGG |
| Iso Code | BGHX15L504PCFRGG |
| Standards | ISO; ANSI |
| Rake Angle | 30 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | BGHX15L504PCFRGG |
| Cutter Series Compatibility | Fix-Perfect |
| Chip Breaker | GG |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4134 |
| Country of Origin | Germany |
| MSC Number | MSC# 72627714 |
