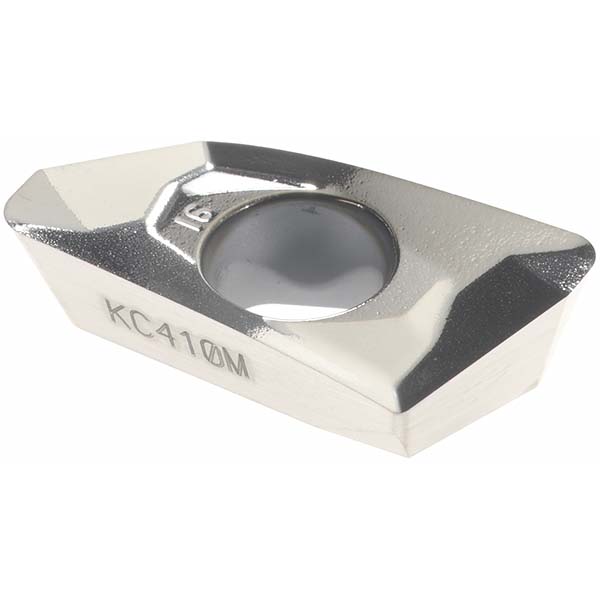

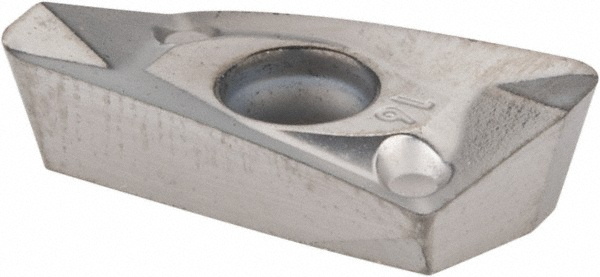

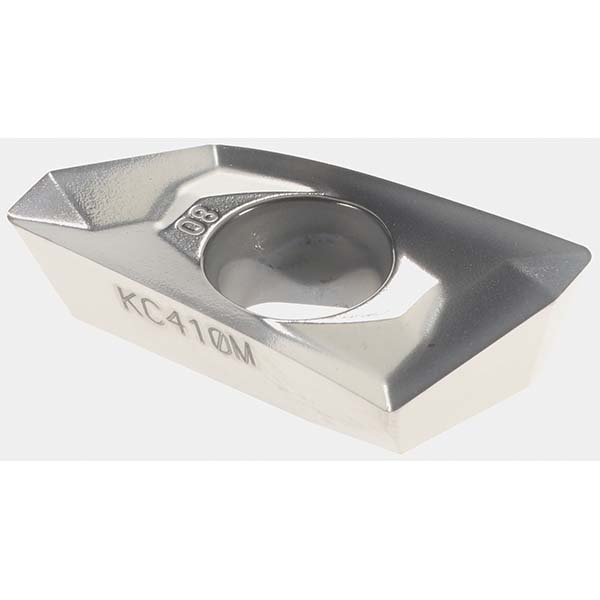

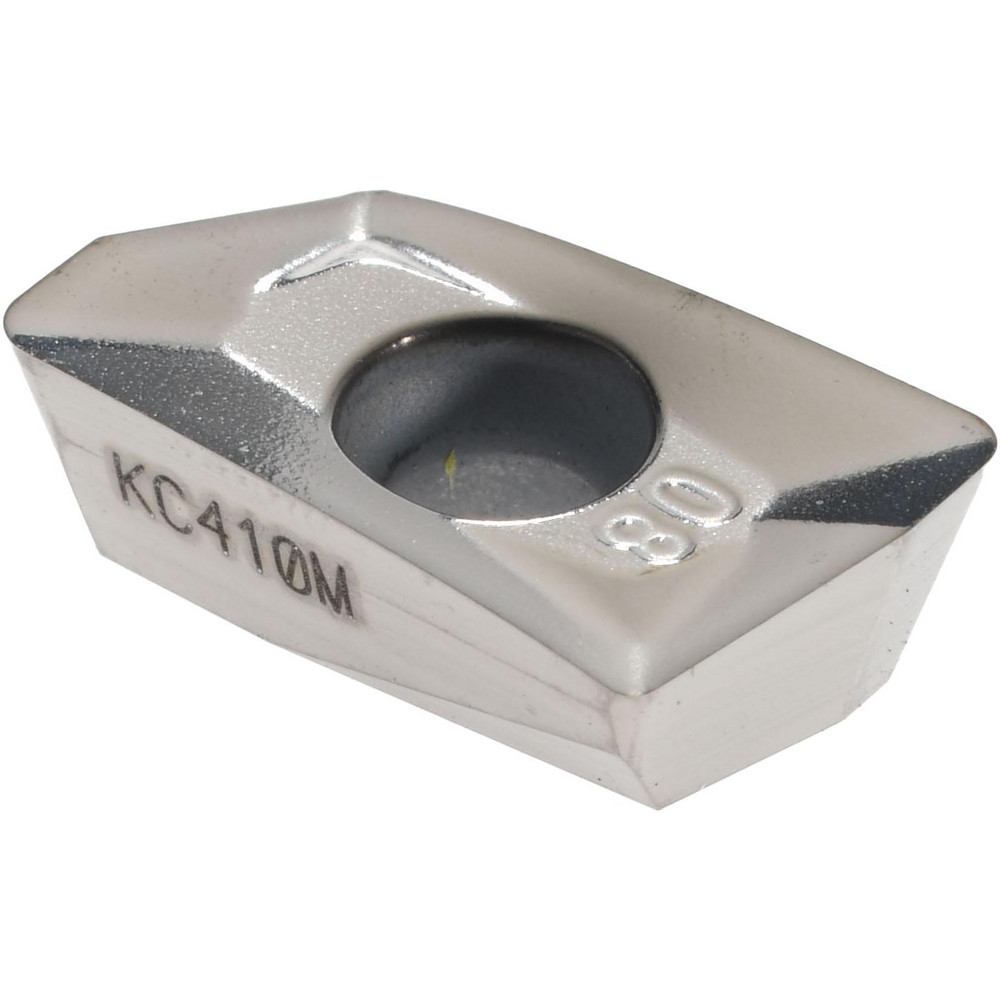

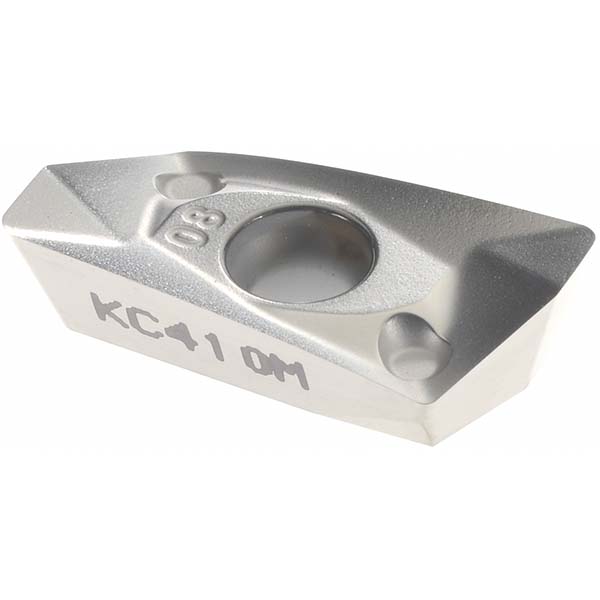

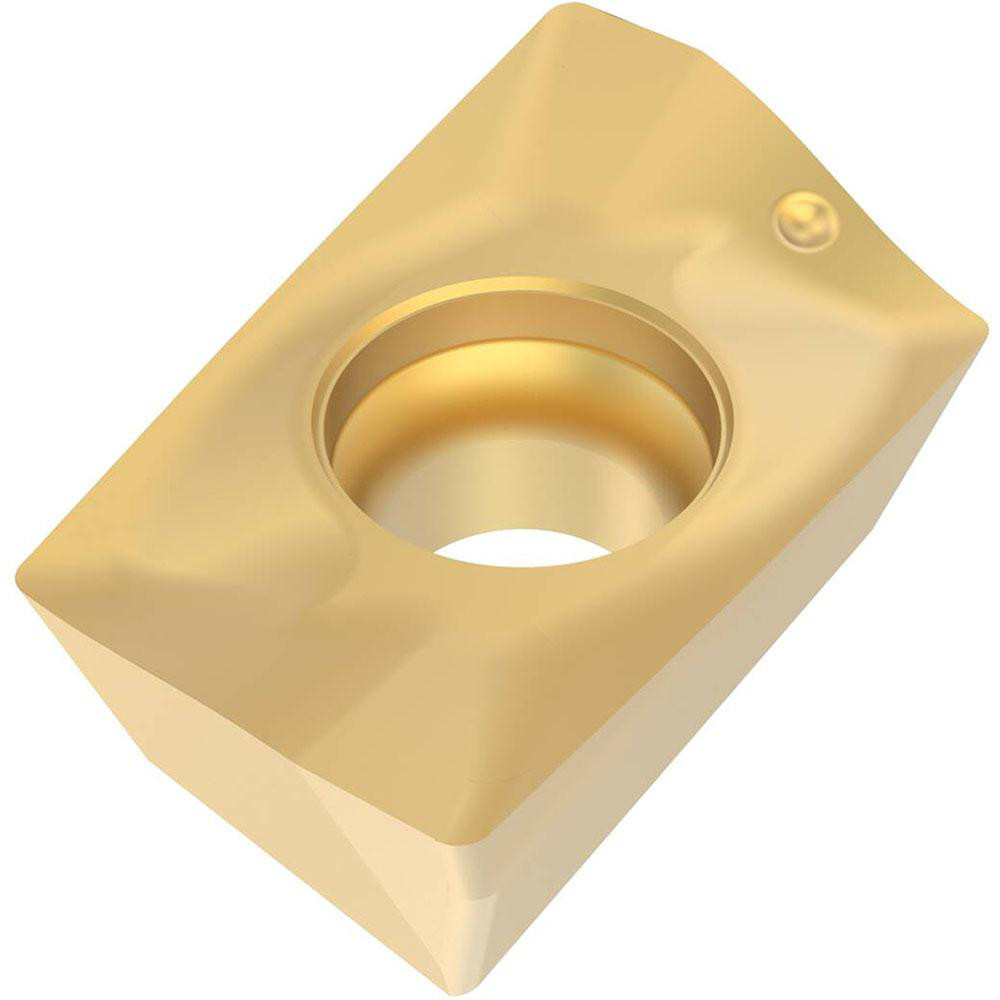

Titanium Diboride Finish, 0.1770" Thick, 0.3334" Wide
| Insert Style | EDCT |
|---|---|
| Insert Size | 14 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KC410M |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1770 |
| Coating/Finish | Titanium Diboride |
| Relief Angle | 15.00 |
| Insert Size Code | 1404 |
| Inscribed Circle (Decimal Inch) | 0.3341 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Series | EDCT |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.13 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | EC1404FLDJ |
| Iso Code | EDCT140404PDFRLDJ |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | EDCT140404PDFRLDJ |
| Cutter Series Compatibility | Mill 1-14 |
| Chip Breaker | LD |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 70 |
| Width (Decimal Inch - 4 Decimals) | 0.3334 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6870 |
| Country of Origin | UNITED STATES |
| Pros | No Pros |
| Cons | No Cons |
| MSC Number | MSC# 01655323 |
