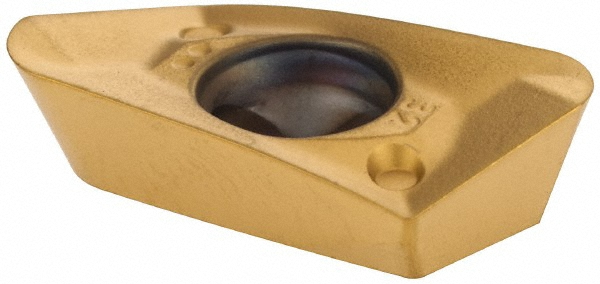

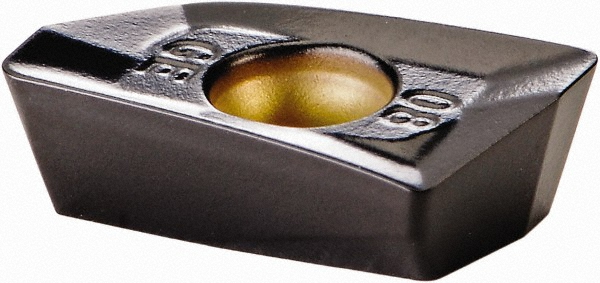

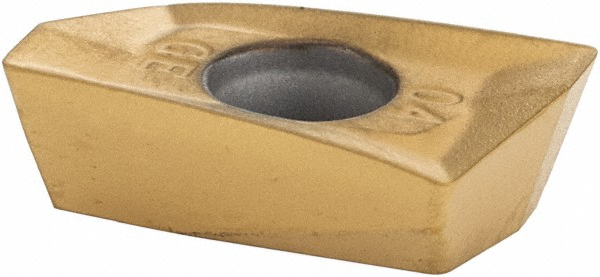

AlTiN Finish, 0.1476" Thick, 0.2653" Wide
| Insert Style | EDPT |
|---|---|
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KC522M |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (mm) | 0.79 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1476 |
| Coating/Finish | AlTiN |
| Relief Angle | 15.00 |
| Insert Size Code | 10T308 |
| Material Grade | C1 |
| Width (Inch) | 17/64 |
| Inscribed Circle (Decimal Inch) | 0.2650 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | EDPT |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.12 |
| Hole Diameter (Decimal Inch) | 0.1181 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | EP1008SGE |
| Iso Code | EDPT10T308PDSRGE |
| Standards | ISO; ANSI |
| Rake Angle | 20 |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | EDPT10T308PDSRGE |
| Cutter Series Compatibility | Mill 1-10 |
| Chip Breaker | GE |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 70 |
| Width (Decimal Inch - 4 Decimals) | 0.2653 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4740 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 58491572 |
