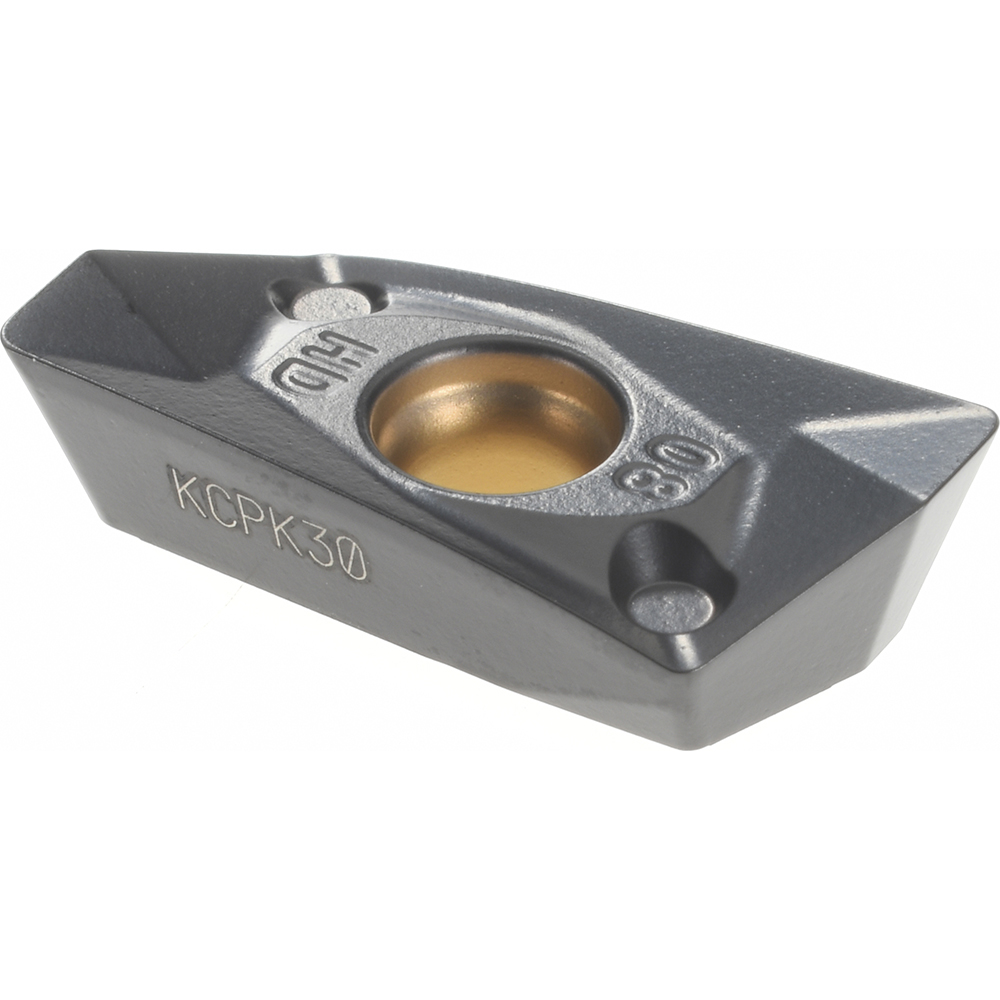

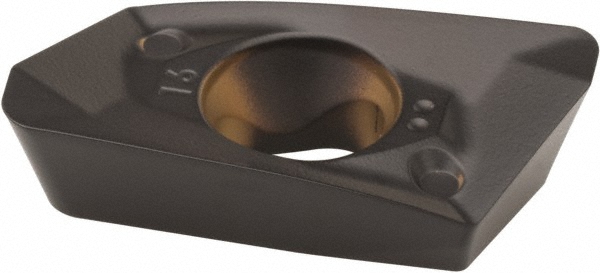

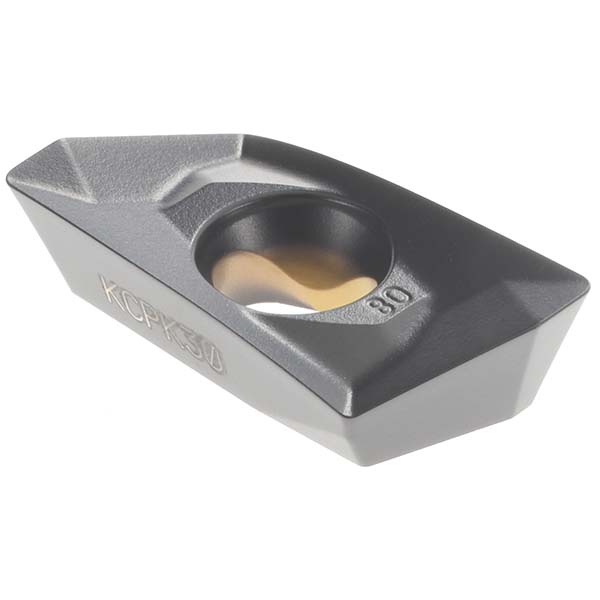

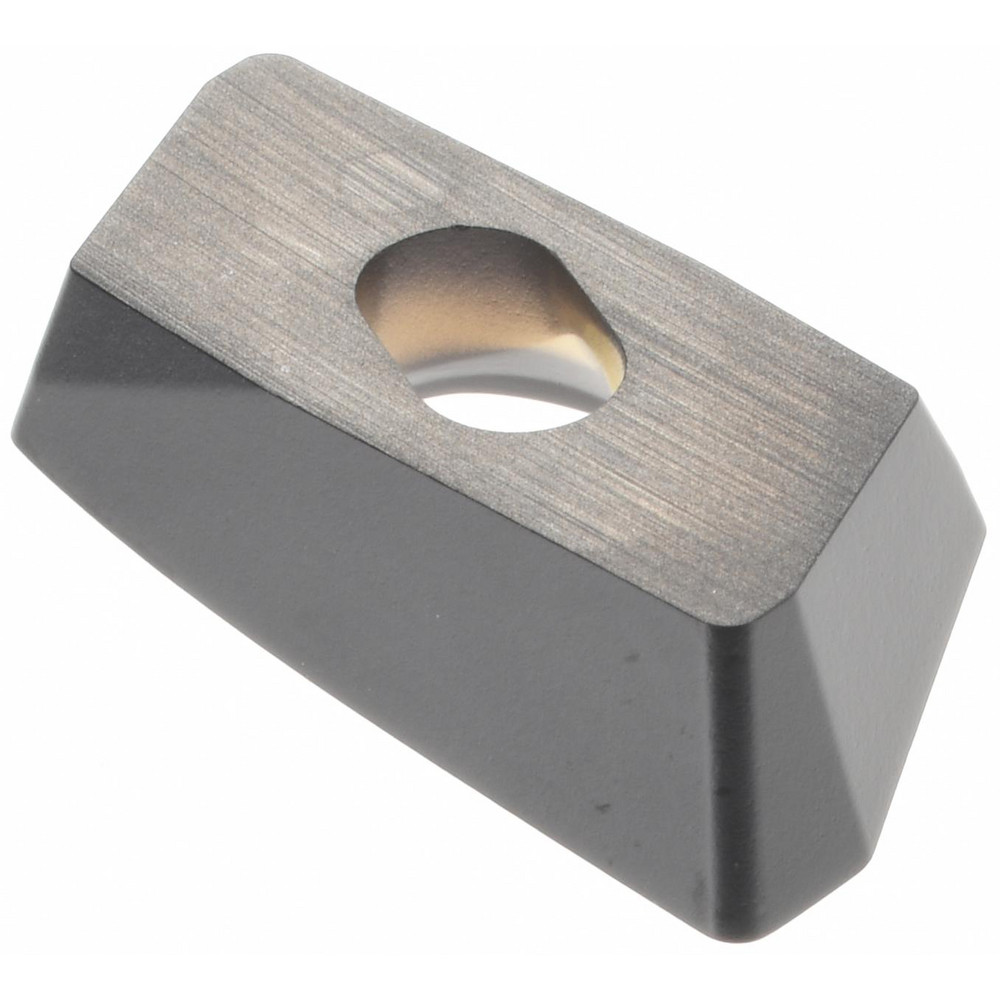

TiN, TiCN & Al2O3 Finish, 0.2170" Thick, 0.4320" Wide
| Insert Style | EDPT |
|---|---|
| Insert Size | 18 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2170 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 15.00 |
| Insert Size Code | 1808 |
| Material Grade | C5; C6; C1 |
| Inscribed Circle (Decimal Inch) | 0.4320 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Series | EDPT |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | EP1808E |
| Iso Code | EDPT180508PDERGD |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | EDPT180508PDERGD |
| Cutter Series Compatibility | Mill 1-18 |
| Chip Breaker | GD |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 70 |
| Width (Decimal Inch - 4 Decimals) | 0.4320 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8570 |
| Country of Origin | UNITED STATES |
