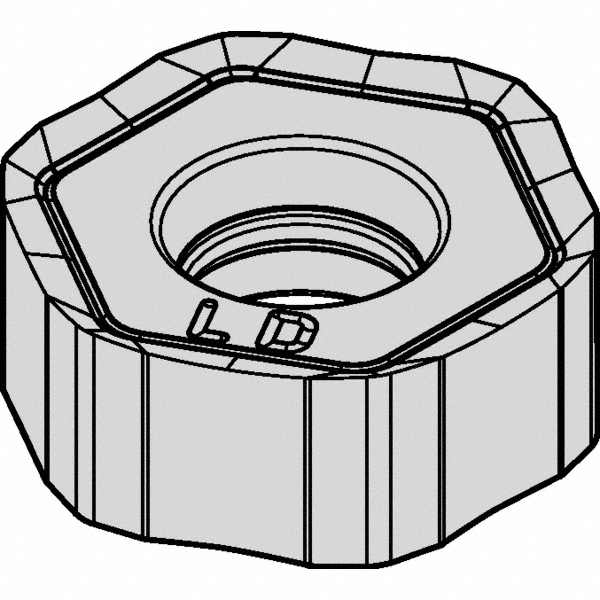

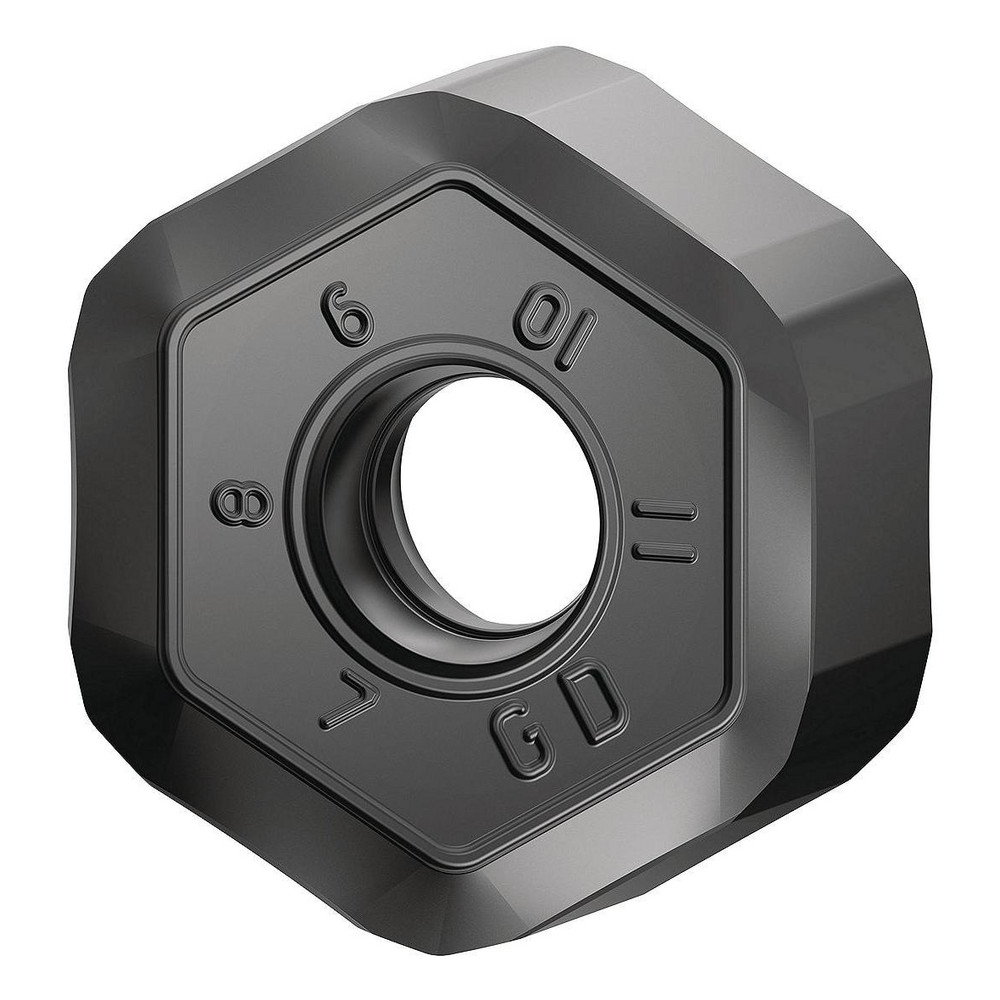

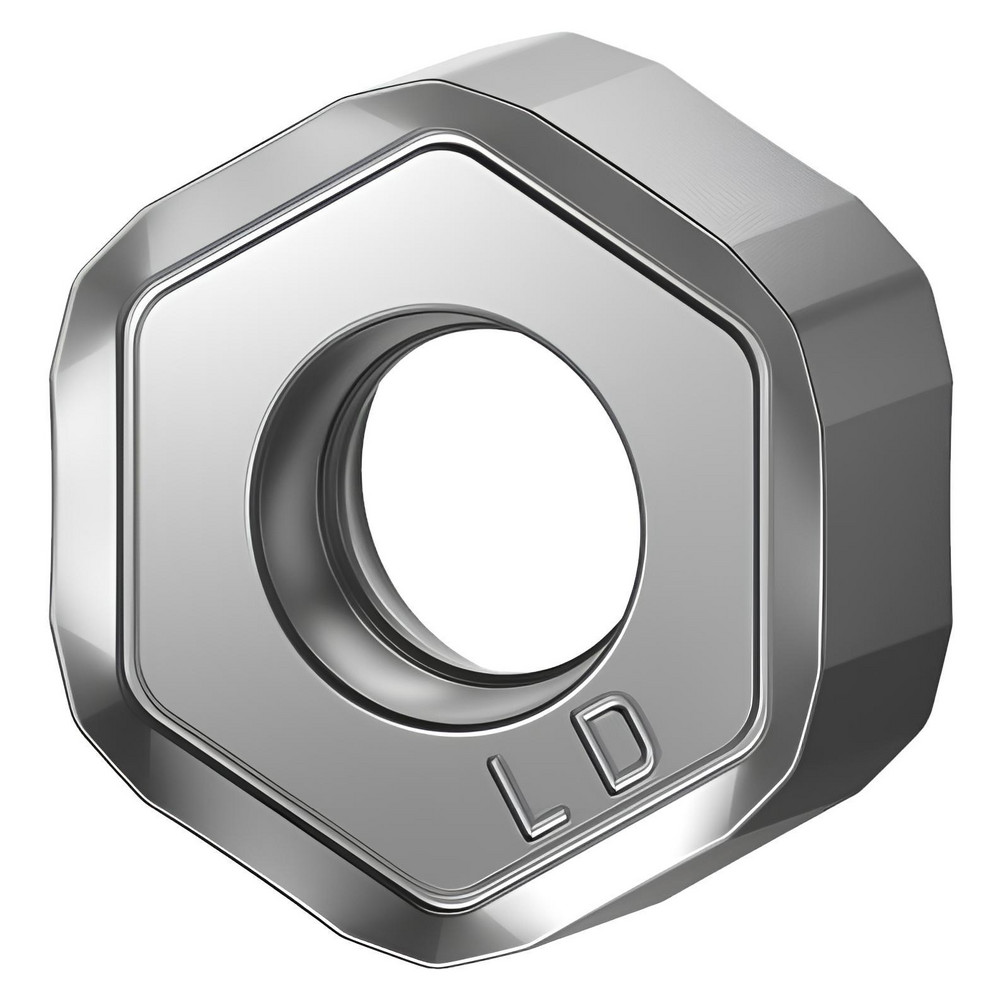

TiAlN & AlCrN Finish, 0.1764" Thick, 0.4724" Wide
| Insert Style | HNGJ |
|---|---|
| Insert Size | 4 |
| Insert Material | Solid Carbide |
| Insert Shape | Hexagon |
| Manufacturer Grade | KCPM40 |

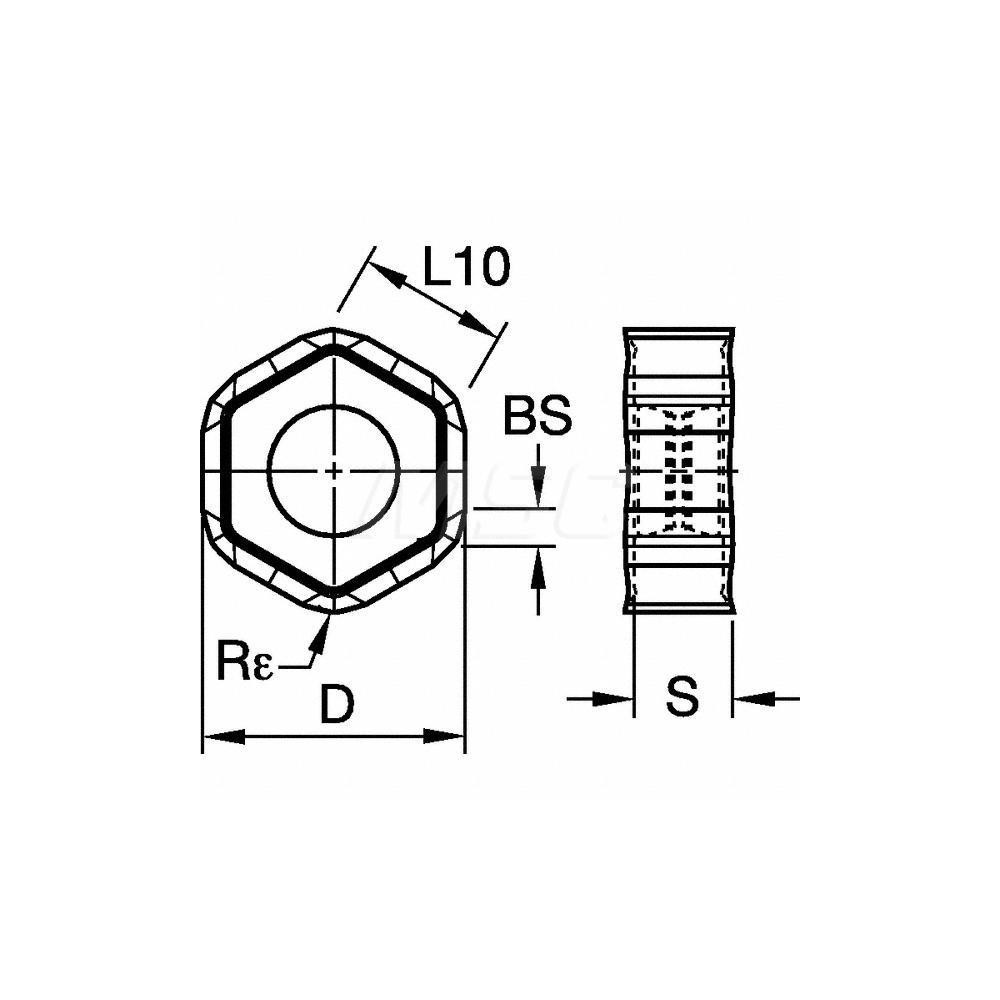

| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 12 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1764 |
| Coating/Finish | AlCrN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 43 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3383 |
| Series | Dodeka Series |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.20 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | HNGJ43ANENLD |
| Iso Code | HNGJ0604ANENLD |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | HNGJ0604ANENLD |
| Cutter Series Compatibility | Dodeka |
| Chip Breaker | LD |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
| Country of Origin | UNITED STATES |
