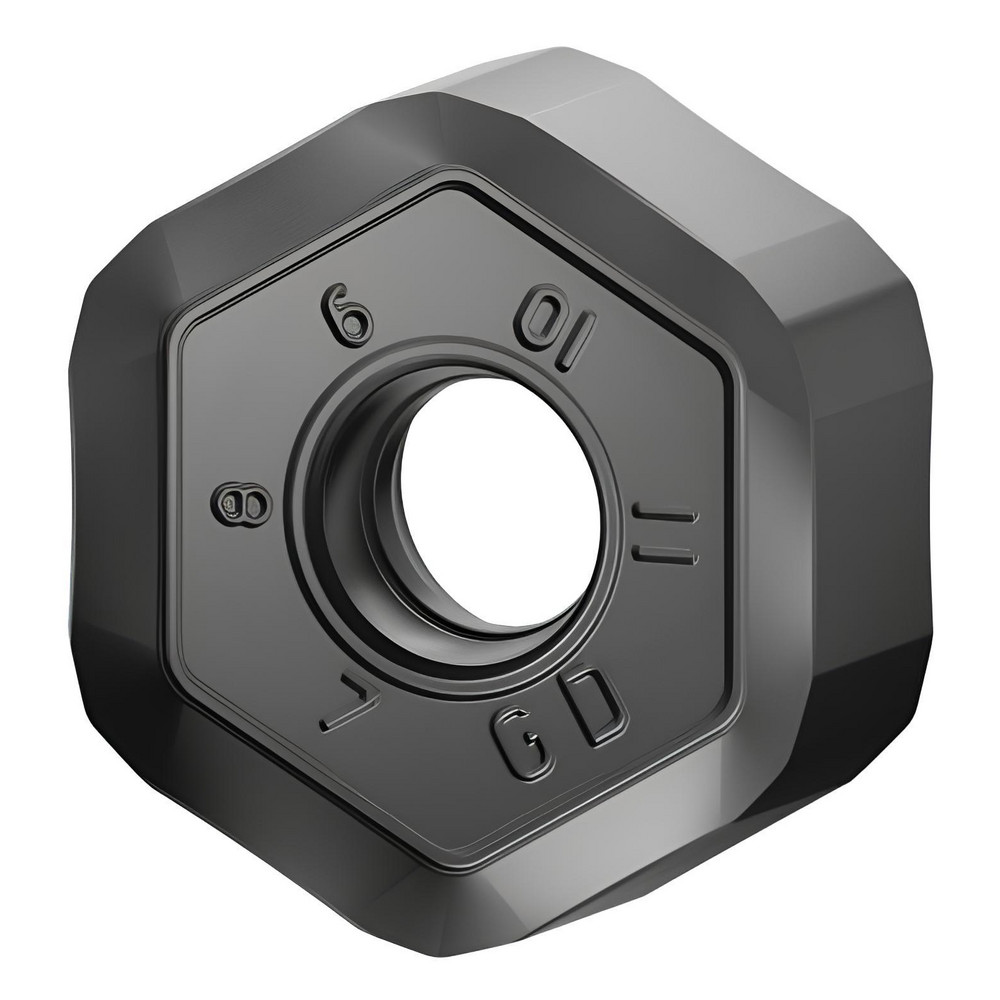

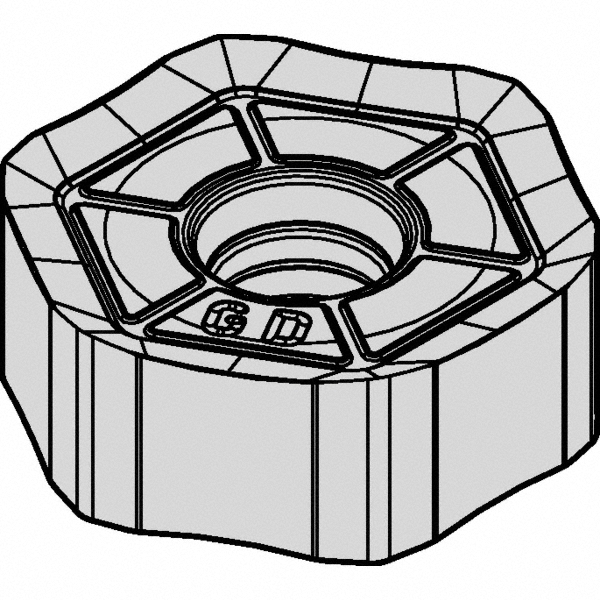

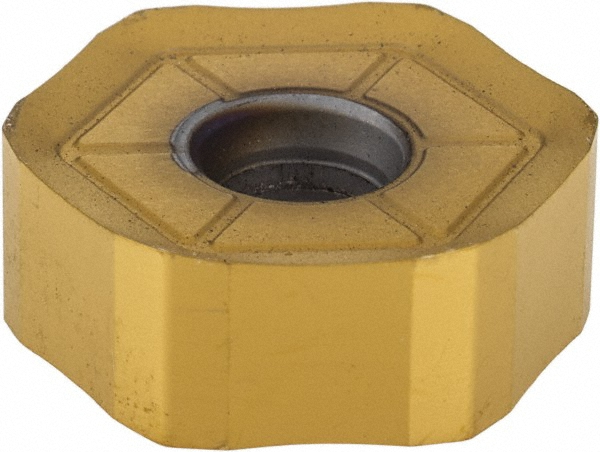

TiAlN & TiN Finish, 0.2188" Thick, 0.6250" Wide
| Insert Style | HNGJ |
|---|---|
| Insert Size | 5 |
| Insert Material | Solid Carbide |
| Insert Shape | Hexagon |
| Manufacturer Grade | KCSM40 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Number Of Cutting Edges | 12 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2188 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 535 |
| Width (Inch) | 5/8 |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3383 |
| Series | Dodeka Series |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | HNGJ535ANSNGD |
| Iso Code | HNGJ0905ANSNGD |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | HNGJ0905ANSNGD |

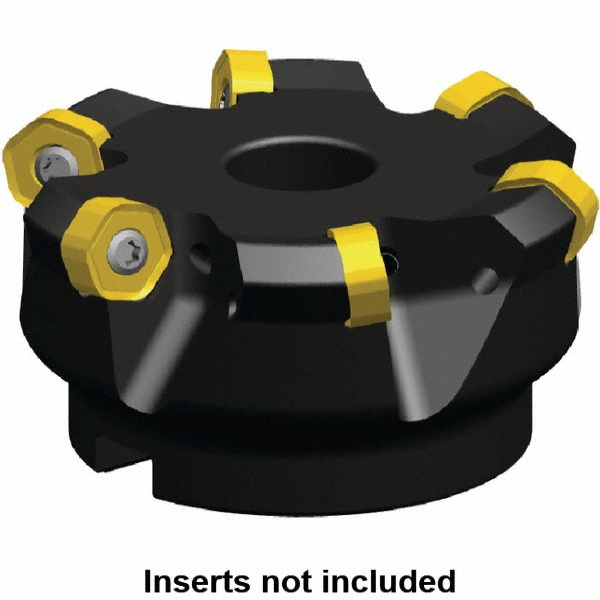

| Cutter Series Compatibility | Dodeka |

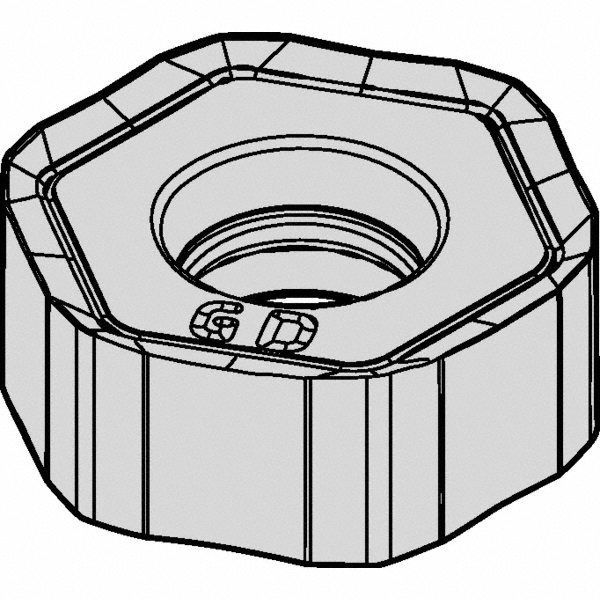

| Chip Breaker | GD |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 37822996 |
