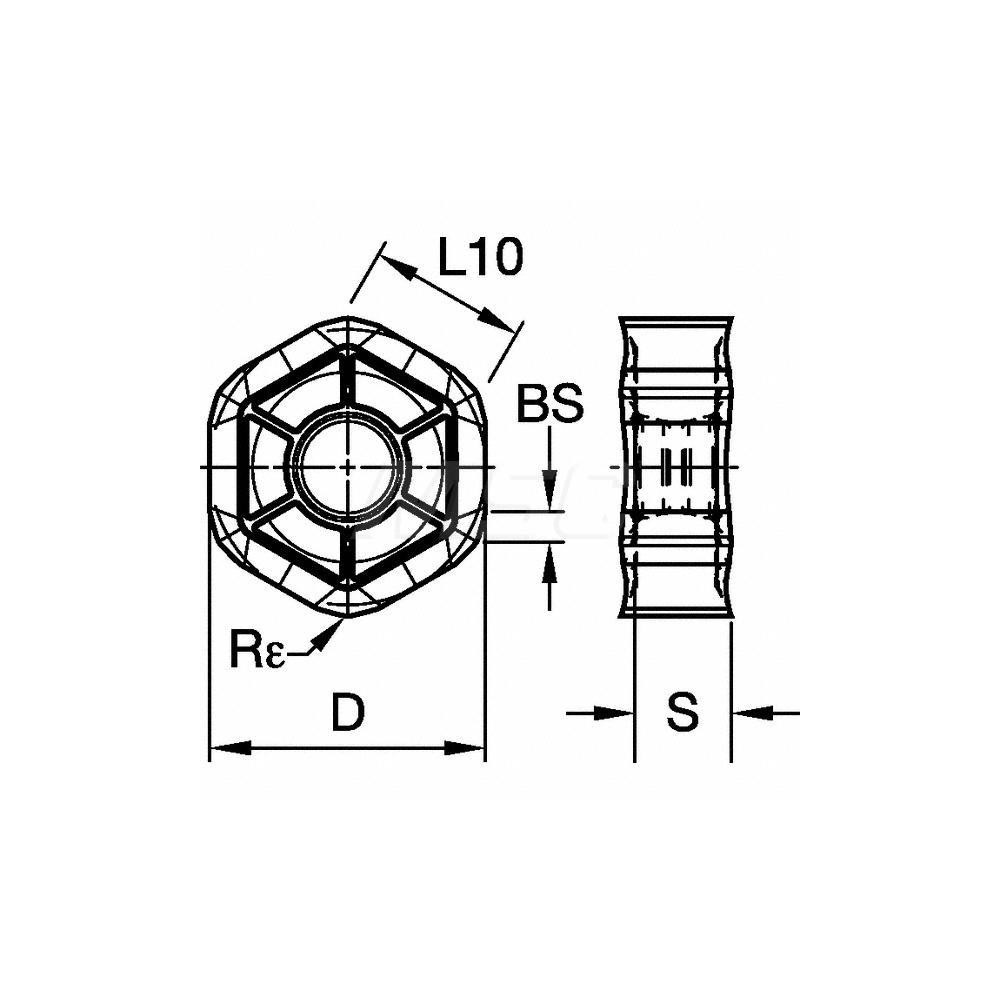

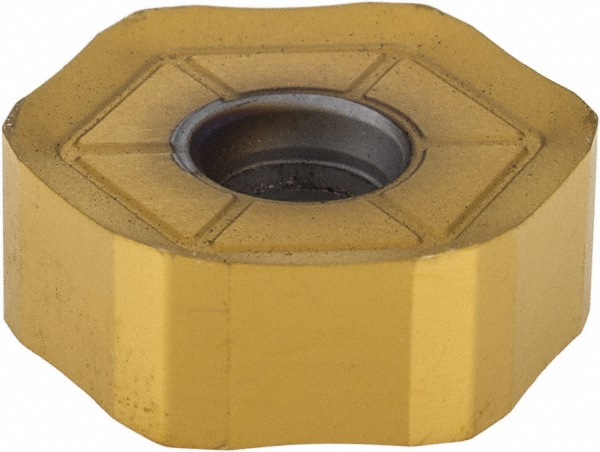

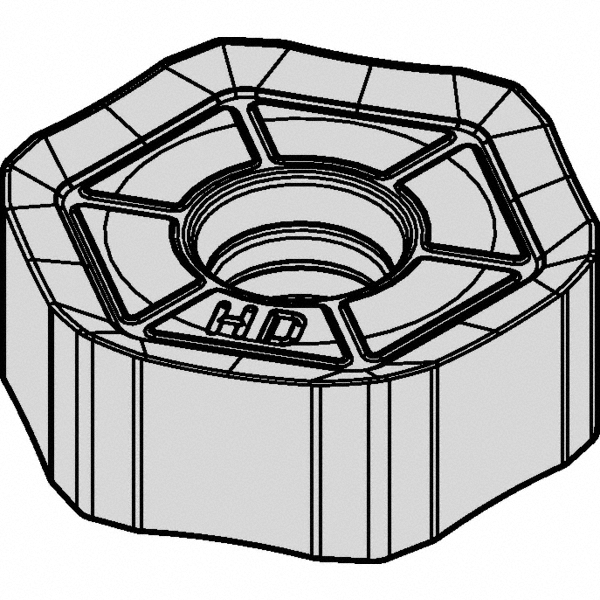

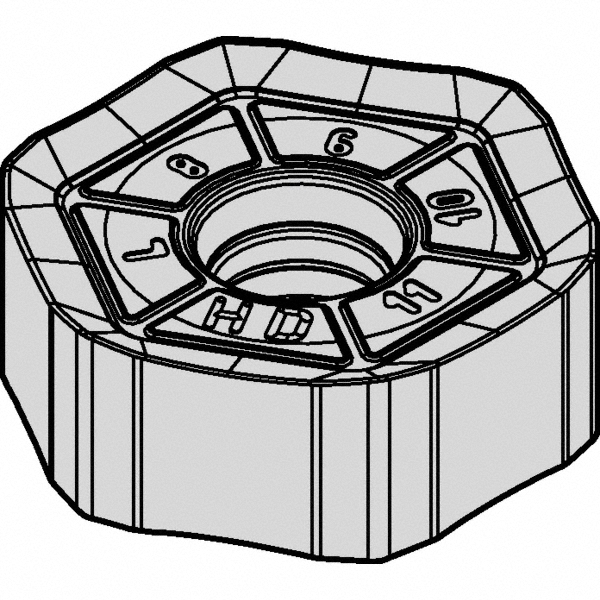

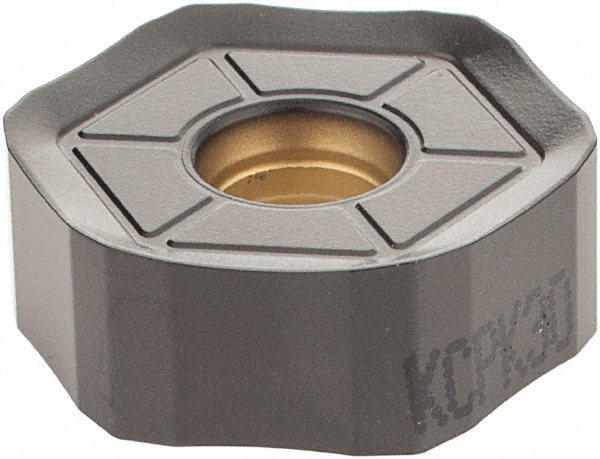

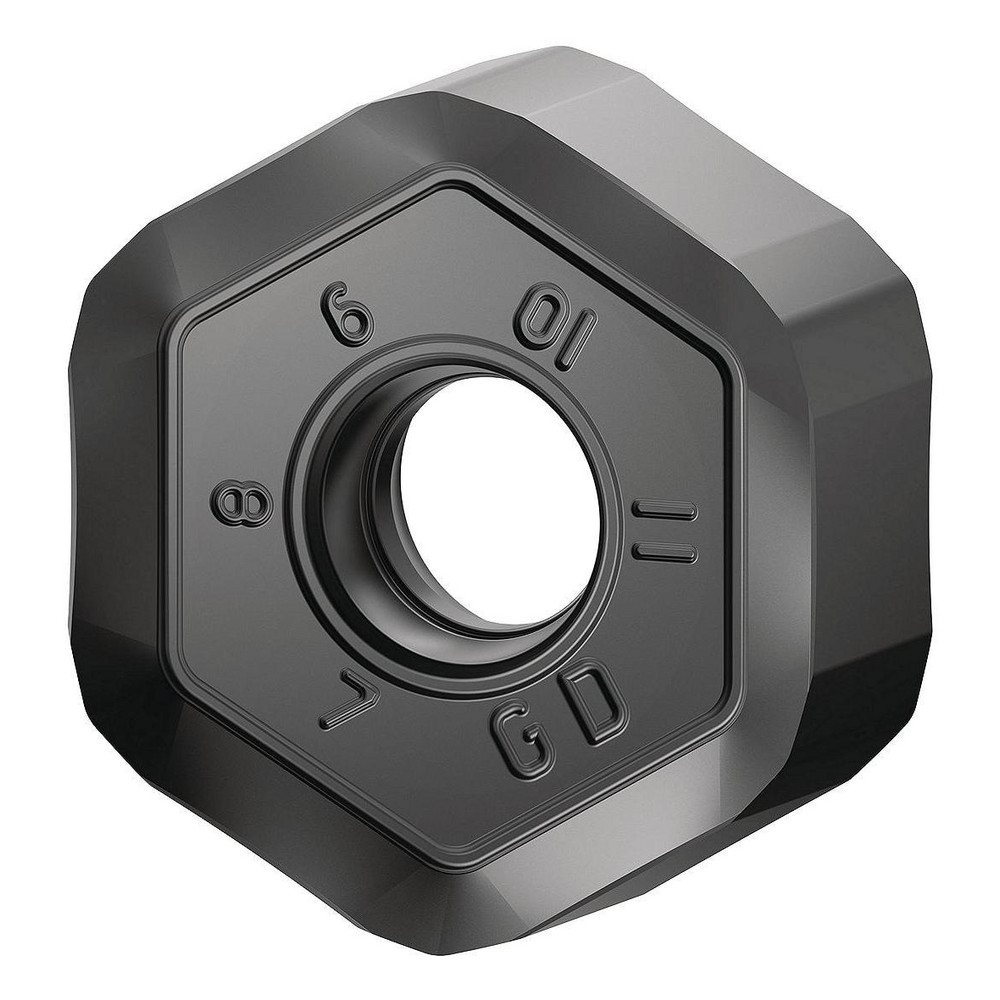

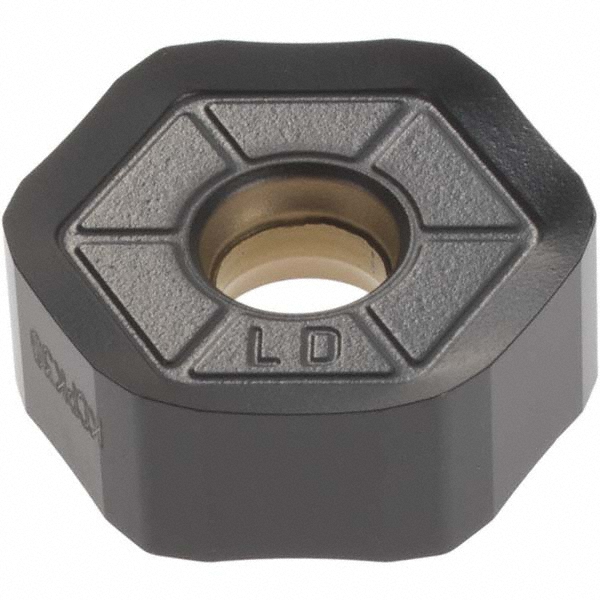

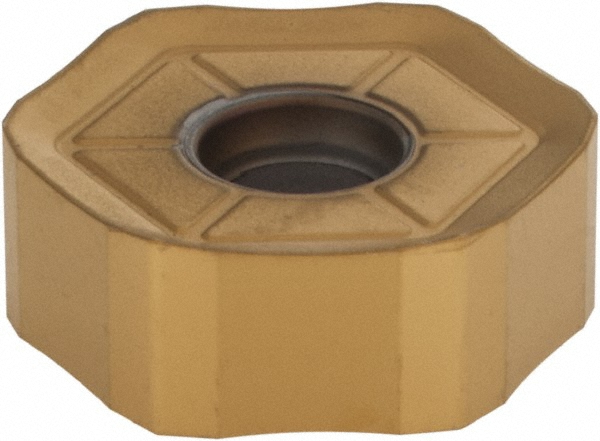

TiN, TiCN & Al2O3 Finish, 0.2150" Thick, 0.6250" Wide
| Insert Style | HNGJ |
|---|---|
| Insert Size | 5 |
| Insert Material | Solid Carbide |
| Insert Shape | Hexagon |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Number Of Cutting Edges | 12 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2150 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0.00 |
| Insert Size Code | 535 |
| Material Grade | C5; C6; C1 |
| Width (Inch) | 5/8 |
| Length (Inch) | 5/8 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3345 |
| Series | Dodeka Series |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | HNGJ535ANSNHD |
| Iso Code | HNGJ0905ANSNHD |
| Standards | ISO; ANSI |
| Rake Angle | 15 |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | HNGJ0905ANSNHD |
| Cutter Series Compatibility | Dodeka |
| Chip Breaker | HD |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 86151180 |
