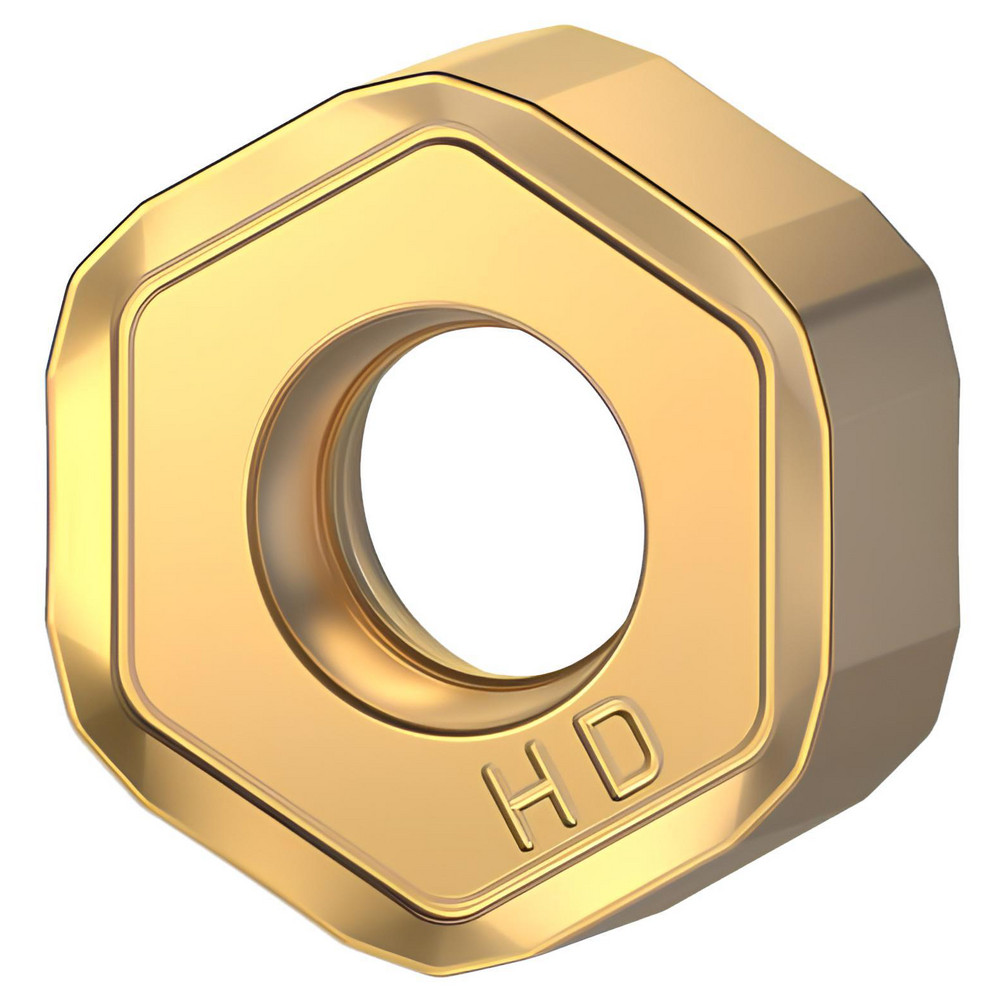

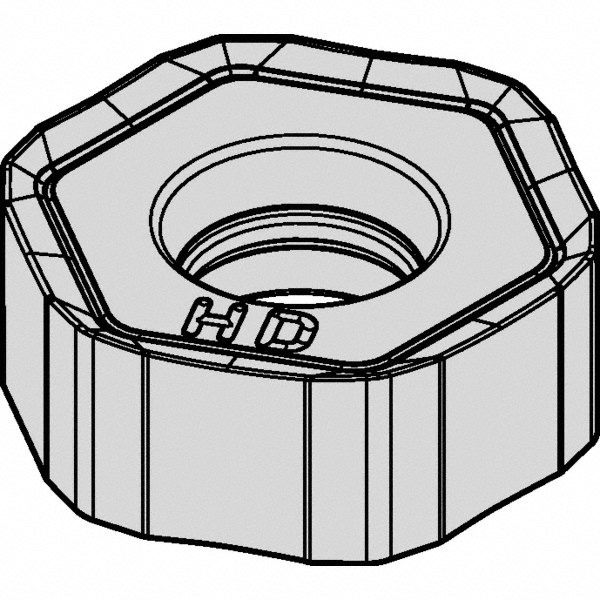

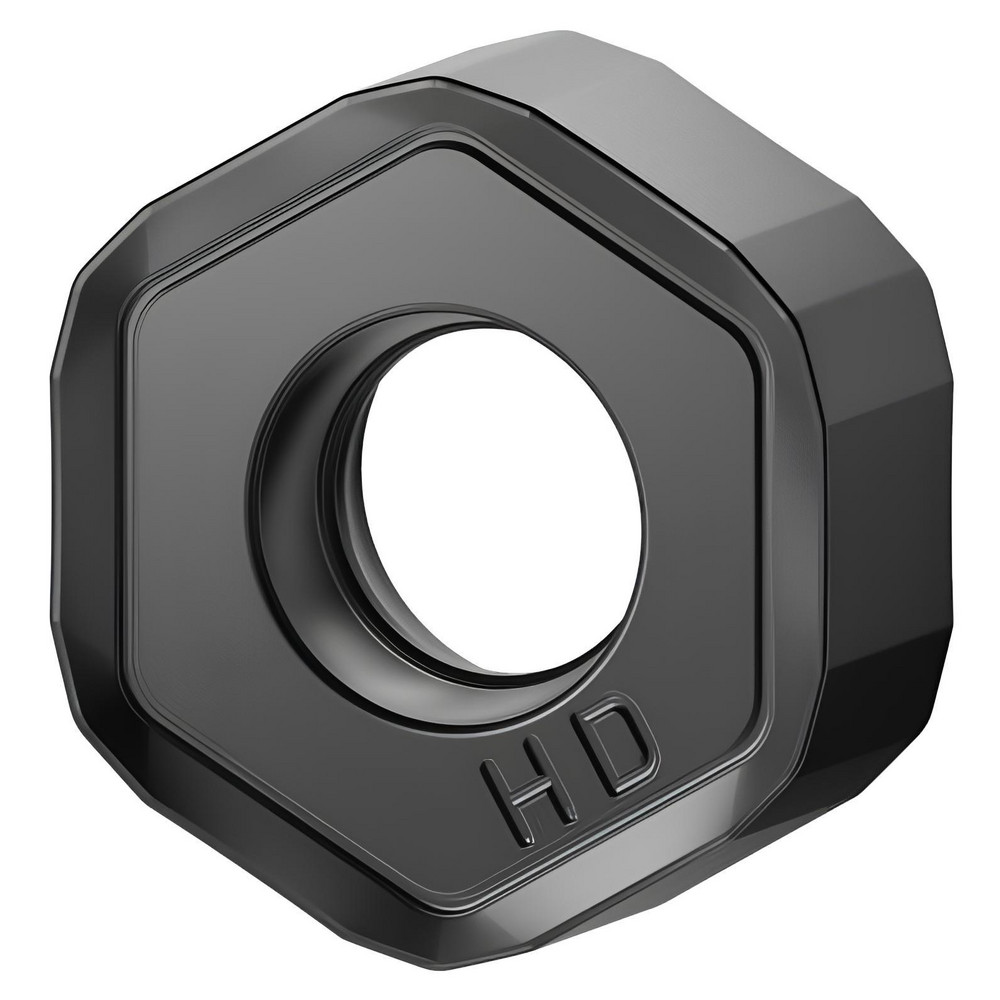

TiN, TiCN & Al2O3 Finish, 0.1731" Thick, 0.4724" Wide
| Insert Style | HNPJ |
|---|---|
| Insert Size | 4 |
| Insert Material | Solid Carbide |
| Insert Shape | Hexagon |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 12 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1731 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0.00 |
| Insert Size Code | 43 |
| Material Grade | C5; C6; C1 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2536 |
| Series | Dodeka Series |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.20 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | HNPJ43ANSNHD |
| Iso Code | HNPJ0604ANSNHD |
| Standards | ISO; ANSI |
| Rake Angle | 15 |
| Cutting Edge Style | Honed T-Land |
| Manufacturers Catalog Number | HNPJ0604ANSNHD |
| Cutter Series Compatibility | Dodeka |
| Chip Breaker | HD |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 72581515 |
