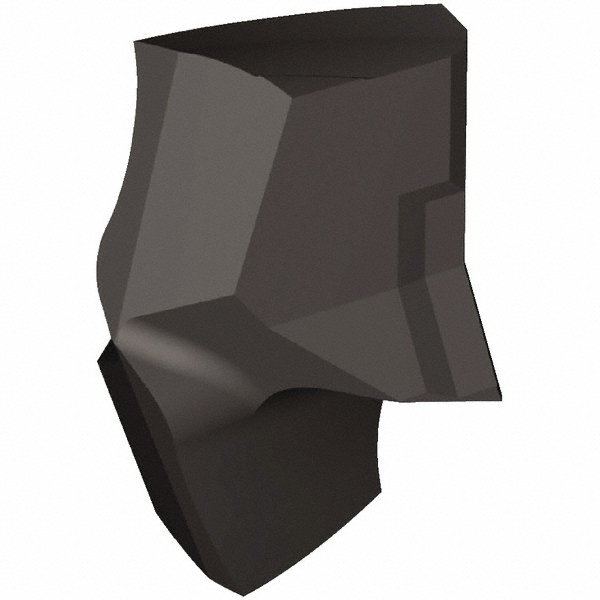

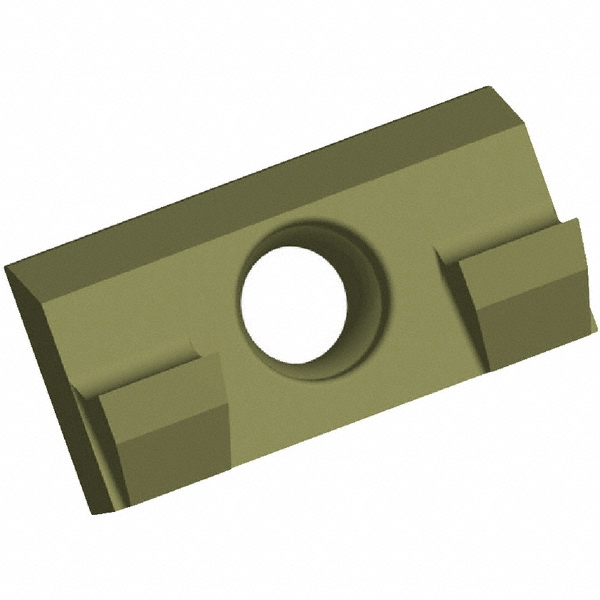

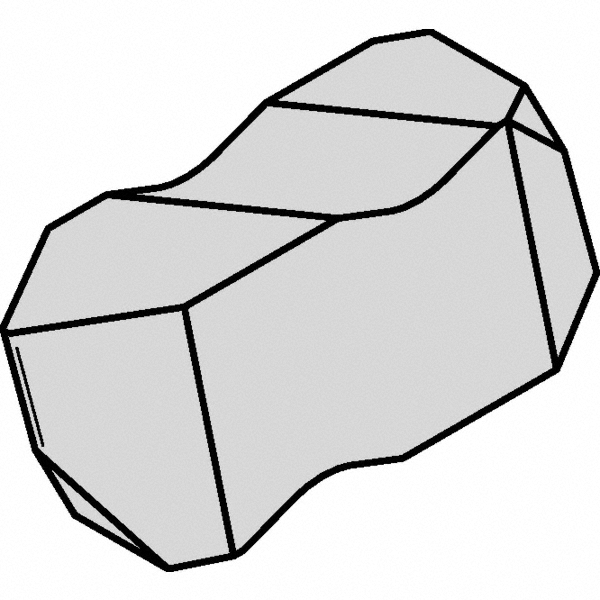

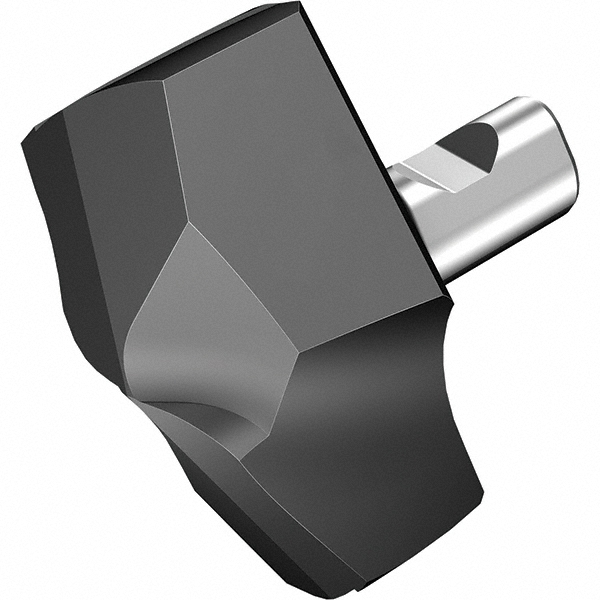

AlTiN Finish, 0.1110" Thick, 0.1250" Wide
| Insert Style | KGIP |
|---|---|
| Insert Size | 01 |
| Insert Material | Solid Carbide |
| Insert Shape | Irregular |
| Manufacturer Grade | KCU45 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1110 |
| Coating/Finish | AlTiN |
| Relief Angle | 3.00 |
| Insert Size Code | 0125 |
| Width (Inch) | 1/8 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0520 |
| Maximum Depth of Cut (mm) | 1.33 |
| Series | KGIP |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.11 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | KGIP0125N0189GD |
| Iso Code | KGIP0125N0189GD |
| Standards | ISO; ANSI |
| Rake Angle | 4 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | KGIP0125N0189GD |
| Cutter Series Compatibility | KGEM |
| Chip Breaker | GD |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.1250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5040 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 36650836 |
