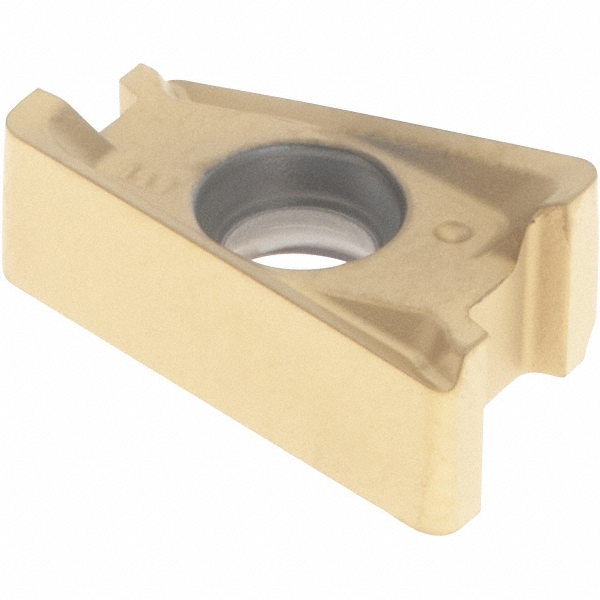

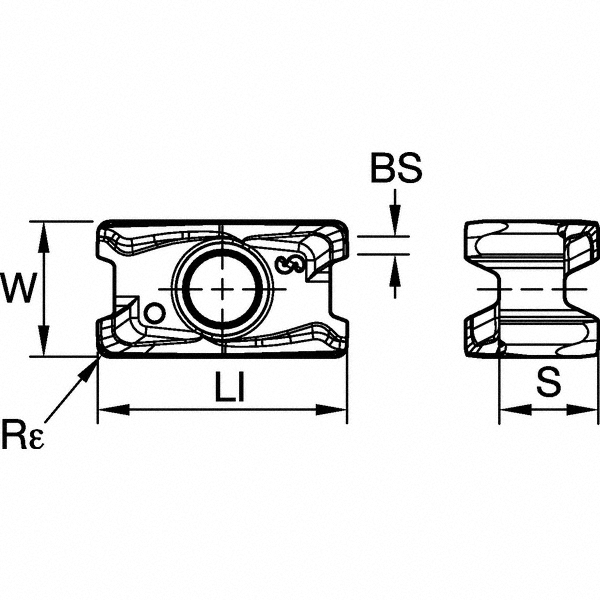

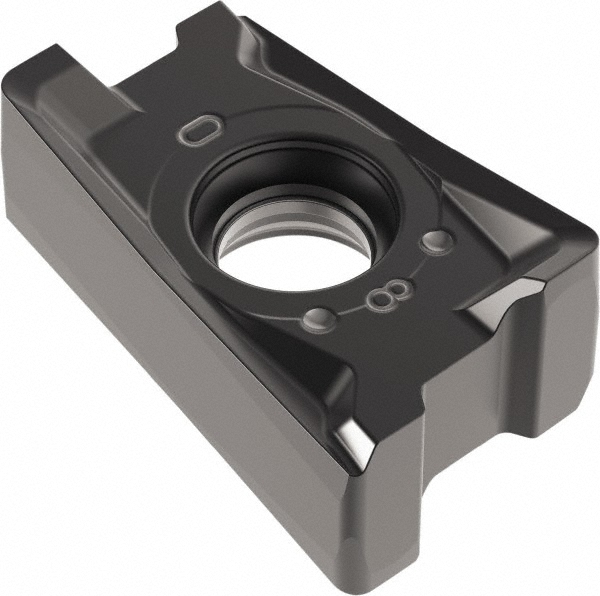

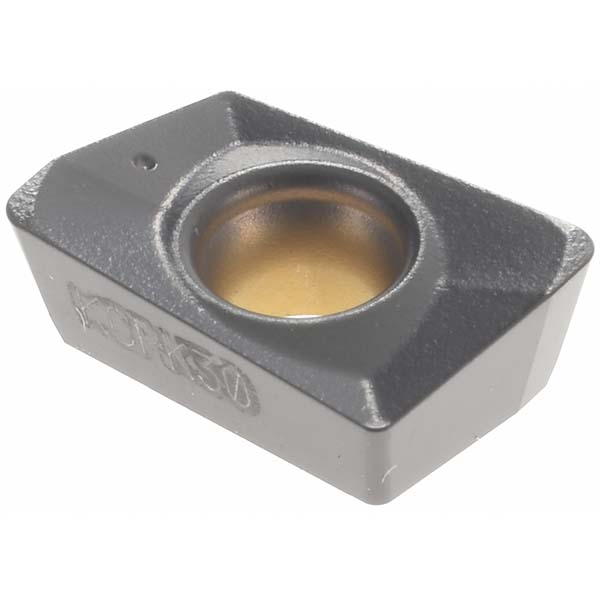

TiN, TiCN & Al2O3 Finish, 0.1875" Thick, 0.2598" Wide
| Insert Style | LNGU |
|---|---|
| Insert Size | 4 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0.00 |
| Insert Size Code | 432 |
| Material Grade | C5; C6; C1 |
| Length (Inch) | 31/64 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.2598 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | LNGU |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.13 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | LNGU432SRGEM |
| Iso Code | LNGU110408SRGEM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | LNGU110408SRGEM |
| Cutter Series Compatibility | Mill 4-11 |
| Chip Breaker | GEM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2598 |
| Width (mm - 2 Decimals) | 6.50 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4790 |
| Country of Origin | Germany |
| MSC Number | MSC# 37857109 |
