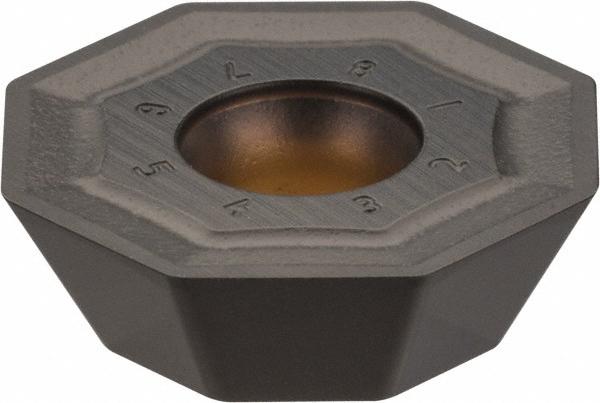

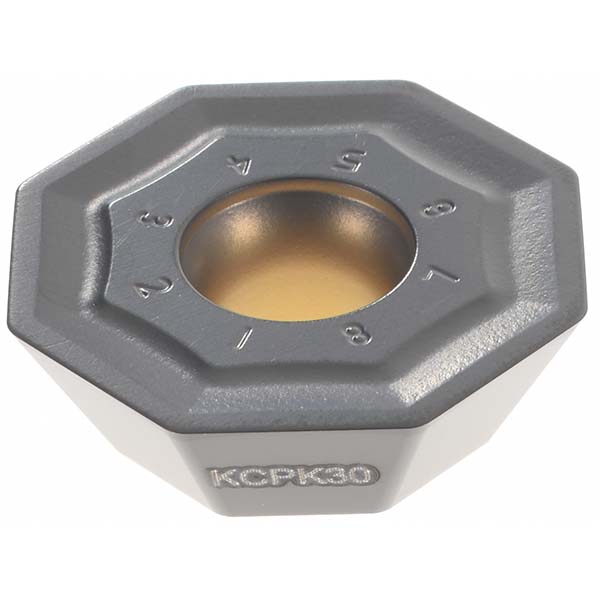

TiN, TiCN & Al2O3 Finish, 0.2362" Thick, 0.7360" Wide
| Insert Style | OFKT |
|---|---|
| Insert Size | 6 |
| Insert Material | Solid Carbide |

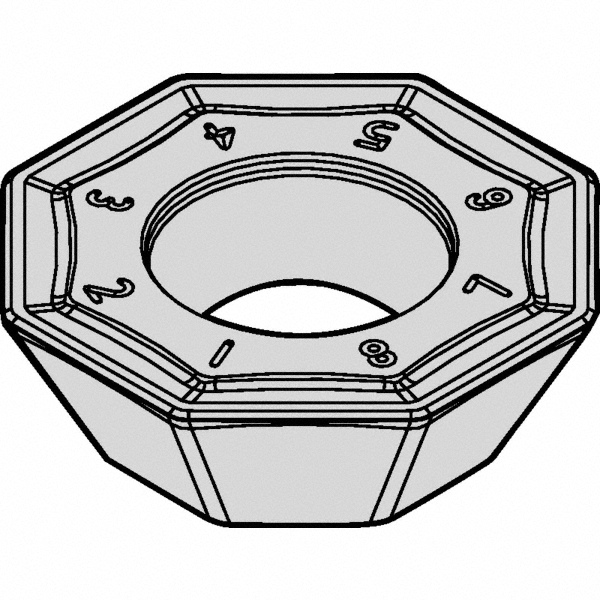

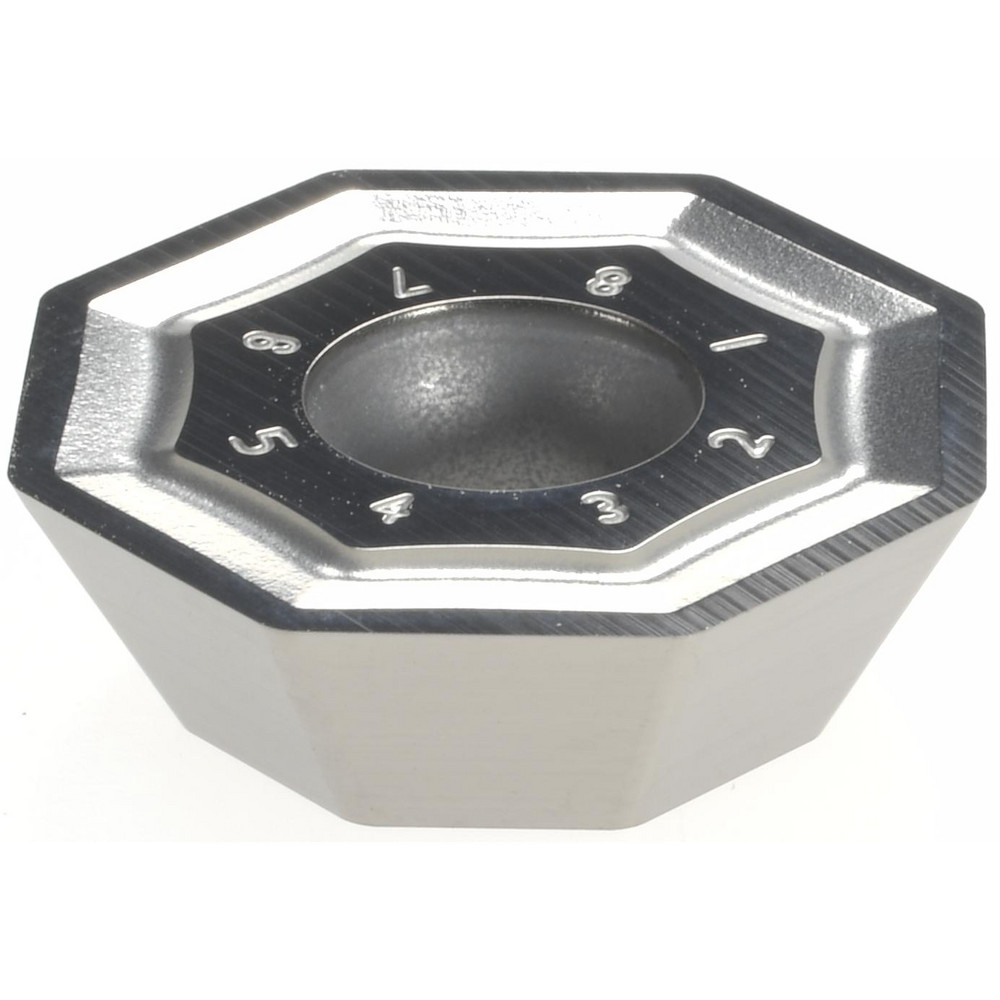

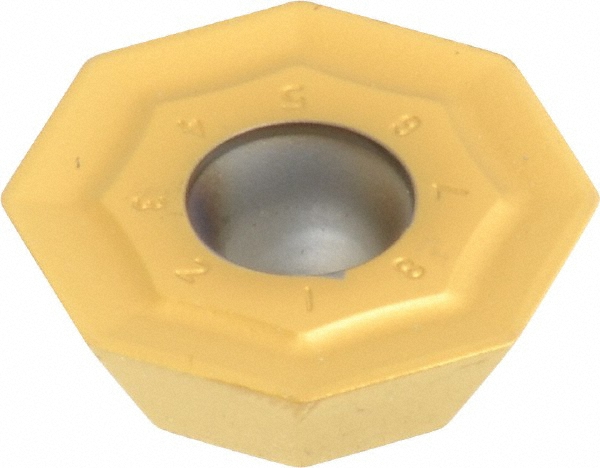

| Insert Shape | Octagon |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2362 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 25.00 |
| Insert Size Code | 64 |
| Material Grade | C5; C6; C1 |
| Inscribed Circle (Decimal Inch) | 0.7360 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Series | OFKT |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.22 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | OFKT64AFEN6LB |
| Iso Code | OFKT07L6AFENLB |
| Standards | ISO; ANSI |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | OFKT07L6AFENLB |
| Cutter Series Compatibility | KSOM |
| Chip Breaker | LB |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.7360 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7360 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 04144838 |
