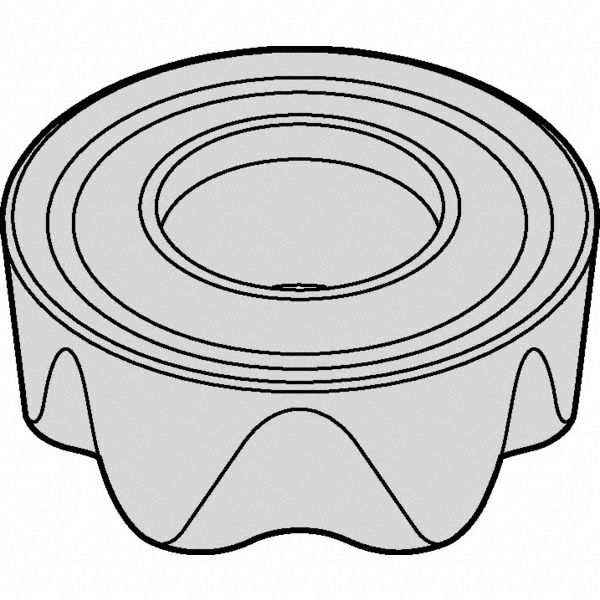

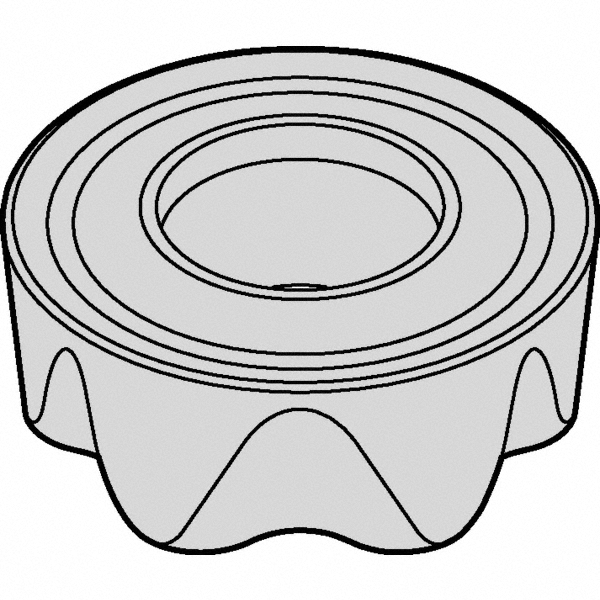

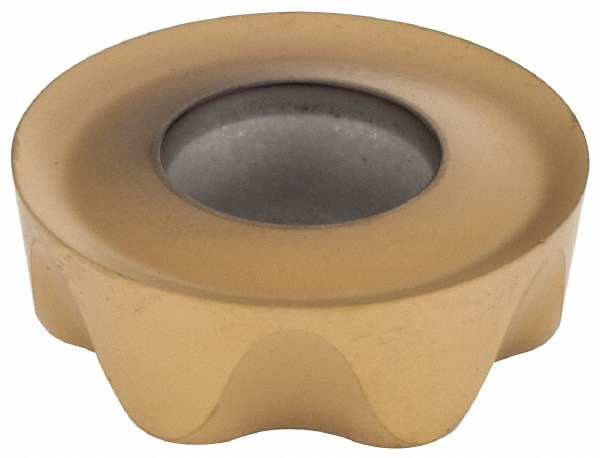

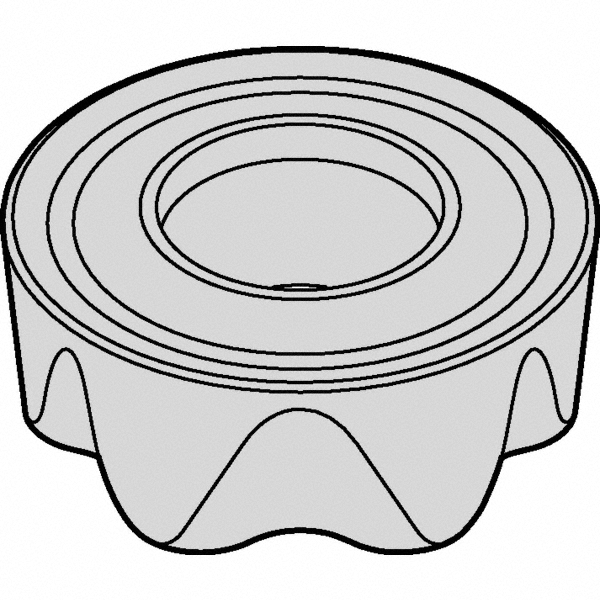

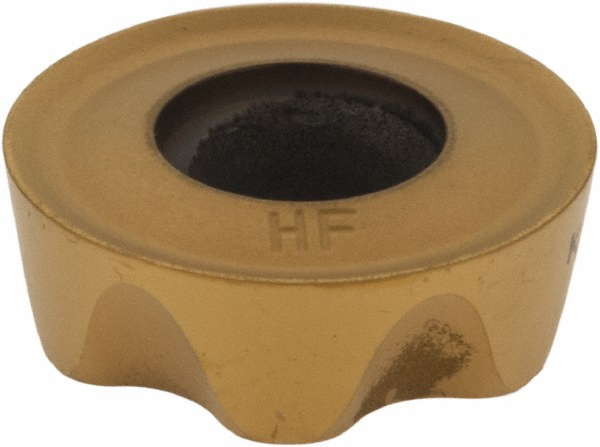

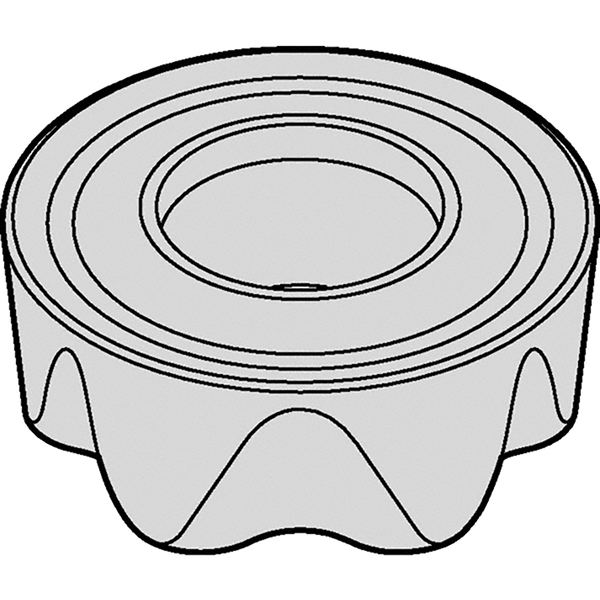

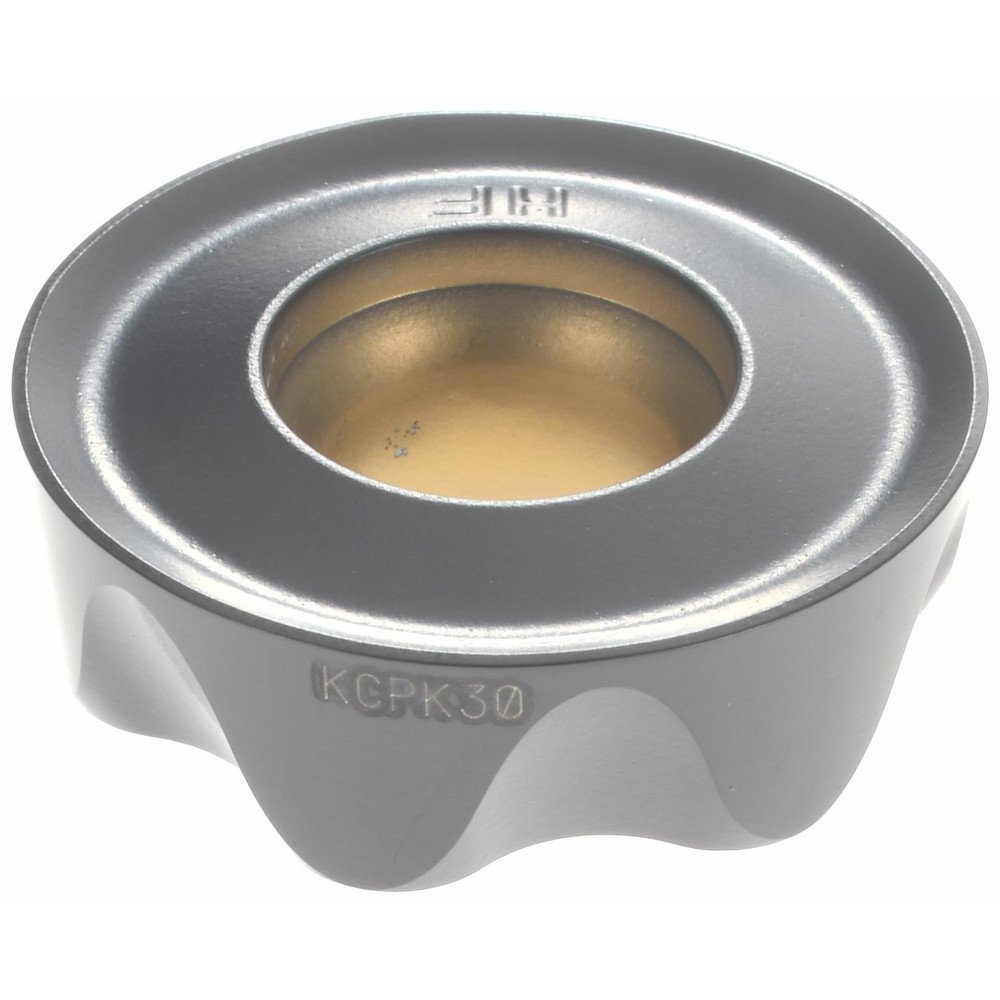

TiAlN Finish, 0.2500" Thick, 0.7500" Wide
| Insert Style | RCGT |
|---|---|
| Insert Size | 6 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | KC725M |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | TiAlN |
| Relief Angle | 7.00 |
| Insert Size Code | 64 |
| Material Grade | C5; C6; C7 |
| Width (Inch) | 3/4 |
| Length (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Neutral |
| Series | RCGT |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.26 |
| Hole Diameter (Decimal Inch) | 0.2559 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | RCGT64ELF |
| Iso Code | RCGT190600ELF |
| Standards | ISO; ANSI |
| Rake Angle | 25 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | RCGT190600ELF |
| Cutter Series Compatibility | KSRM |
| Chip Breaker | LF |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7500 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 03745775 |
