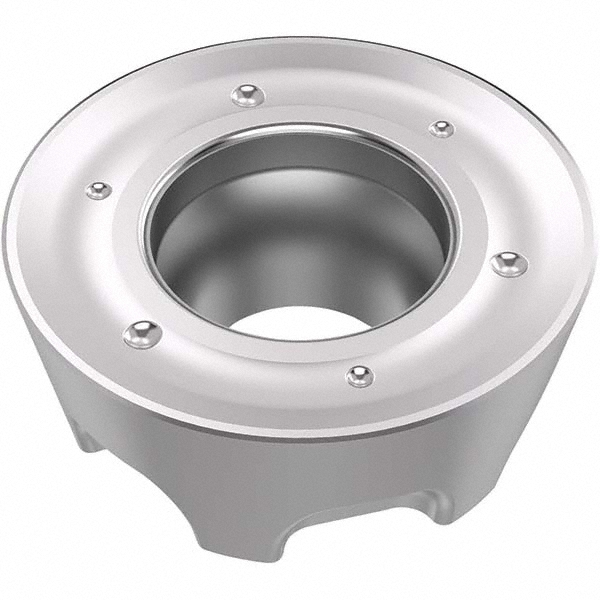

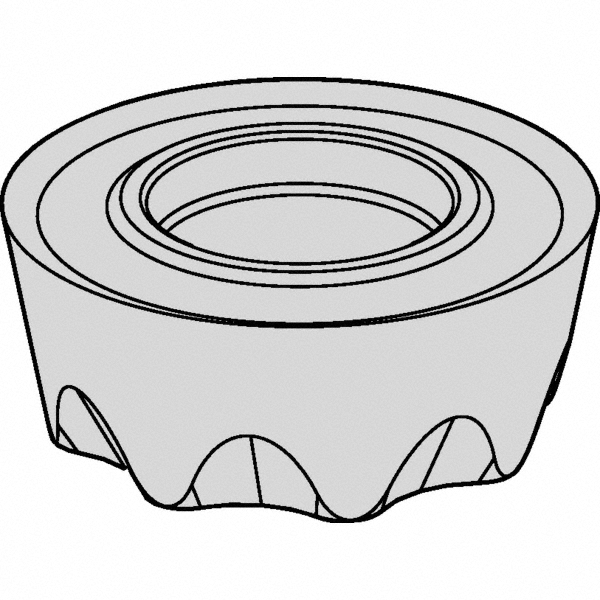

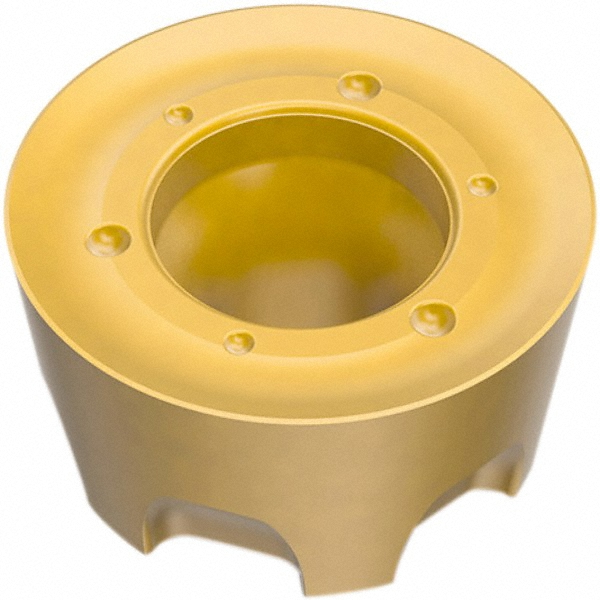

TiAlN Finish, 0.1874" Thick, 0.4720" Wide
| Insert Style | RPET |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | KCSM30 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
| Coating/Finish | TiAlN |
| Relief Angle | 11.00 |
| Insert Size Code | 1204 |
| Material Grade | Submicron |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Neutral |
| Series | RPET |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Ansi Code | RPET1204M0SGEJ |
| Iso Code | RPET1204M0SGEJ |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed T-Land |
| Manufacturers Catalog Number | RPET1204M0SGEJ |
| Cutter Series Compatibility | KSRM |
| Chip Breaker | GE |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.4720 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4720 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 55230965 |
