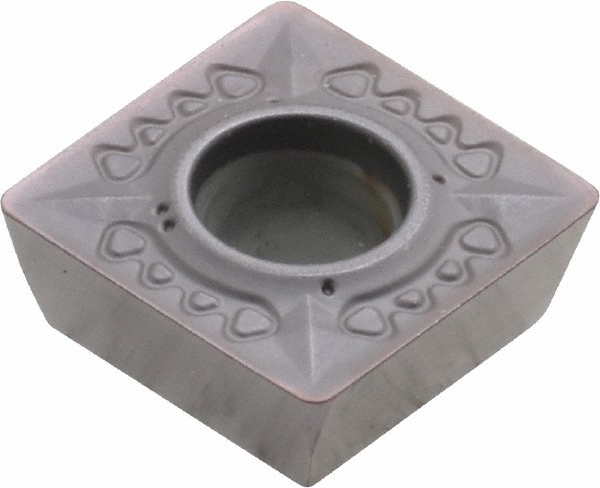

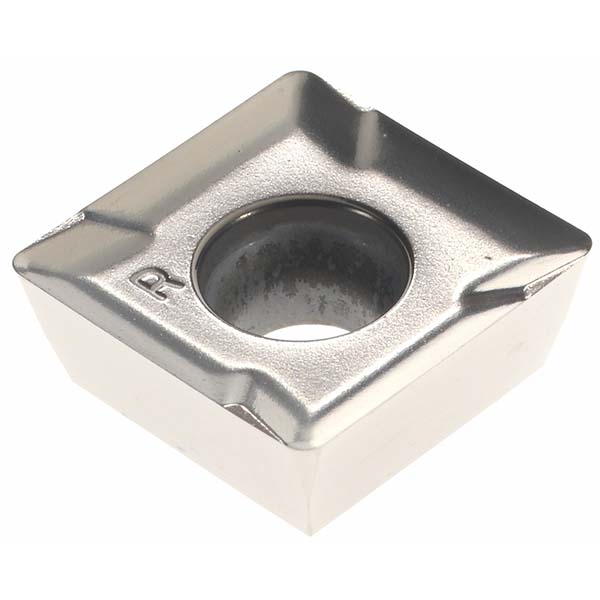

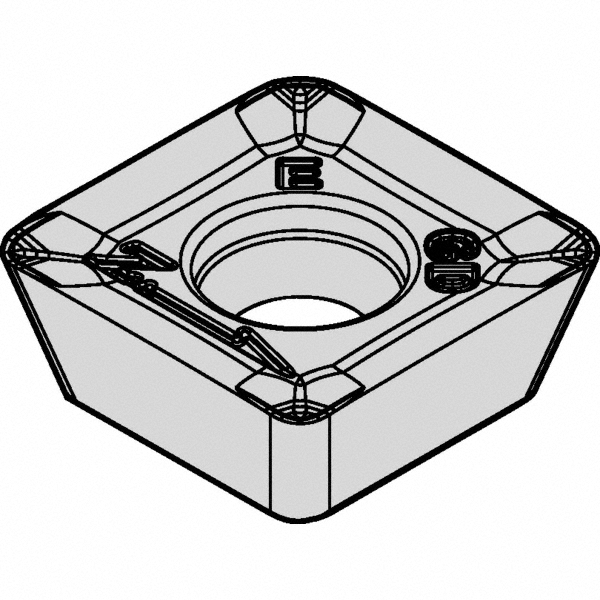

TiAlN & AlCrN Finish, 0.1875" Thick, 0.5000" Wide
| Insert Style | SDET |
|---|---|
| Insert Size | 43 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KCPM40 |

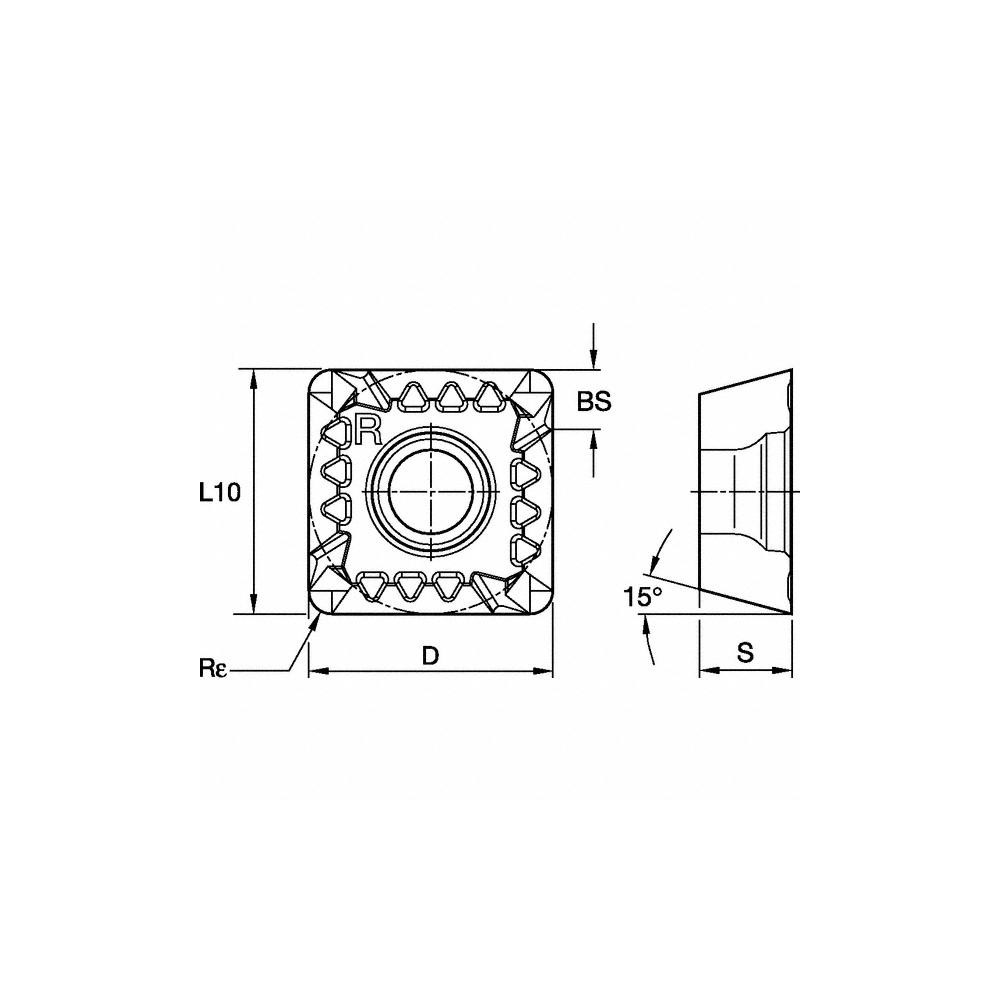

| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | AlCrN; TiAlN |
| Relief Angle | 15.00 |
| Insert Size Code | 43 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Series | SDET |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.17 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Ansi Code | SDET43PDSR8GB2 |
| Iso Code | SDET1204PDSRGB2 |
| Rake Angle | 5 |
| Manufacturers Catalog Number | SDET1204PDSRGB2 |
| Chip Breaker | GB2 |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 37856713 |
