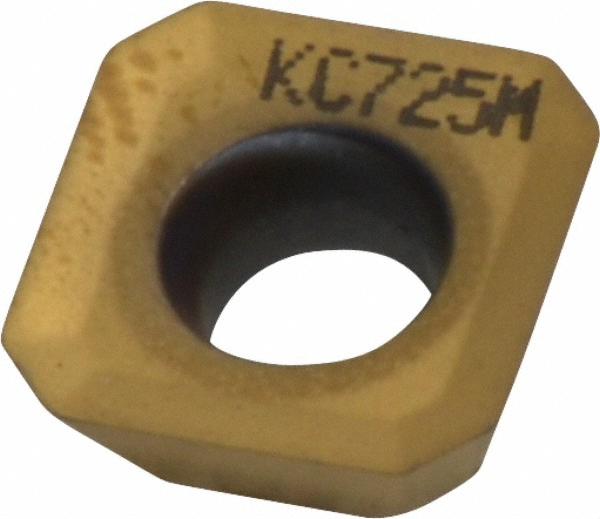

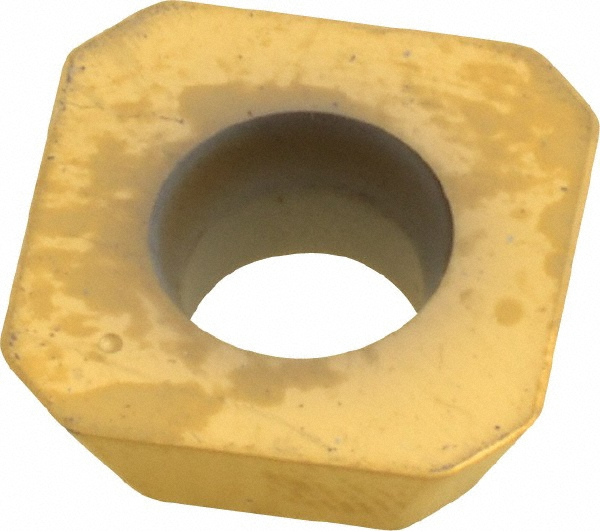

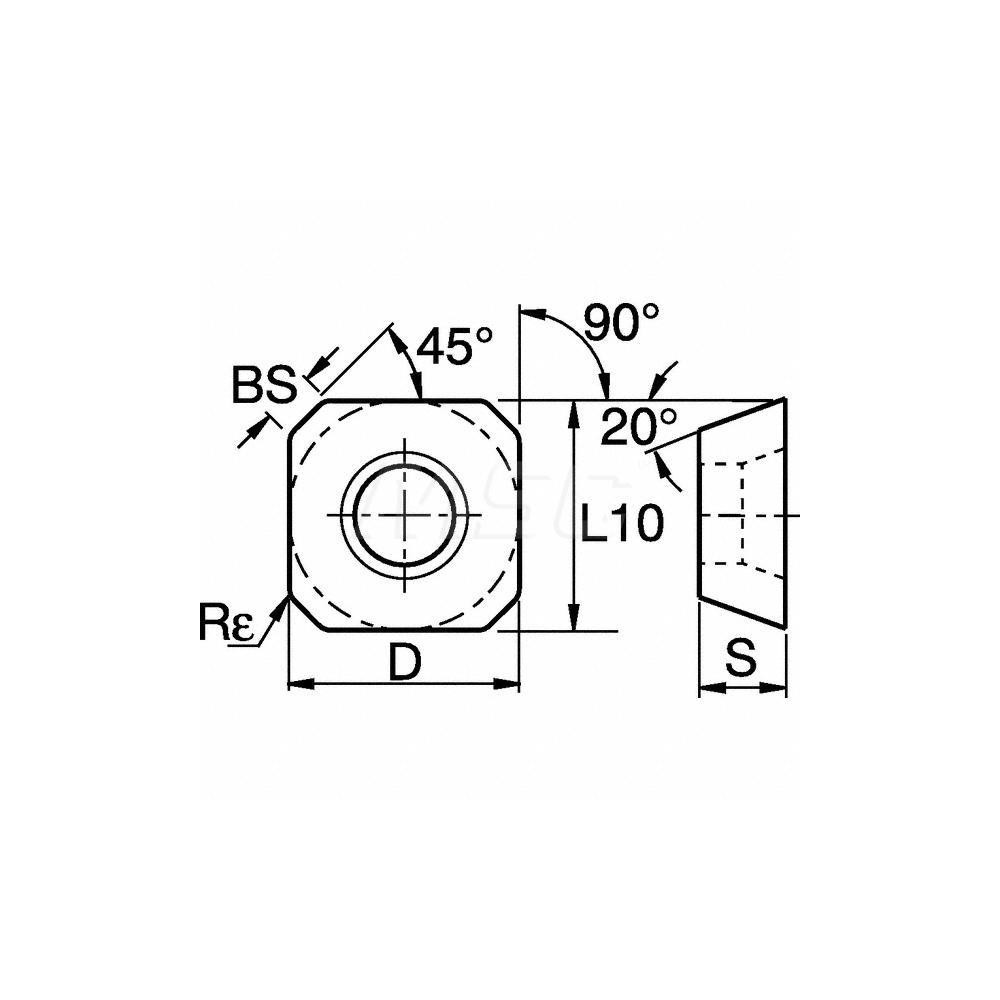

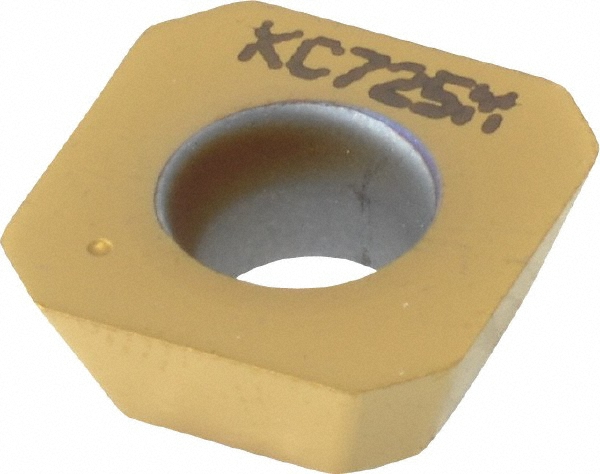

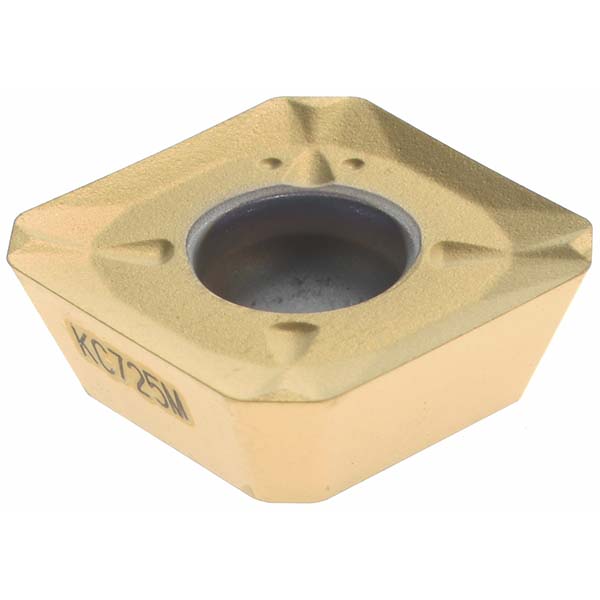

TiAlN Finish, 0.1875" Thick, 0.5000" Wide
| Insert Style | SEHW |
|---|---|
| Insert Size | 4 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KC725M |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | TiAlN |
| Relief Angle | 20.00 |
| Insert Size Code | 43 |
| Material Grade | C5; C6; C7 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | SEHW |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.22 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | SEHW43A6 |
| Iso Code | SEHW1204AFN |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | SEHW1204AFN |
| Chip Breaker | Flat Top |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 78998465 |
