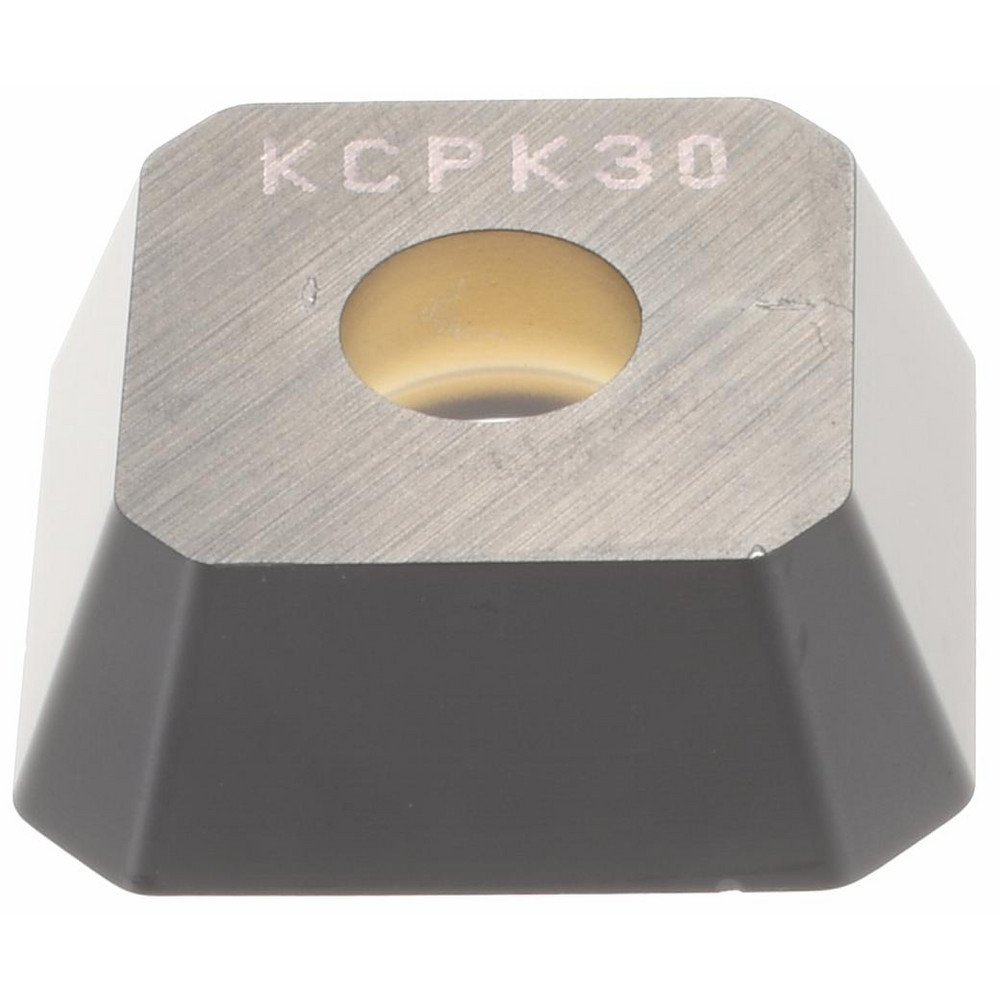

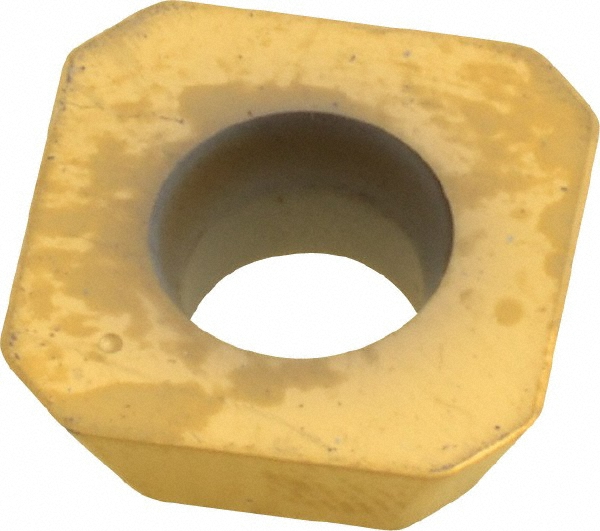

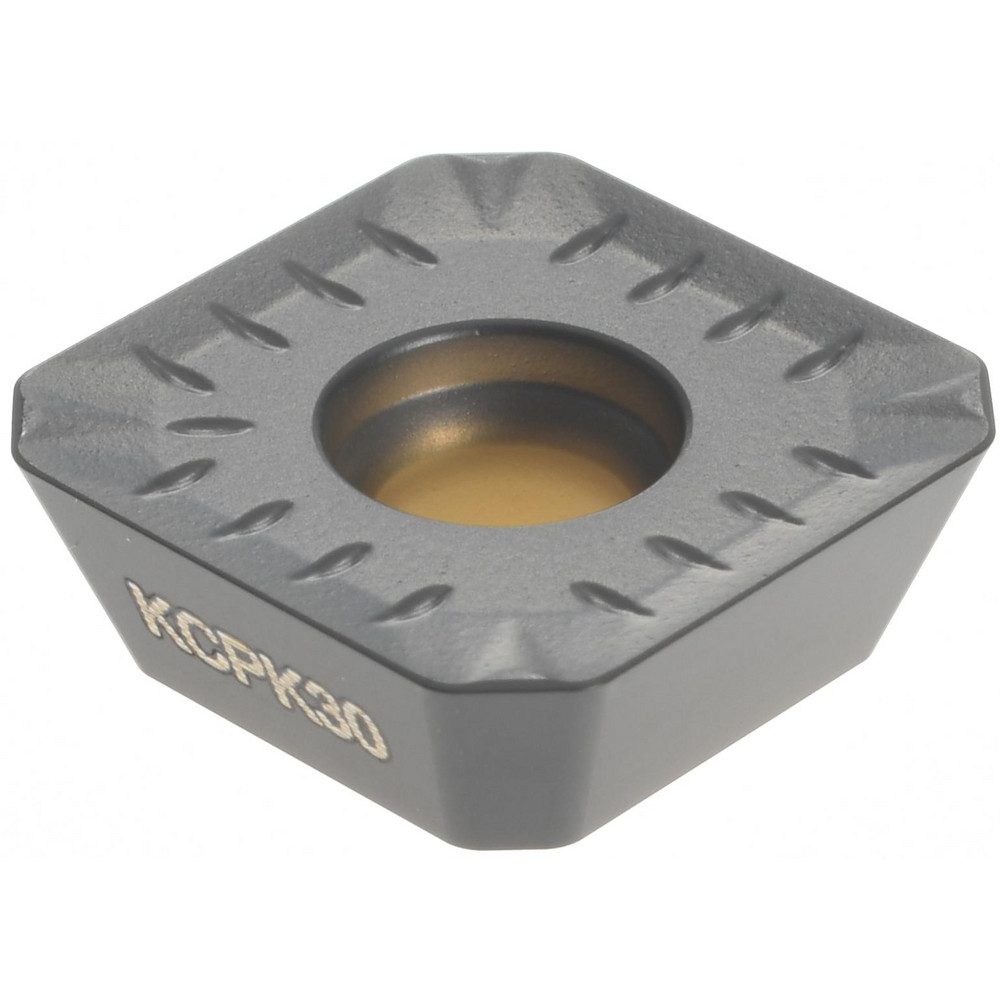

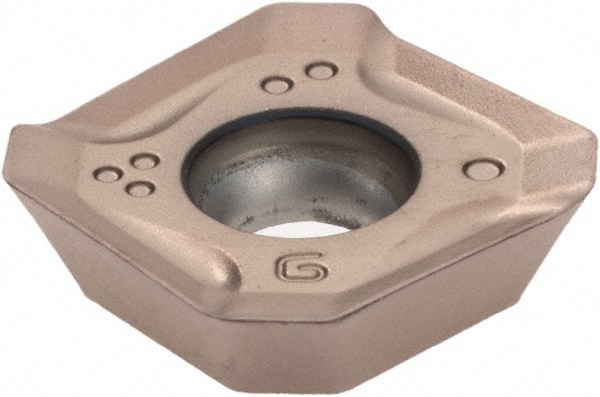

TiN, TiCN & Al2O3 Finish, 0.1875" Thick, 0.5512" Wide
| Insert Style | SEKT |
|---|---|
| Insert Size | 4 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 20.00 |
| Insert Size Code | 443 |
| Material Grade | C5; C6; C1 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.5512 |
| Inscribed Circle (mm) | 14.00 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | SEKT |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.17 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | SEKT443AEEN7GP2 |
| Iso Code | SEKT1404AEENGP2 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SEKT1404AEENGP2 |
| Cutter Series Compatibility | KSSM |
| Chip Breaker | GP2 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5512 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5512 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 01654821 |
