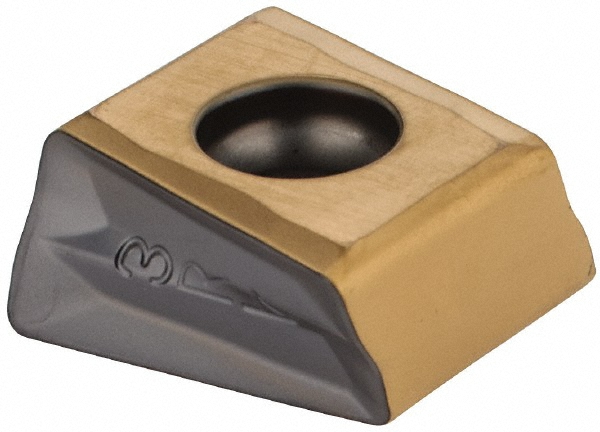

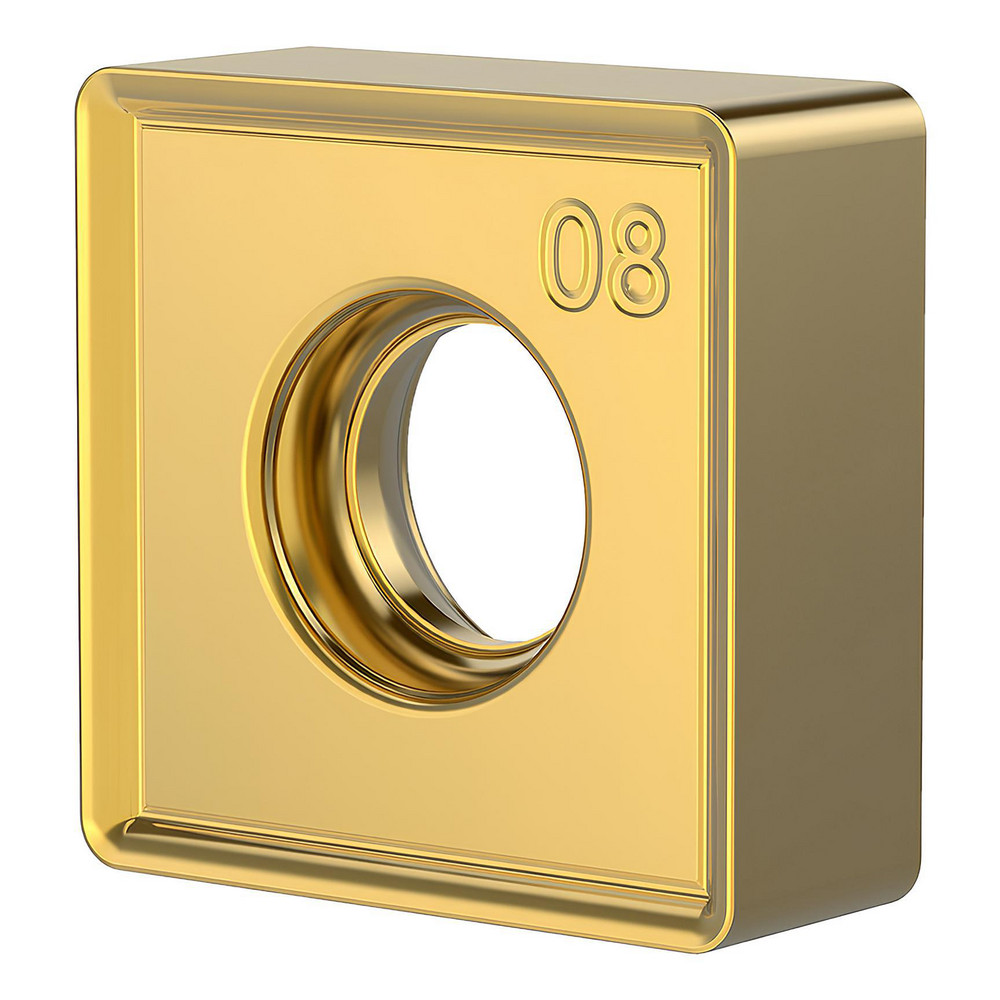

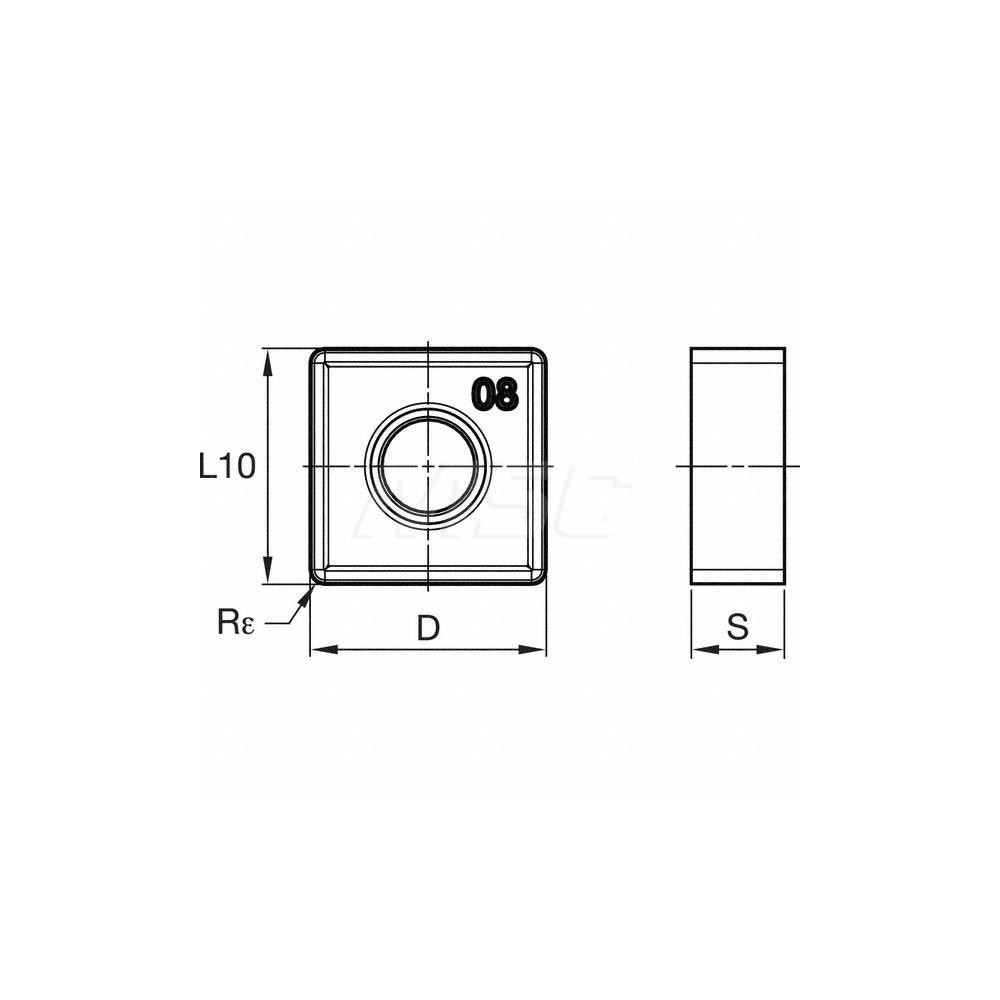

TiAlN & TiN Finish, 4.52 mm Thick, 10.00 mm Wide
| Insert Style | SNHJ |
|---|---|
| Insert Size | 3 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KCSM40 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1780 |
| Thickness (mm) | 4.52 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 332 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Inscribed Circle (mm) | 10.00 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Series | SNHJ |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.19 |
| Hole Diameter (Decimal Inch) | 0.1850 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | SNHJ332SNGDH |
| Iso Code | SNHJ100408SNGDH |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | SNHJ100408SNGDH |
| Cutter Series Compatibility | HARVI-8 |
| Chip Breaker | GDH |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 10.00 |
| Width (Decimal Inch - 4 Decimals) | 0.3940 |
| Width (mm - 2 Decimals) | 10.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3940 |
| Country of Origin | Germany |
