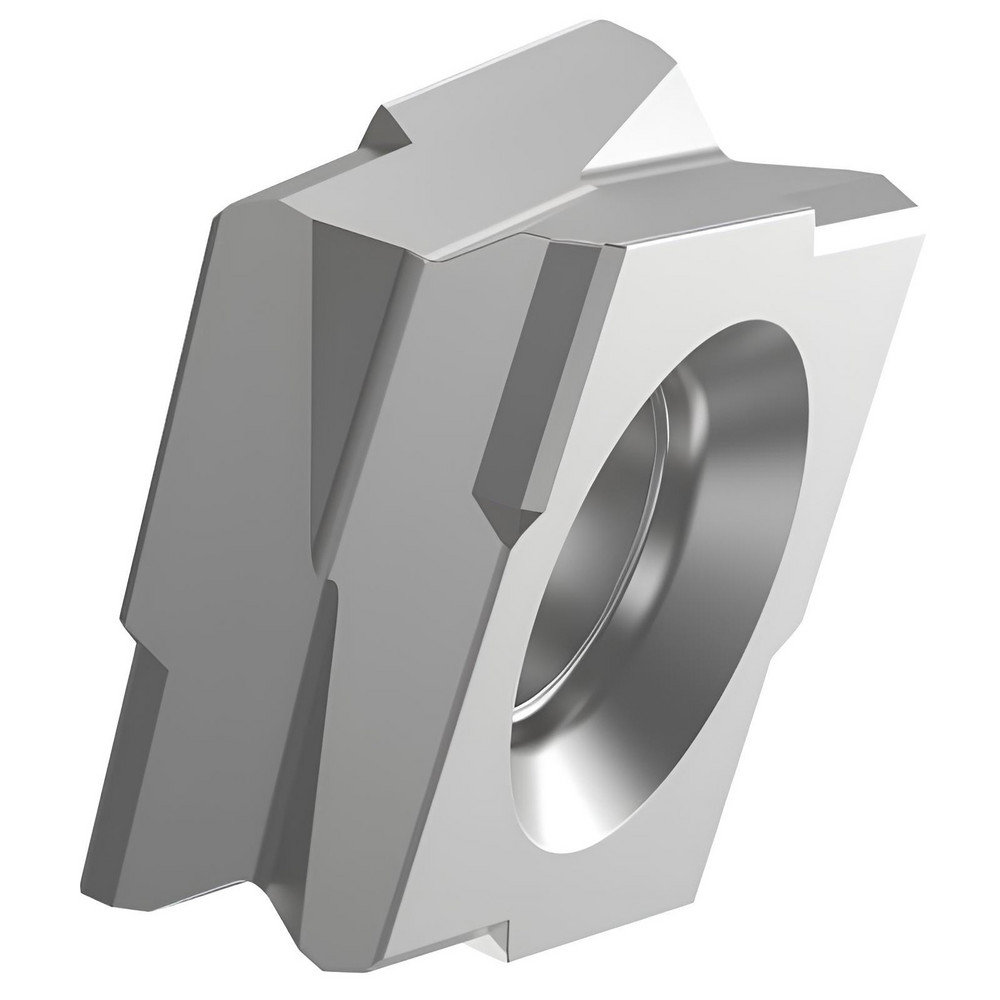

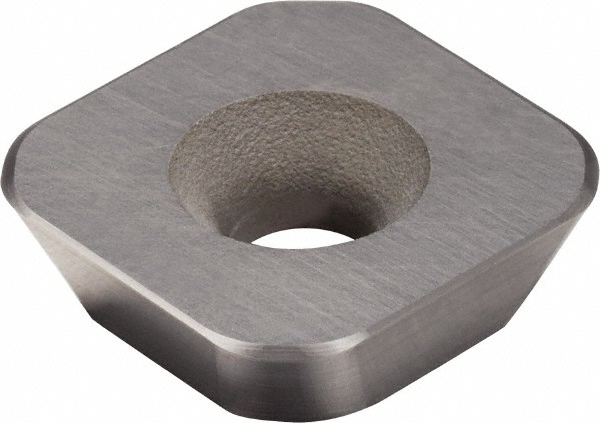

Bright/Uncoated Finish, 0.2170" Thick
| Insert Style | SPHX |
|---|---|
| Insert Size | 12 |
| Insert Material | Ceramic |
| Insert Shape | Square |
| Manufacturer Grade | KY3500 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2170 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 11.00 |
| Insert Size Code | 1205 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.2165 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3961 |
| Series | SPHX |
| Coating Process | Uncoated |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.20 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SPHX1205ZCTRGPK |
| Iso Code | SPHX1205ZCTRGPK |
| Standards | ISO; ANSI |
| Rake Angle | 30 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | SPHX1205ZCTRGPK |
| Cutter Series Compatibility | Fix-Perfect |
| Chip Breaker | GP |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2130 |
| Country of Origin | Germany |
| MSC Number | MSC# 78999034 |
