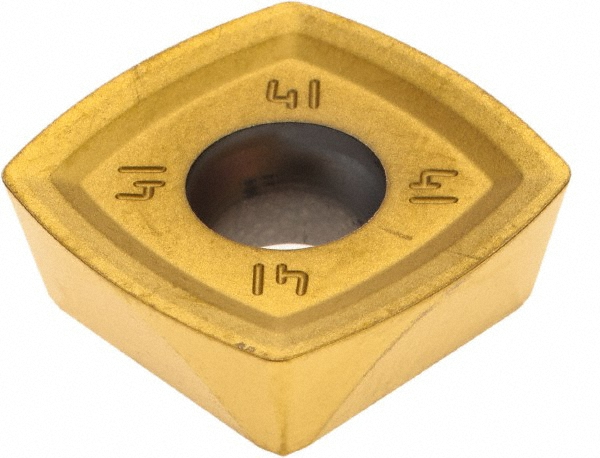

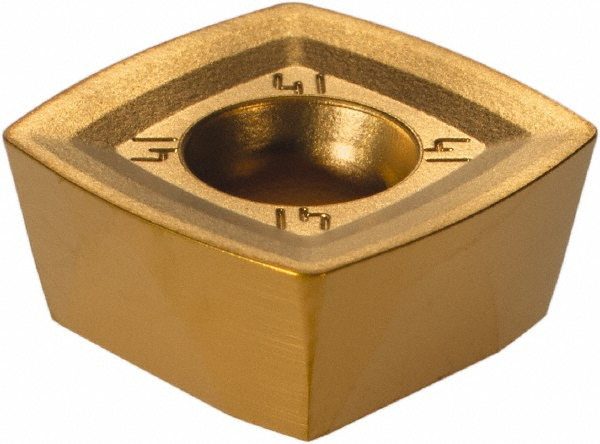

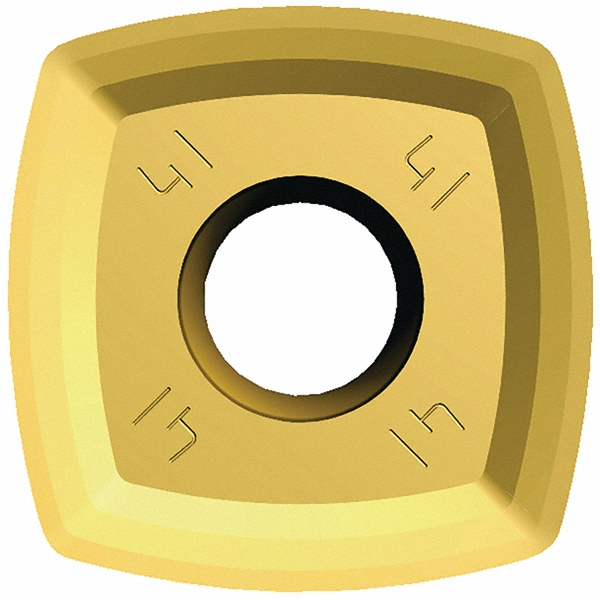

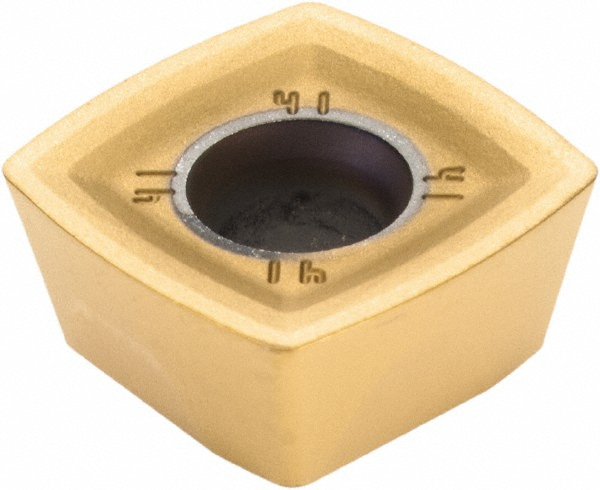

TiAlN & TiN Finish, 0.2188" Thick, 0.6610" Wide
| Insert Style | XEPT |
|---|---|
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KCSM40 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2188 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 20.00 |
| Insert Size Code | 160512 |
| Length (Inch) | 21/32 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.6610 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Series | XEPT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | XEPT160512ERD41 |
| Iso Code | XELT160512ERD41 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | XELT160512ERD41 |
| Cutter Series Compatibility | 7792VXE16 |
| Chip Breaker | D41 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6610 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6610 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 37823424 |
