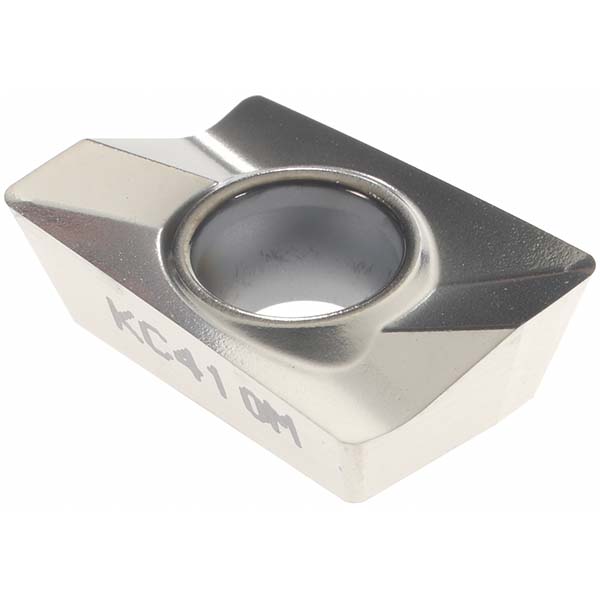

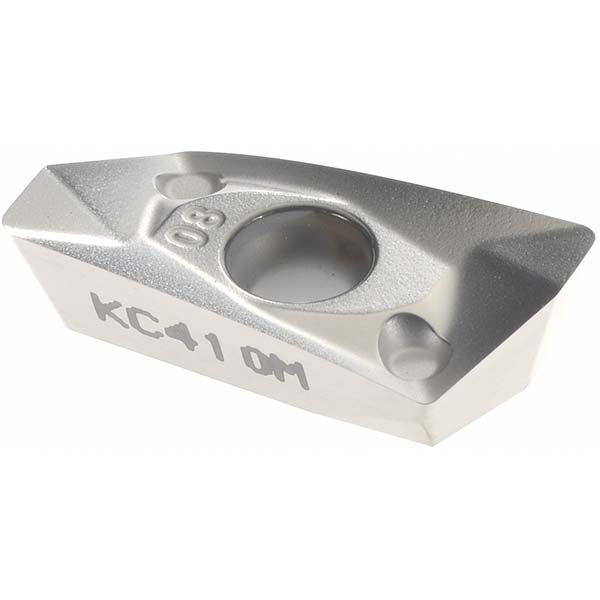

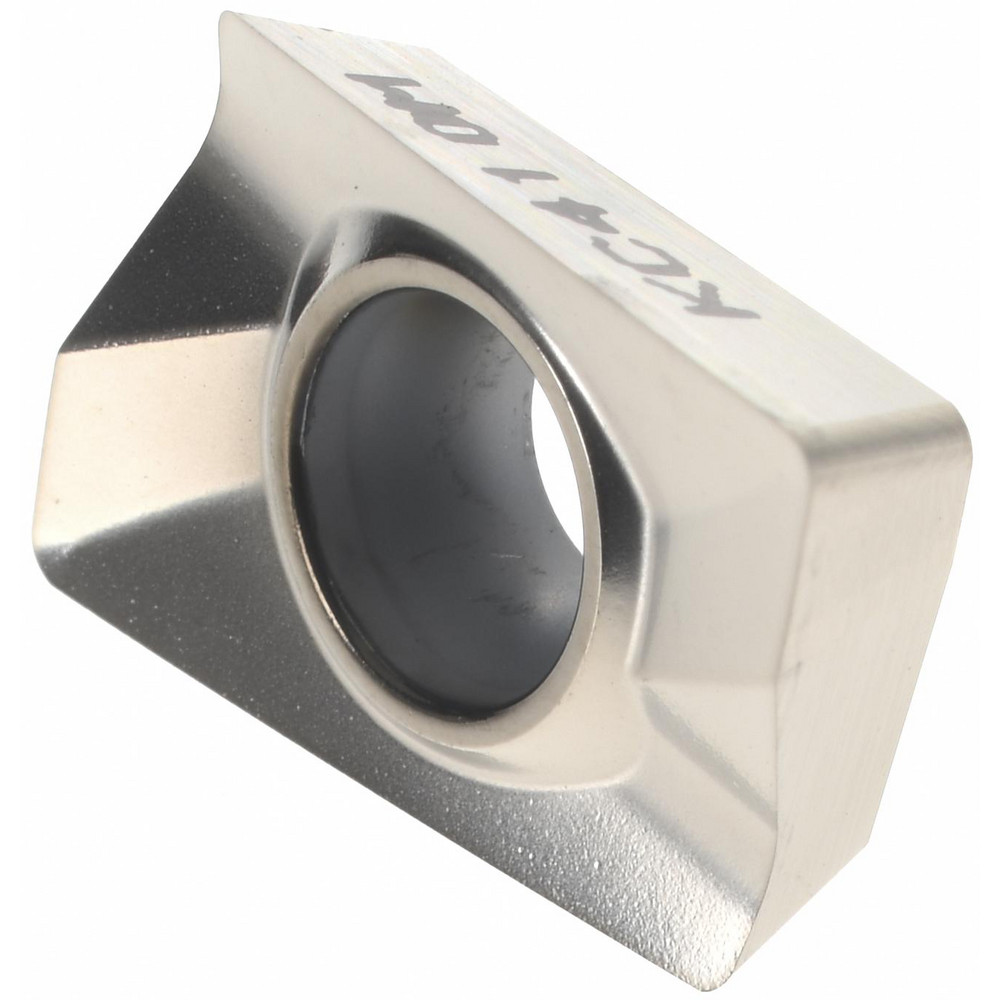

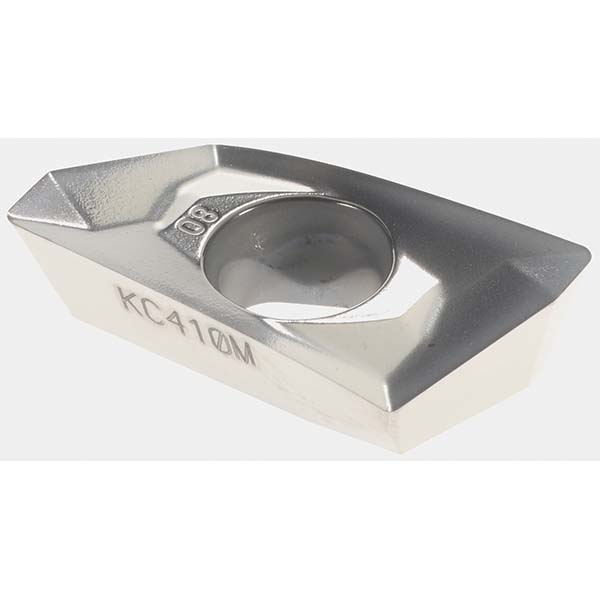

Titanium Diboride Finish, 0.1772" Thick, 0.3937" Wide
| Insert Style | ADCT |
|---|---|
| Insert Size | 23 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KC410M |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1772 |
| Coating/Finish | Titanium Diboride |
| Relief Angle | 15.00 |
| Insert Size Code | 2328 |
| Inscribed Circle (Decimal Inch) | 0.7362 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Corner Radius (Inch) | 1/32 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Series | ADCT |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.17 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Iso Code | ADCT1545PDFRLDJ |
| Rake Angle | 15 |
| Manufacturers Catalog Number | ADCT1545PDFRLDJ |
| Chip Breaker | LD |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3937 |
| Length (Decimal Inch - 4 Decimals) | 0.6039 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01654441 |
