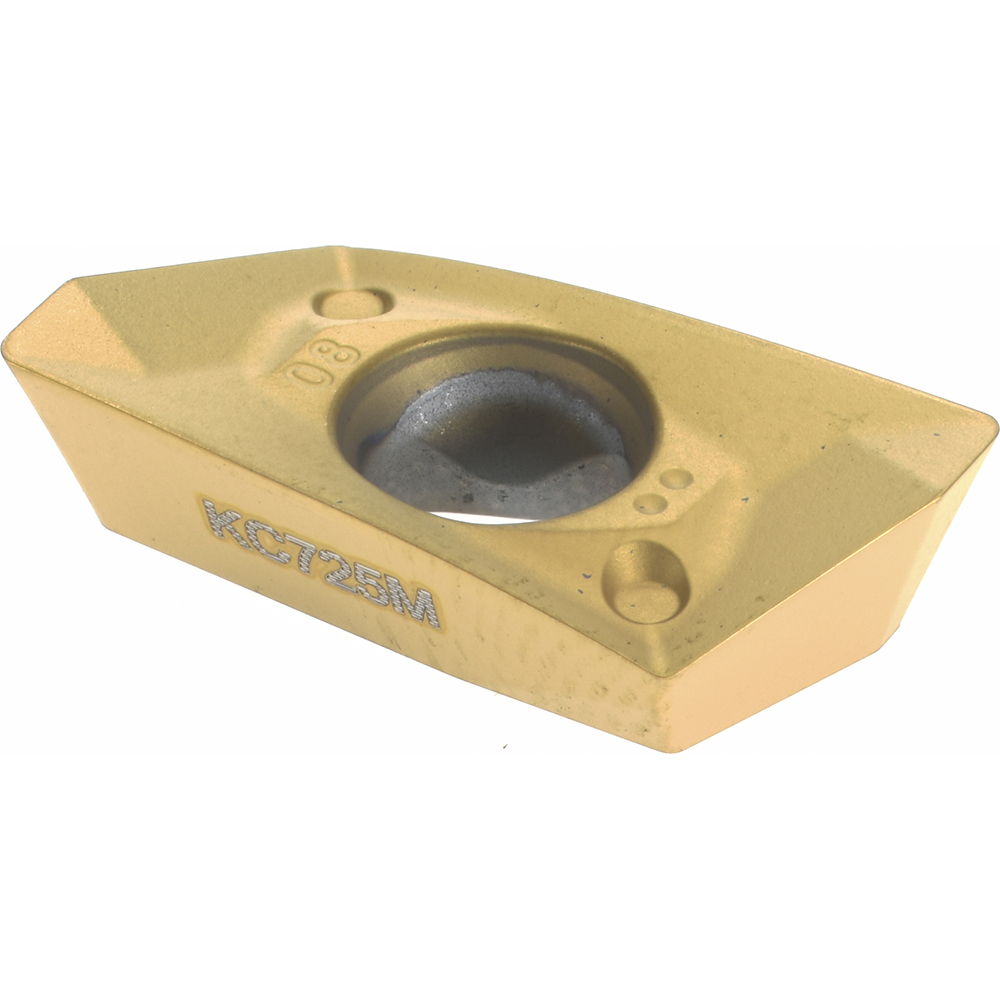

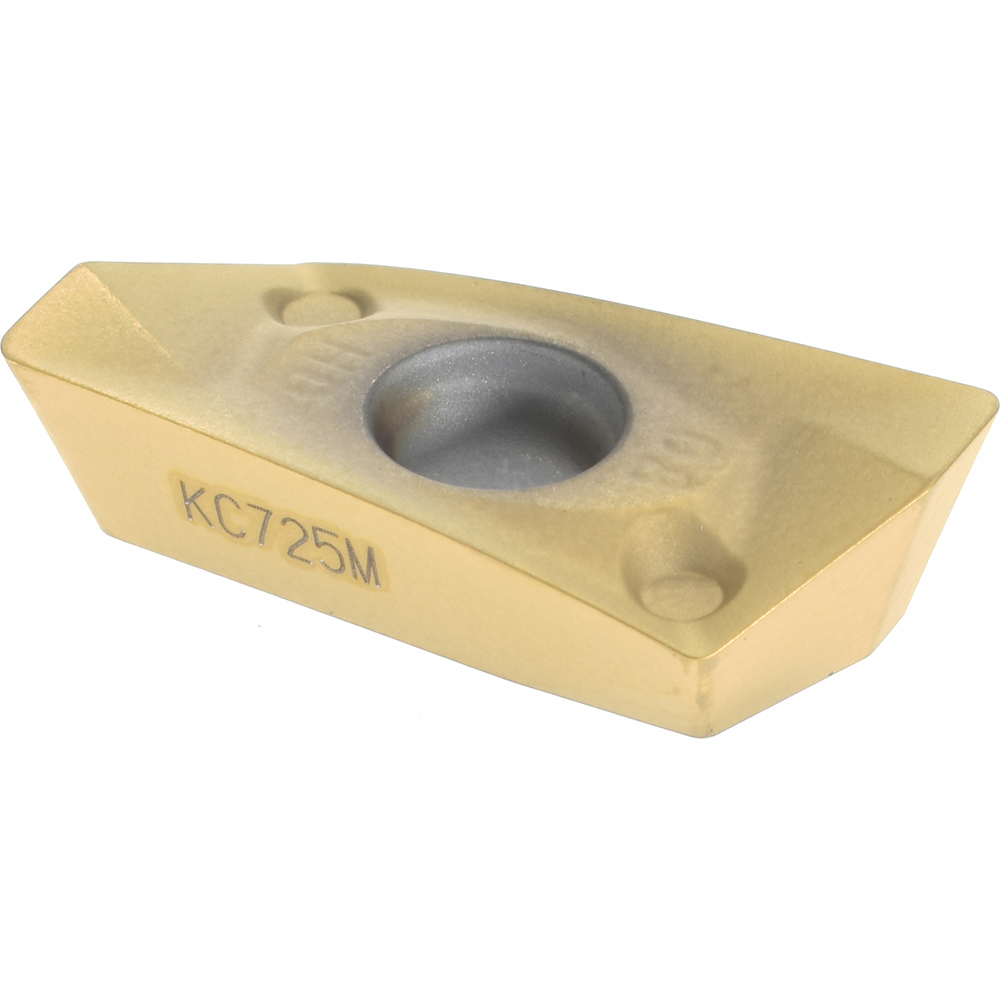

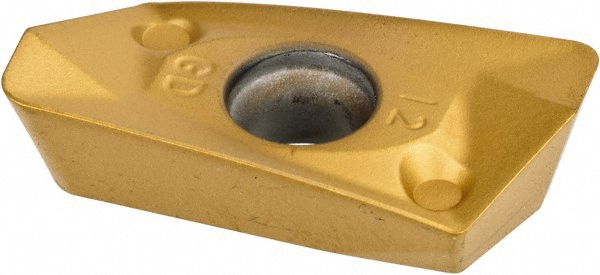

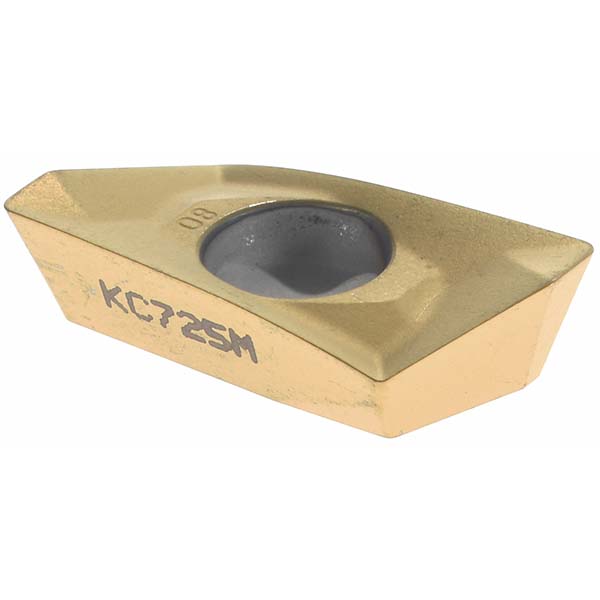

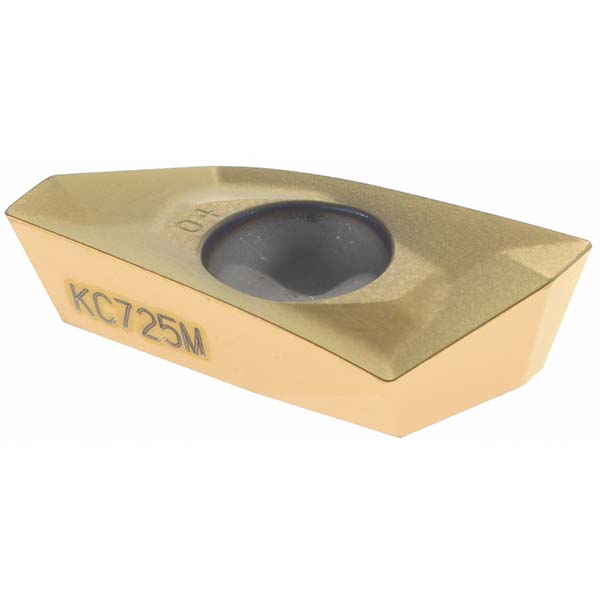

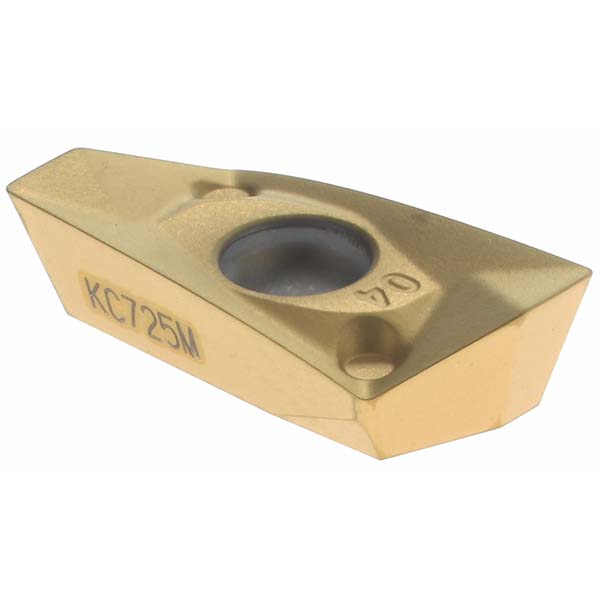

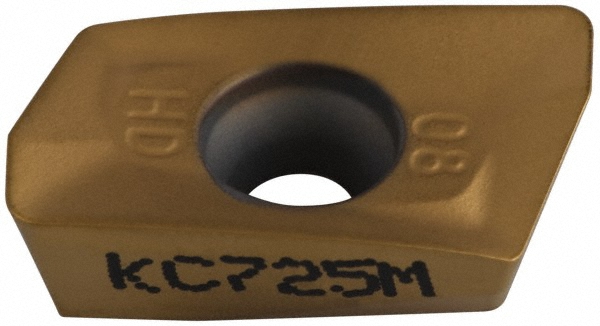

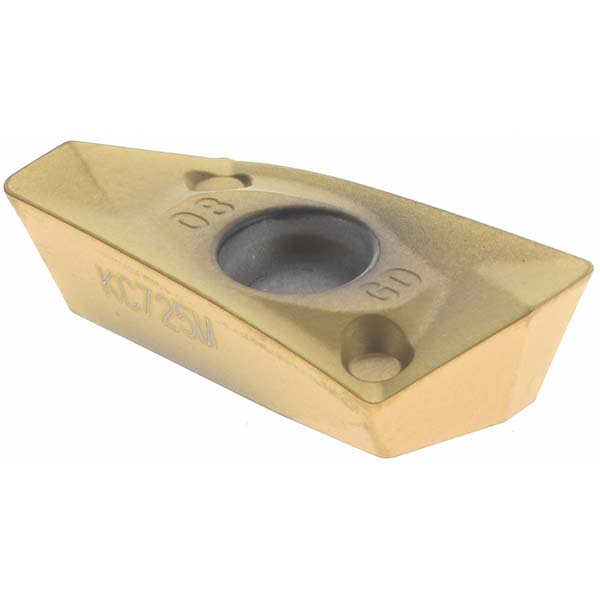

TiN, TiCN & TiN Finish, 0.1252" Thick, 0.3752" Wide
| Insert Style | XDMT |
|---|---|
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KC725M |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Coating/Finish | TiCN; TiN |
| Relief Angle | 15.00 |
| Insert Size Code | 150308 |
| Material Grade | C5; C6; C7 |
| Width (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Series | XDMT |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.17 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | XDMT150308R |
| Manufacturers Catalog Number | XDMT150308R |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 88 |
| Width (Decimal Inch - 4 Decimals) | 0.3752 |
| Length (Decimal Inch - 4 Decimals) | 0.5906 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 67690842 |
