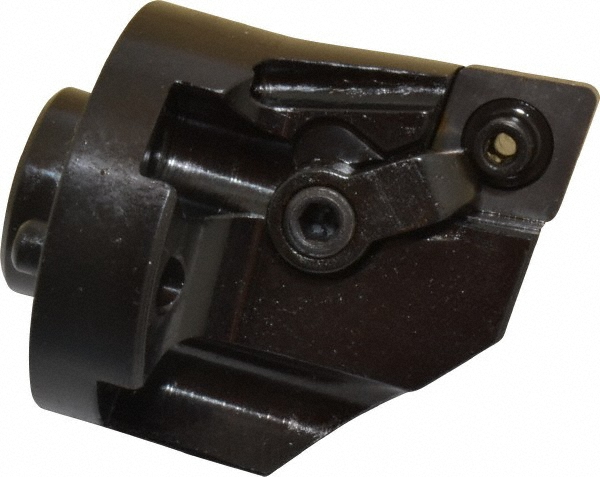

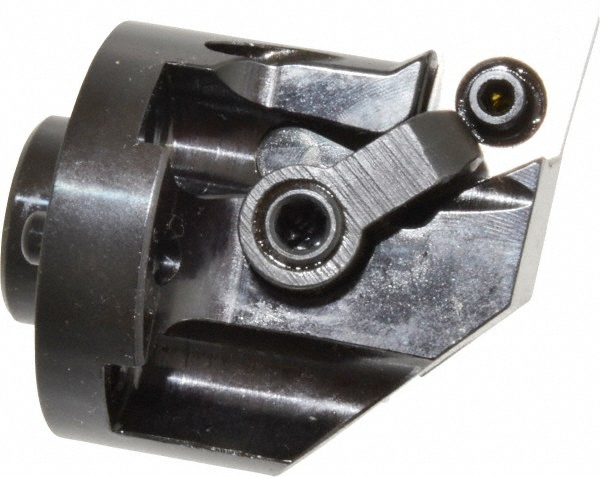

Through Coolant, Series Kenloc
| System Size | H24 |
|---|---|
| Minimum Bore Diameter (mm) | 50.80 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Insert Style | DN |
| Series | Kenloc |
| Center to Cutting Edge (Decimal Inch) | 1.1250 |
| Head Diameter Excluding Insert (Inch) | 1-1/2 |
| Head Diameter Excluding Insert (Decimal Inch) | 1.5000 |
| Complete Insert Compatibility | DN.. 332 |
| Head Length Projection (mm) | 41.27 |
| Head Length Projection (Inch) | 1-5/8 |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 1.6250 |
| UNSPSC Code | 23291900 |
| Country of Origin | Brazil |
| MSC Number | MSC# 35425669 |
