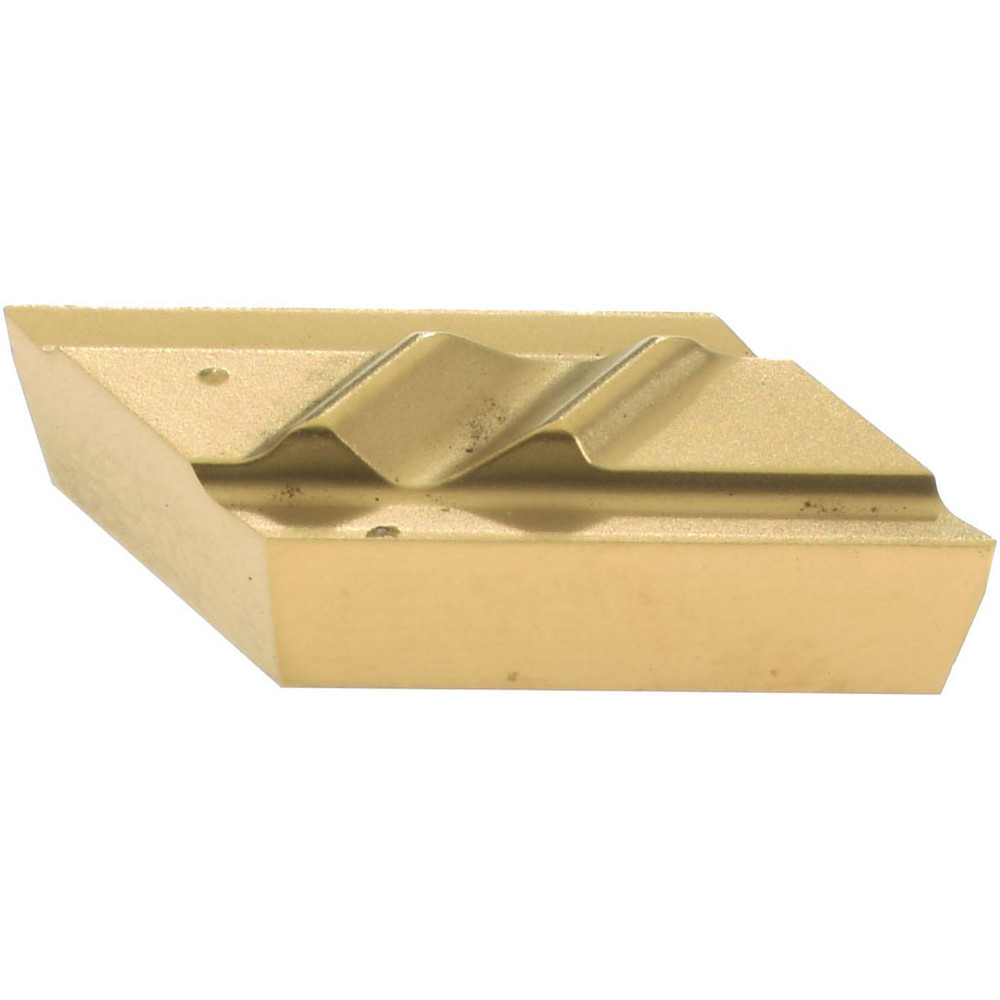

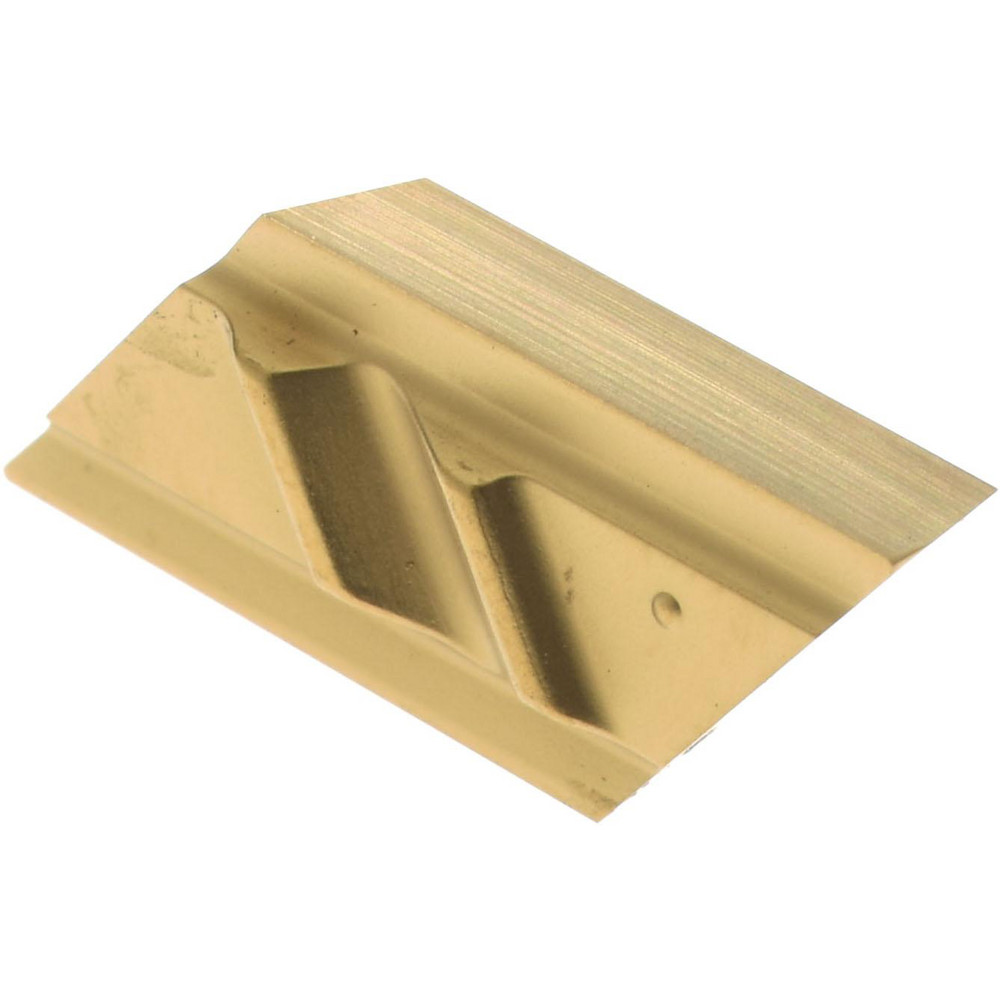

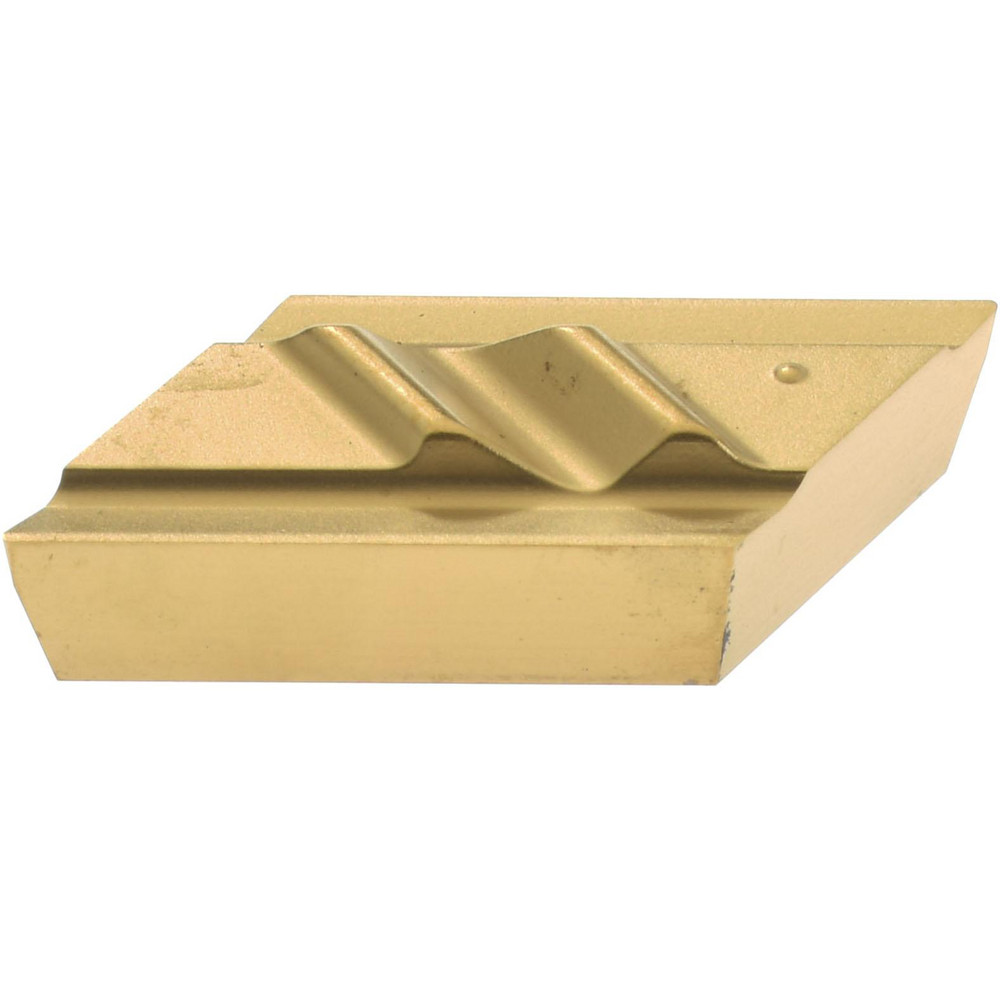

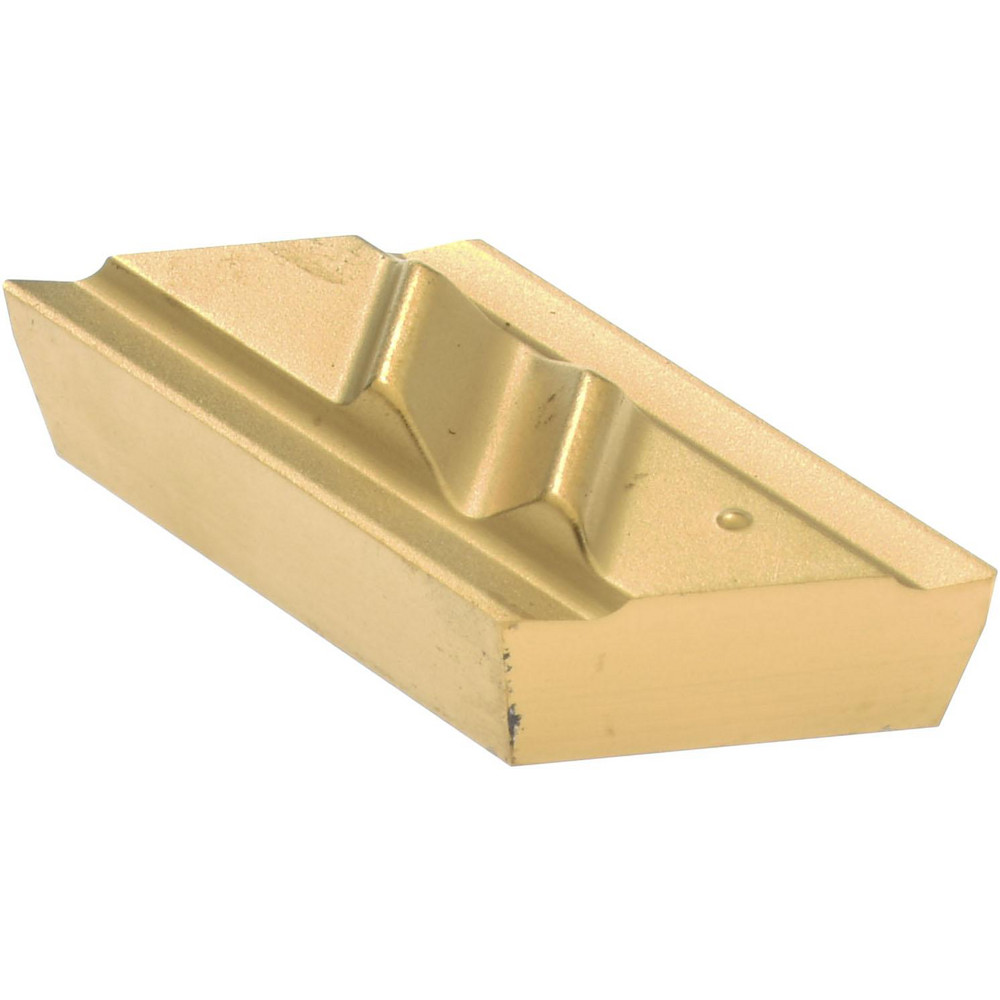

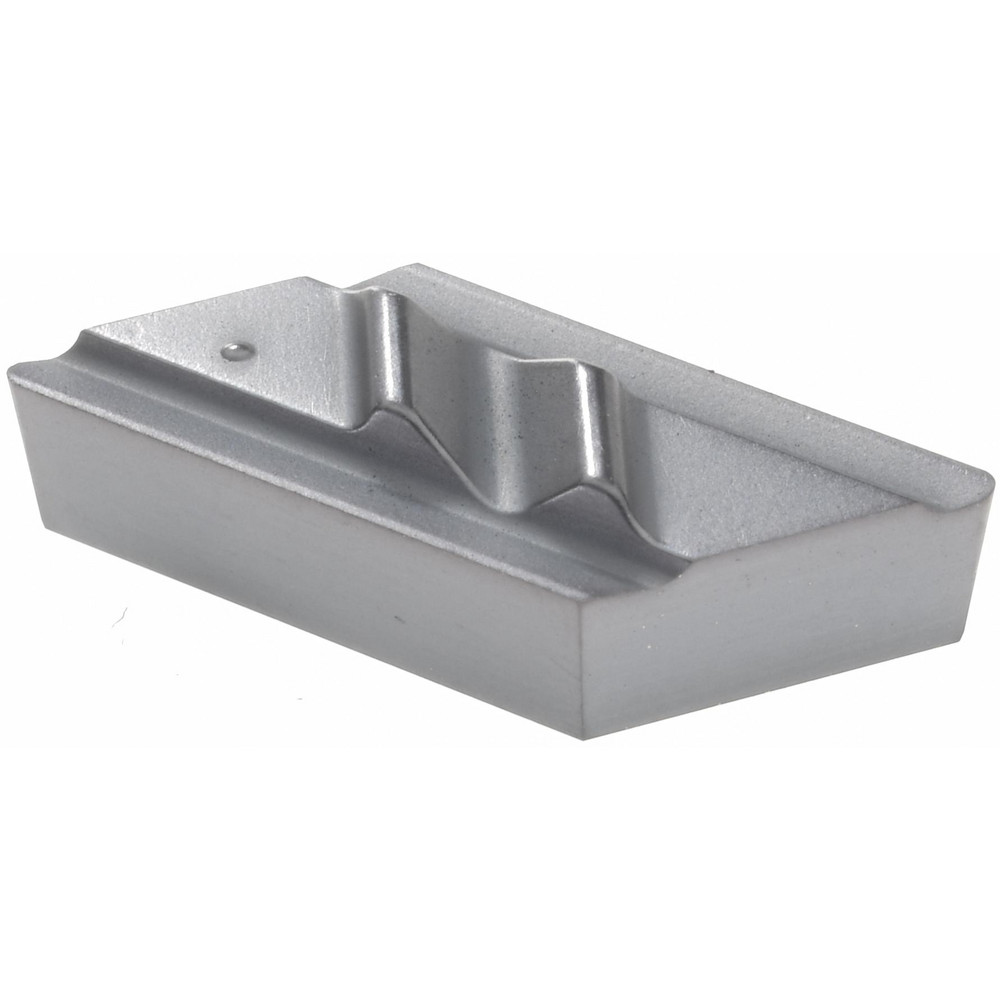

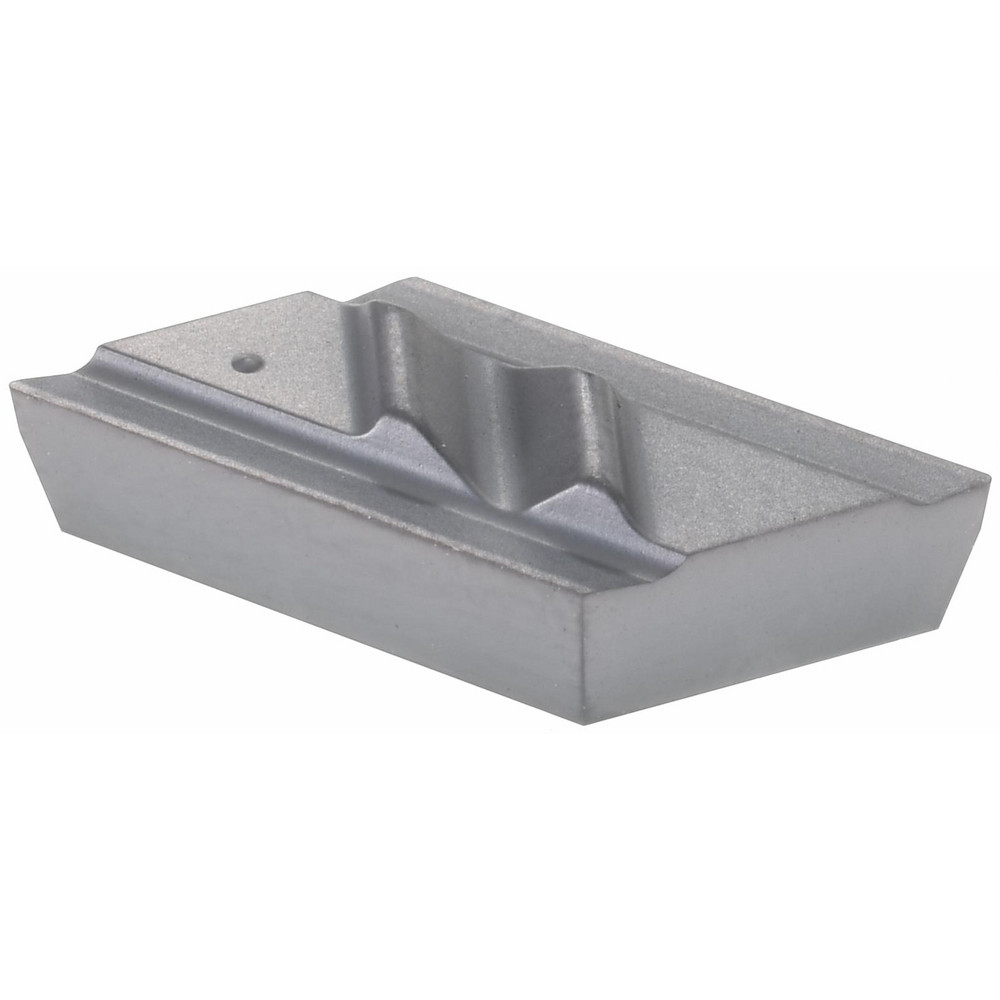

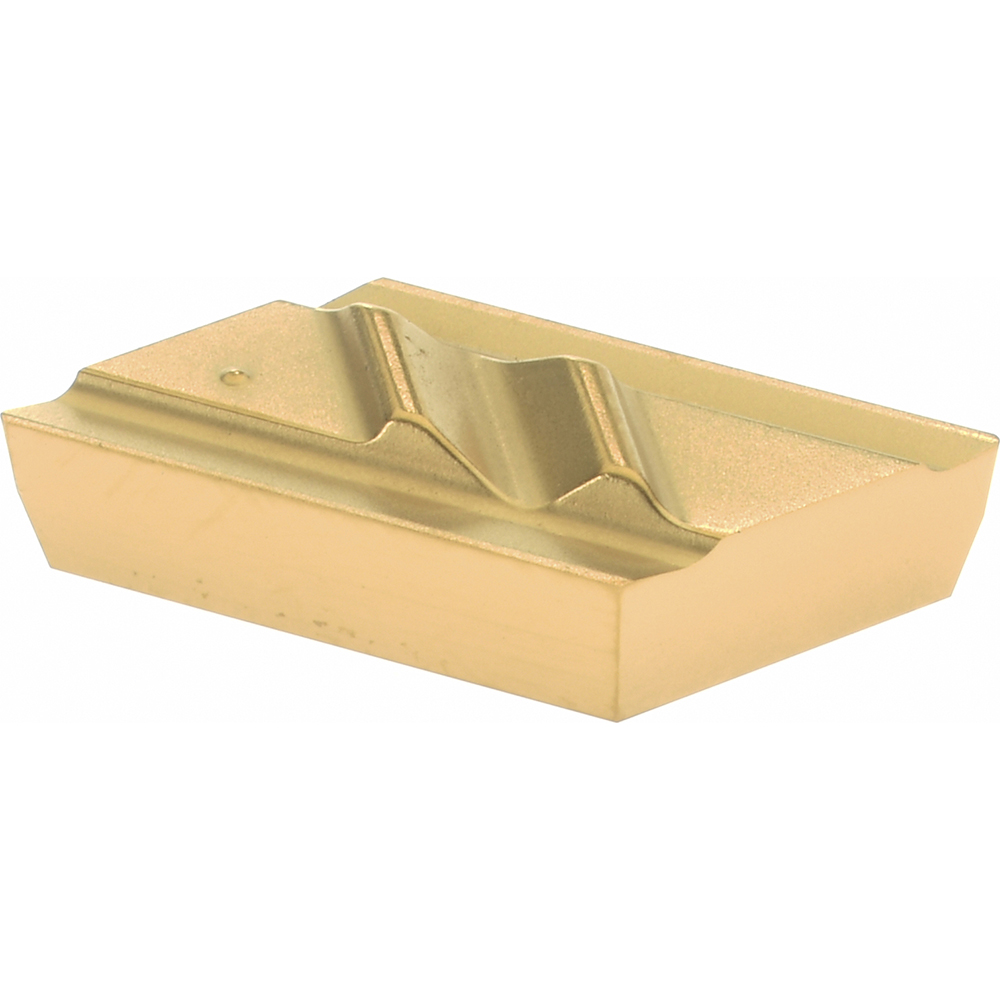

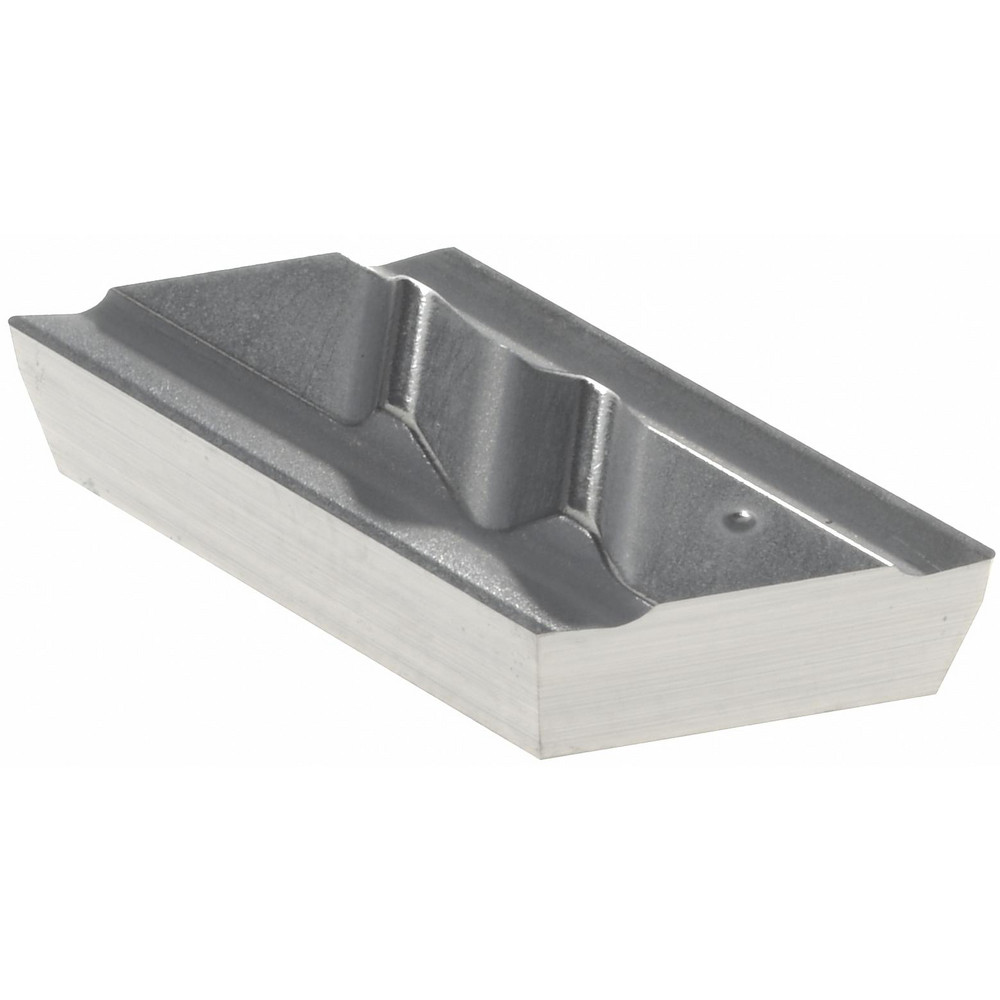

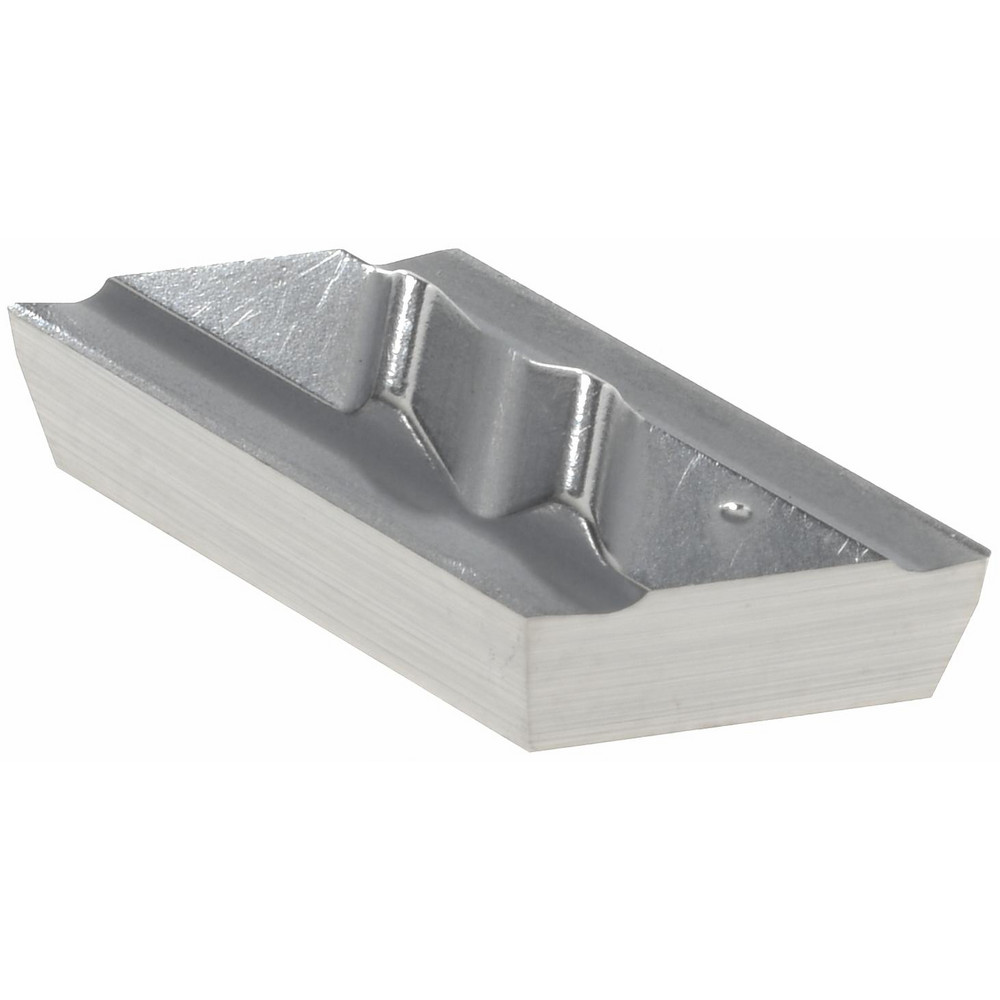

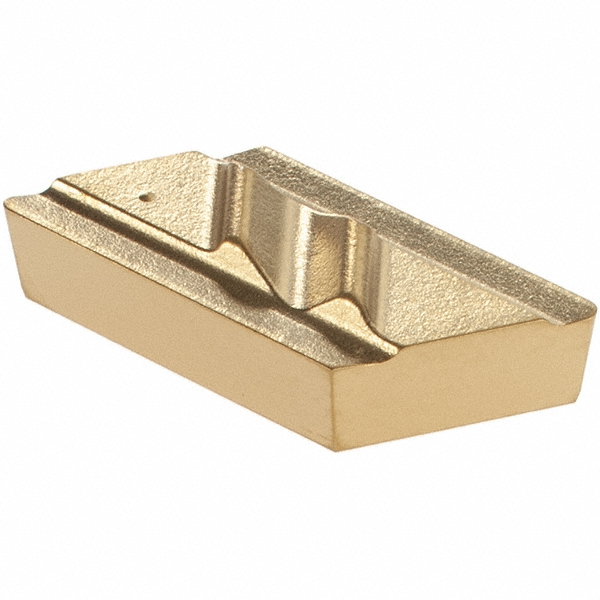

Carbide, 0.0050" Corner Radius, Series Top Not
| Insert Style | NPR |
|---|---|
| Insert Size Code | 505 |
| Insert Material | Carbide |
| Material Grade | S20; S10; M20; M10; P10; P20 |
| Width (Inch) | 1/4 |

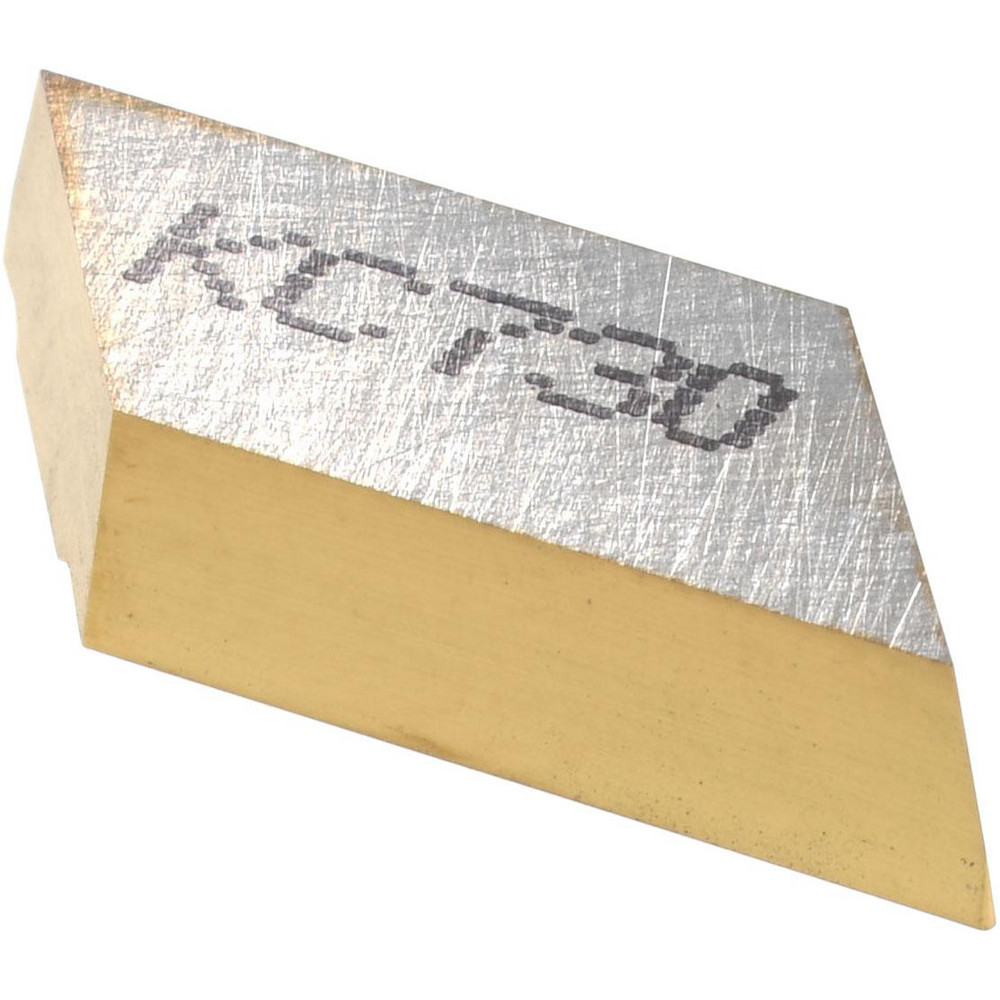

| Manufacturer Grade | KC730 |
| Thickness (Inch) | 1/8 |
| Insert Height (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Maximum Depth of Cut (Decimal Inch) | 0.1256 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0050 |
| Corner Radius (mm) | 0.10 |
| Included Angle | 55 |
| Relief Angle | 0 |
| Chipbreaker | Common |
| Inscribed Circle (Decimal Inch) | 0.2490 |
| Series | Top Not |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.3769 |
| Insert Length (mm) | 9.53 |
| Number Of Cutting Edges | 4 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | KCGX110301R15 |
| Standards | KCGX110301R15; NPR505 |
| Rake Angle | 10 |
| Side Length (Decimal Inch) | 0.3769 |
| Side Length (mm) | 11.60 |
| Shape | Parallelogram |
| Applications | Profiling; Turning |
| MSC/Manufacturer Number | NPR505 |
| Coating Classification | PVD |
| Coating/Finish | TiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (Decimal Inch - 4 Decimals) | 0.2490 |
| UNSPSC Code | 23242105 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 08673261 |
