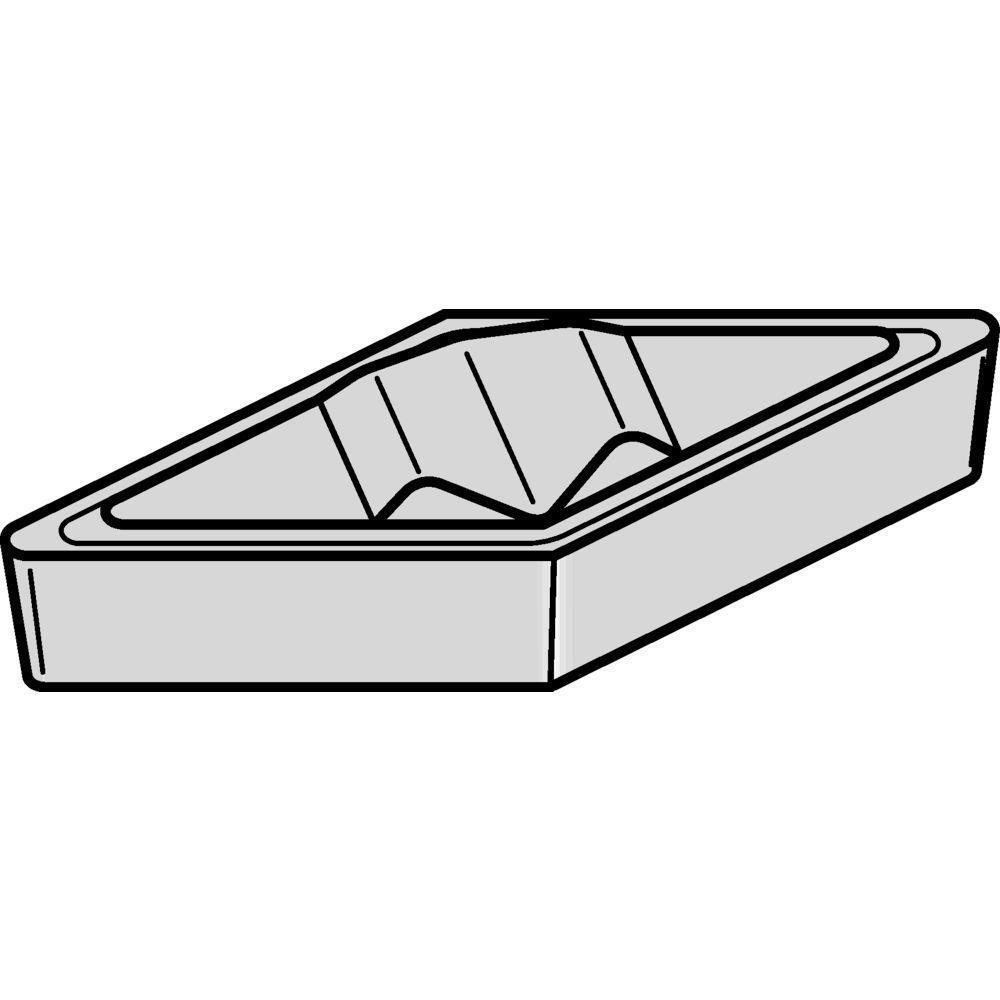

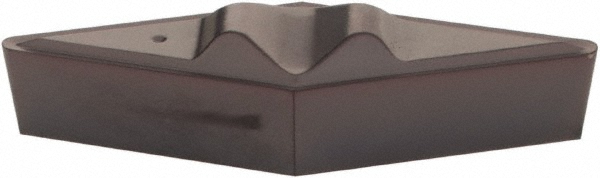

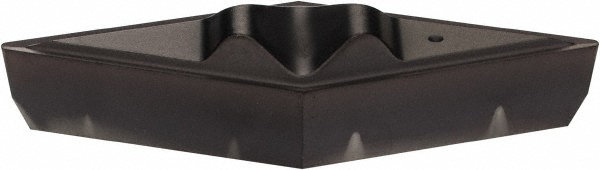

Carbide, 1/32" Corner Radius, Series Top Not
| Insert Style | VPGR |
|---|---|
| Insert Size Code | 332 |
| Insert Material | Carbide |
| Material Grade | S20; K05; S10; H10; K20; M20; N10; M10; N20; P10; P20 |
| Width (Inch) | 3/8 |
| Manufacturer Grade | KCU10 |
| Thickness (Inch) | 3/16 |
| Insert Height (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Maximum Depth of Cut (Decimal Inch) | 0.2180 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0312 |
| Corner Radius (mm) | 0.79 |

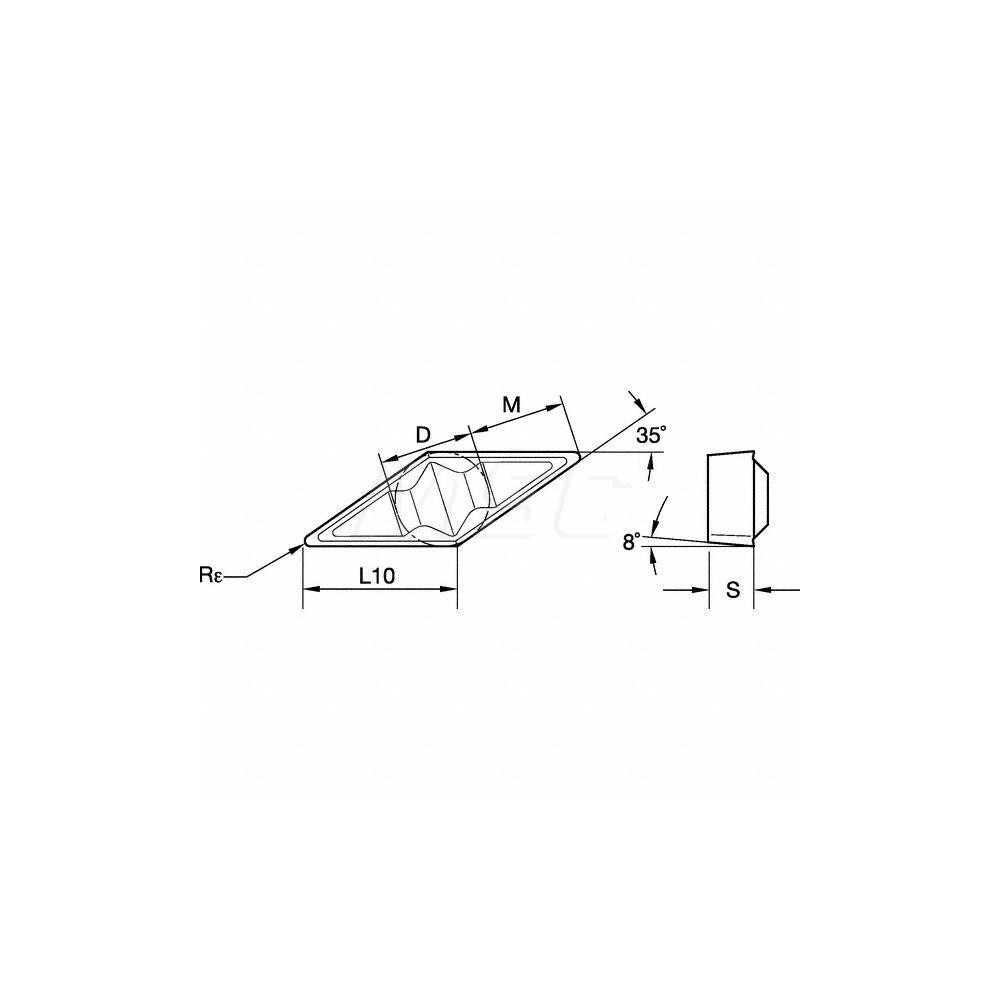

| Included Angle | 35 |
| Relief Angle | 8 |
| Chipbreaker | Common |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Series | Top Not |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6540 |
| Number Of Cutting Edges | 2 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Iso Code | VCGR160408 |
| Standards | VPGR332; VCGR160408 |
| Side Length (Decimal Inch) | 0.6540 |
| Side Length (mm) | 16.61 |
| Shape | Parallelogram |
| Applications | Profiling; Turning |
| MSC/Manufacturer Number | VPGR332 |
| Coating Classification | PVD |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| UNSPSC Code | 23242105 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 58489873 |
