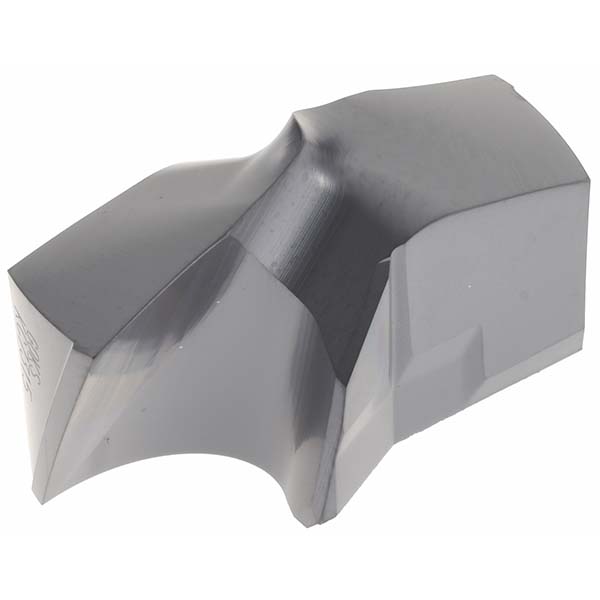

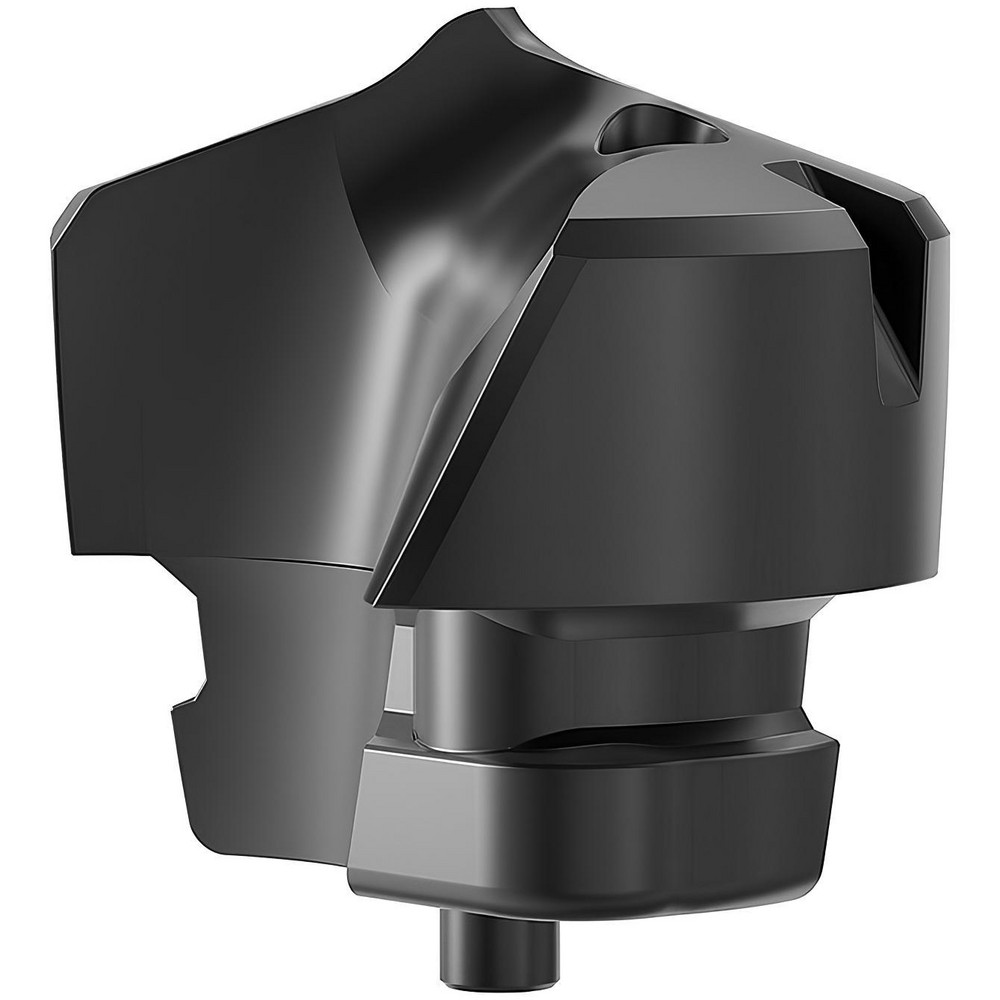

Seat Size 5, AlCr Finish
| Cutting Diameter (Inch) | 1 |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (mm) | 25.40 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | KC7410 |
| Material Grade | K15 |
| Series | KSEM |
| Coating Process | PVD |
| Insert Geometry | HPCCL |
| Insert Seat Size | 5 |
| Functional Length (Decimal Inch) | 0.5000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Height (Decimal Inch) | 0.5 |
| Height (mm) | 15.00 |
| Overall Length/Projection (Decimal Inch) | 0.5000 |

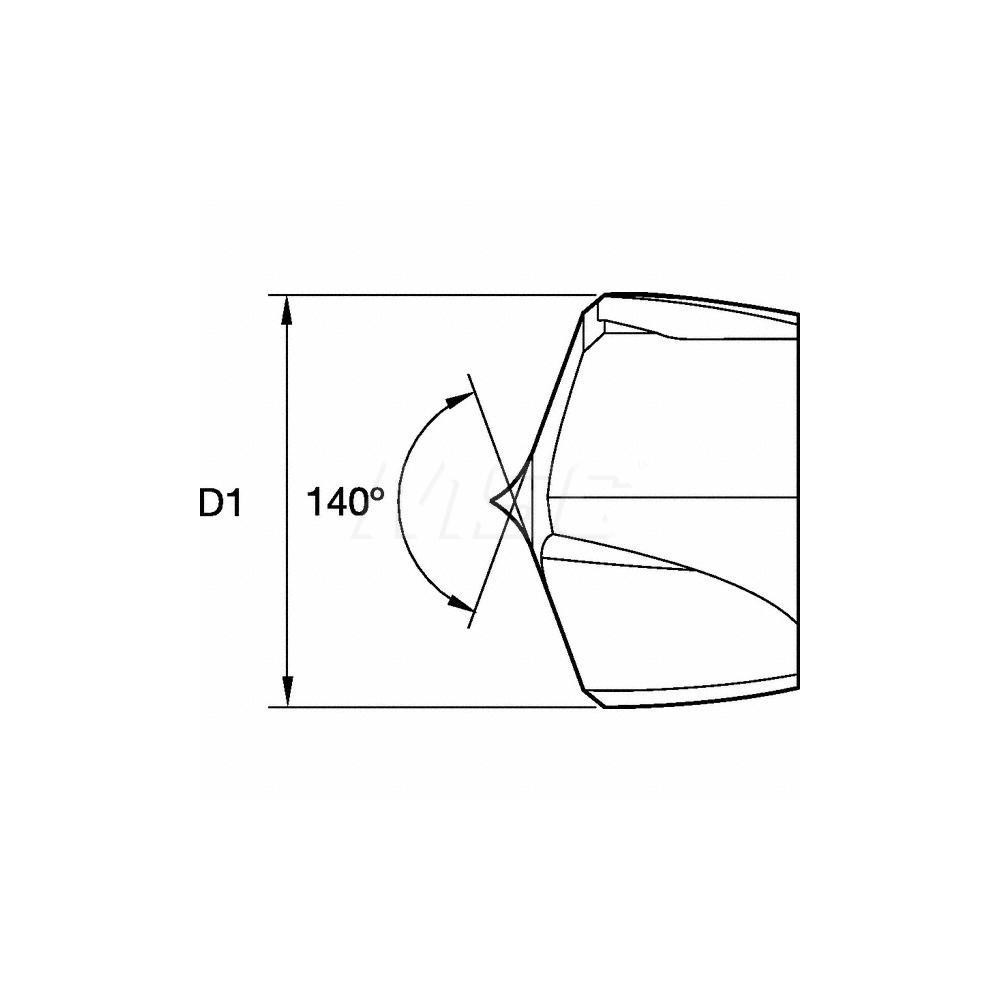

| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | KSEM1000HPCCL |
| Coolant Through | No |
| Flute Length (mm) | 13.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Height (Inch) | 1/2 |
| Style | KSEM |
| UNSPSC Code | 23242105 |
| Applications | Drilling; ToolDimensions:2flute/2margin/coolant; Drilling:InclinedExit; Drilling:StackedPlates |
| Coating/Finish | AlCr |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| Country of Origin | Germany |
| MSC Number | MSC# 58494022 |
