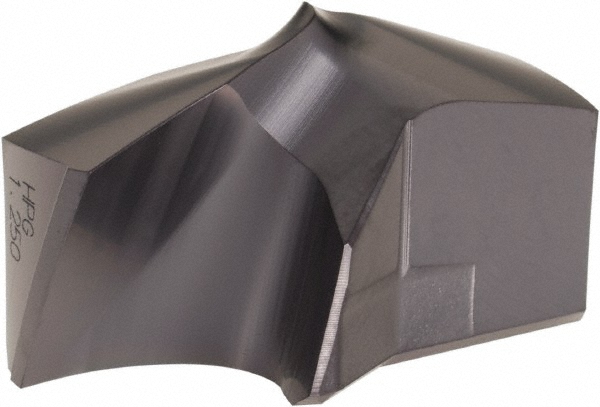

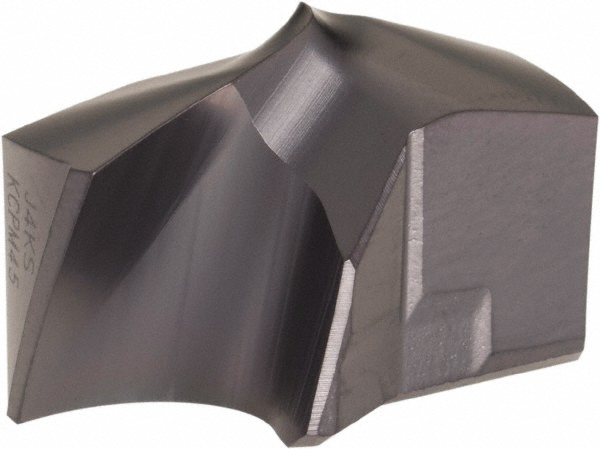

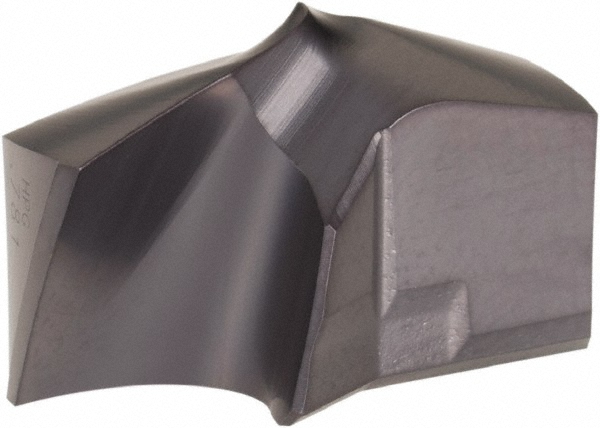

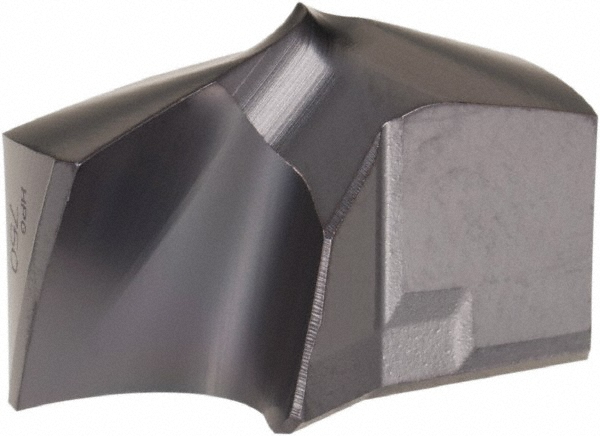

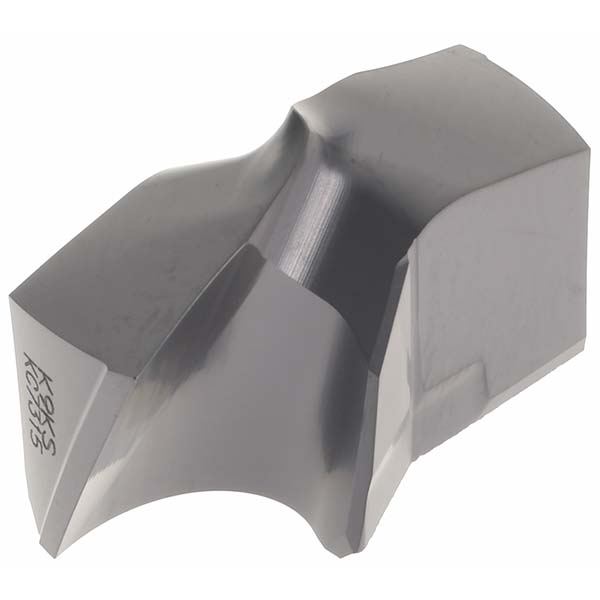

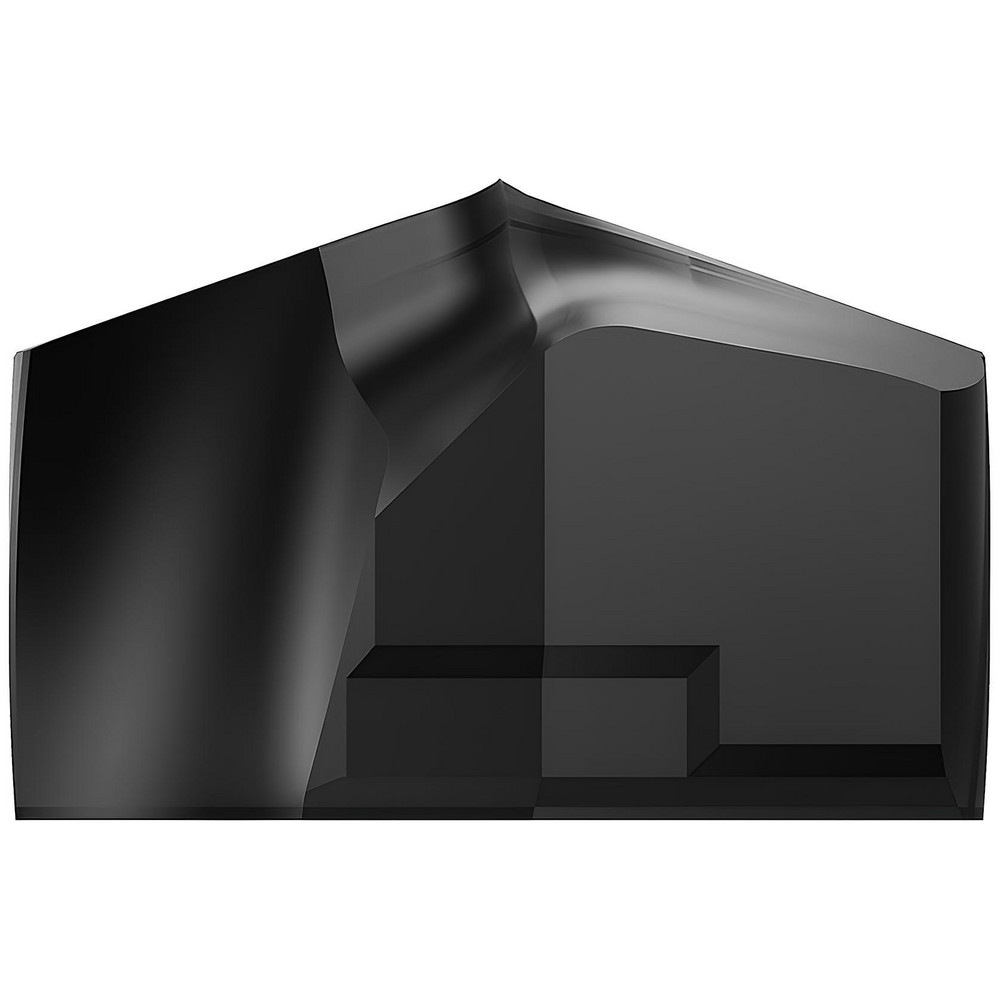

Seat Size 2, TiAlN Finish, Through Coolant
| Cutting Diameter (Inch) | 3/4 |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (mm) | 19.05 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | KCPM45 |
| Material Grade | Fine Grain |
| Series | KSEM |
| Coating Process | PVD |
| Insert Geometry | HPG |
| Insert Seat Size | 2 |
| Functional Length (Decimal Inch) | 0.3750 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Height (mm) | 13.00 |
| Overall Length/Projection (Decimal Inch) | 0.5070 |

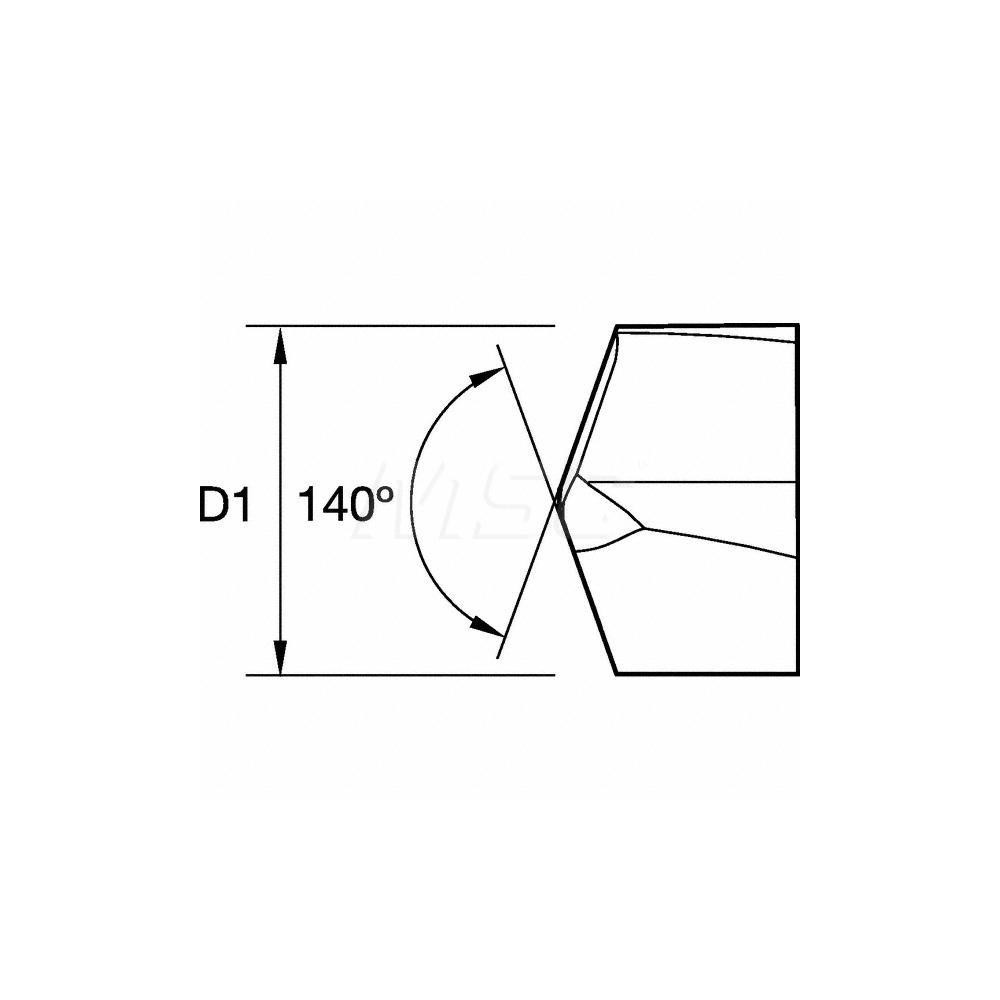

| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | KSEM0750HPG |
| Coolant Through | Yes |
| Flute Length (mm) | 10.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | KSEM |
| UNSPSC Code | 23242105 |
| Applications | Drilling; ToolDimensions:2flute/2margin/coolant; ThroughCoolant:MQL(MinimumQuantityLubricant):Drilling; Drilling-ThroughCoolant; Drilling:InclinedExit; Drilling:StackedPlates |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| Country of Origin | Canada |
| MSC Number | MSC# 69370625 |
