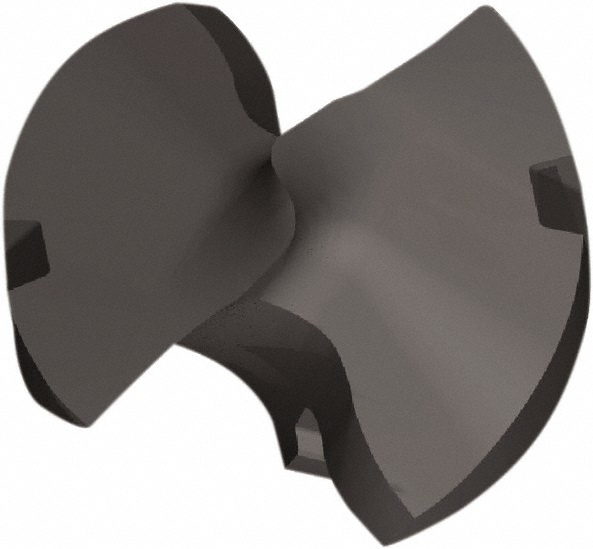

Seat Size J, AlTiN Finish
| Cutting Diameter (Inch) | 13/32 |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.4063 in |
| Tip Material | Solid Carbide |
| Manufacturer Grade | KCP15A |
| Material Grade | Fine Grain |
| Series | KTFSS |
| Coating Process | PVD |
| Insert Geometry | HPG |
| Insert Seat Size | J |
| Functional Length (Decimal Inch) | 0.2032 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Height (mm) | 7.00 |
| Overall Length/Projection (Decimal Inch) | 0.2926 |
| Drill Point Angle | 180 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | KTFSS04063HPG |
| Coolant Through | No |
| Flute Length (mm) | 5.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | KTFSS |
| UNSPSC Code | 23242105 |
| Applications | Drilling; ToolDimensions:2flute/2margin/nocool; 100160772; Drilling:InclinedExit; Drilling:StackedPlates |
| Coating/Finish | AlTiN |
| Included Angle Degree | 180 |
| Number Of Flutes | 2 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 38306247 |
