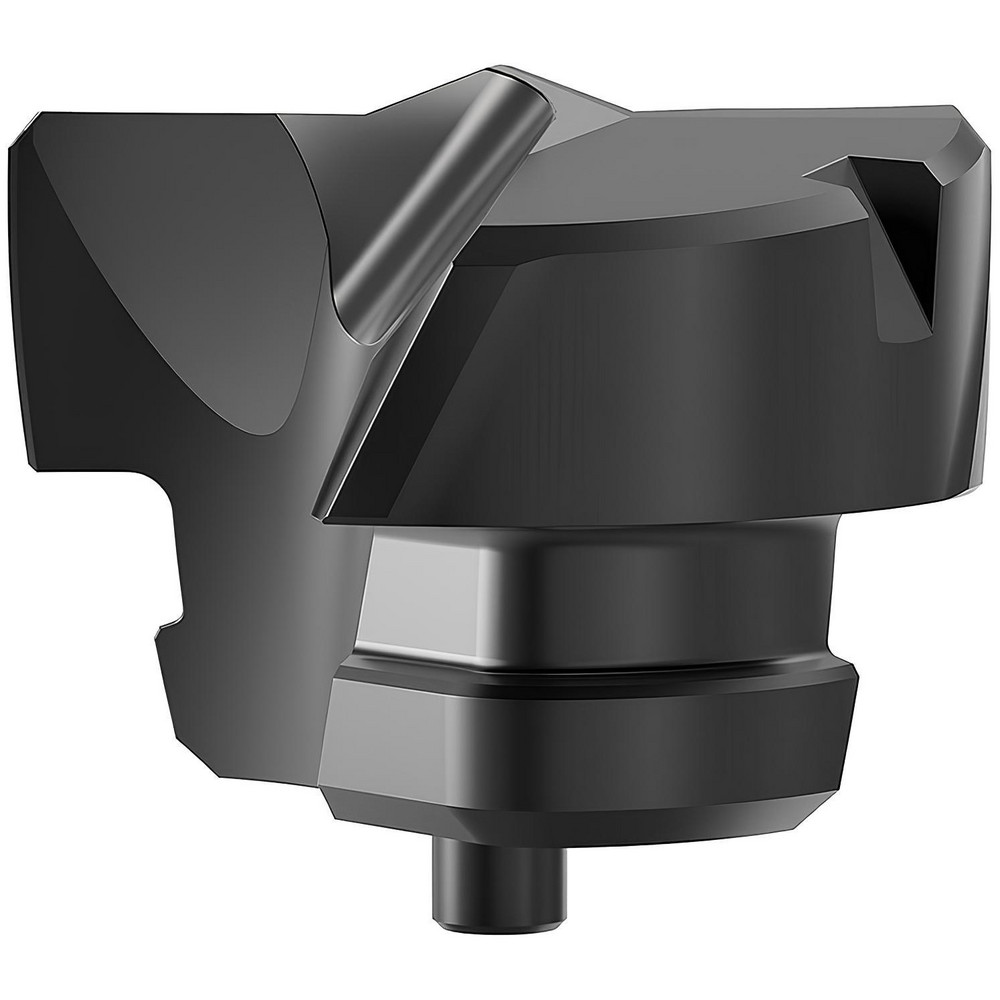

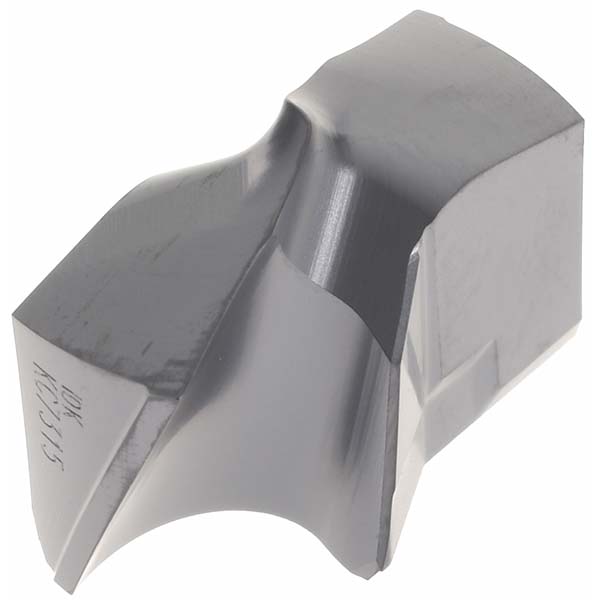

Seat Size Q, AlTiN Finish

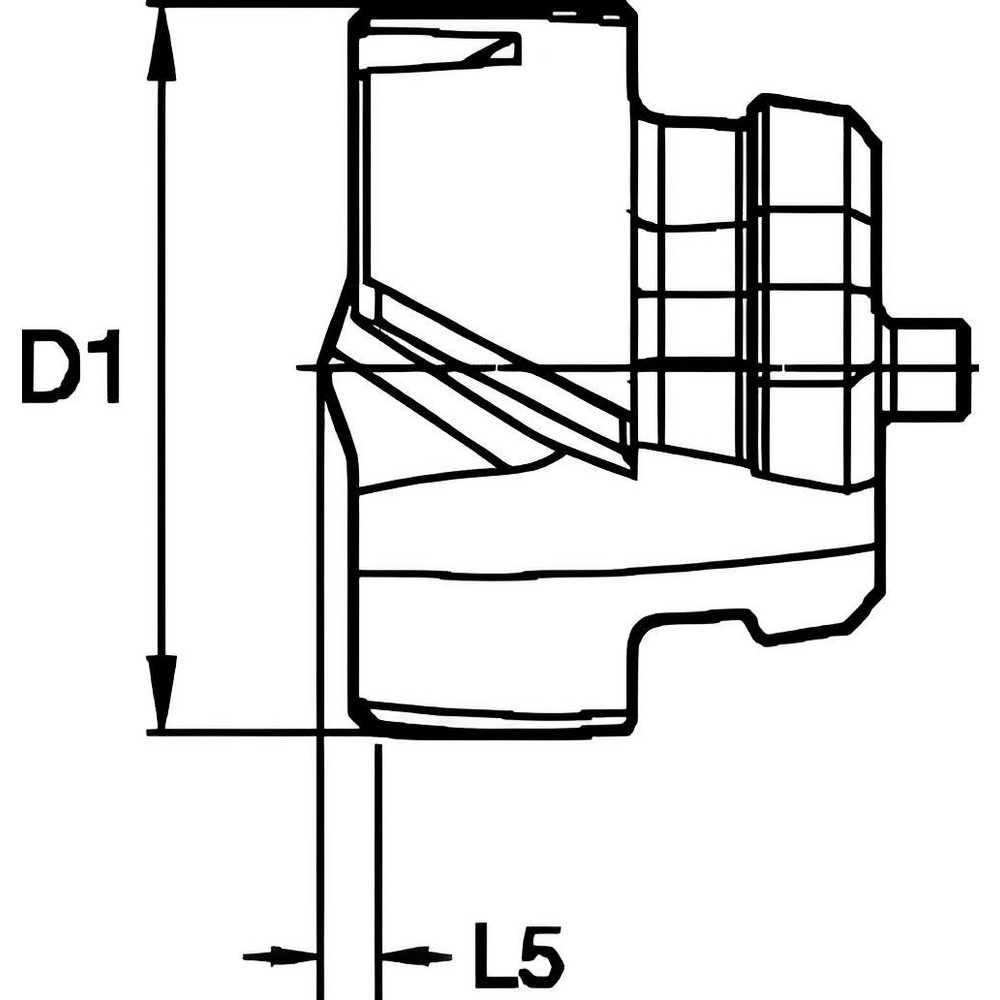

| Cutting Diameter (Inch) | 17/32 |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5315 |
| Cutting Diameter (mm) | 13.50 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | KCP15A |
| Material Grade | Fine Grain |
| Series | KTFSS |
| Coating Process | PVD |
| Insert Geometry | FEG |
| Insert Seat Size | Q |
| Functional Length (Decimal Inch) | 0.2658 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Height (mm) | 8.00 |
| Overall Length/Projection (Decimal Inch) | 0.3067 |
| Drill Point Angle | 180 |
| Flute Type | Straight |
| Insert Holding Method | Clamp |
| ISO Number | KTFSS13500FEGM |
| Coolant Through | No |
| Flute Length (mm) | 7.00 |
| Point Type | Flat |
| Spiral Type | Straight |
| Style | KTFSS |
| UNSPSC Code | 23242105 |
| Applications | Drilling; Drilling:InclinedEntry; 100160772; ToolDimensions:2flute/4margin/nocool; Drilling:InclinedExit; Drilling:FlatBottom; CounterBoring |
| Coating/Finish | AlTiN |
| Included Angle Degree | 180 |
| Number Of Flutes | 2 |
| Country of Origin | Germany |
| MSC Number | MSC# 10046423 |
