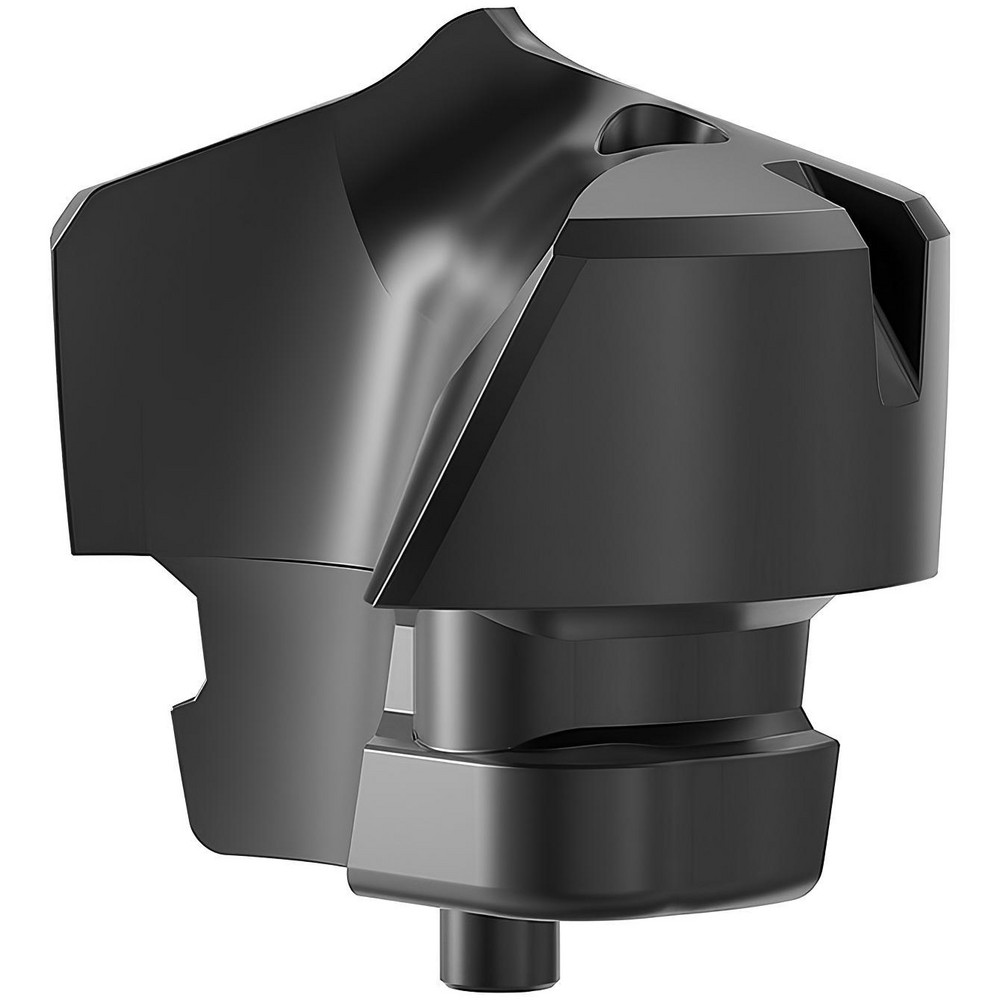

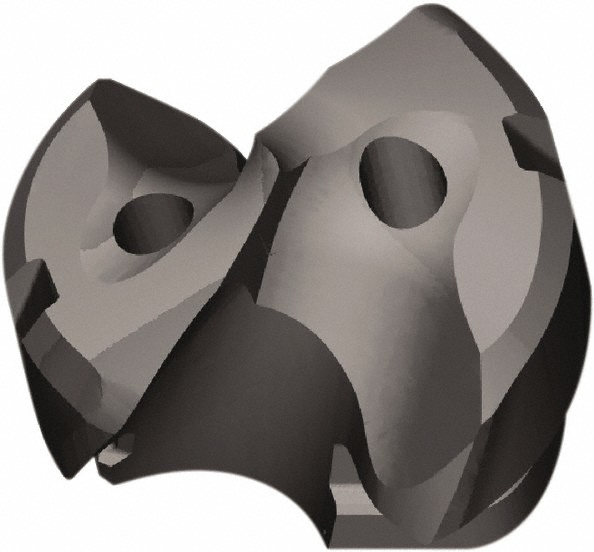

Seat Size O, AlCr Finish, Through Coolant

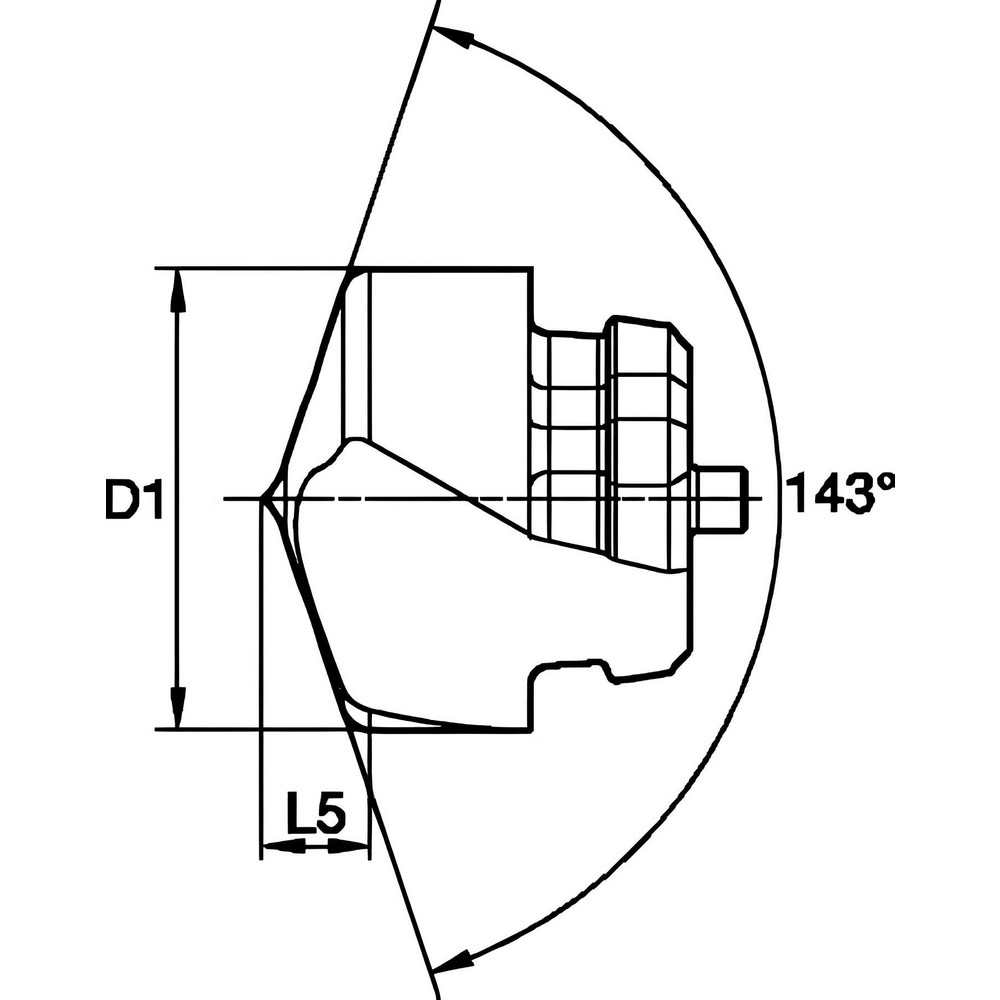

| Cutting Diameter (Inch) | 1/2 |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5000 in |
| Tip Material | Solid Carbide |
| Manufacturer Grade | KC7410 |
| Material Grade | K15 |
| Series | KTFST |
| Coating Process | PVD |
| Insert Geometry | HPC |
| Insert Seat Size | O |
| Functional Length (Decimal Inch) | 0.2500 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Height (mm) | 9.00 |
| Overall Length/Projection (Decimal Inch) | 0.3654 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | KTFST05000HPC |
| Coolant Through | Yes |
| Flute Length (mm) | 6.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | KTFST |
| UNSPSC Code | 23242105 |
| Applications | Drilling; 100160773; Drilling:Cross-HoleDrilling; Drilling:InclinedExit; ToolDimensions:2flute/4margin/coolant; Drilling:StackedPlates |
| Coating/Finish | AlCr |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 38308599 |
