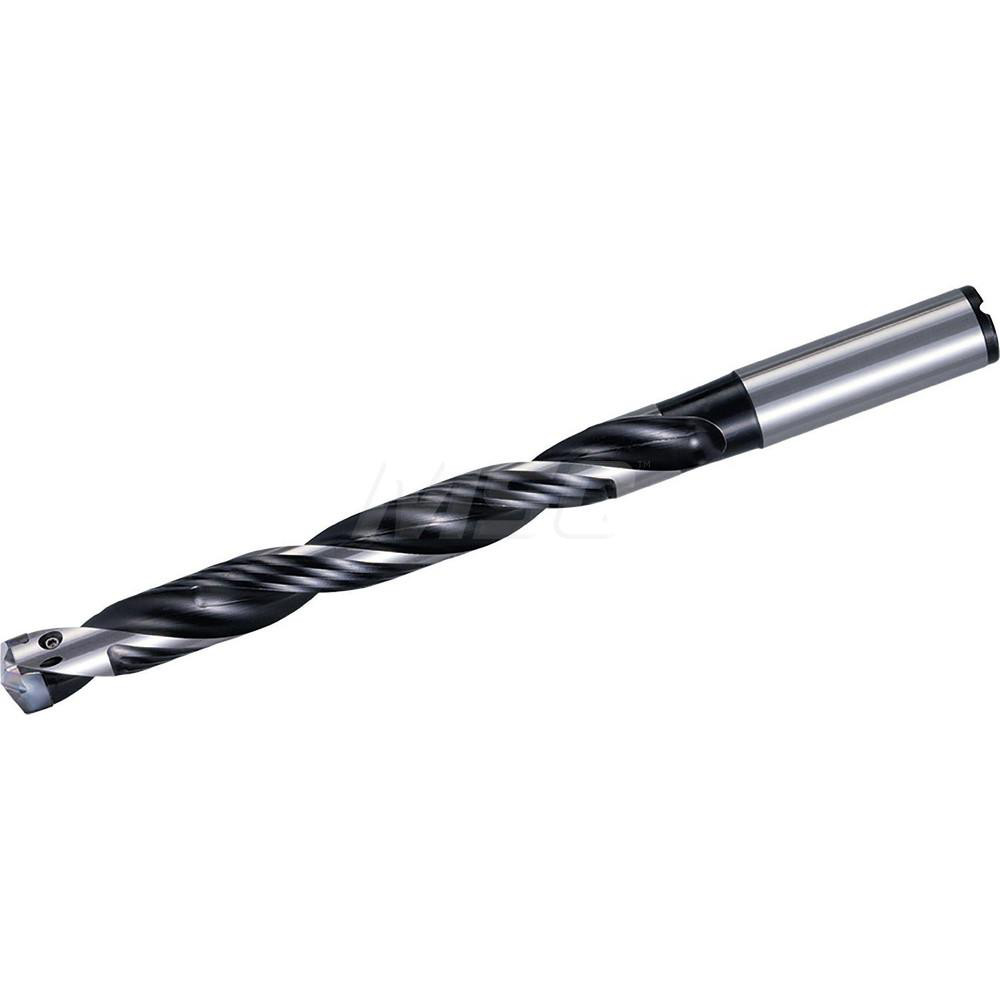

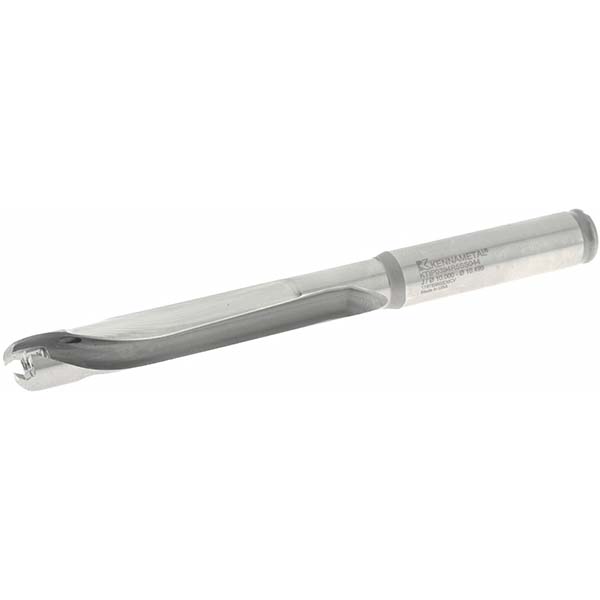

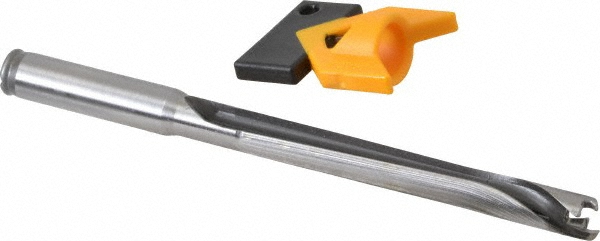

Uses KTIP03946HP Inserts, Seat Size J, 146.05 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.3937 |
|---|---|
| Minimum Drill Diameter (mm) | 10.00 |
| Maximum Drill Diameter (mm) | 10.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4130 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 84.00 |
| Maximum Drill Depth (Decimal Inch) | 3.3100 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | J |
| Shank Diameter (mm) | 11.11 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Compatible Insert Style | KTIP03946HP |
| Overall Length (mm) | 146.05 |
| Overall Length (Decimal Inch) | 5.75 |
| Series | KenTIP |
| Flute Length (mm) | 98.80 |
| Flute Length (Decimal Inch) | 3.8898 |
| Shank Length (Decimal Inch) | 1.6700 |
| Shank Length (mm) | 42.42 |
| Coolant Hole Diameter (Decimal Inch) | 0.0551 |
| Coolant Hole Diameter (mm) | 1.40 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01243492 |
