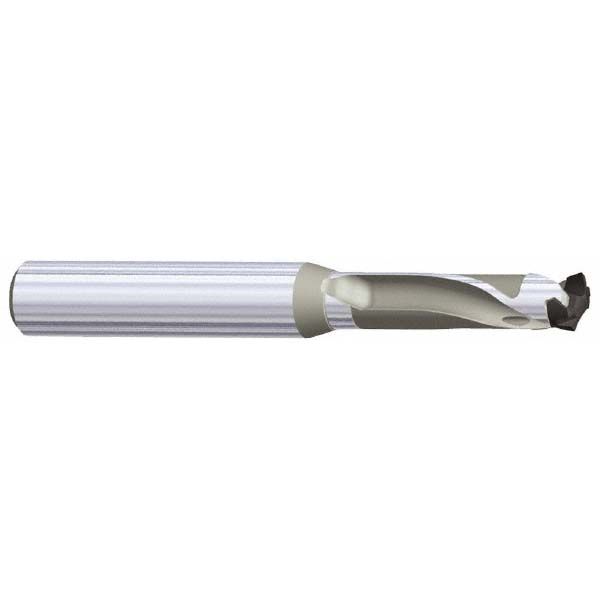

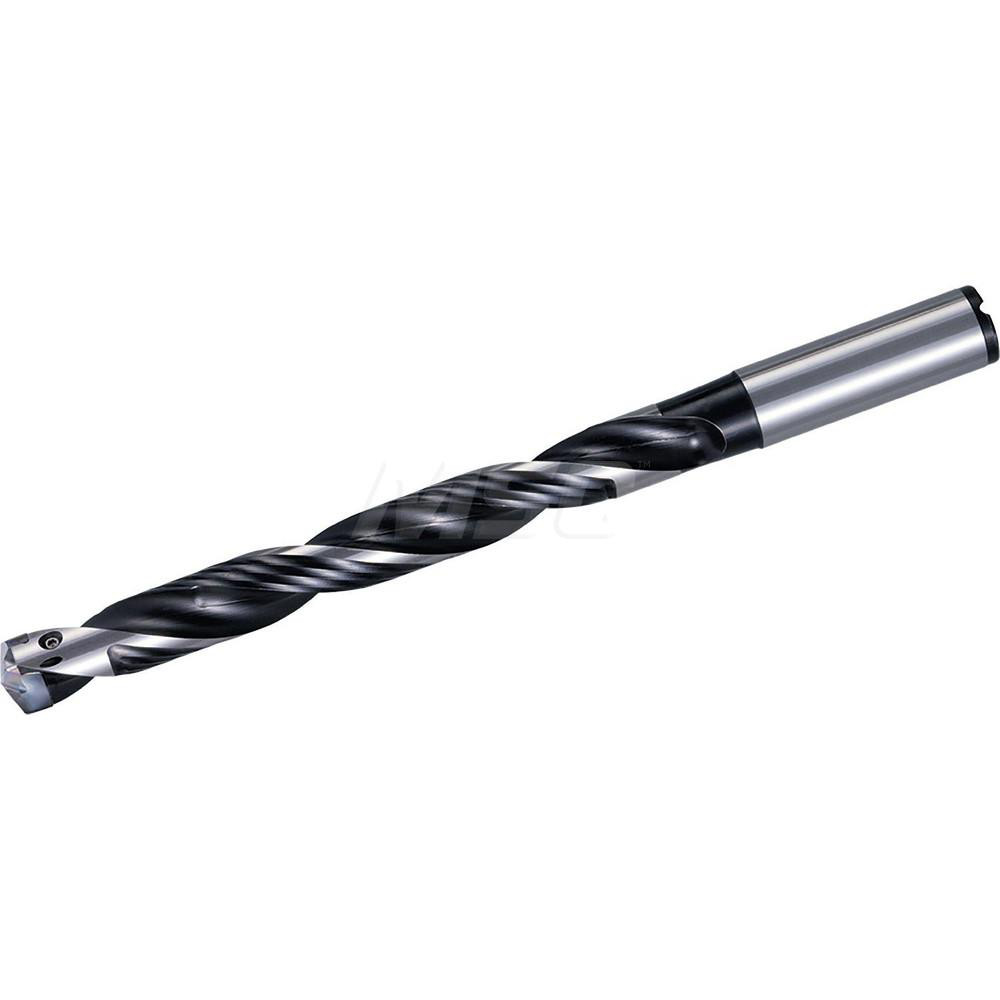

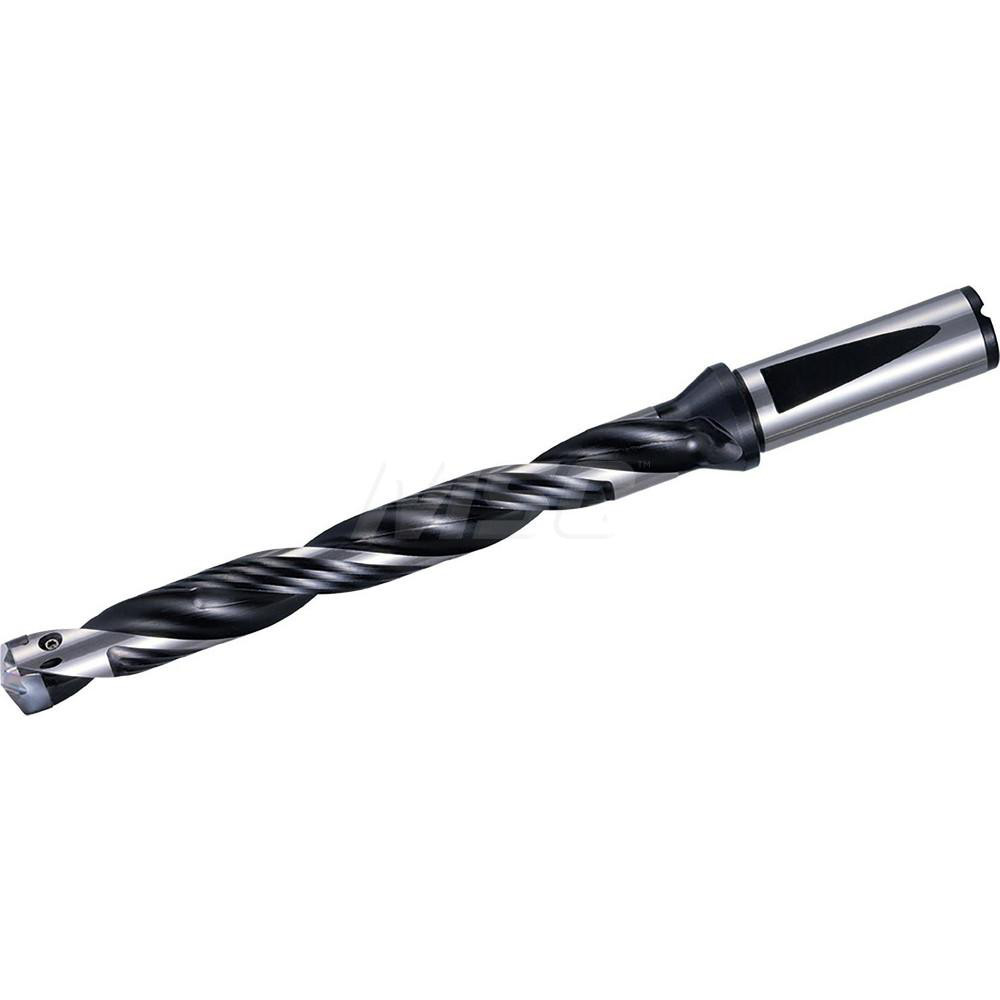

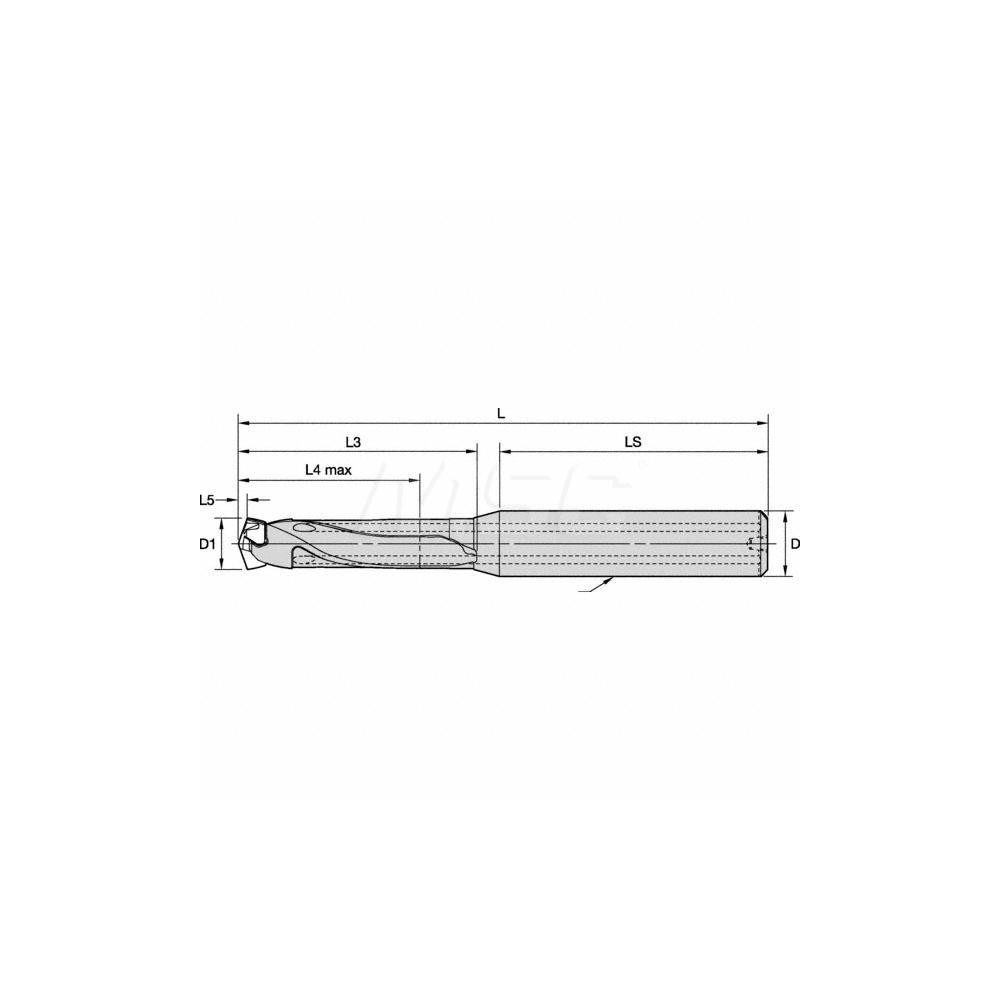

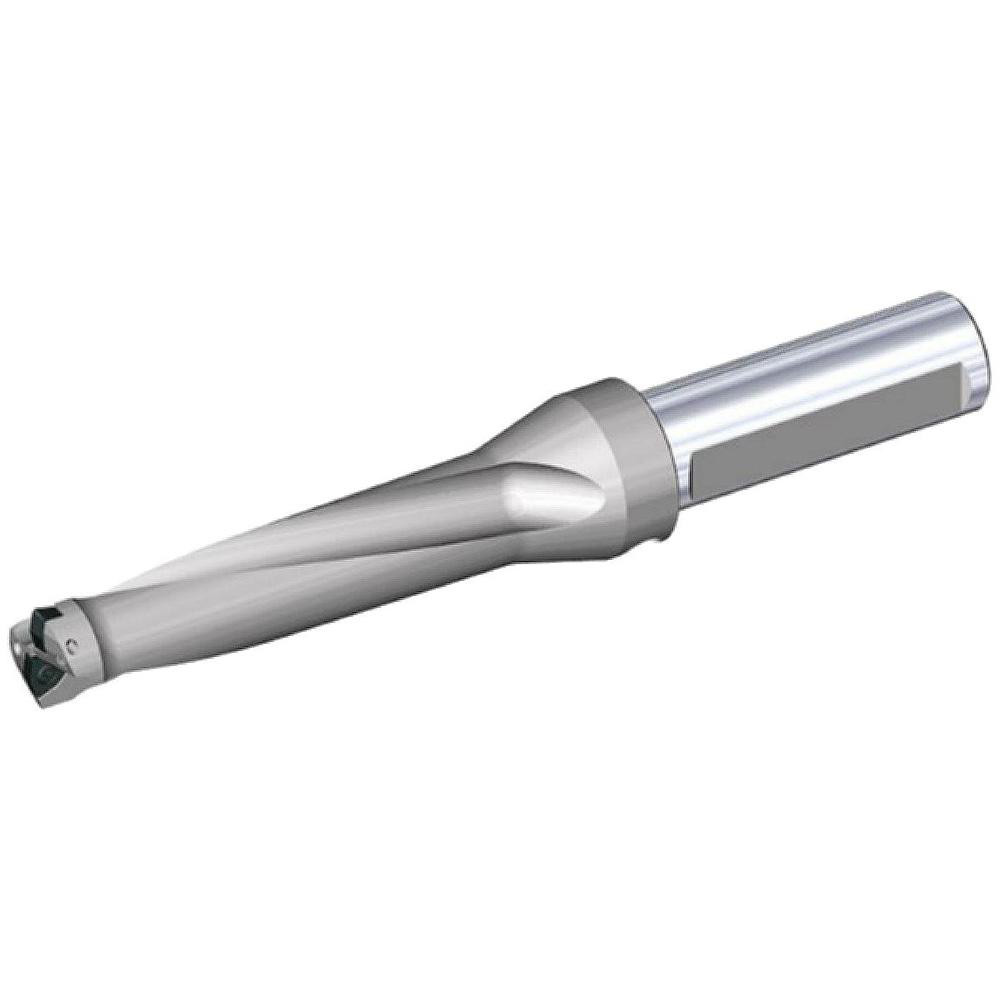

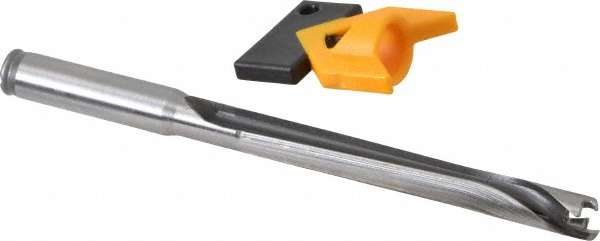

Uses KTIP04219HP Inserts, Seat Size K, 152.4 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.4134 |
|---|---|
| Minimum Drill Diameter (mm) | 10.50 |
| Maximum Drill Diameter (mm) | 10.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.4327 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 88.00 |
| Maximum Drill Depth (Decimal Inch) | 3.4600 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | K |
| Shank Diameter (mm) | 11.11 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Compatible Insert Style | KTIP04219HP |
| Overall Length (mm) | 152.4 |
| Overall Length (Decimal Inch) | 6 |
| Series | KenTIP |
| Flute Length (mm) | 105.20 |
| Flute Length (Decimal Inch) | 4.1417 |
| Shank Length (Decimal Inch) | 1.6700 |
| Shank Length (mm) | 42.42 |
| Coolant Hole Diameter (Decimal Inch) | 0.0630 |
| Coolant Hole Diameter (mm) | 1.60 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01243518 |
