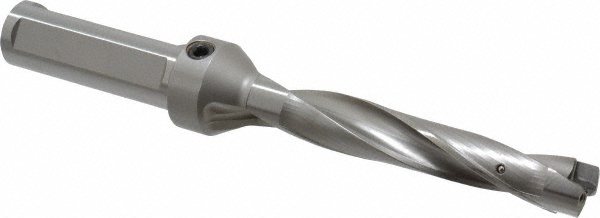

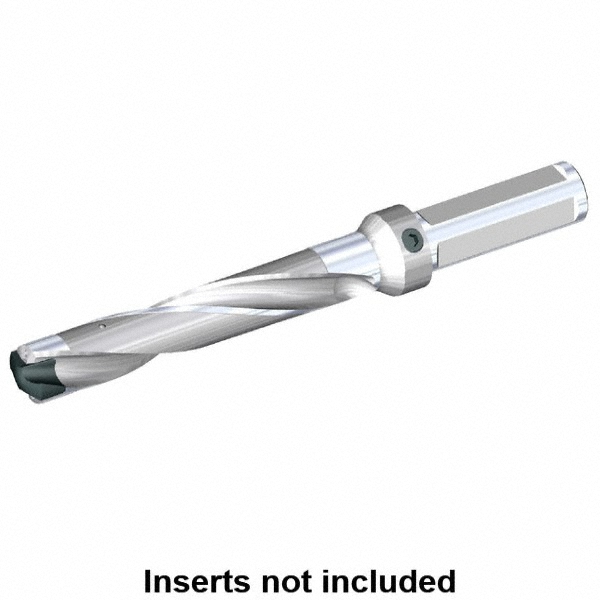

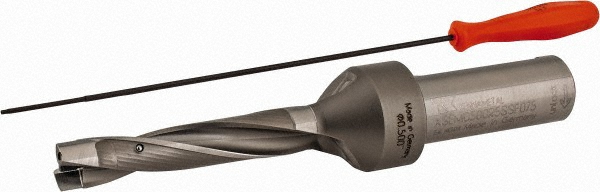

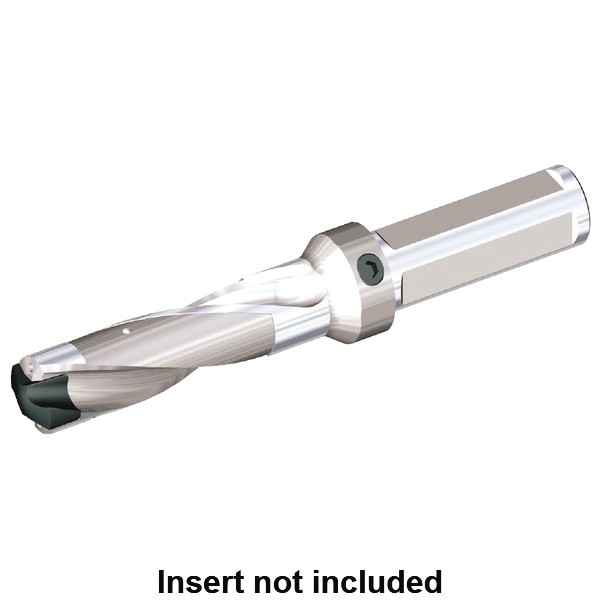

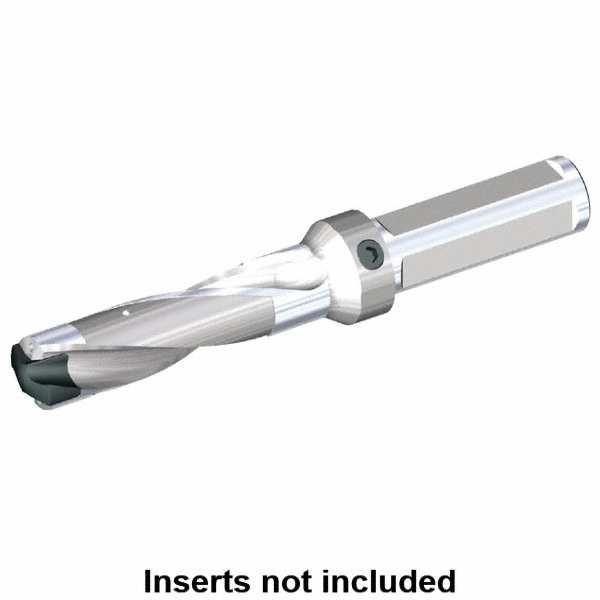

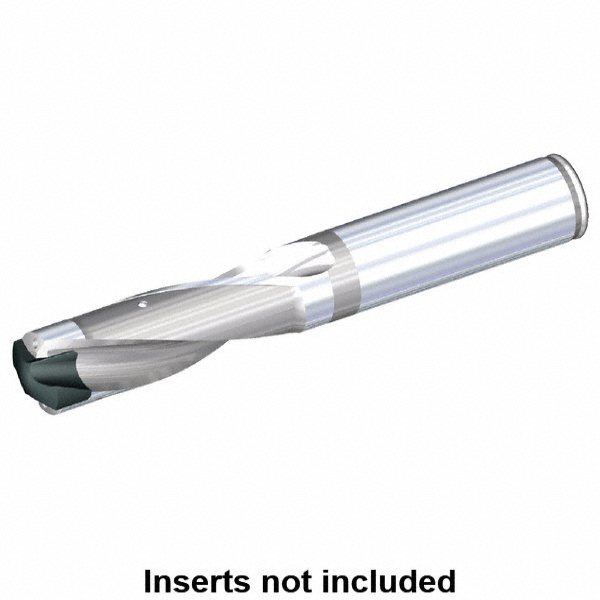

Uses KSEM0500 Inserts, Seat Size C, 150.8 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.5000 |
|---|---|
| Minimum Drill Diameter (mm) | 12.70 |
| Maximum Drill Diameter (mm) | 13.20 |
| Maximum Drill Diameter (Decimal Inch) | 0.5197 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 63.50 |
| Maximum Drill Depth (Decimal Inch) | 2.5000 |
| Shank Type | Weldon Flat |
| Insert Seat Size | C |
| Shank Diameter (mm) | 19.05 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |

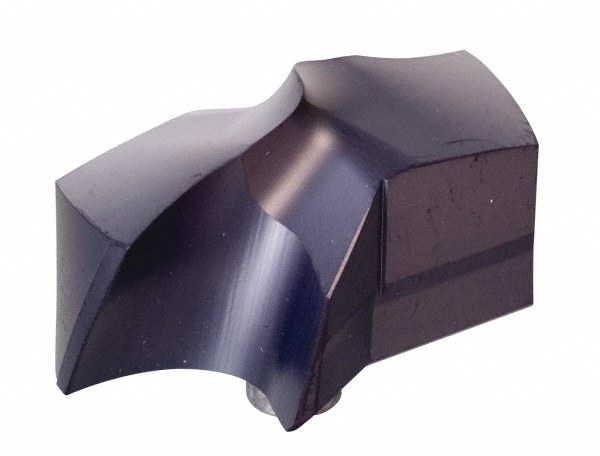

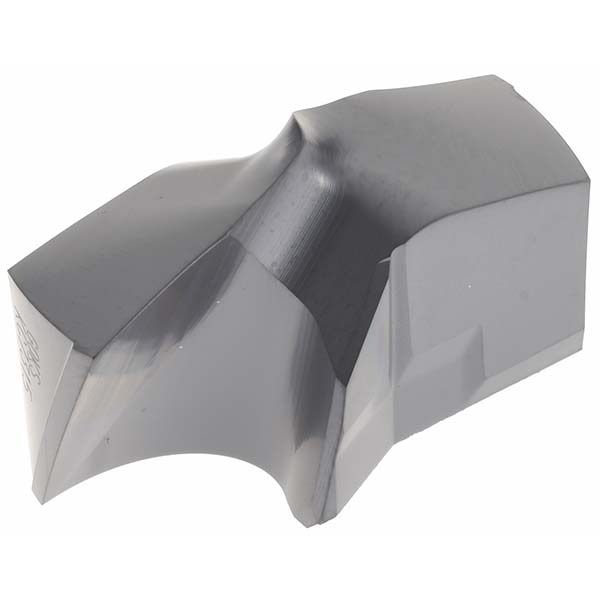

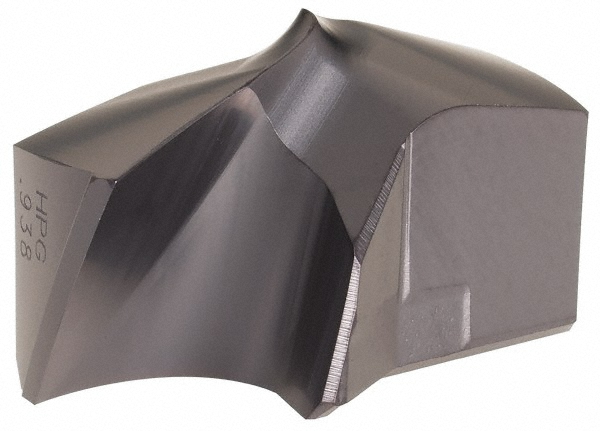

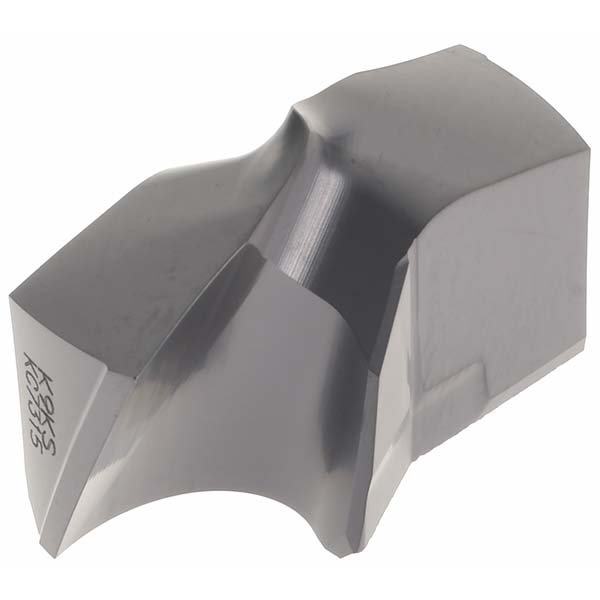

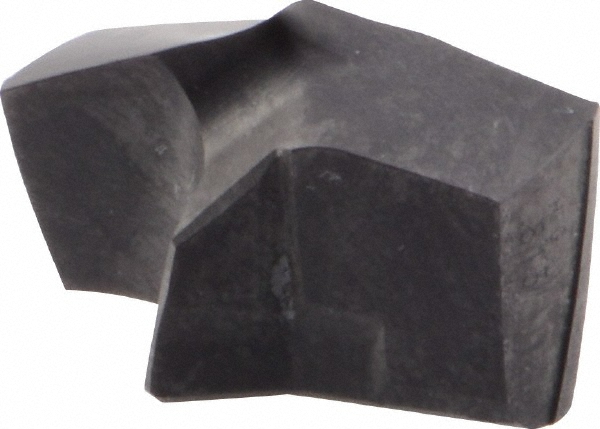

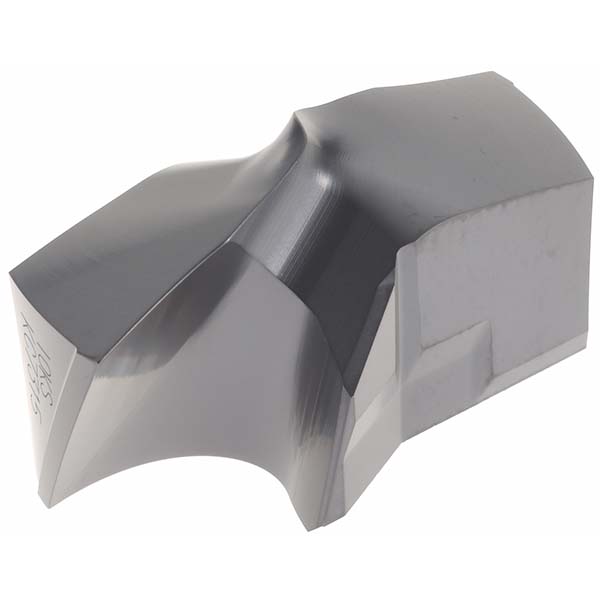

| Compatible Insert Style | KSEM0500 |
| Overall Length (mm) | 150.8 |
| Overall Length (Decimal Inch) | 5.937 |
| Series | KSEM |
| Flute Length (mm) | 75.87 |
| Flute Length (Decimal Inch) | 2.9870 |
| Shank Length (Decimal Inch) | 2.0000 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01256585 |
