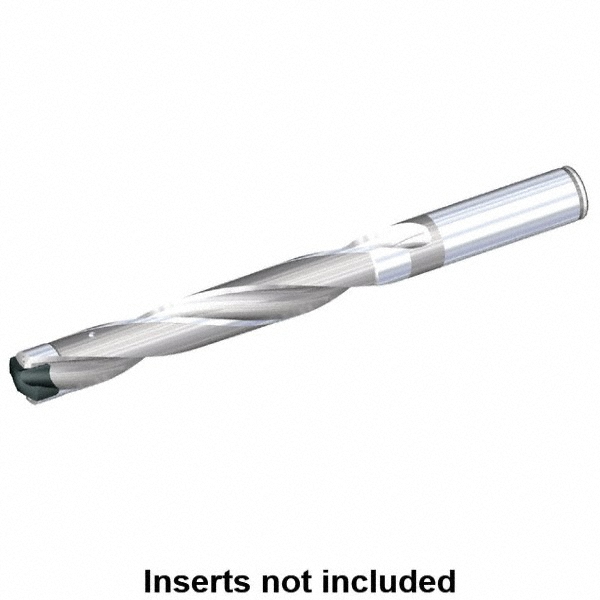

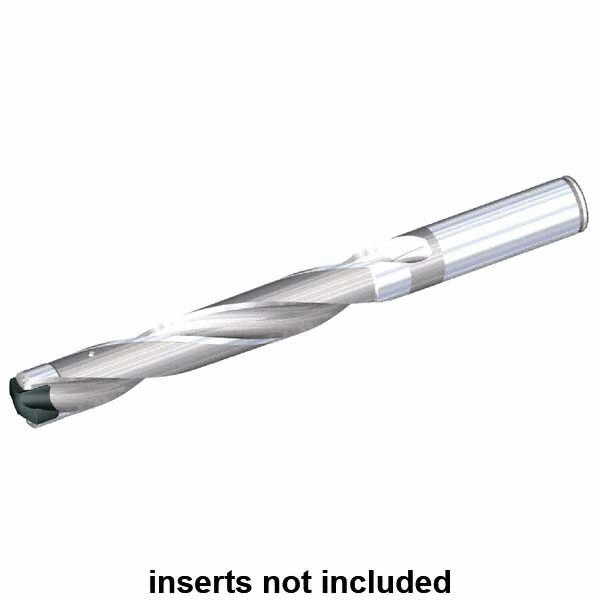

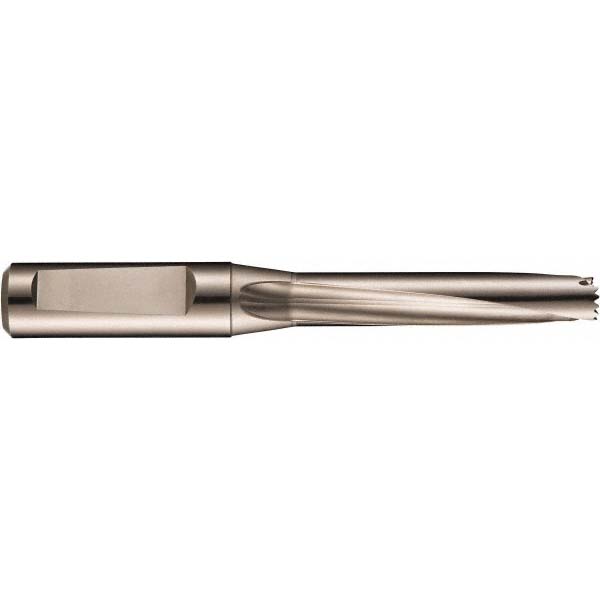

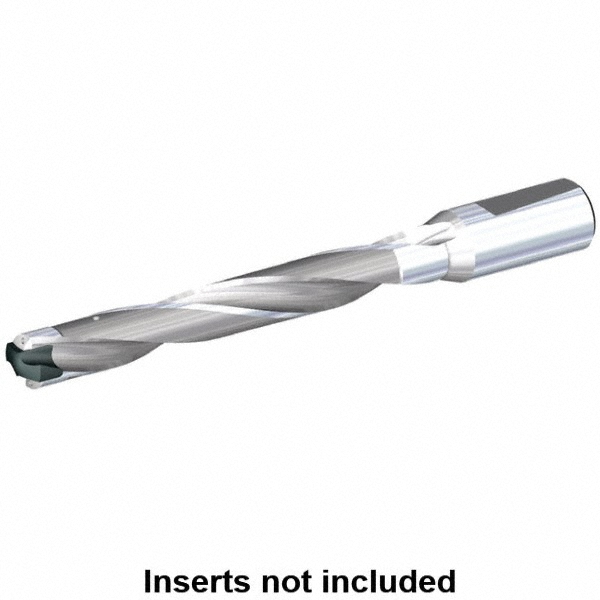

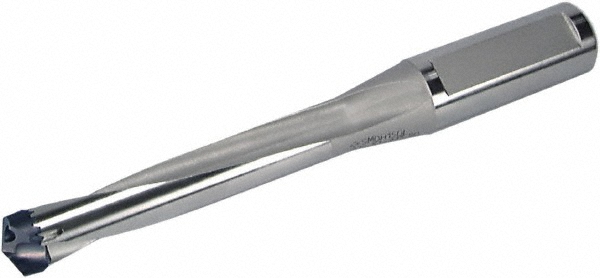

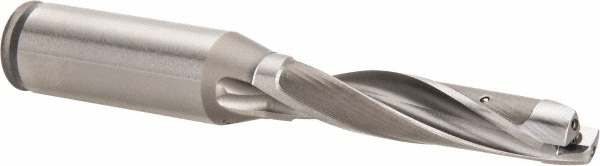

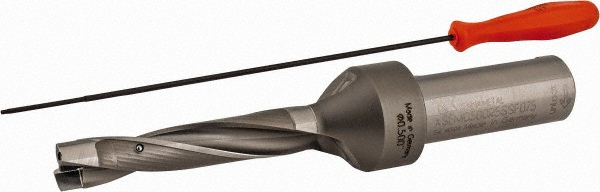

Uses KSEM1350 Inserts, Seat Size C, 161.93 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.5311 |
|---|---|
| Minimum Drill Diameter (mm) | 13.49 |
| Maximum Drill Diameter (mm) | 13.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5315 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 94.49 |
| Maximum Drill Depth (Decimal Inch) | 3.7201 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | C |
| Shank Diameter (mm) | 19.05 |
| Maximum Drill Depth Range (Decimal Inch) | 3.5000 to 4.5000 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Compatible Insert Style | KSEM1350 |
| Overall Length (mm) | 161.93 |
| Overall Length (Decimal Inch) | 6.3752 |
| Series | KSEM |
| Flute Length (mm) | 108.20 |
| Flute Length (Decimal Inch) | 4.2598 |
| Shank Length (Decimal Inch) | 2.0000 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 00969238 |
