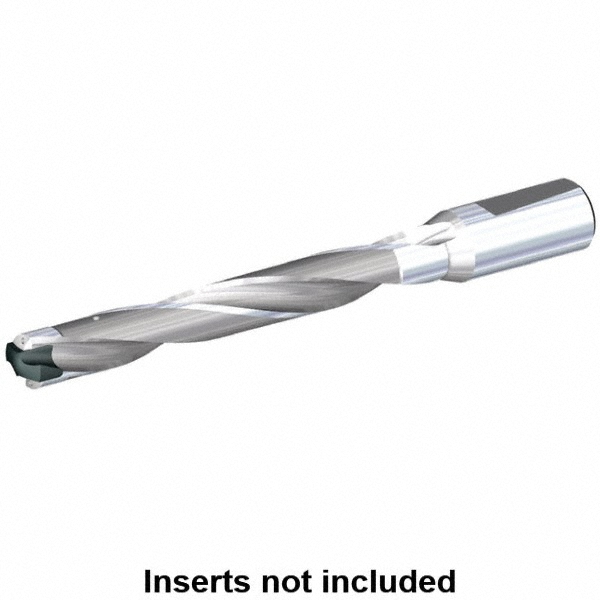

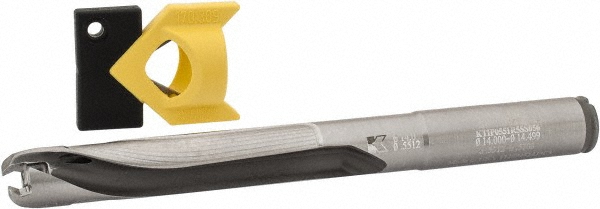

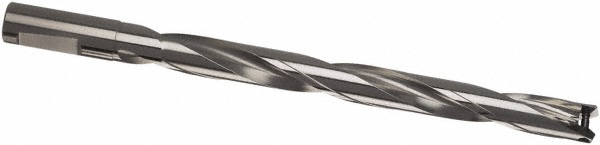

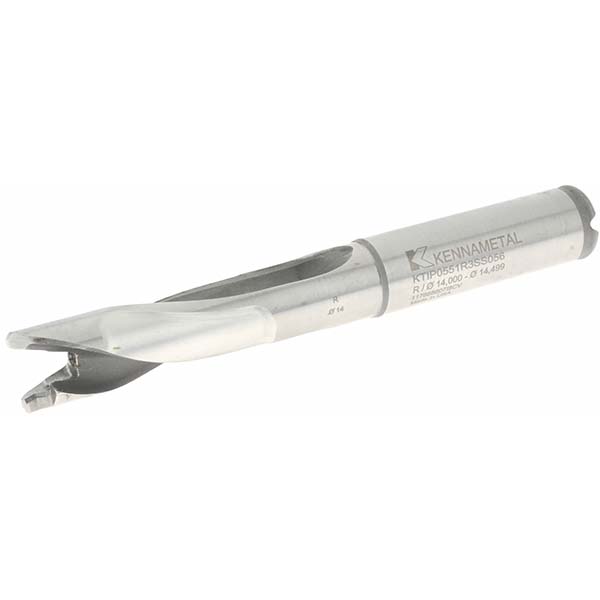

Uses KTIP05625HP Inserts, Seat Size R, 146.05 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
|---|---|
| Minimum Drill Diameter (mm) | 14.00 |
| Maximum Drill Diameter (mm) | 14.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5705 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 72.39 |
| Maximum Drill Depth (Decimal Inch) | 2.8500 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | R |
| Shank Diameter (mm) | 14.29 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | KTIP05625HP |
| Overall Length (mm) | 146.05 |
| Overall Length (Decimal Inch) | 5.75 |
| Series | KenTIP |
| Flute Length (mm) | 88.90 |
| Flute Length (Decimal Inch) | 3.5000 |
| Shank Length (Decimal Inch) | 1.7900 |
| Shank Length (mm) | 45.47 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
