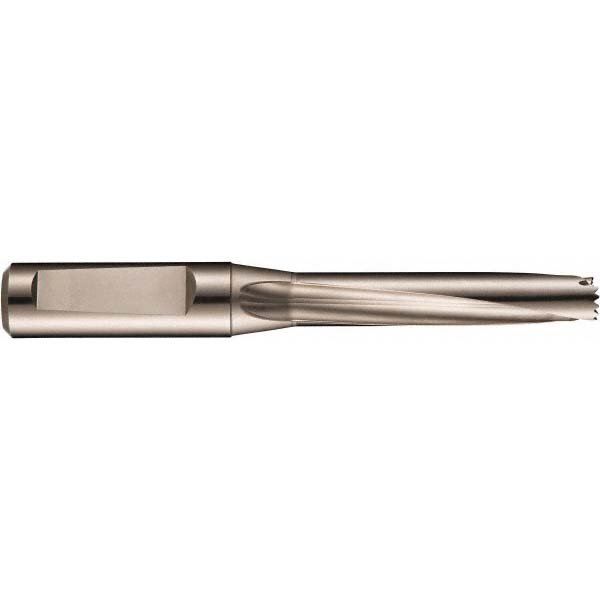

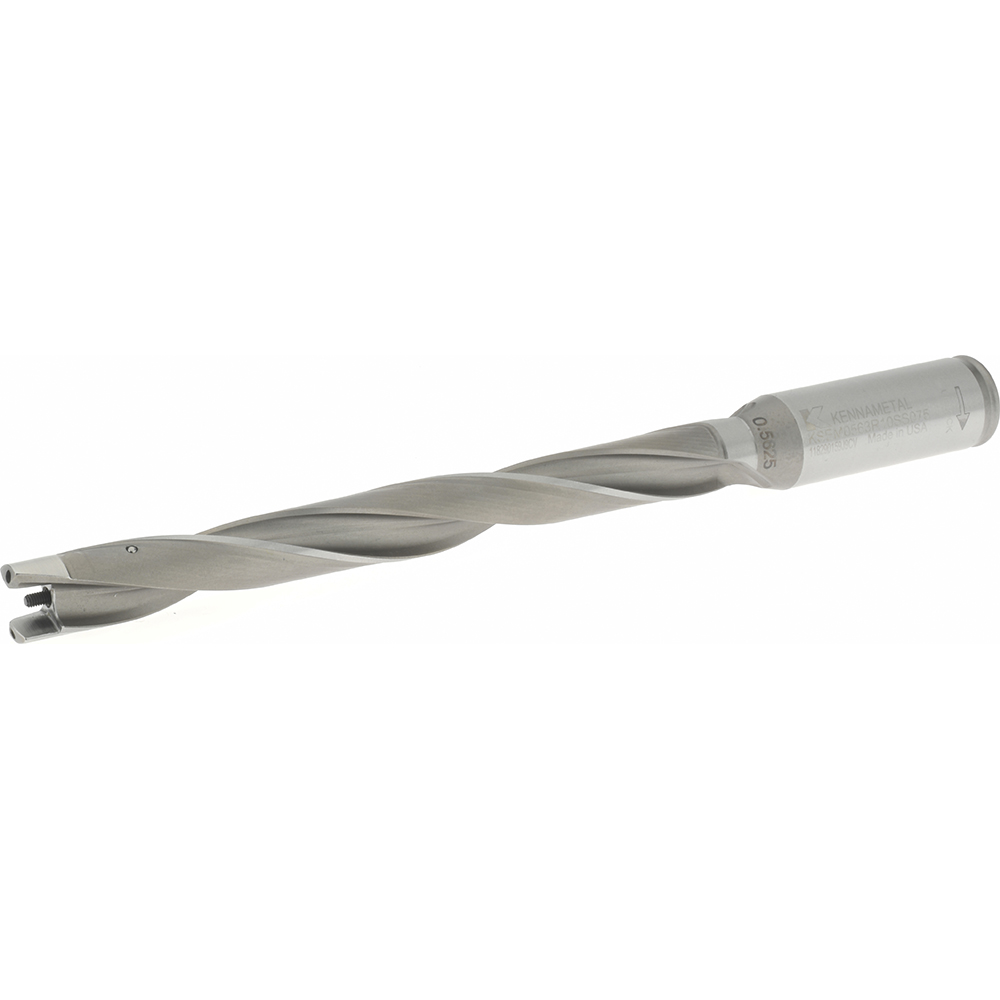

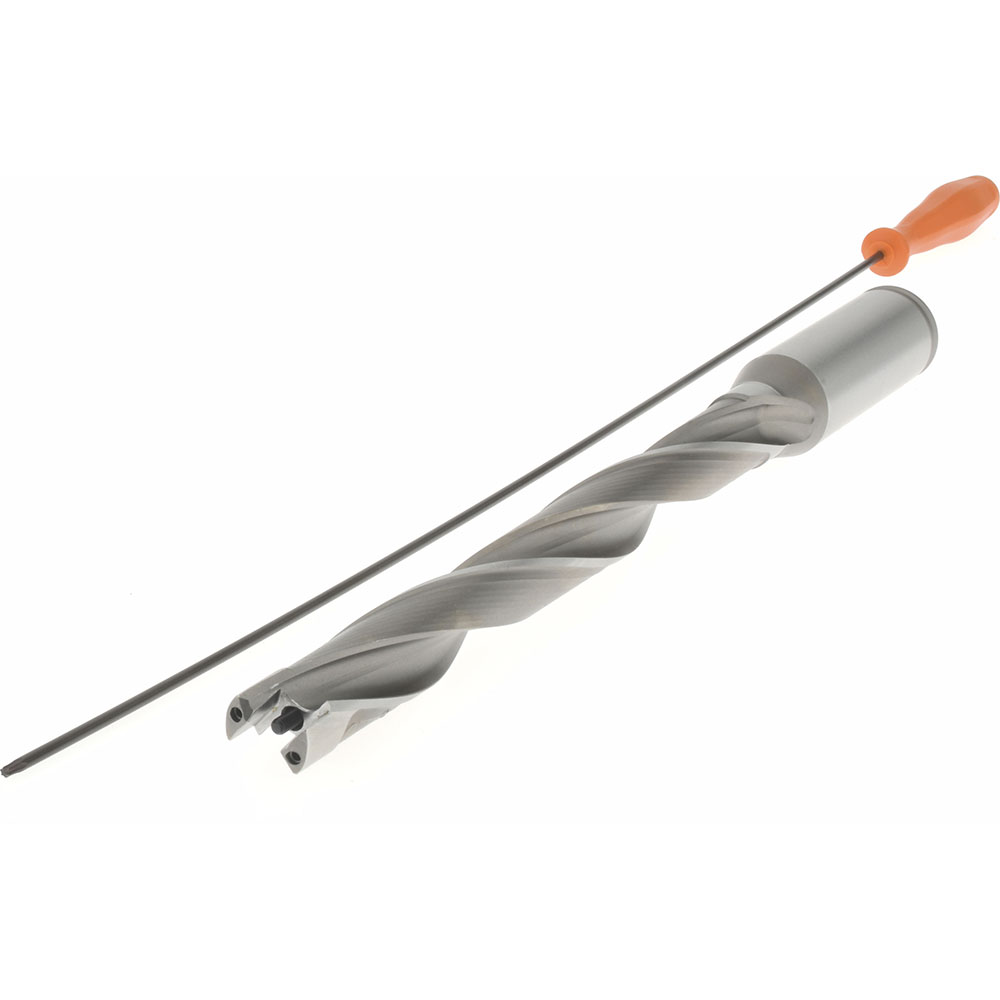

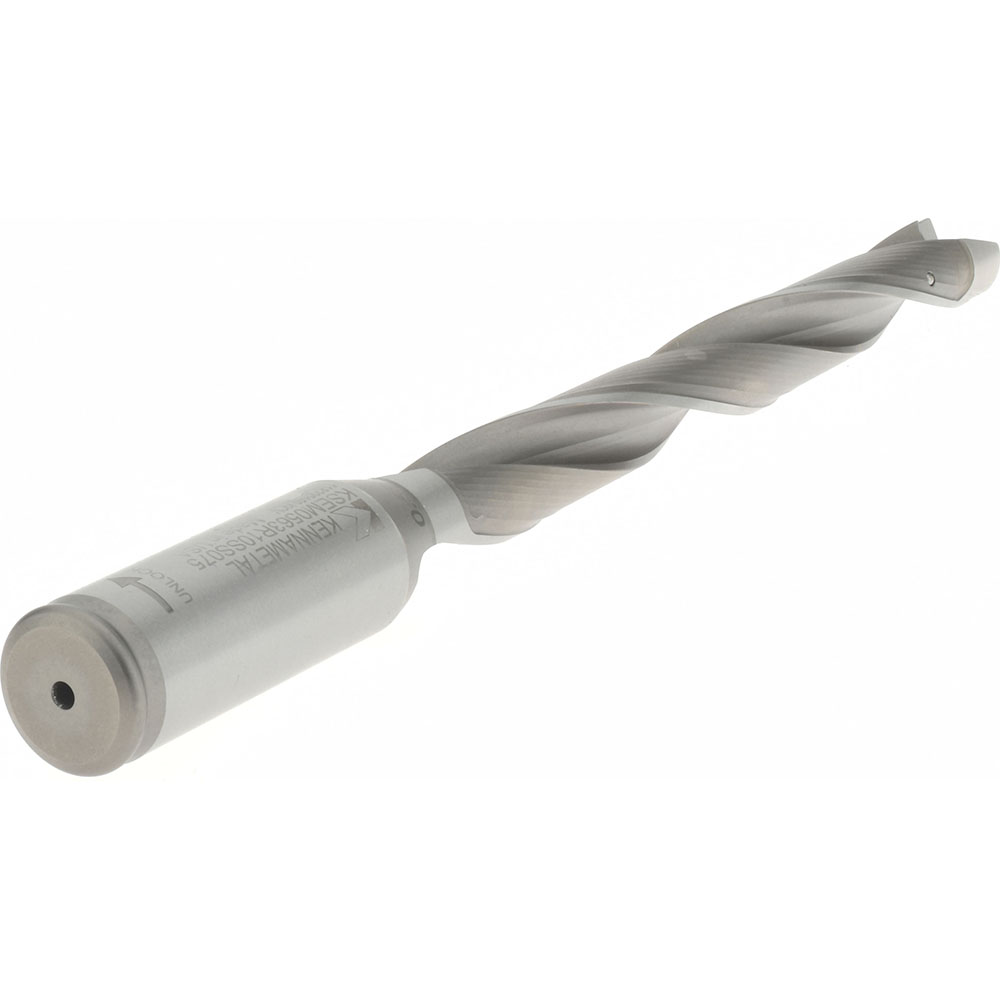

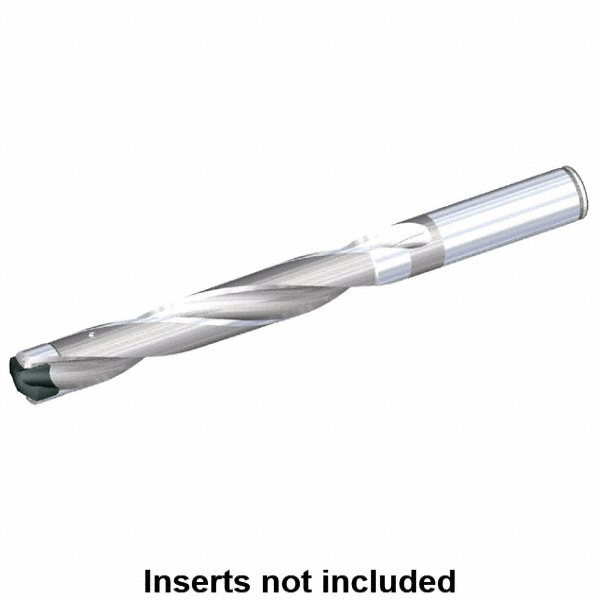

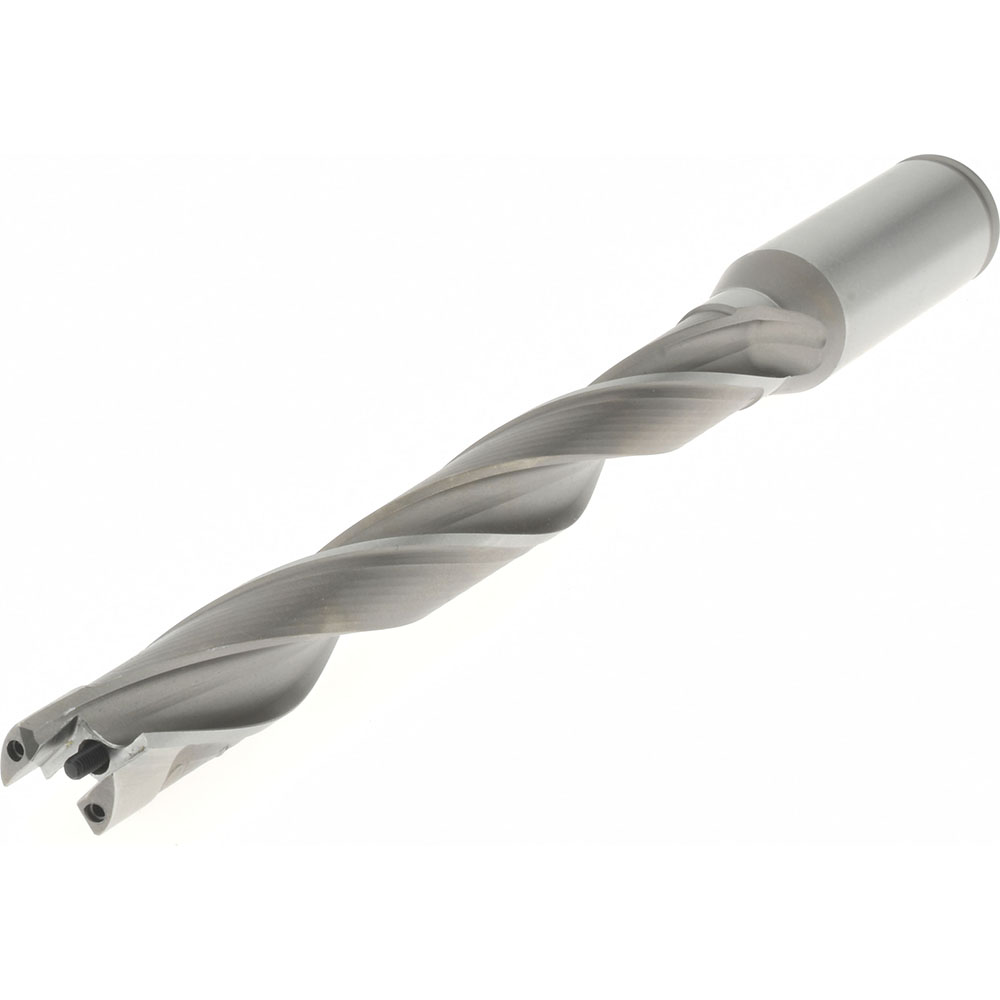

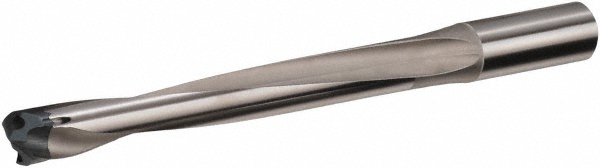

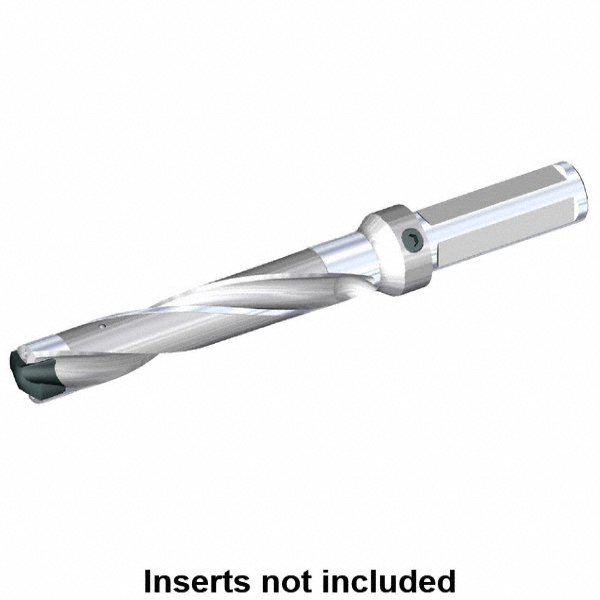

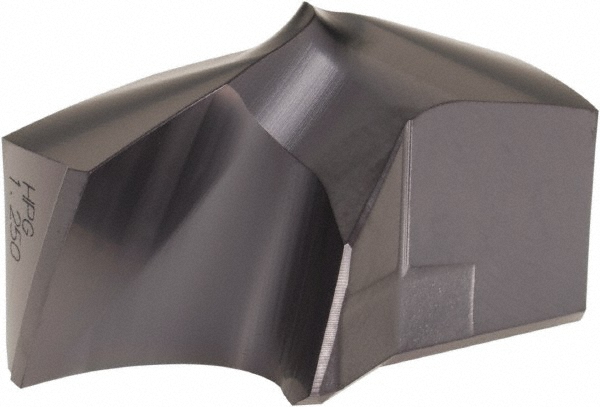

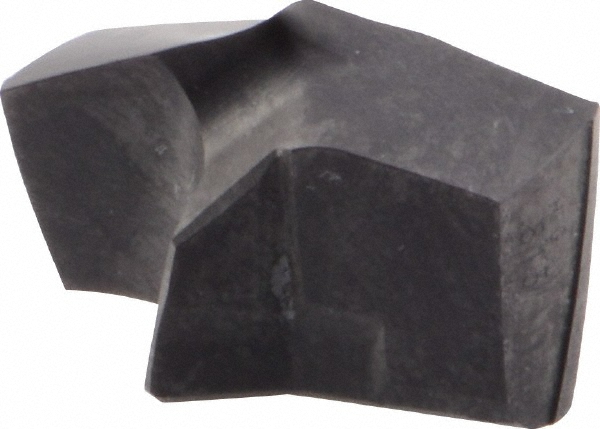

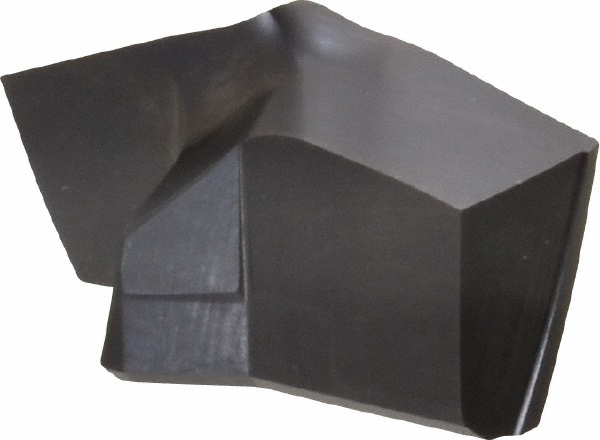

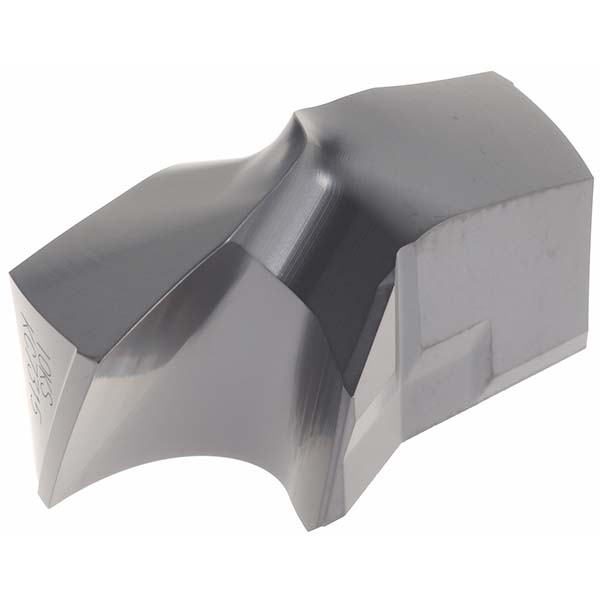

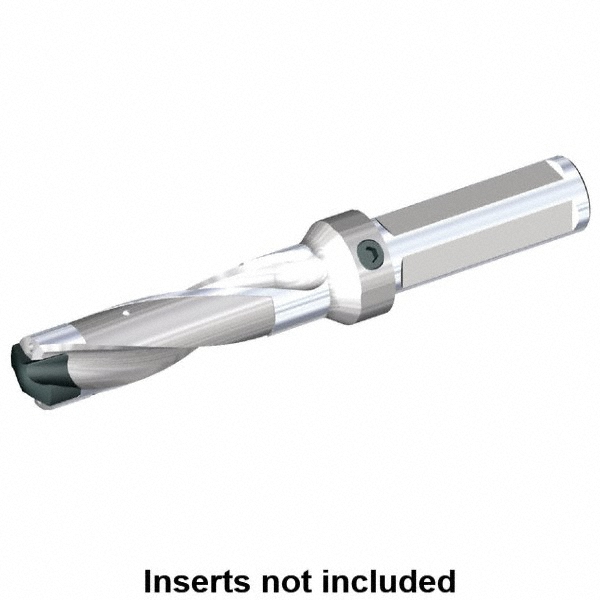

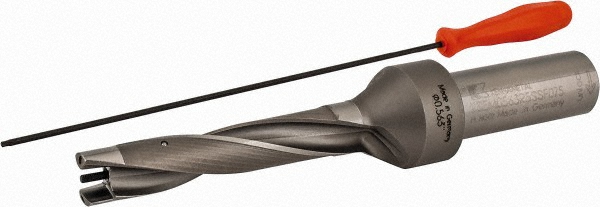

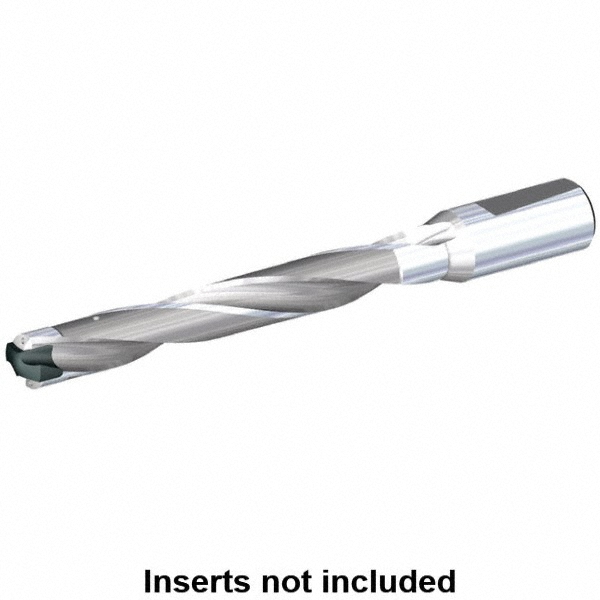

Uses KSEM0563 Inserts, Seat Size B, 212.73 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.5626 |
|---|---|
| Minimum Drill Diameter (mm) | 14.29 |
| Maximum Drill Diameter (mm) | 14.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5709 |
| Drill Depth by Diameter Ratio | 10xD |
| Maximum Drill Depth (mm) | 142.88 |
| Maximum Drill Depth (Decimal Inch) | 5.6300 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | B |
| Shank Diameter (mm) | 19.05 |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Maximum Drill Depth Range (mm) | 125.00 to 160.00 |

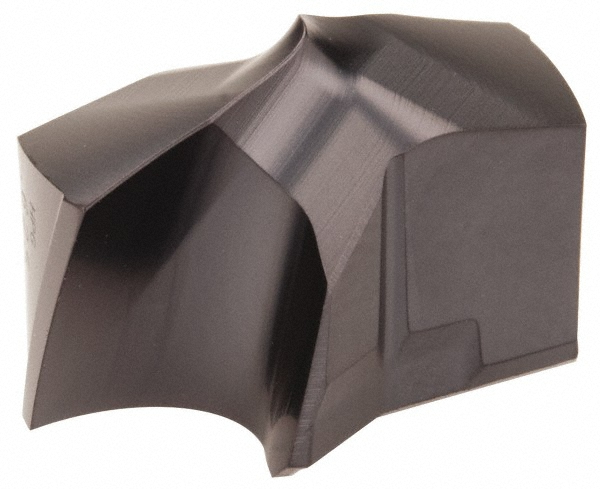

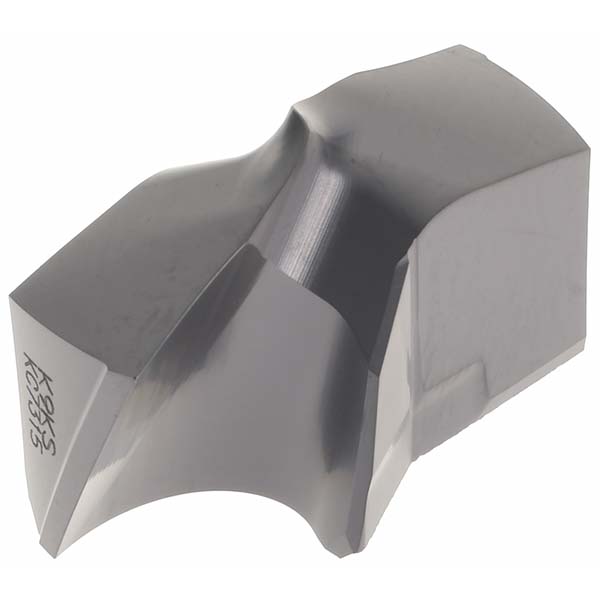

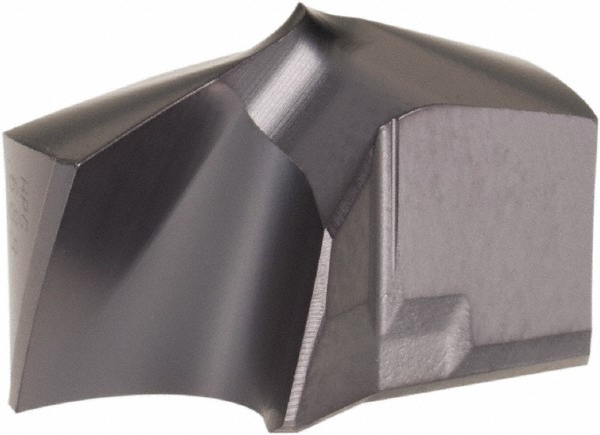

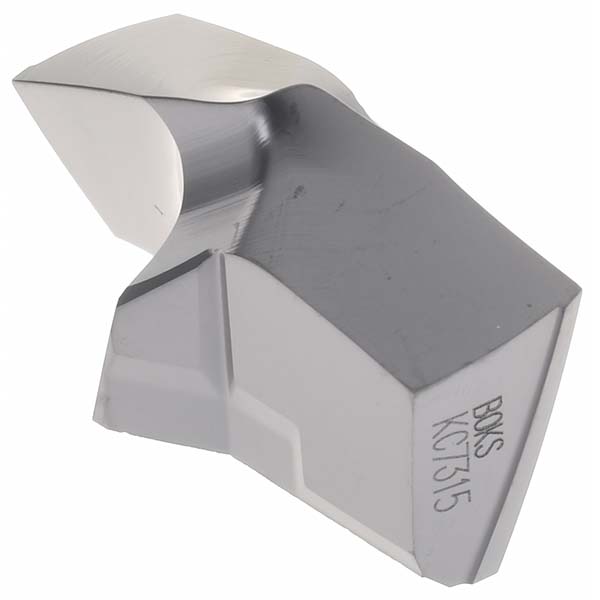

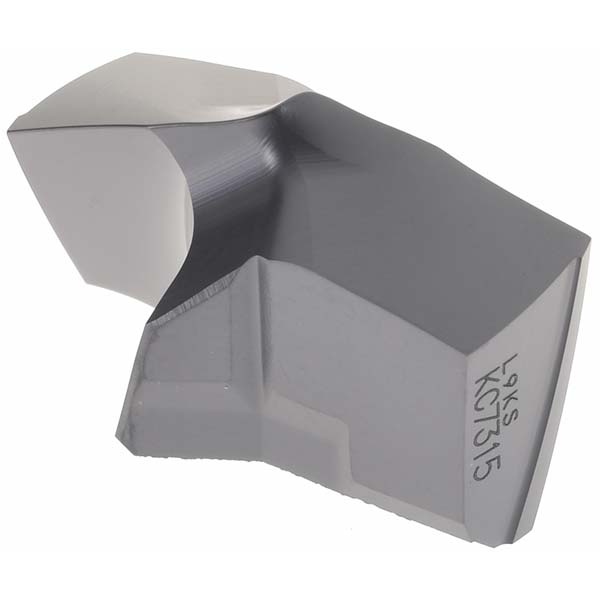

| Compatible Insert Style | KSEM0563 |
| Overall Length (mm) | 212.73 |
| Overall Length (Decimal Inch) | 8.3752 |
| Series | KSEM |
| Flute Length (mm) | 158.93 |
| Flute Length (Decimal Inch) | 6.2571 |
| Shank Length (Decimal Inch) | 2.0000 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Through | No |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 05679527 |
