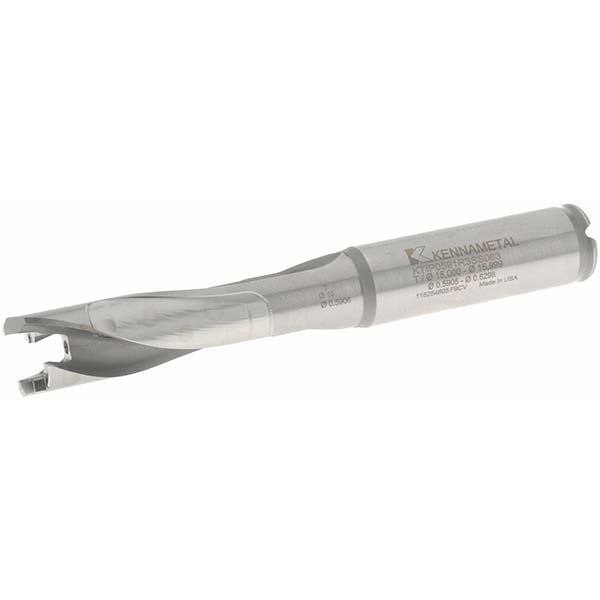

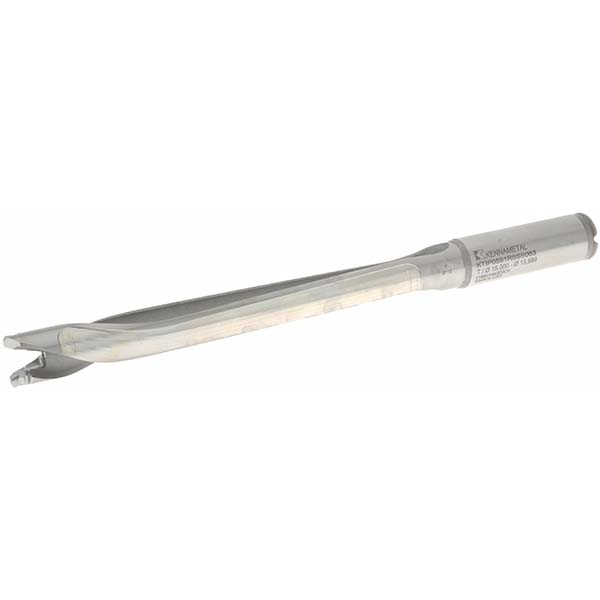

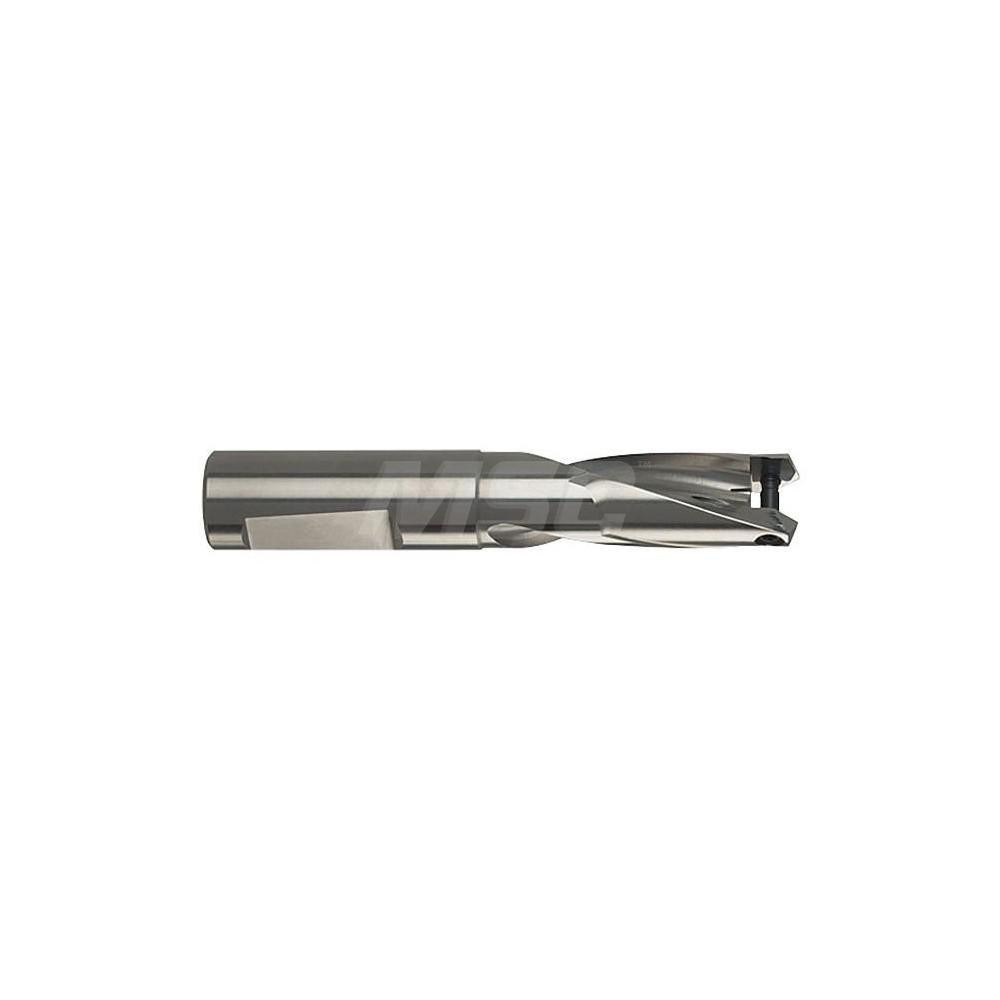

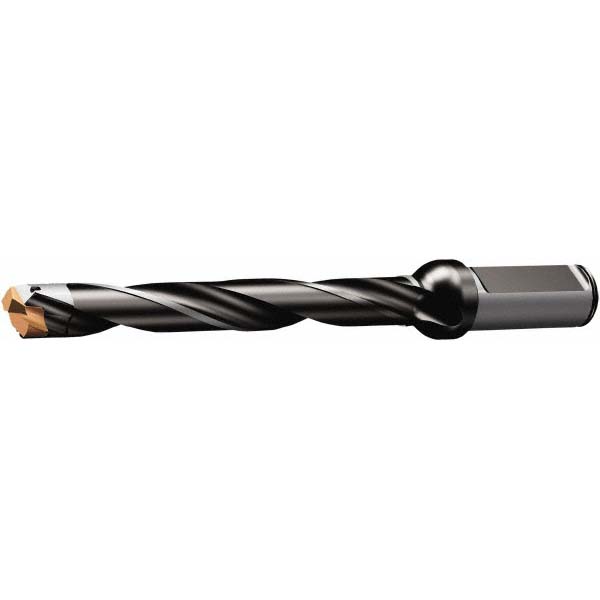

Uses KTIP05938HP Inserts, Seat Size T, 152.4 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
|---|---|
| Minimum Drill Diameter (mm) | 15.00 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 80.01 |
| Maximum Drill Depth (Decimal Inch) | 3.1500 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | T |
| Shank Diameter (mm) | 15.88 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Compatible Insert Style | KTIP05938HP |
| Overall Length (mm) | 152.4 |
| Overall Length (Decimal Inch) | 6 |
| Series | KenTIP |
| Flute Length (mm) | 95.50 |
| Flute Length (Decimal Inch) | 3.7598 |
| Shank Length (Decimal Inch) | 1.9100 |
| Shank Length (mm) | 48.51 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01243195 |
