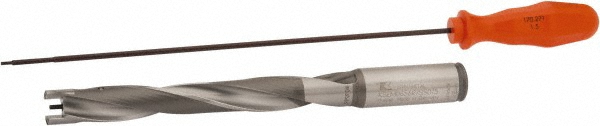

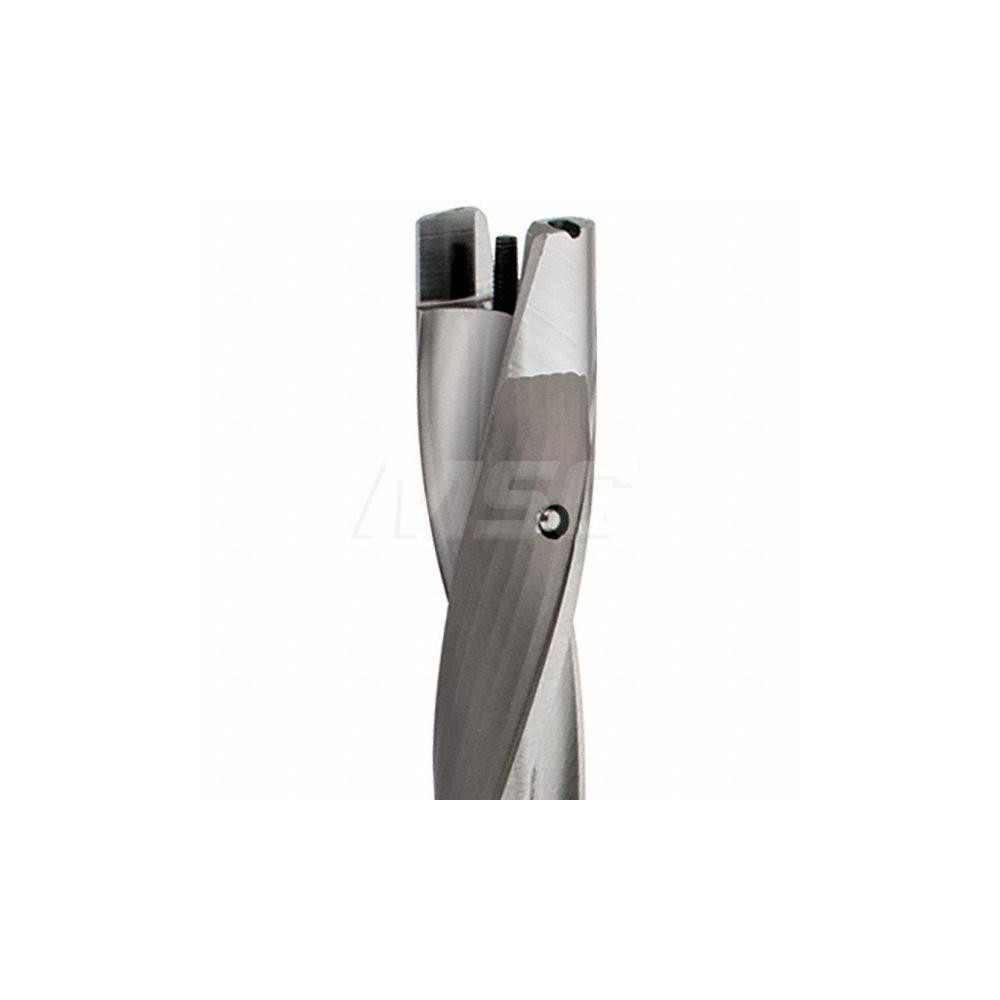

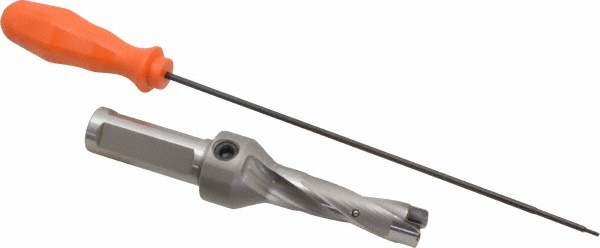

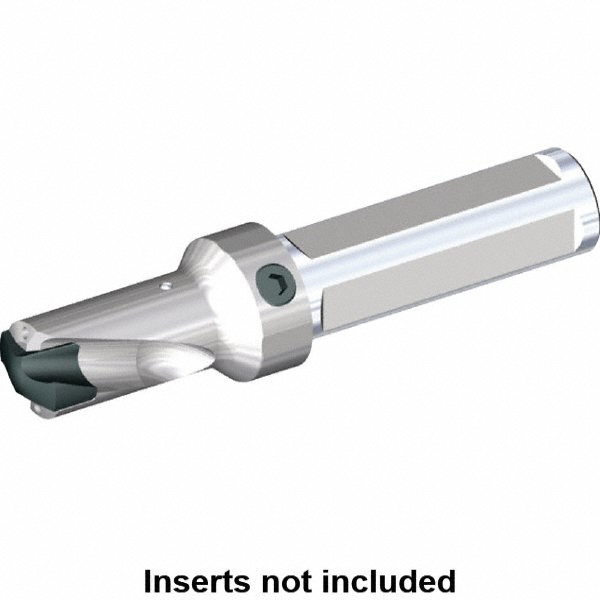

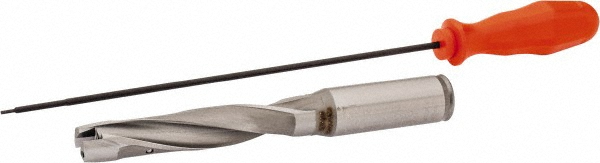

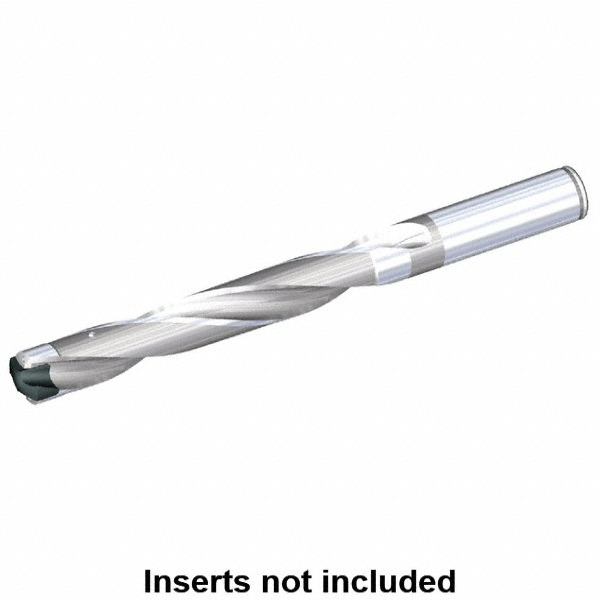

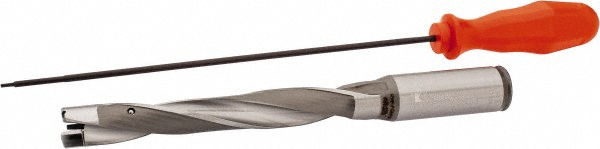

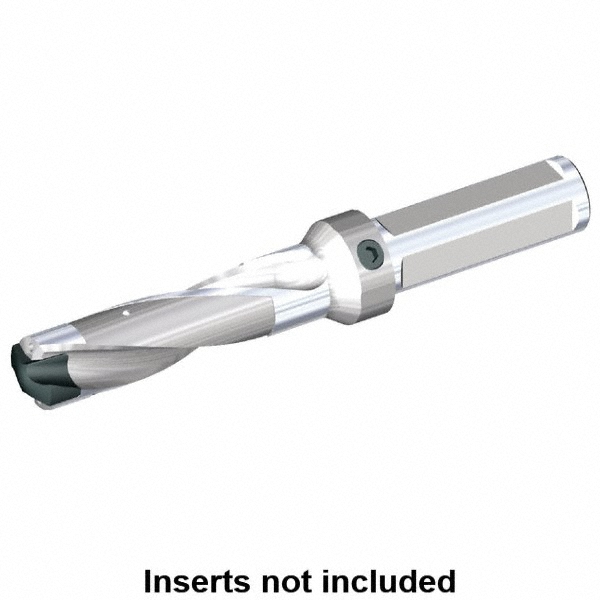

Uses KSEM0625 Inserts, Seat Size 1, 187.33 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.6252 |
|---|---|
| Minimum Drill Diameter (mm) | 15.88 |
| Maximum Drill Diameter (mm) | 16.38 |
| Maximum Drill Diameter (Decimal Inch) | 0.6449 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 112.00 |
| Maximum Drill Depth (Decimal Inch) | 4.4100 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 1 |
| Shank Diameter (mm) | 19.05 |
| Maximum Drill Depth Range (Decimal Inch) | 3.5000 to 4.5000 |
| Maximum Drill Depth Range (mm) | 100.00 to 125.00 |

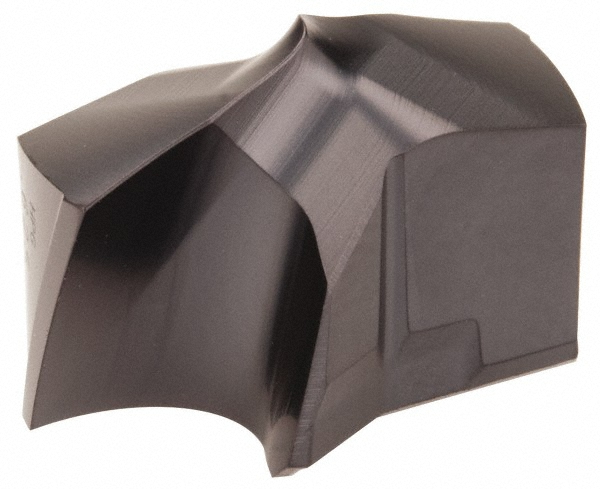

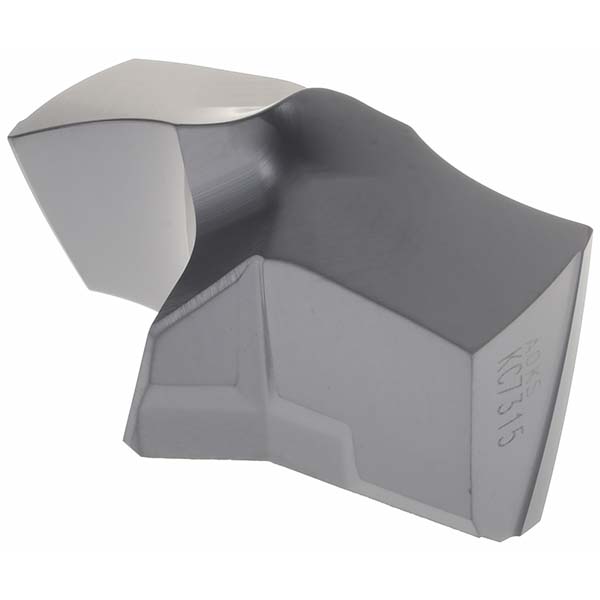

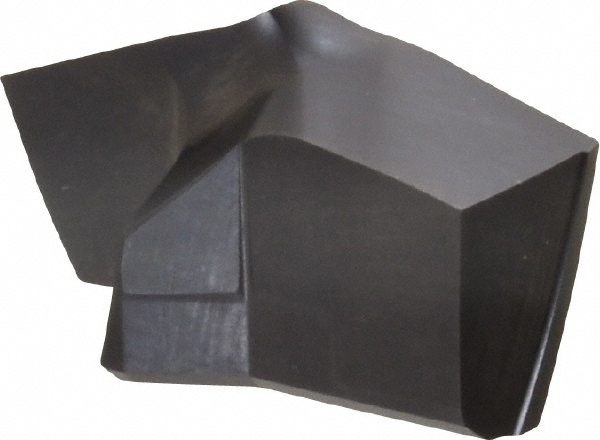

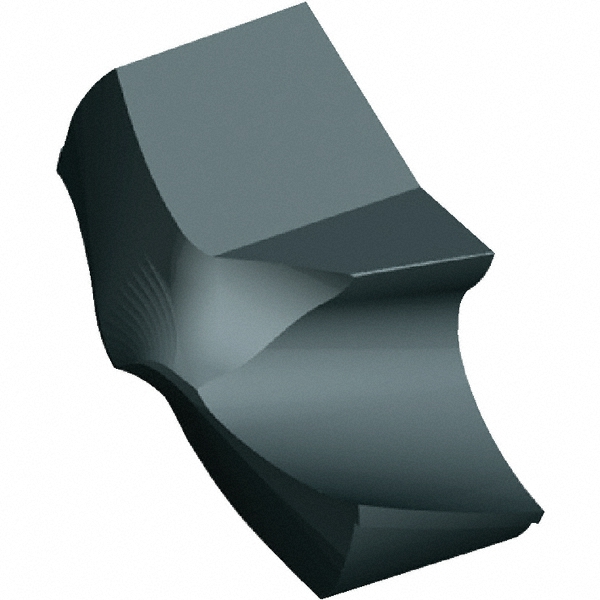

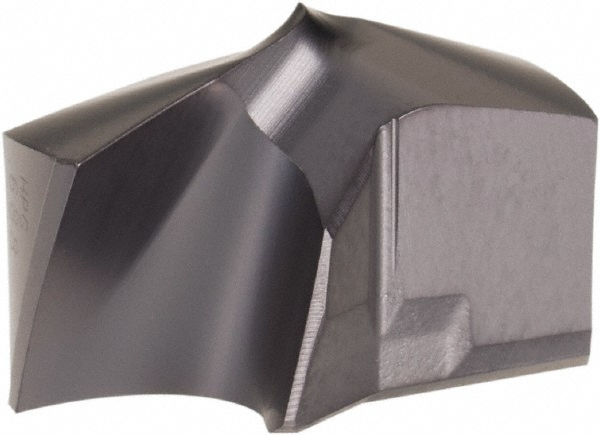

| Compatible Insert Style | KSEM0625 |
| Overall Length (mm) | 187.33 |
| Overall Length (Decimal Inch) | 7.3752 |
| Series | KSEM |
| Flute Length (mm) | 132.51 |
| Flute Length (Decimal Inch) | 5.2169 |
| Shank Length (Decimal Inch) | 2.0000 |
| Shank Length (mm) | 50.80 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01291764 |
