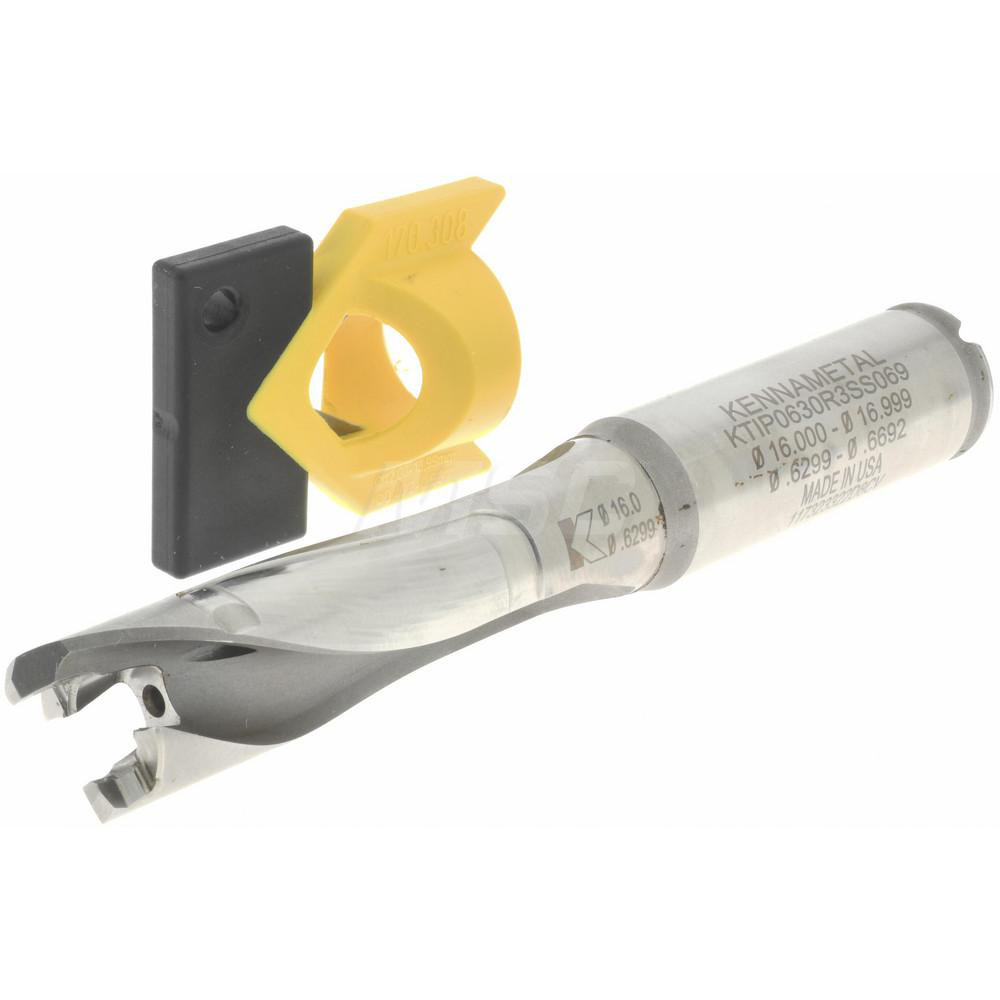

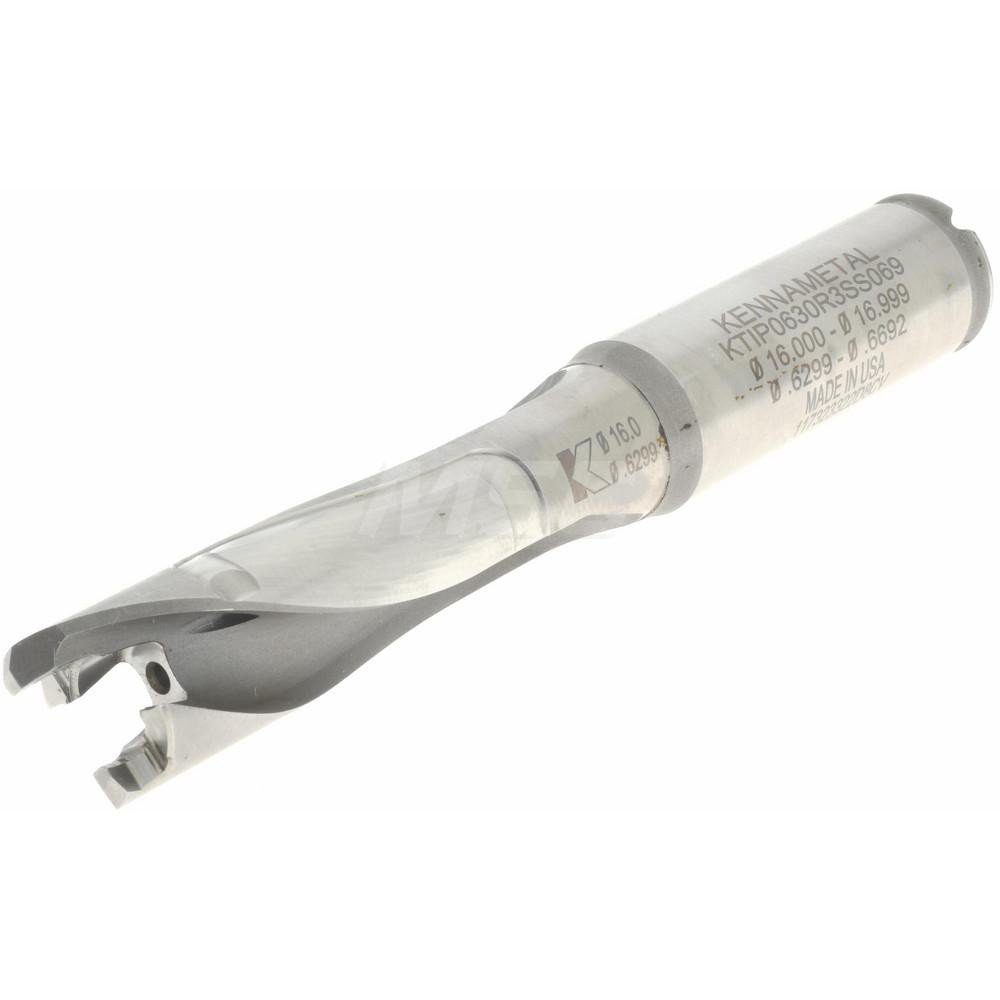

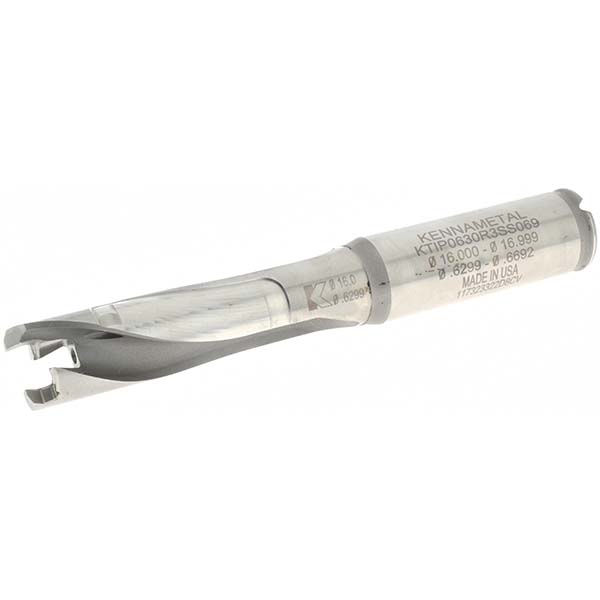

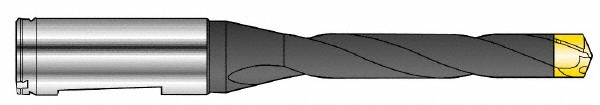

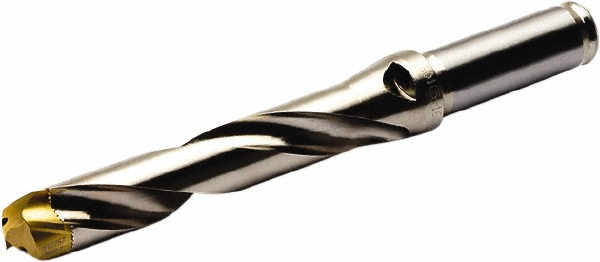

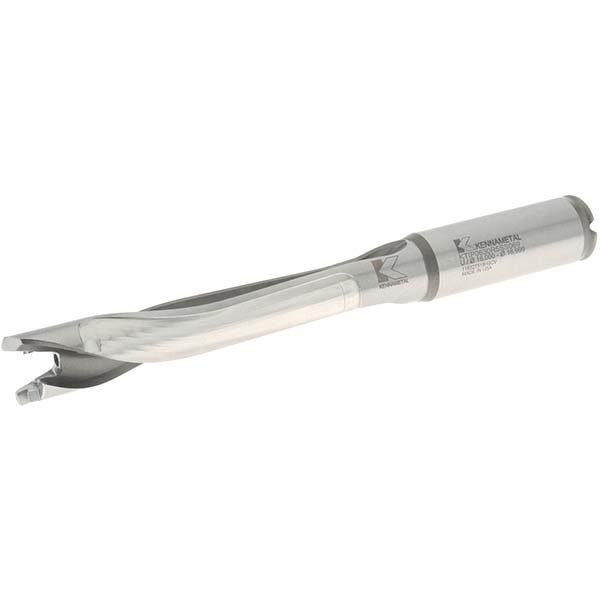

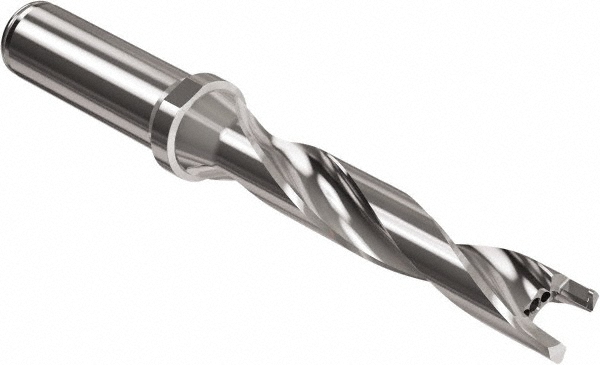

Uses KTIP1600HPM Inserts, Seat Size U, 123.83 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
|---|---|
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6689 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 51.05 |
| Maximum Drill Depth (Decimal Inch) | 2.0100 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | U |
| Shank Diameter (mm) | 17.50 |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | KTIP1600HPM |
| Overall Length (mm) | 123.83 |
| Overall Length (Decimal Inch) | 4.8752 |
| Series | KenTIP |
| Flute Length (mm) | 65.79 |
| Flute Length (Decimal Inch) | 2.5902 |
| Shank Length (Decimal Inch) | 1.9100 |
| Shank Length (mm) | 48.51 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01243419 |
