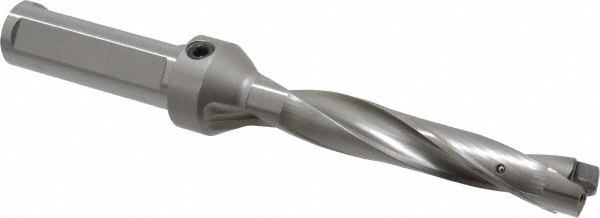

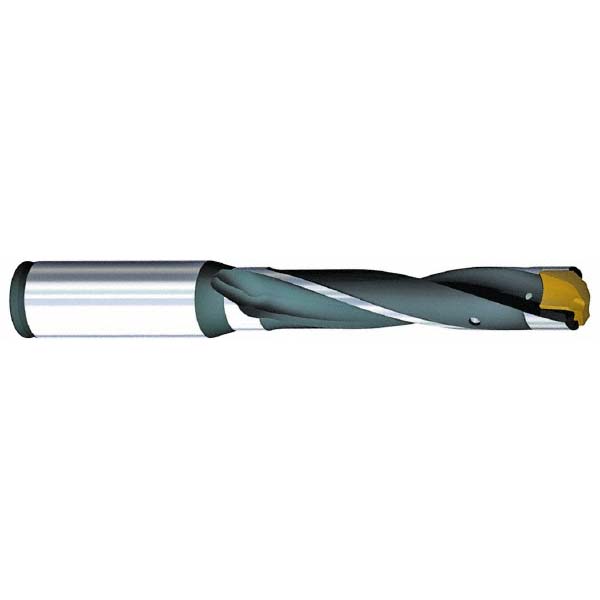

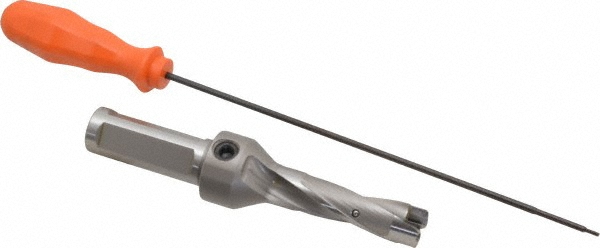

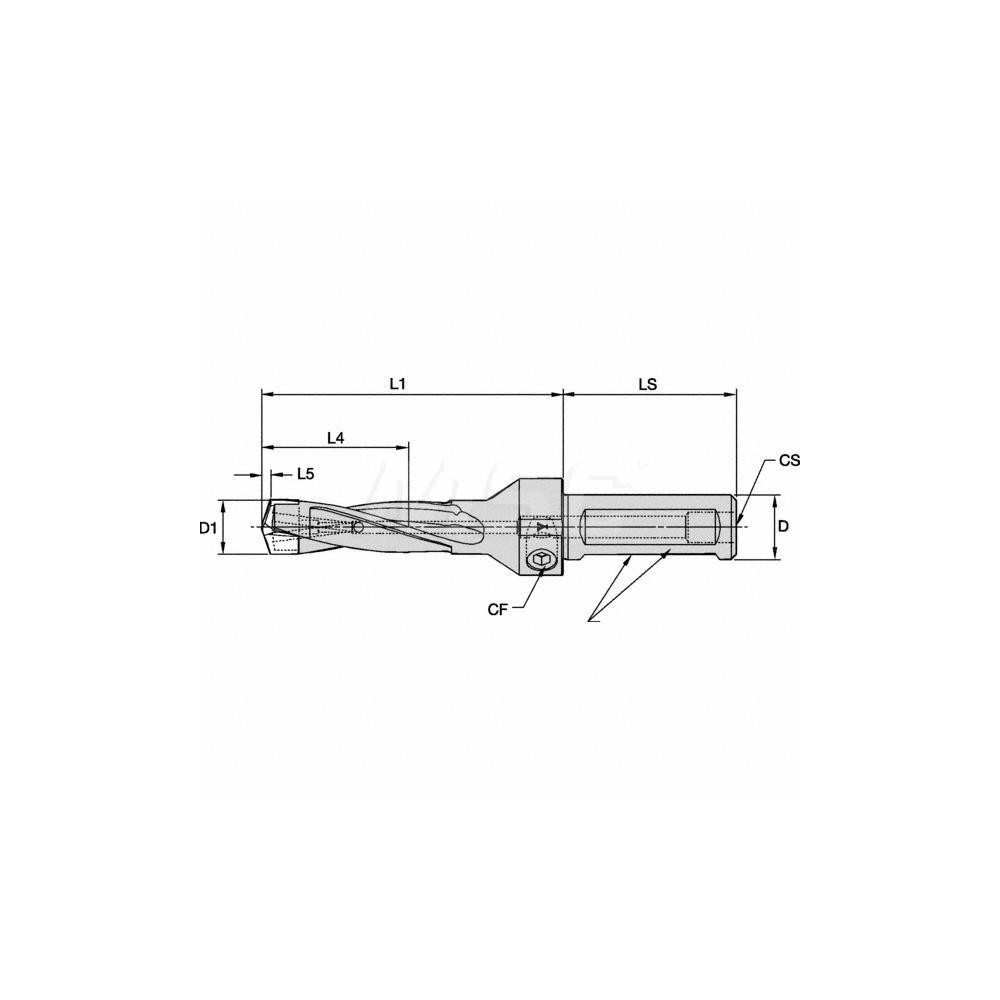

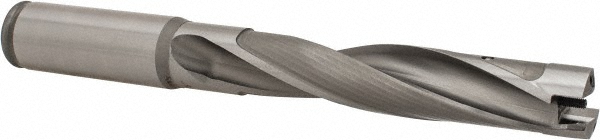

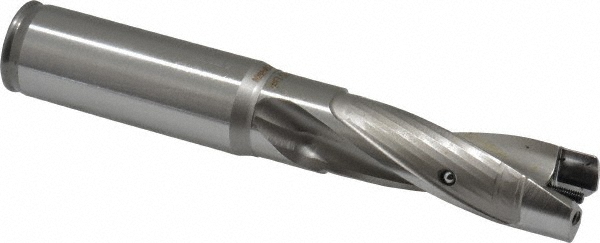

Uses KSEM0688 Inserts, Seat Size 1, 146.05 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.6874 |
|---|---|
| Minimum Drill Diameter (mm) | 17.46 |
| Maximum Drill Diameter (mm) | 17.96 |
| Maximum Drill Diameter (Decimal Inch) | 0.7071 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 54.00 |
| Maximum Drill Depth (Decimal Inch) | 2.1300 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 1 |
| Shank Diameter (mm) | 19.05 |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |

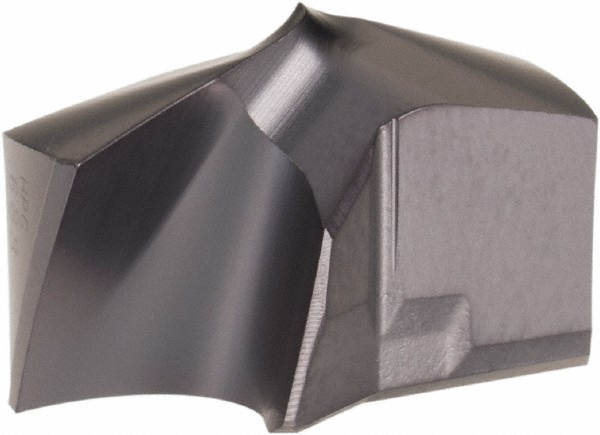

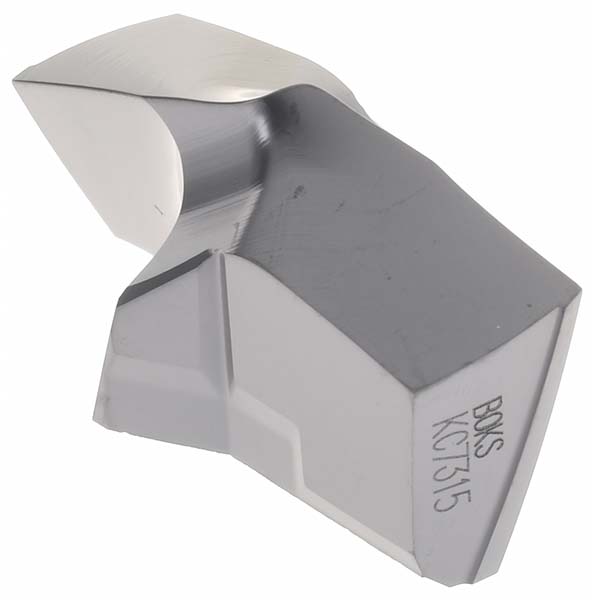

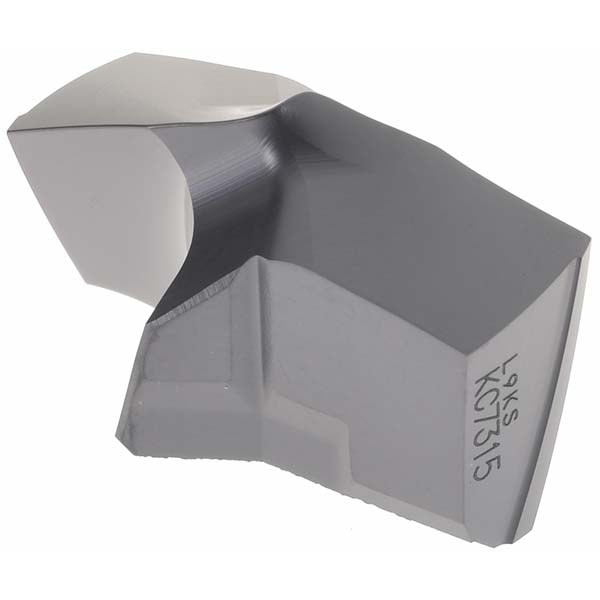

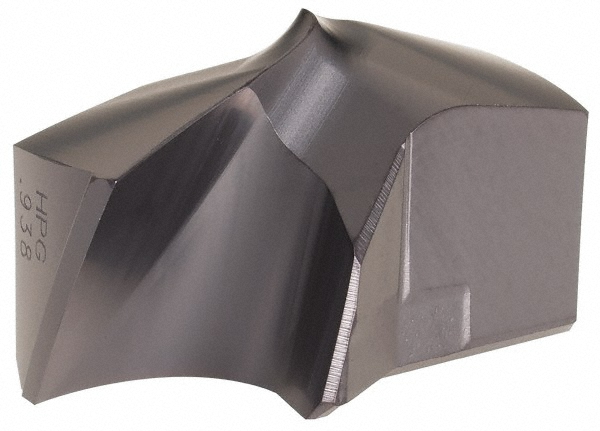

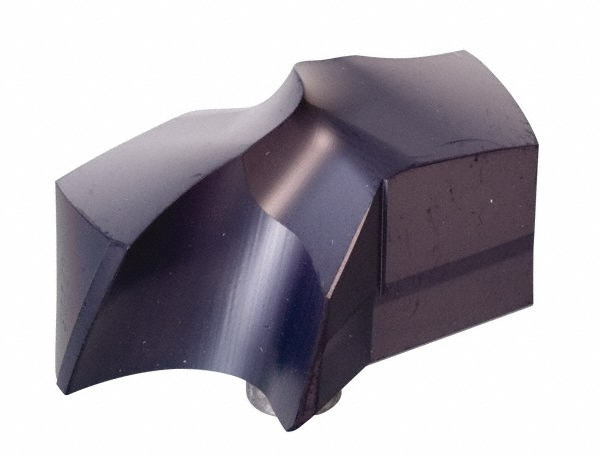

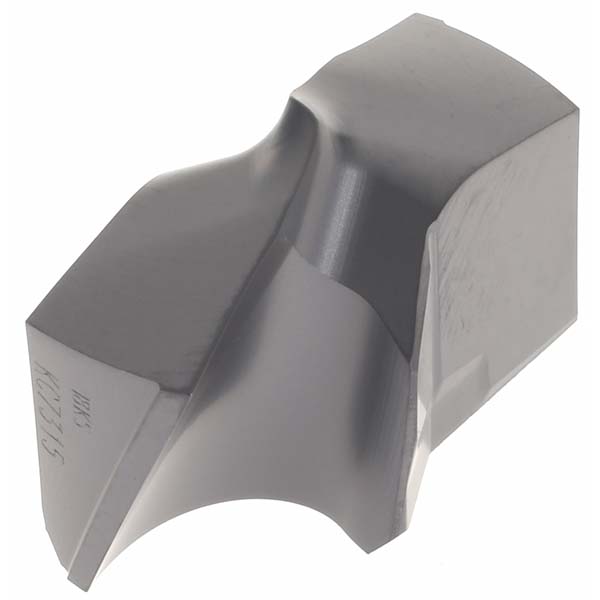

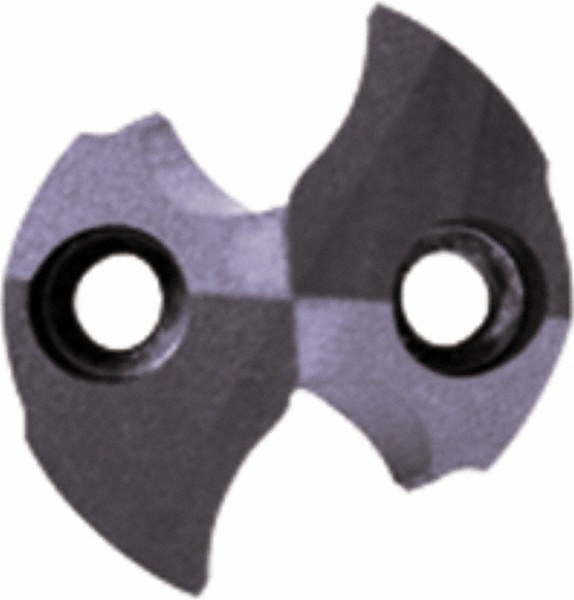

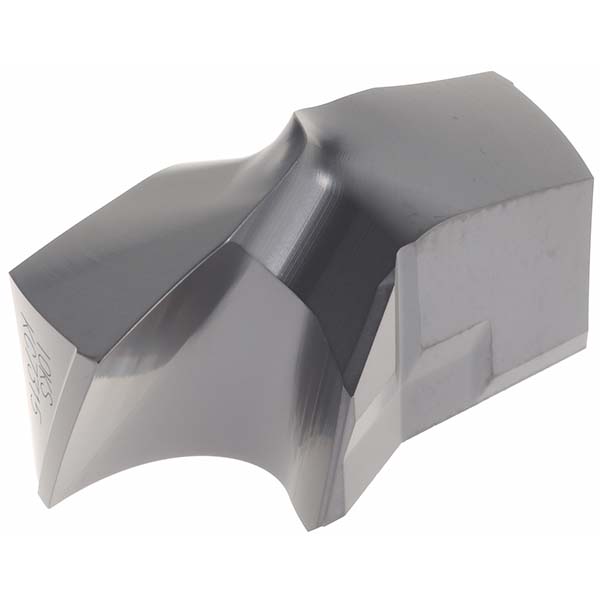

| Compatible Insert Style | KSEM0688 |
| Overall Length (mm) | 146.05 |
| Overall Length (Decimal Inch) | 5.75 |
| Series | KSEM |
| Flute Length (mm) | 75.18 |
| Flute Length (Decimal Inch) | 2.9598 |
| Shank Length (Decimal Inch) | 2.0000 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 02734663 |
