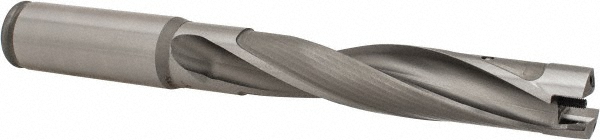

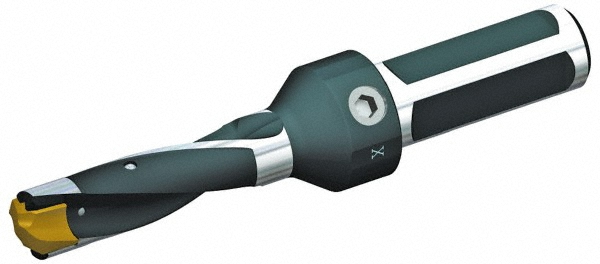

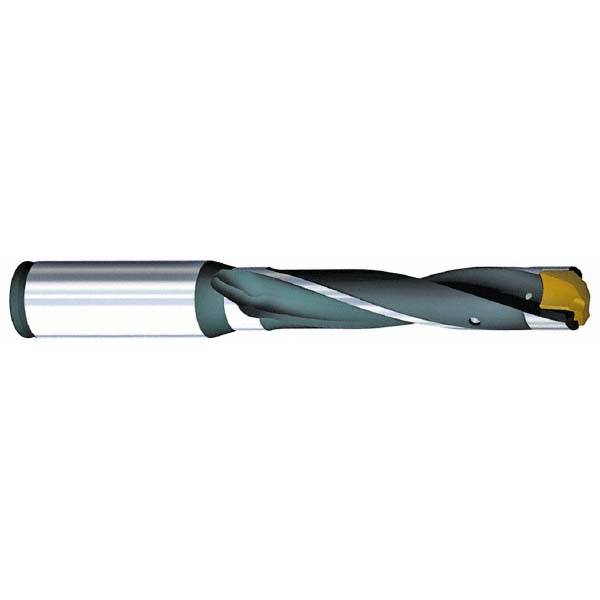

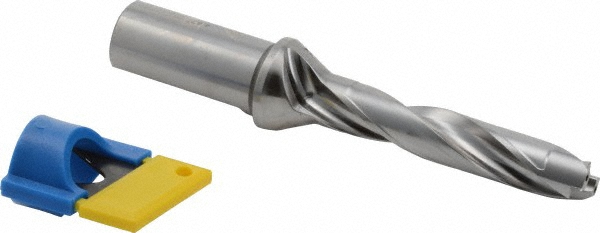

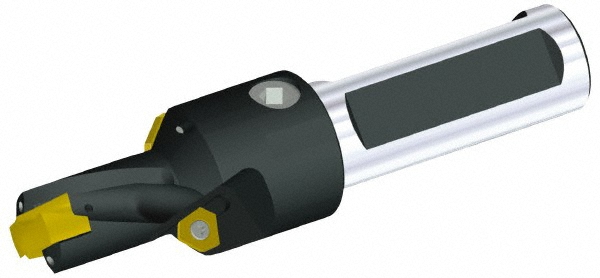

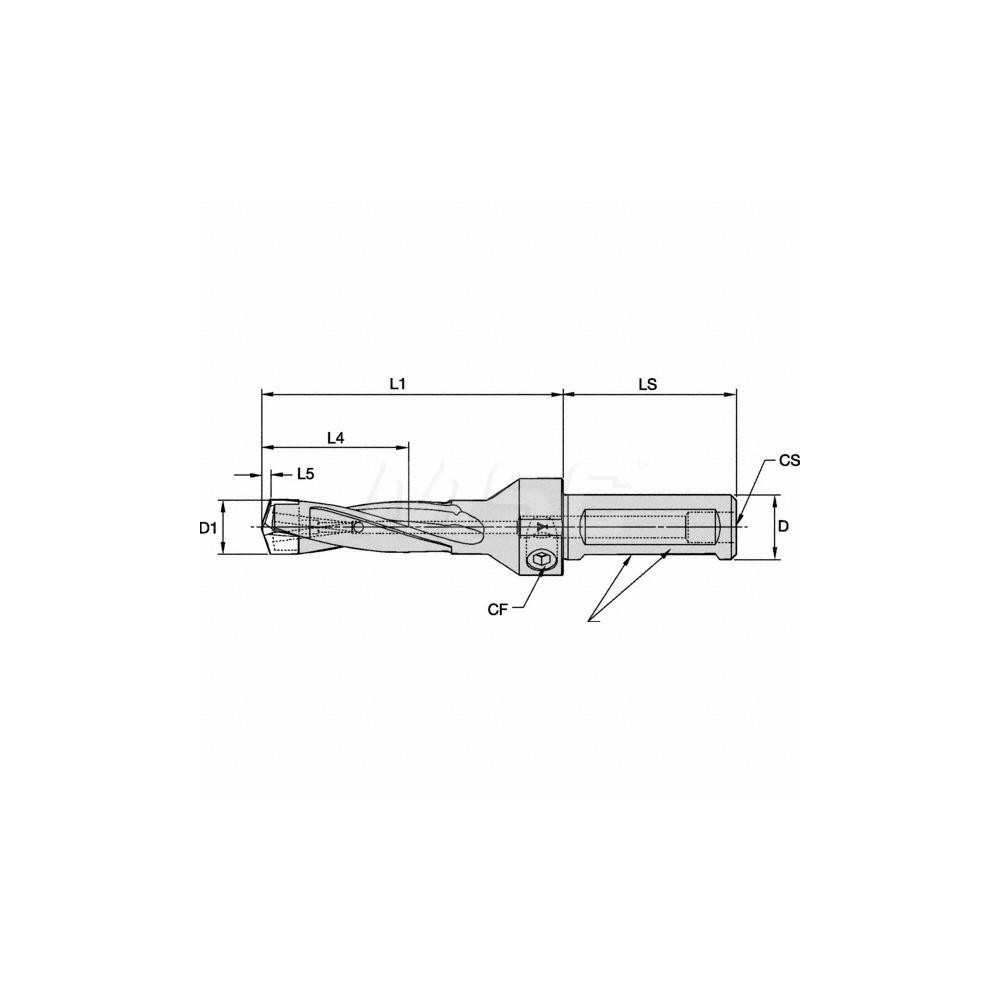

Uses KSEM0688 Inserts, Seat Size 1, 184.15 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.6874 |
|---|---|
| Minimum Drill Diameter (mm) | 17.46 |
| Maximum Drill Diameter (mm) | 17.96 |
| Maximum Drill Diameter (Decimal Inch) | 0.7071 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 90.00 |
| Maximum Drill Depth (Decimal Inch) | 3.5400 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 1 |
| Shank Diameter (mm) | 19.05 |
| Maximum Drill Depth Range (Decimal Inch) | 3.5000 to 4.5000 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |

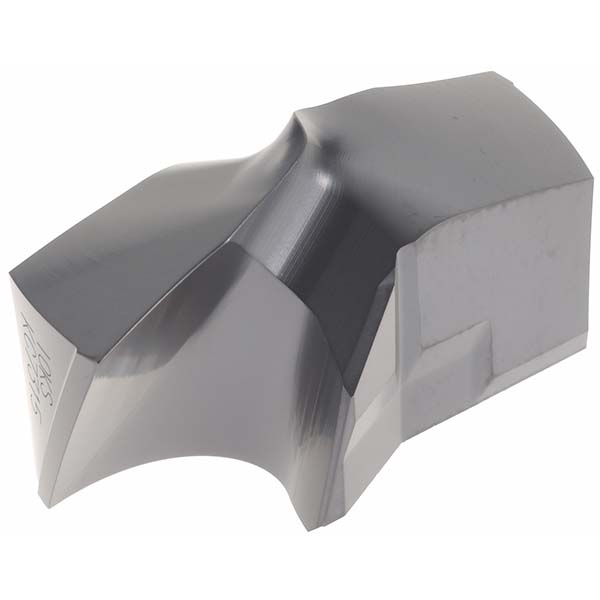

| Compatible Insert Style | KSEM0688 |
| Overall Length (mm) | 184.15 |
| Overall Length (Decimal Inch) | 7.25 |
| Series | KSEM |
| Flute Length (mm) | 111.25 |
| Flute Length (Decimal Inch) | 4.3799 |
| Shank Length (Decimal Inch) | 2.0000 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
