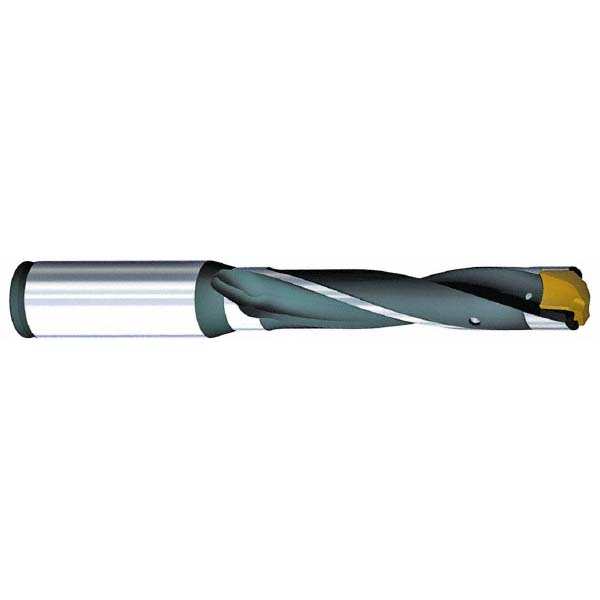

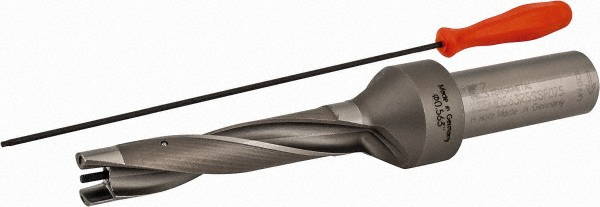

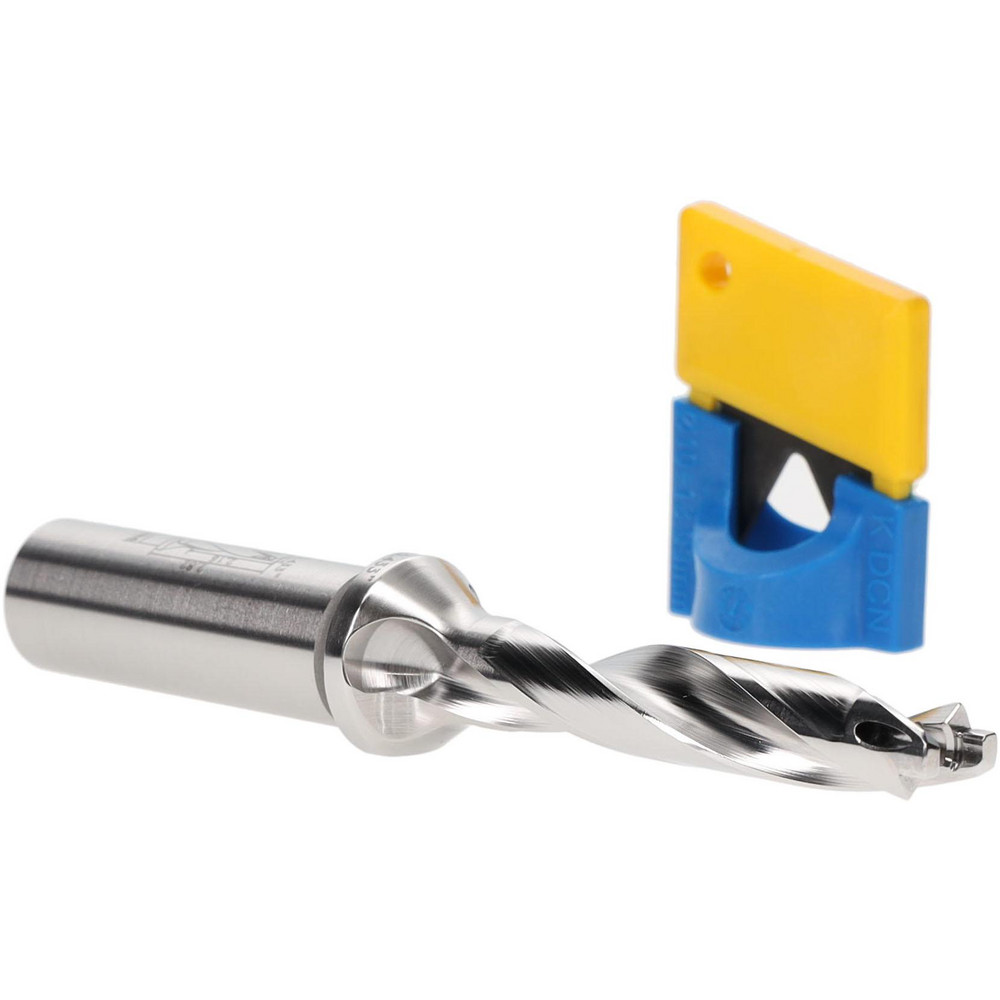

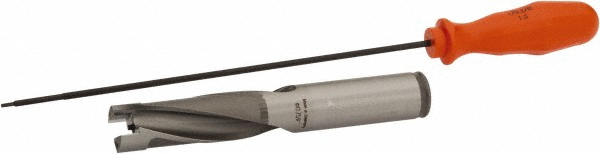

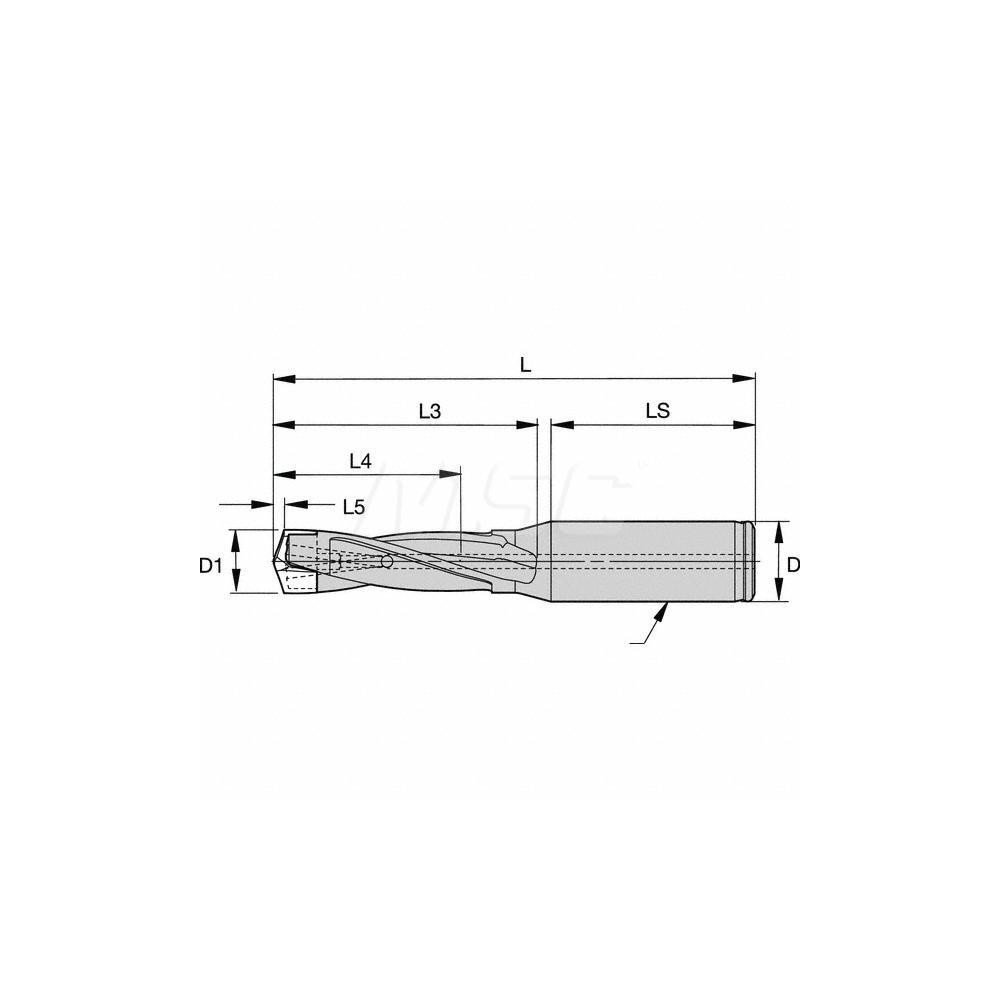

Uses KSEM0719 Inserts, Seat Size 2, 5" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.7189 |
|---|---|
| Minimum Drill Diameter (mm) | 18.26 |
| Maximum Drill Diameter (mm) | 18.76 |
| Maximum Drill Diameter (Decimal Inch) | 0.7386 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 54.77 |
| Maximum Drill Depth (Decimal Inch) | 2.1600 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 2 |
| Shank Diameter (mm) | 19.05 |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | KSEM0719 |
| Overall Length (Decimal Inch) | 5 |
| Series | KSEM |
| Flute Length (Decimal Inch) | 2.8400 |
| Shank Length (Decimal Inch) | 2.0000 |
| Shank Length (mm) | 50.80 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01293273 |
