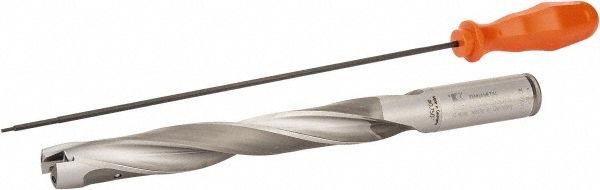

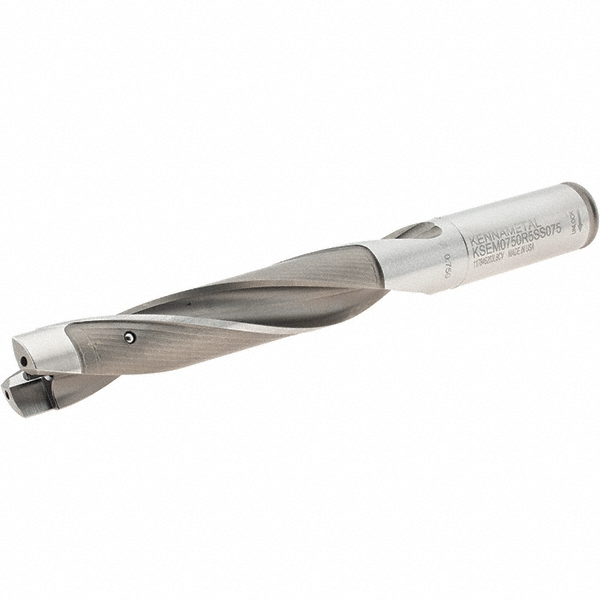

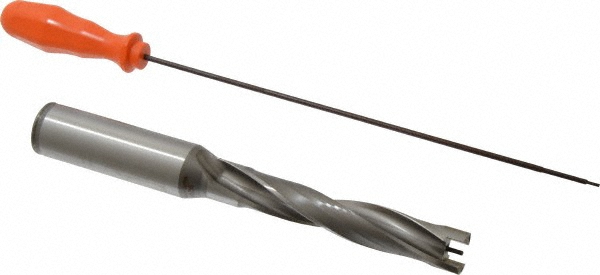

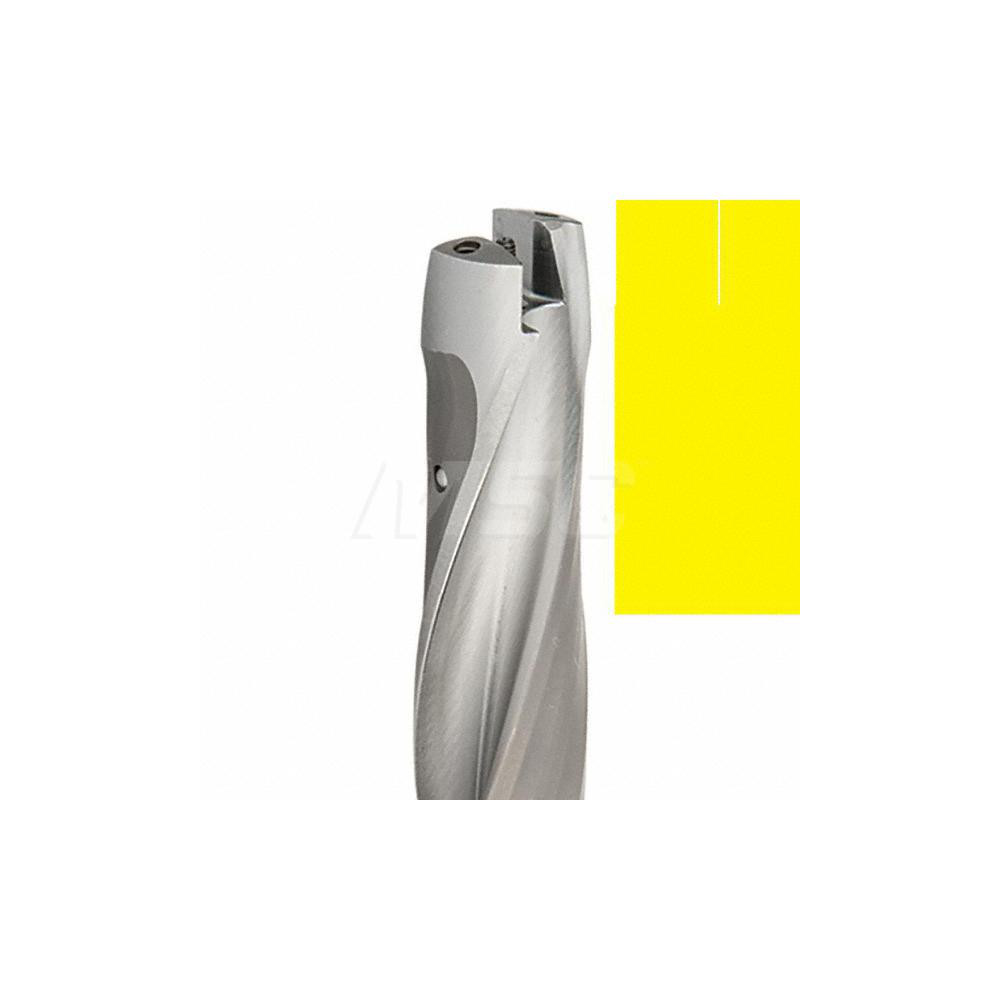

Uses KSEM0750 Inserts, Seat Size 2, 225.43 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.7500 |
|---|---|
| Minimum Drill Diameter (mm) | 19.05 |
| Maximum Drill Diameter (mm) | 19.55 |
| Maximum Drill Diameter (Decimal Inch) | 0.7697 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 140.00 |
| Maximum Drill Depth (Decimal Inch) | 5.5100 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 2 |
| Shank Diameter (mm) | 19.05 |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Maximum Drill Depth Range (mm) | 125.00 to 160.00 |

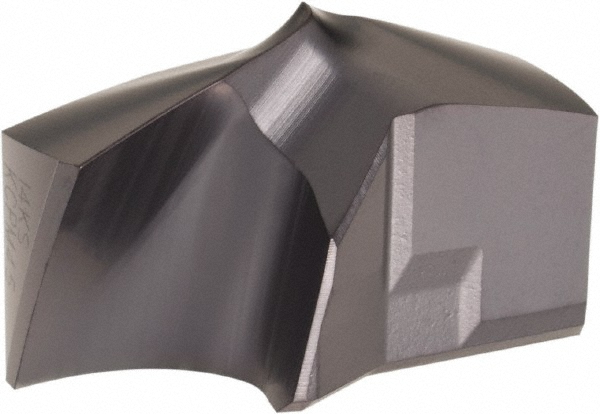

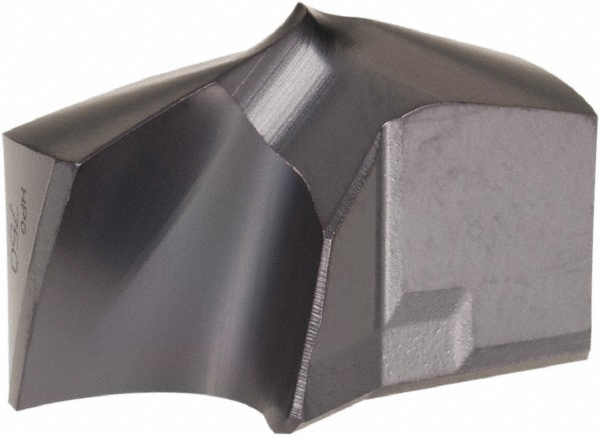

| Compatible Insert Style | KSEM0750 |
| Overall Length (mm) | 225.43 |
| Overall Length (Decimal Inch) | 8.8752 |
| Series | KSEM |
| Flute Length (mm) | 170.61 |
| Flute Length (Decimal Inch) | 6.7169 |
| Shank Length (Decimal Inch) | 2.0000 |
| Shank Length (mm) | 50.80 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01292119 |
