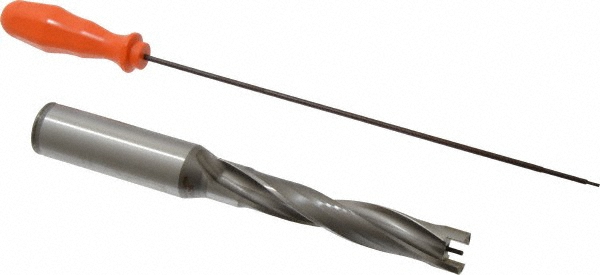

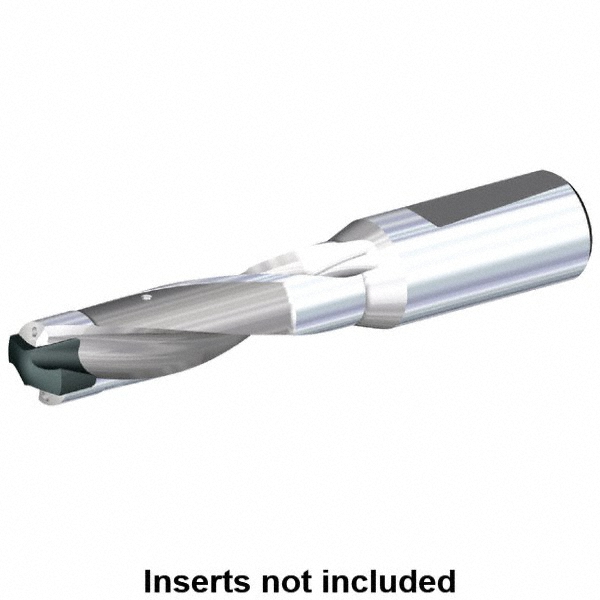

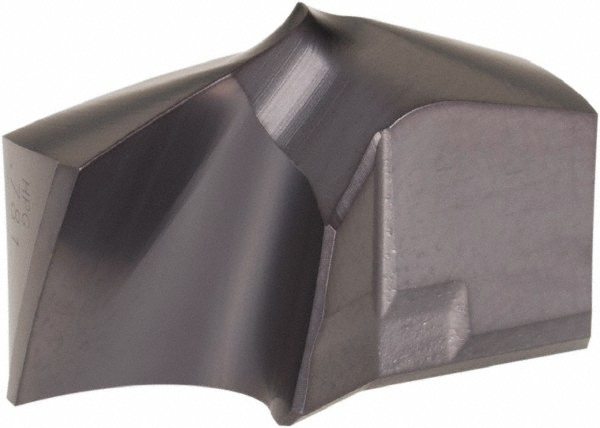

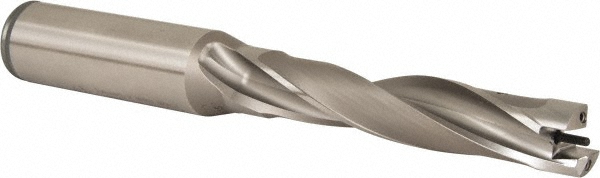

Uses KSEM0781 Inserts, Seat Size 2, 206.38 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.7815 |
|---|---|
| Minimum Drill Diameter (mm) | 19.85 |
| Maximum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 100.08 |
| Maximum Drill Depth (Decimal Inch) | 3.9402 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 2 |
| Shank Diameter (mm) | 25.40 |
| Maximum Drill Depth Range (Decimal Inch) | 3.5000 to 4.5000 |
| Maximum Drill Depth Range (mm) | 100.00 to 125.00 |
| Compatible Insert Style | KSEM0781 |

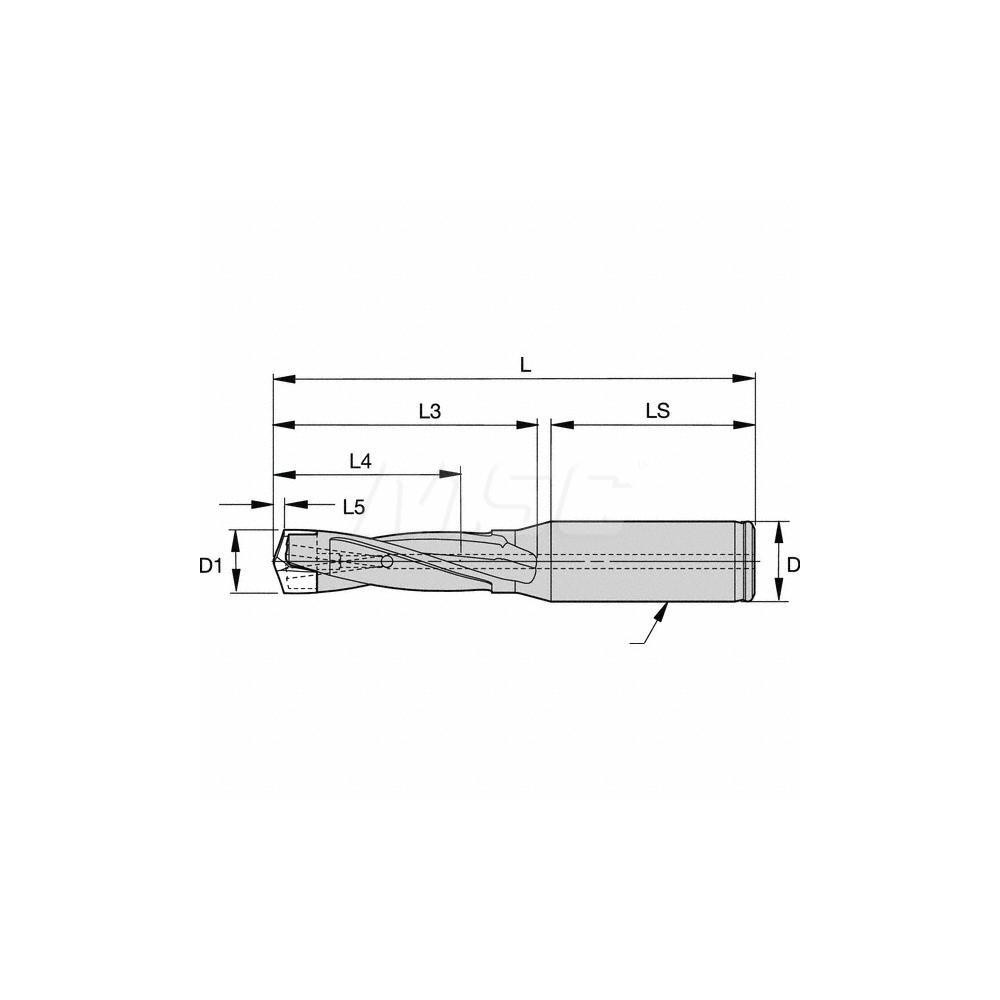

| Overall Length (mm) | 206.38 |
| Overall Length (Decimal Inch) | 8.1252 |
| Series | KSEM |
| Flute Length (mm) | 126.16 |
| Flute Length (Decimal Inch) | 4.9669 |
| Shank Length (Decimal Inch) | 3.0000 |
| Shank Length (mm) | 76.20 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 85123503 |
