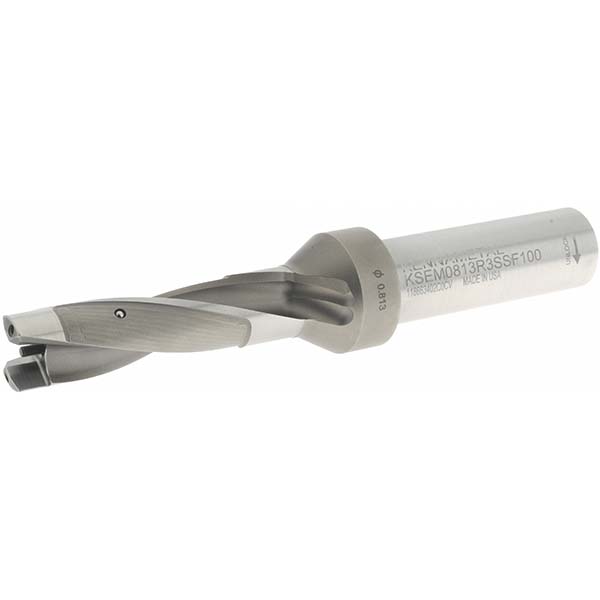

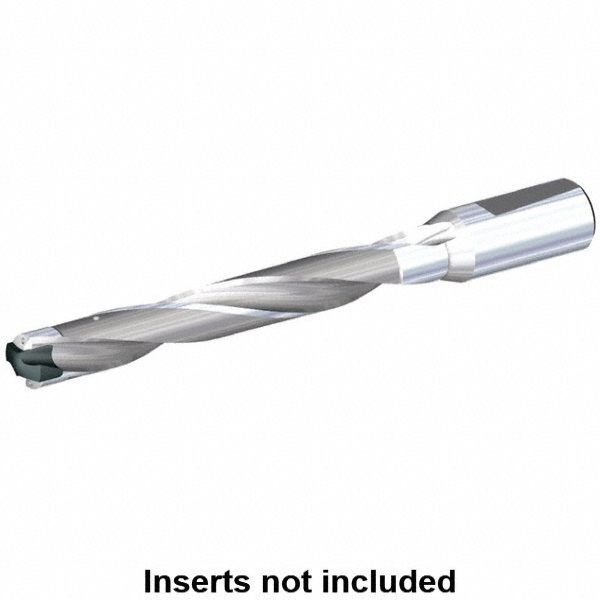

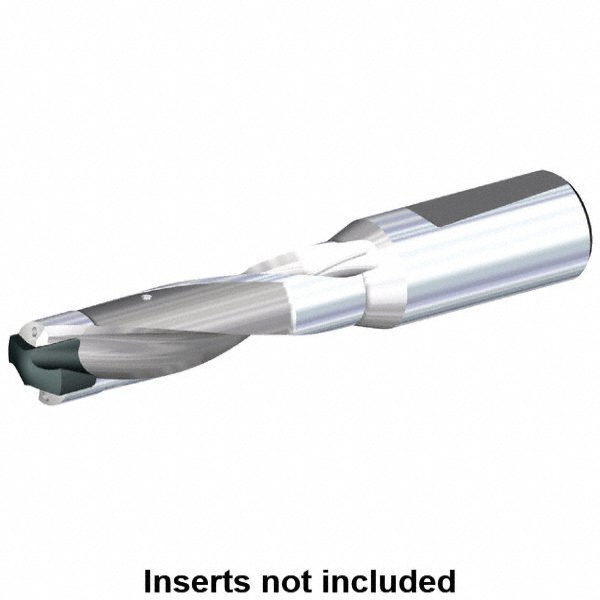

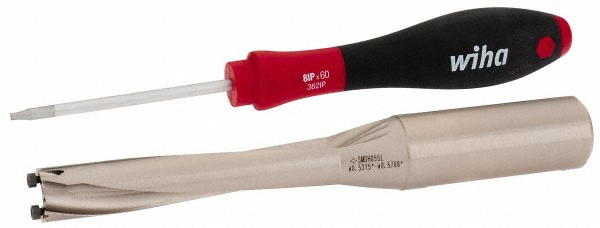

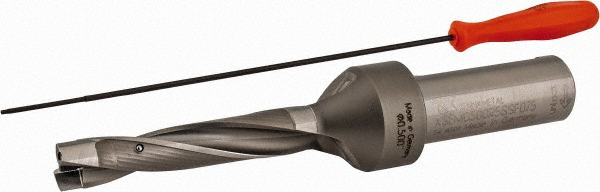

Uses KSEM2050 Inserts, Seat Size 3, 197 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.8071 |
|---|---|
| Minimum Drill Diameter (mm) | 20.50 |
| Maximum Drill Diameter (mm) | 21.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.8268 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 110.00 |
| Shank Type | Whistle Notch |
| Insert Seat Size | 3 |
| Shank Diameter (mm) | 25.00 |
| Maximum Drill Depth Range (mm) | 100.00 to 125.00 |

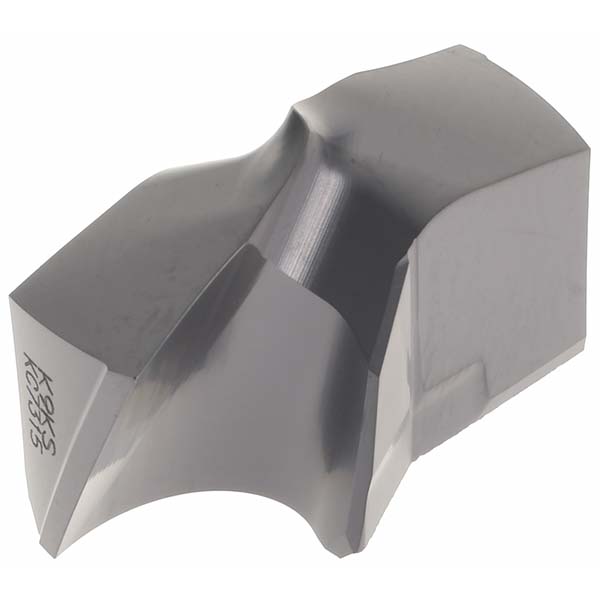

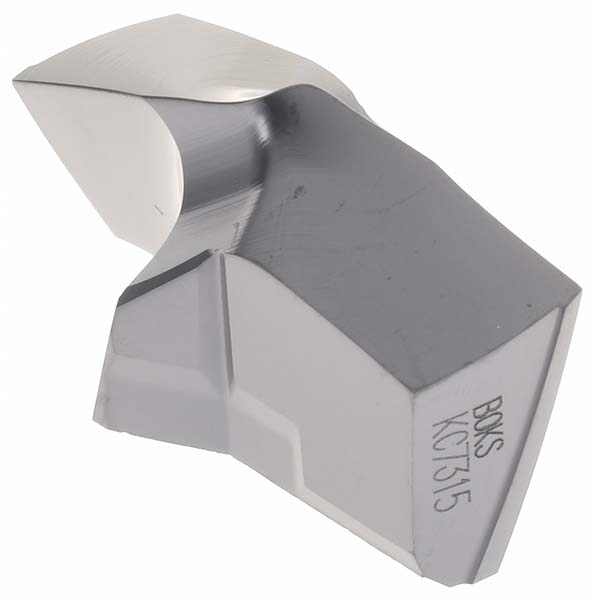

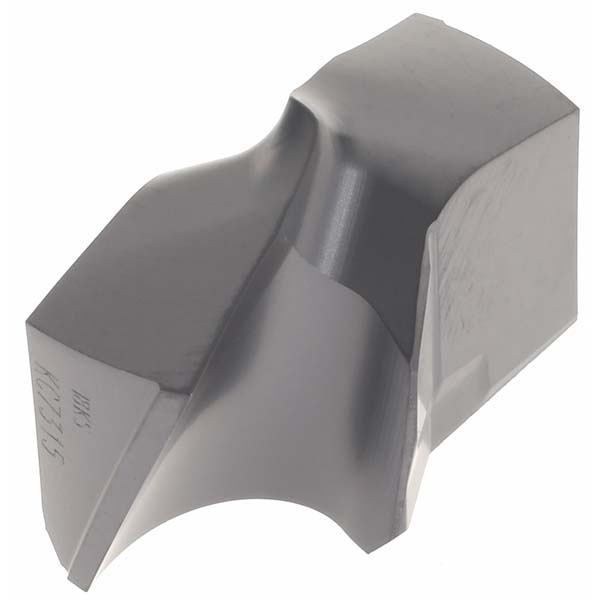

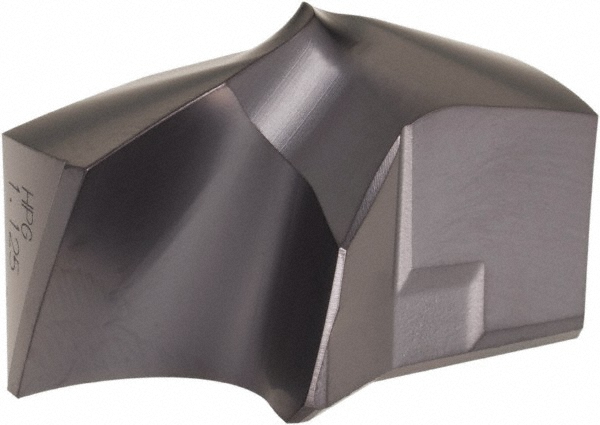

| Compatible Insert Style | KSEM2050 |

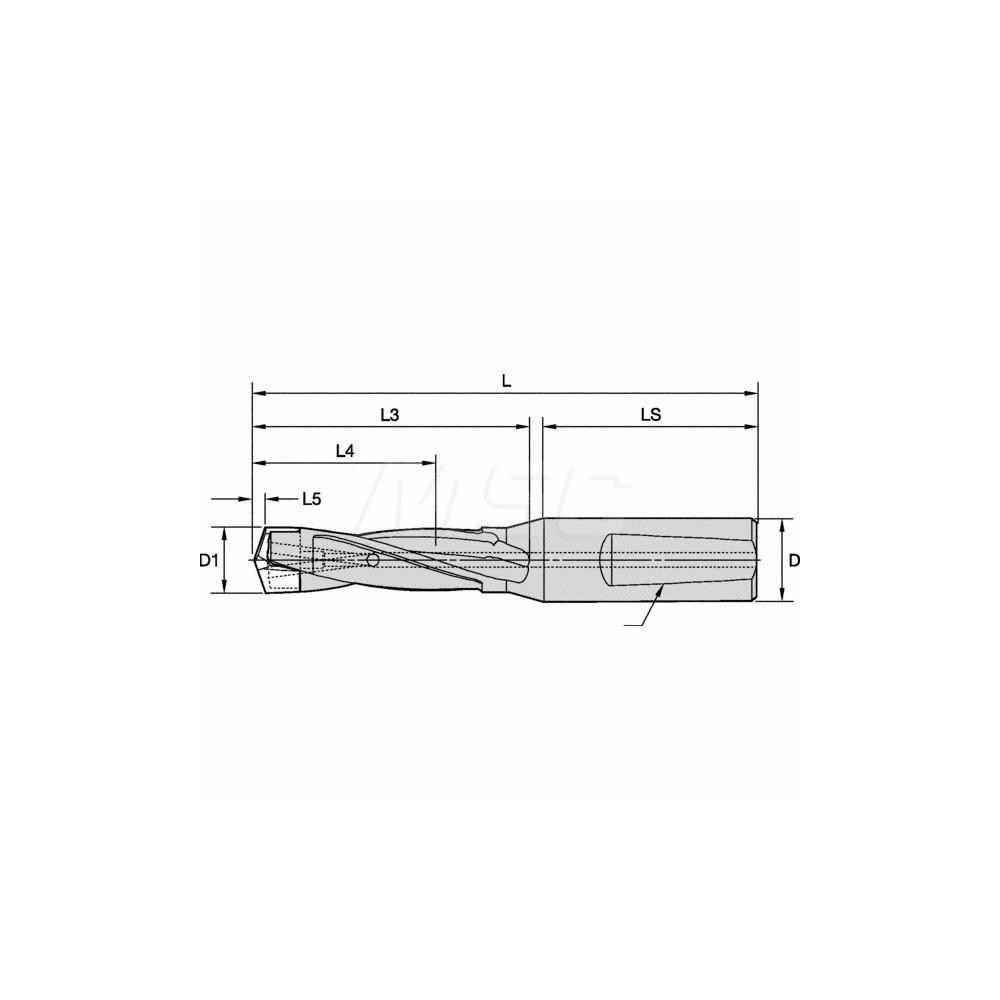

| Overall Length (mm) | 197 |
| Series | KSEM |
| Flute Length (mm) | 136.00 |
| Flute Length (Decimal Inch) | 5.3543 |
| Shank Length (mm) | 56.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 05679659 |
