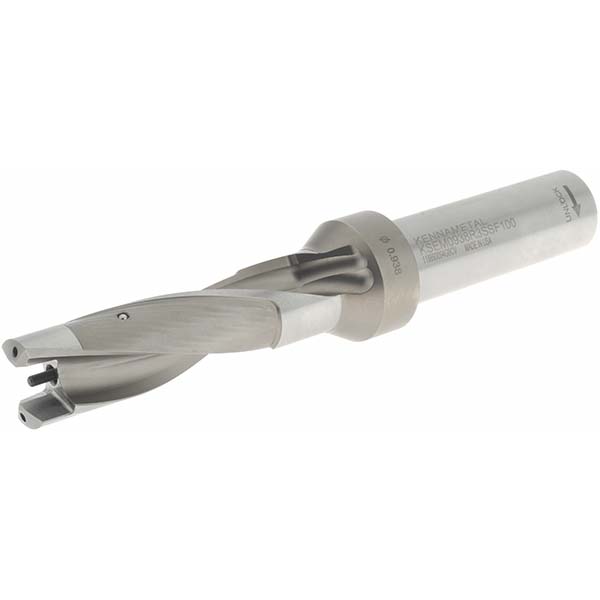

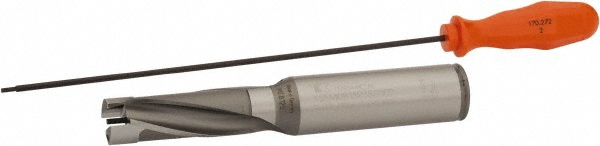

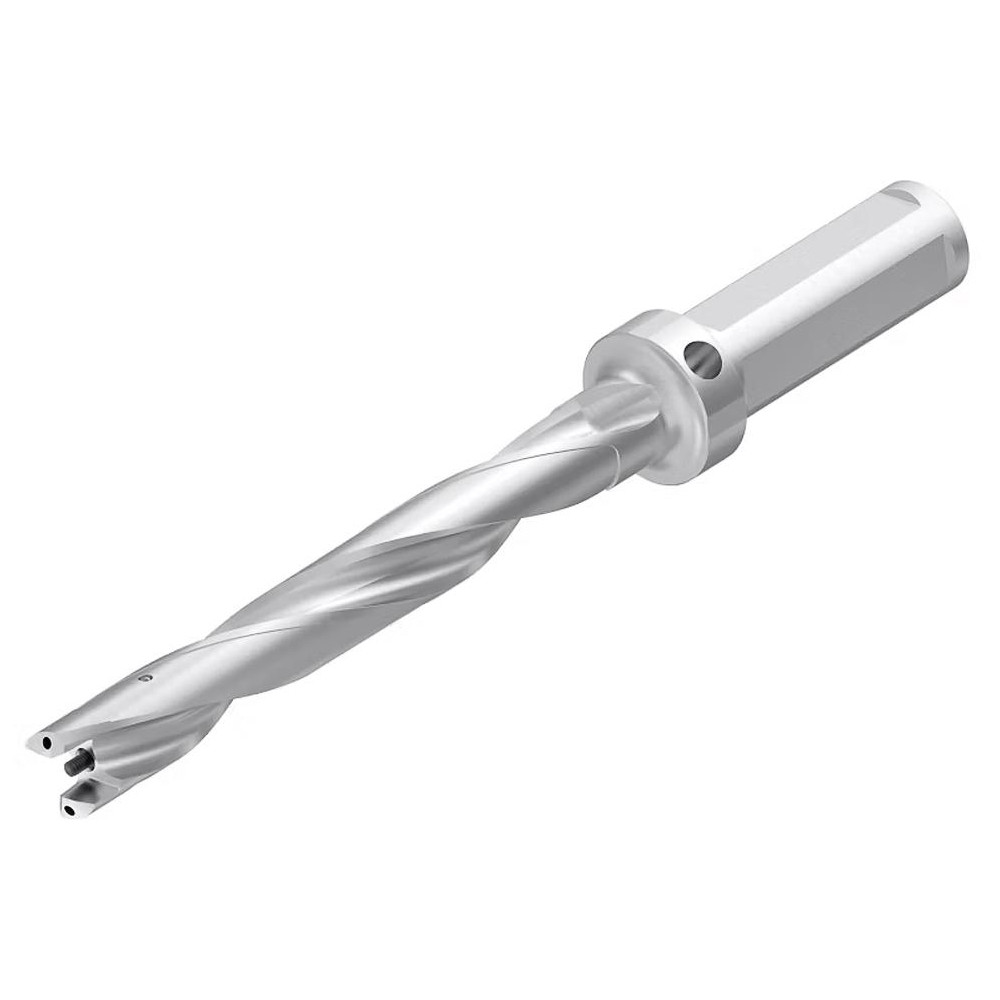

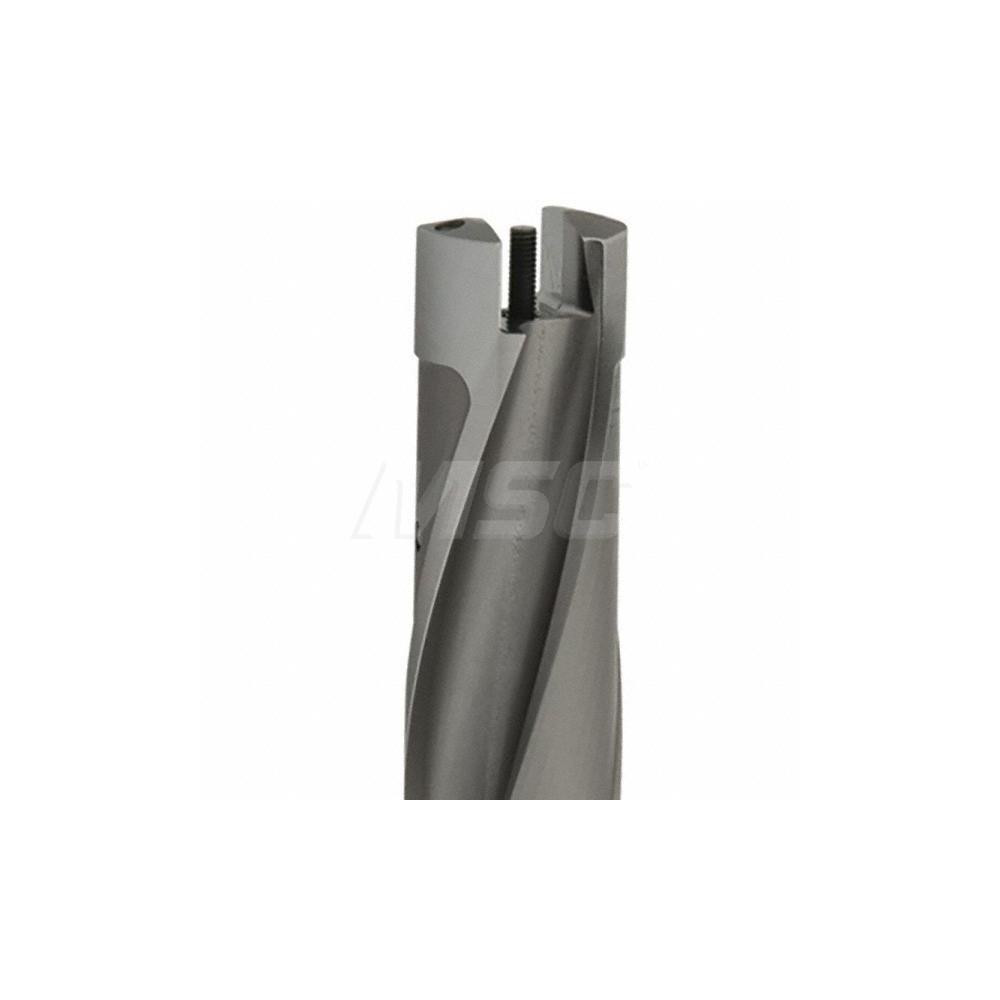

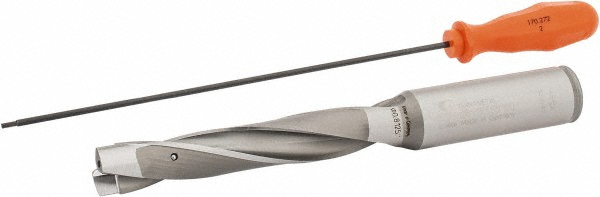

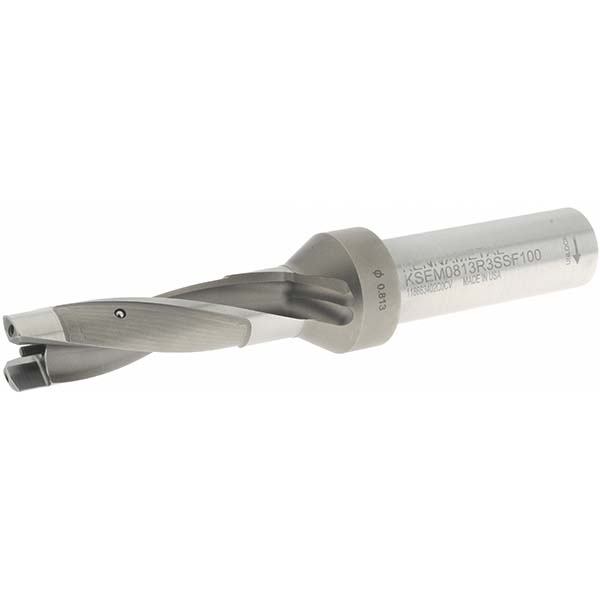

Uses KSEM0813 Inserts, Seat Size 3, 6.38" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.8126 |
|---|---|
| Minimum Drill Diameter (mm) | 20.64 |
| Maximum Drill Diameter (mm) | 21.14 |
| Maximum Drill Diameter (Decimal Inch) | 0.8323 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 61.91 |
| Maximum Drill Depth (Decimal Inch) | 2.4400 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 3 |
| Shank Diameter (mm) | 25.40 |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | KSEM0813 |
| Overall Length (Decimal Inch) | 6.38 |
| Series | KSEM |
| Flute Length (Decimal Inch) | 3.2200 |
| Shank Length (Decimal Inch) | 3.0000 |
| Shank Length (mm) | 76.20 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01293364 |
