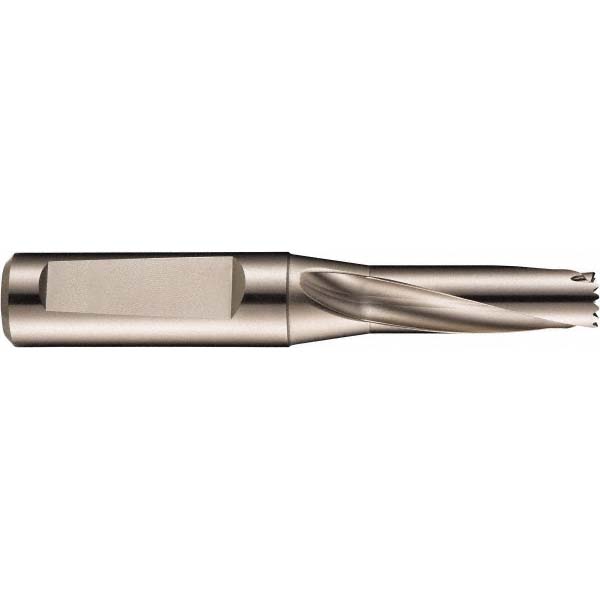

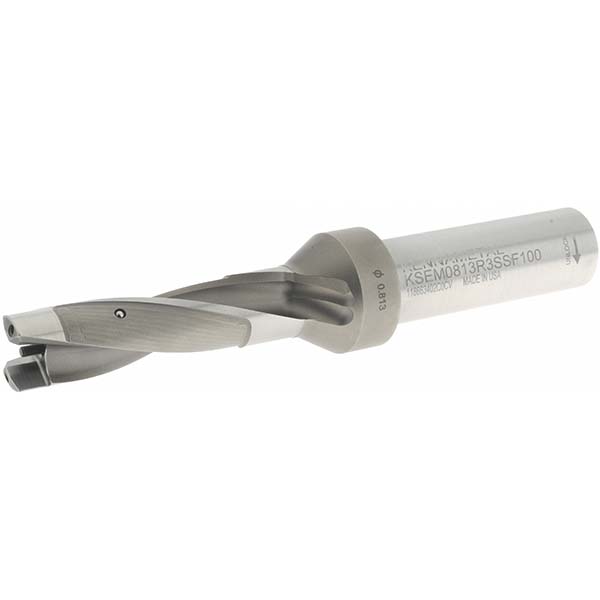

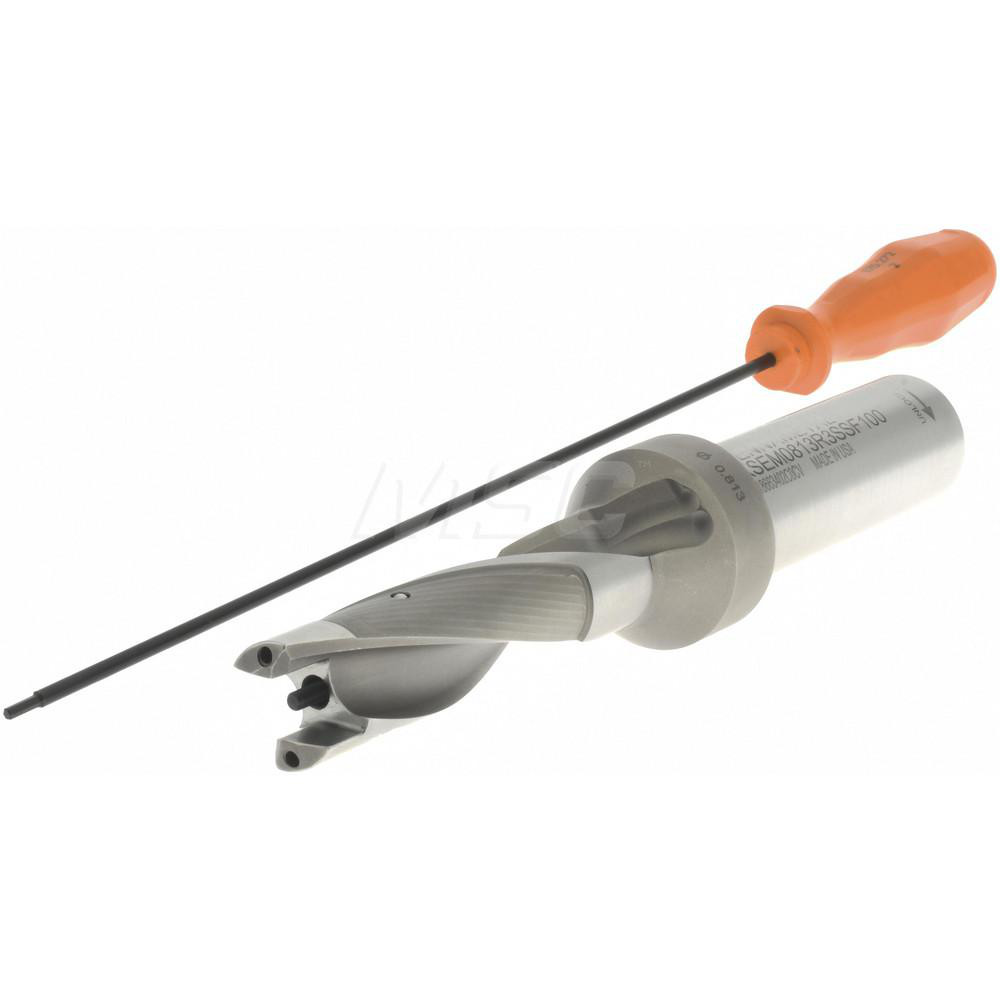

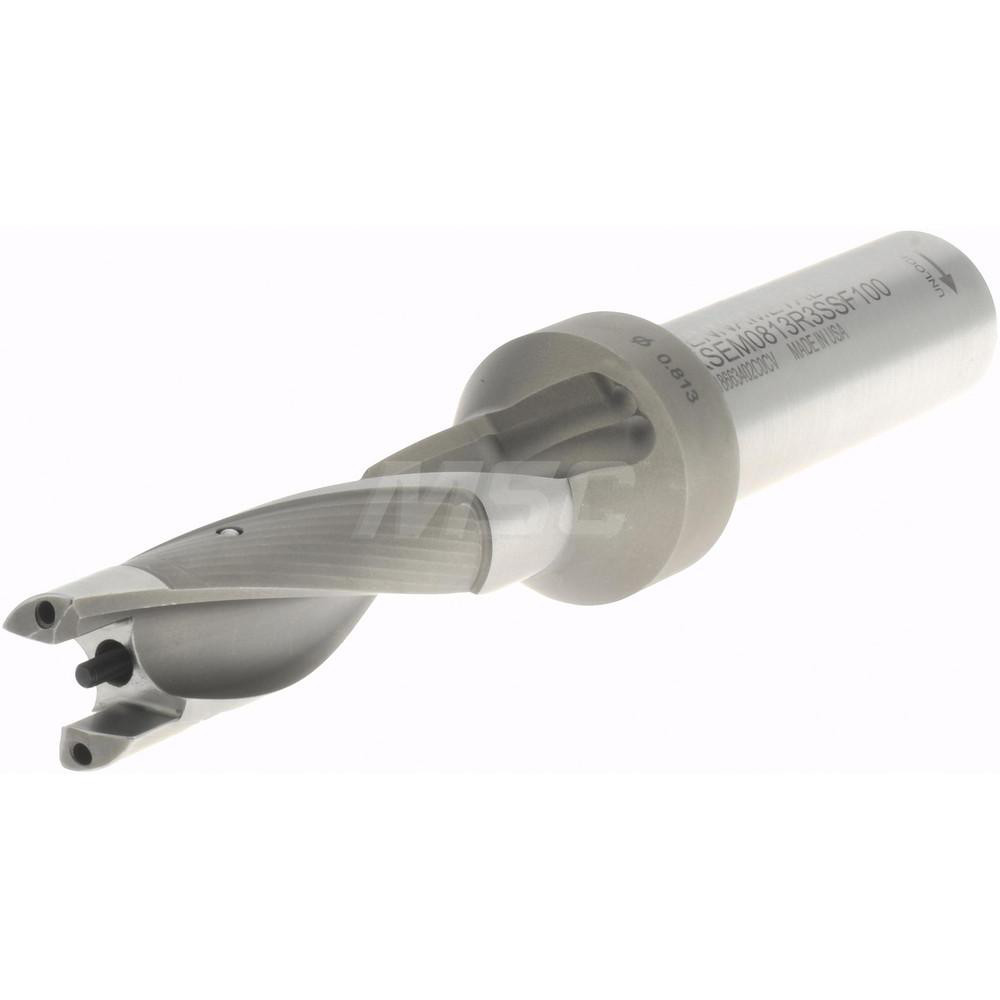

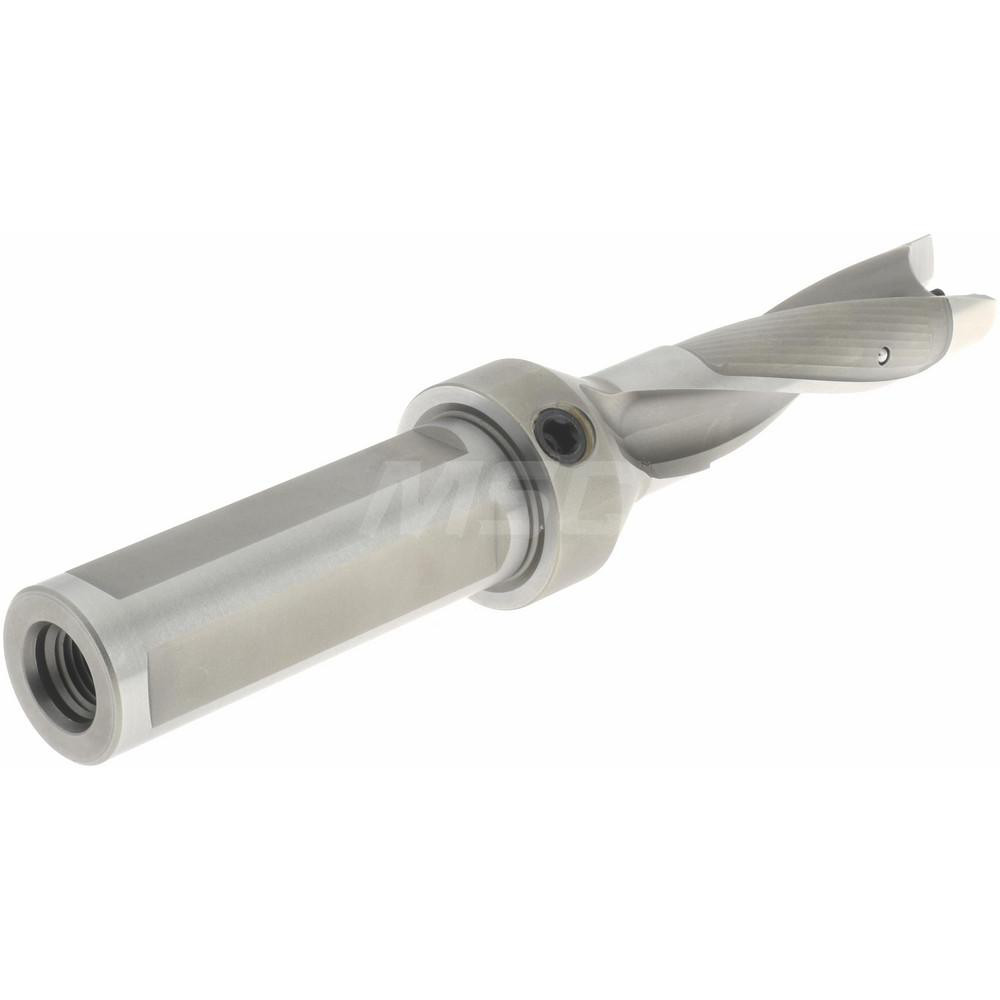

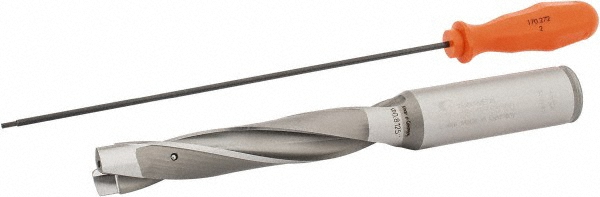

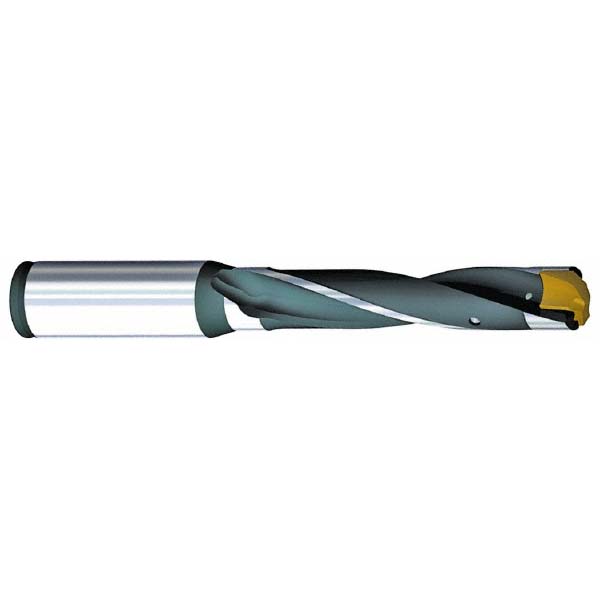

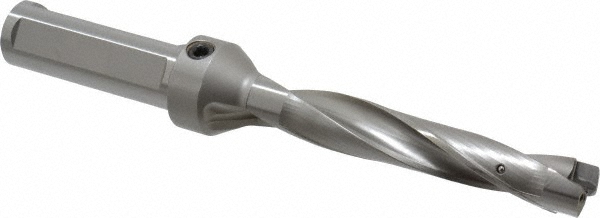

Uses KSEM0813 Inserts, Seat Size 3, 190.5 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.8126 |
|---|---|
| Minimum Drill Diameter (mm) | 20.64 |
| Maximum Drill Diameter (mm) | 21.14 |
| Maximum Drill Diameter (Decimal Inch) | 0.8323 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 66.00 |
| Maximum Drill Depth (Decimal Inch) | 2.6000 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 3 |
| Shank Diameter (mm) | 25.40 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | KSEM0813 |
| Overall Length (mm) | 190.5 |
| Overall Length (Decimal Inch) | 7.5 |
| Series | KSEM |
| Flute Length (mm) | 92.46 |
| Flute Length (Decimal Inch) | 3.6402 |
| Shank Length (Decimal Inch) | 3.0000 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 02734697 |
