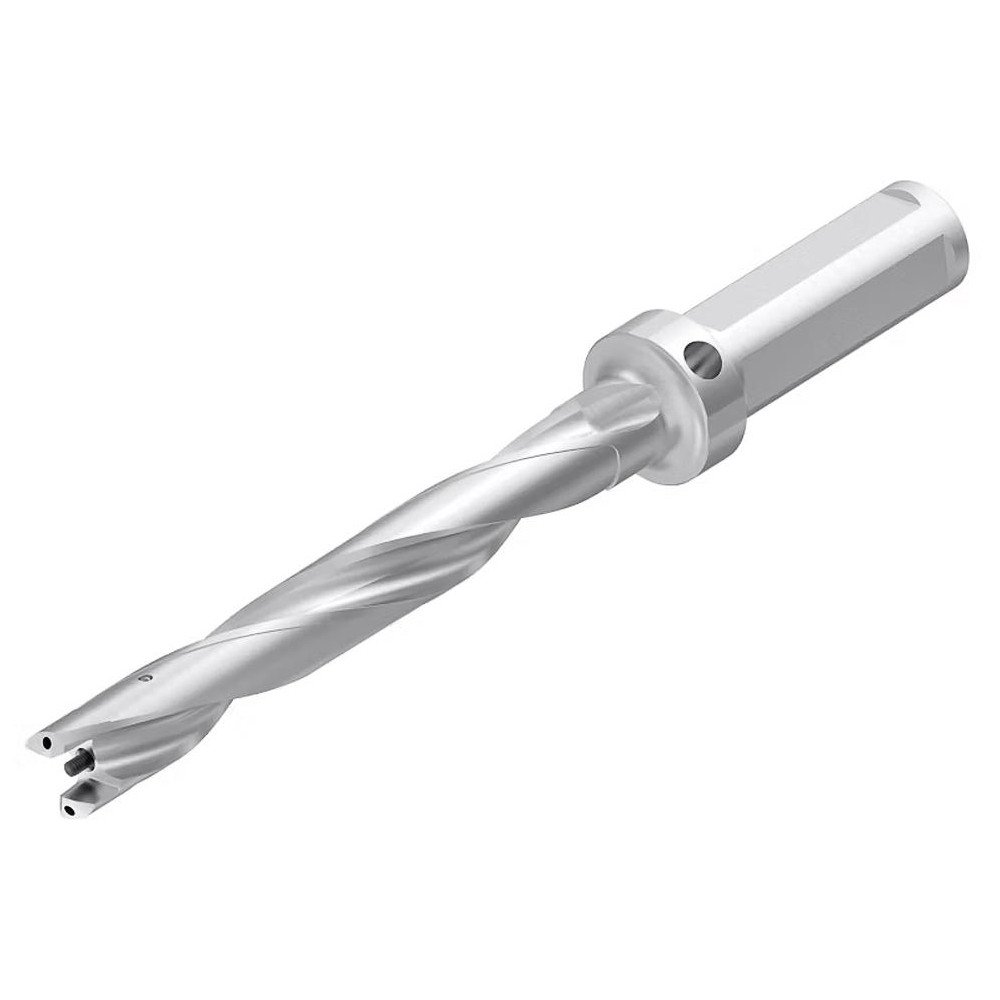

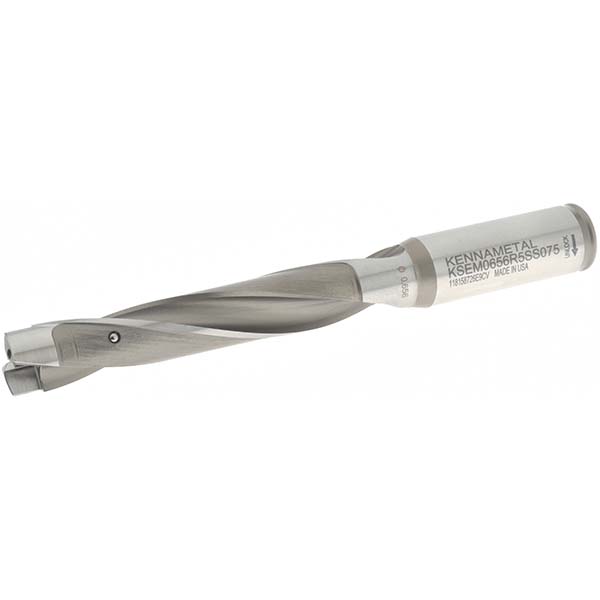

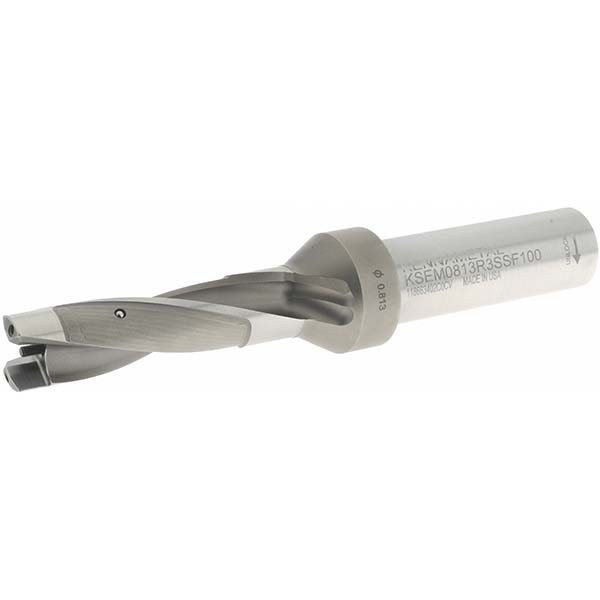

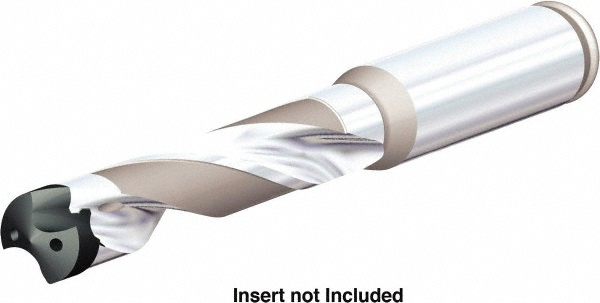

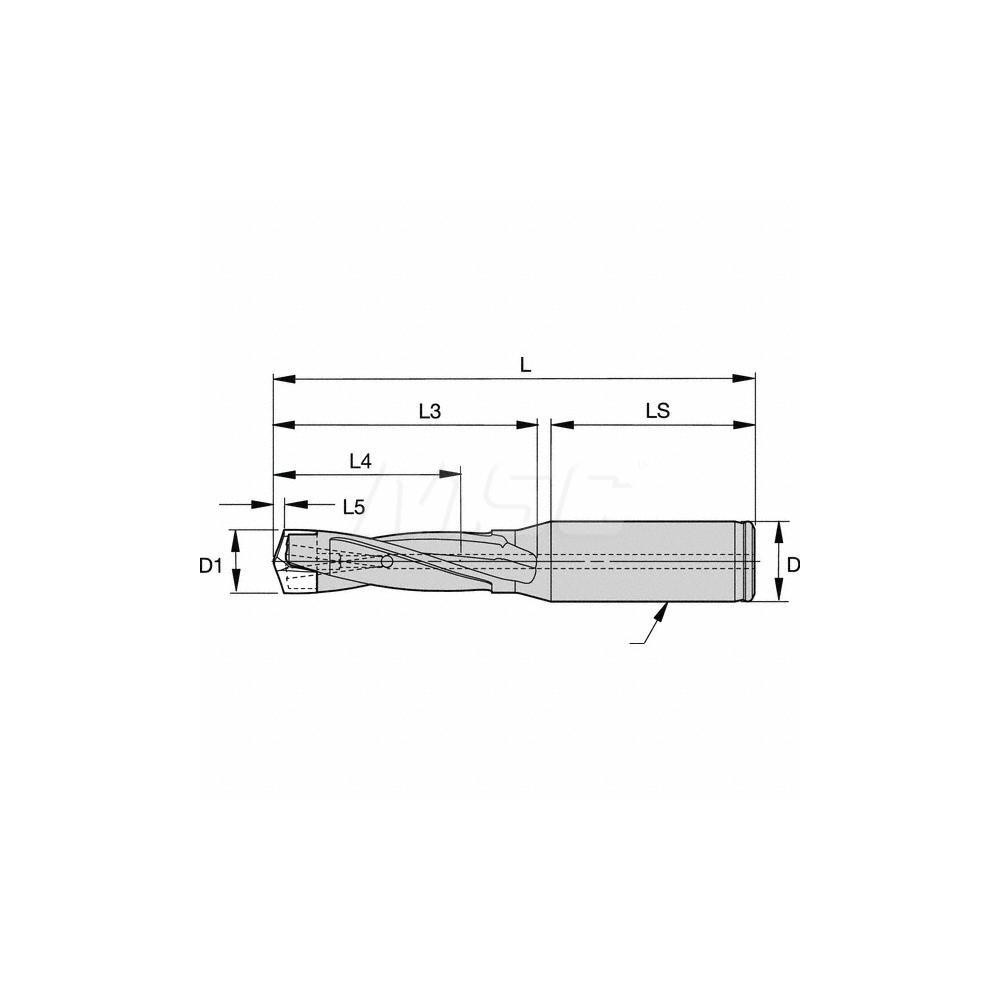

Uses KSEM0844 Inserts, Seat Size 3, 6-1/2" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.8441 |
|---|---|
| Minimum Drill Diameter (mm) | 21.44 |
| Maximum Drill Diameter (mm) | 21.93 |
| Maximum Drill Diameter (Decimal Inch) | 0.8634 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 64.30 |
| Maximum Drill Depth (Decimal Inch) | 2.5300 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 3 |
| Shank Diameter (mm) | 25.40 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |

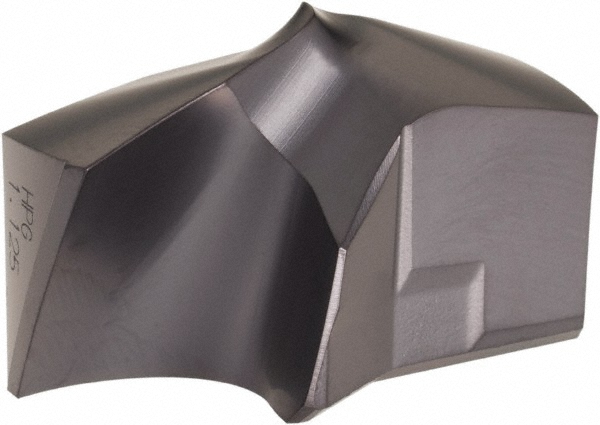

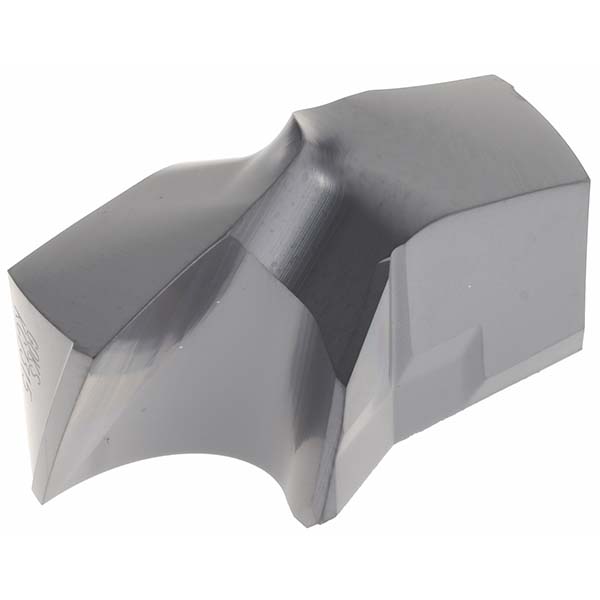

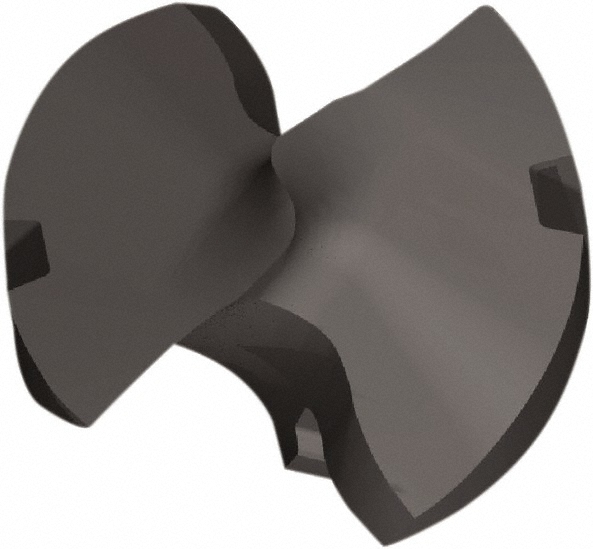

| Compatible Insert Style | KSEM0844 |
| Overall Length (Decimal Inch) | 6.5 |
| Series | KSEM |
| Flute Length (Decimal Inch) | 3.3400 |
| Shank Length (Decimal Inch) | 3.0000 |
| Shank Length (mm) | 76.20 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01293372 |
