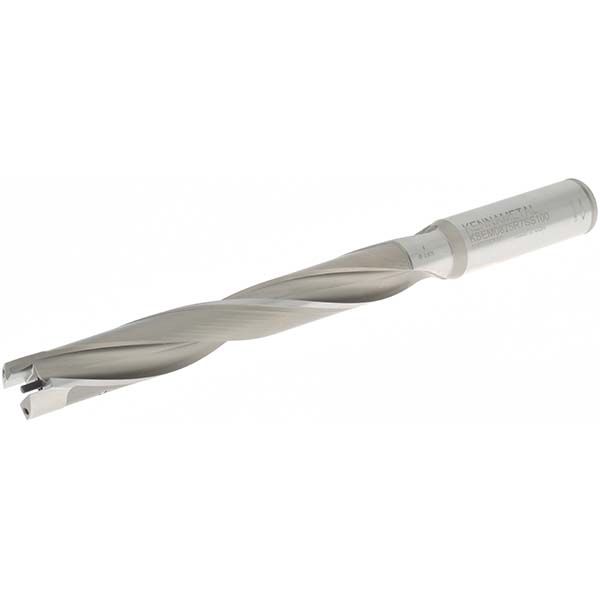

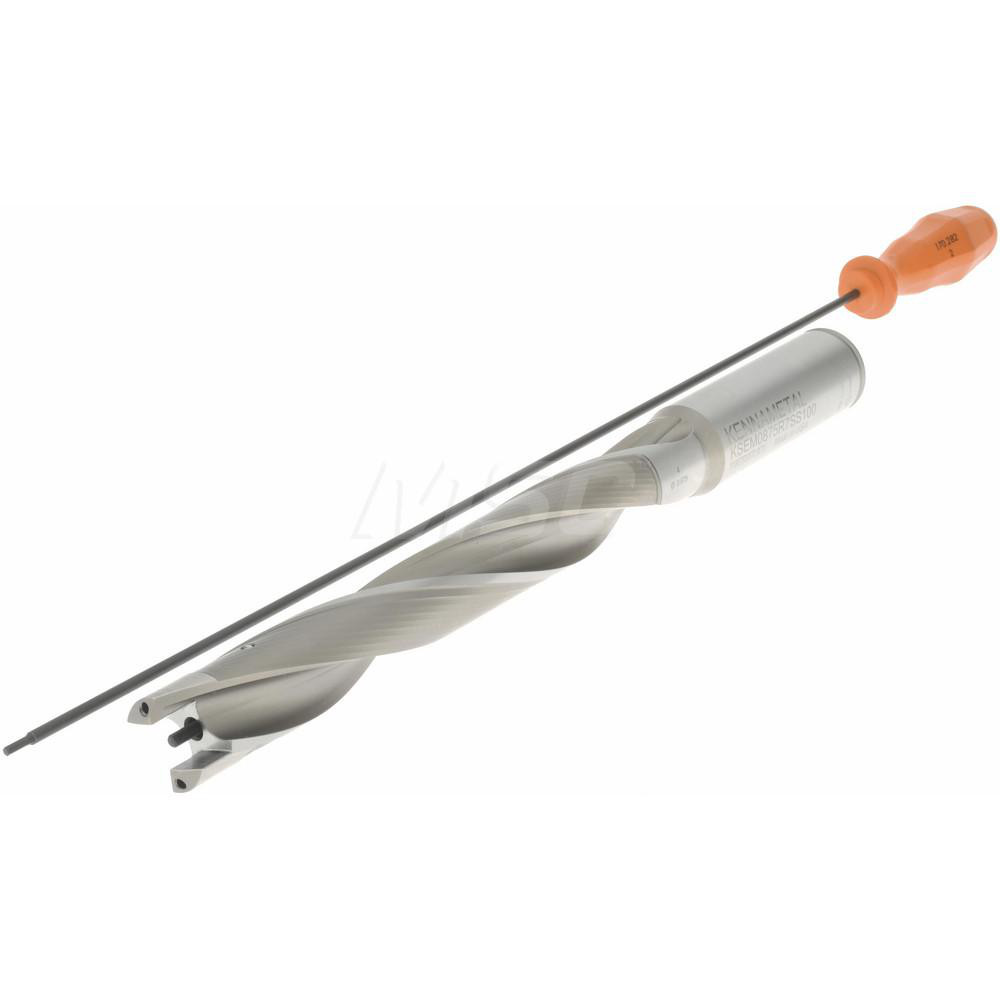

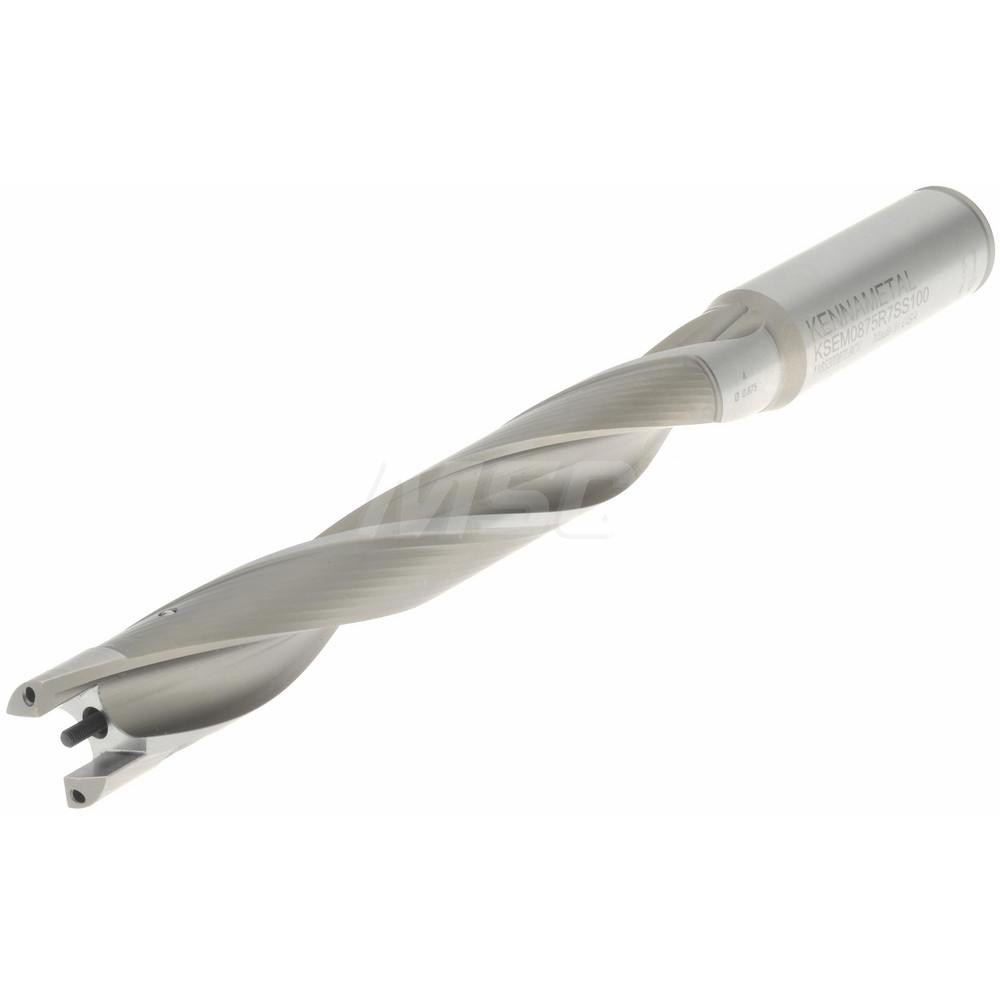

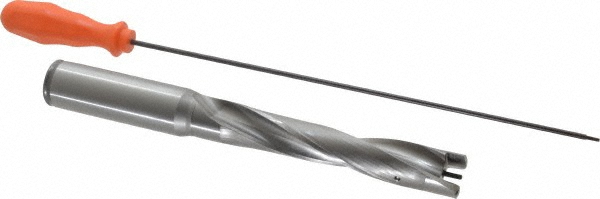

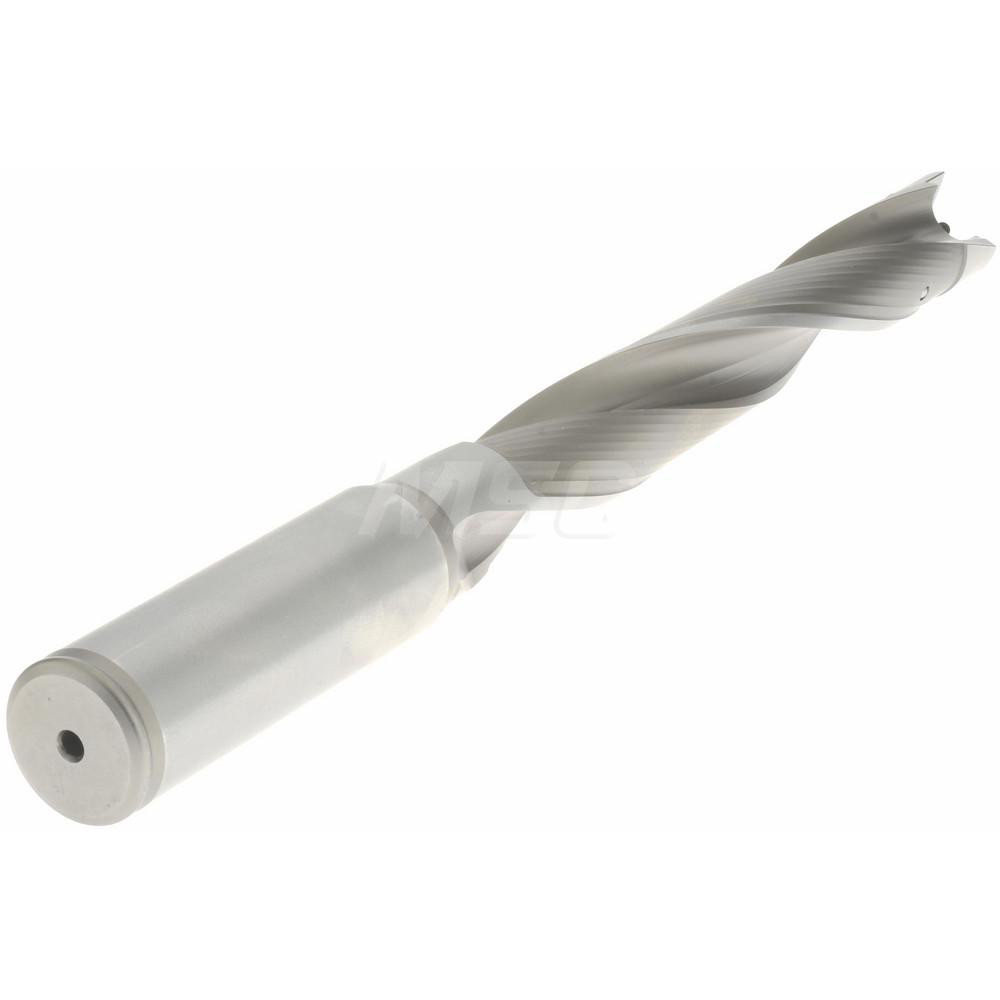

Uses KSEM0875 Inserts, Seat Size 4, 276.23 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.8752 |
|---|---|
| Minimum Drill Diameter (mm) | 22.23 |
| Maximum Drill Diameter (mm) | 22.73 |
| Maximum Drill Diameter (Decimal Inch) | 0.8949 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 168.00 |
| Maximum Drill Depth (Decimal Inch) | 6.6100 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 4 |
| Shank Diameter (mm) | 25.40 |
| Maximum Drill Depth Range (Decimal Inch) | 6.0000 to 8.0000 |
| Maximum Drill Depth Range (mm) | 160.00 to 200.00 |

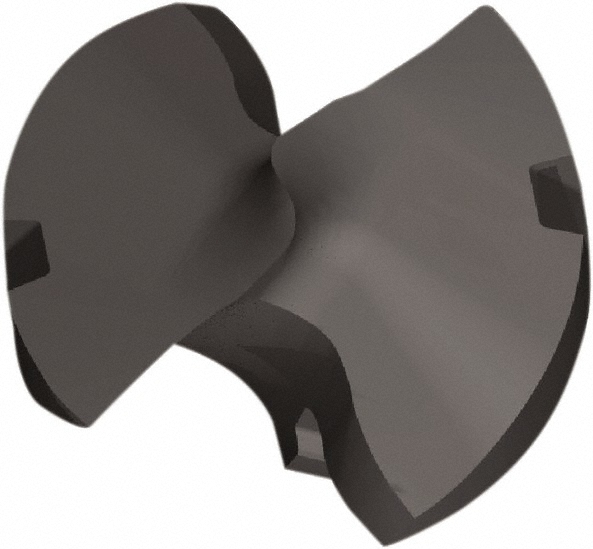

| Compatible Insert Style | KSEM0875 |
| Overall Length (mm) | 276.23 |
| Overall Length (Decimal Inch) | 10.8752 |
| Series | KSEM |
| Flute Length (mm) | 196.01 |
| Flute Length (Decimal Inch) | 7.7169 |
| Shank Length (Decimal Inch) | 3.0000 |
| Shank Length (mm) | 76.20 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01292168 |
